| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Heating capacity | 18 kW |
| Max. heating area | 110-140 m² |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Engine (motor) power | 60 W |
| Fuel tank capacity | 60 l |
| Fuel type | diesel, oil |
| Fuel consumption | 1.42 kg/h |
| Pump pressure | 10 bar |
| Temperature control | yes |
| Thermostat type | manual |
| Digital control panel | yes |
| Display type | LED |
| Time setting (timer) | yes, every 1 hour (1-24 hours) |
| Dimensions | 1305x431x1115 mm |
| Tank operating time | ~36 h |
| Working temperature range | 0-55 ˚C |
| Electric insulation class | I |
| Weight | 56.2 kg |
| Application | for heating public spaces |
| Symbol | YT-99763 |

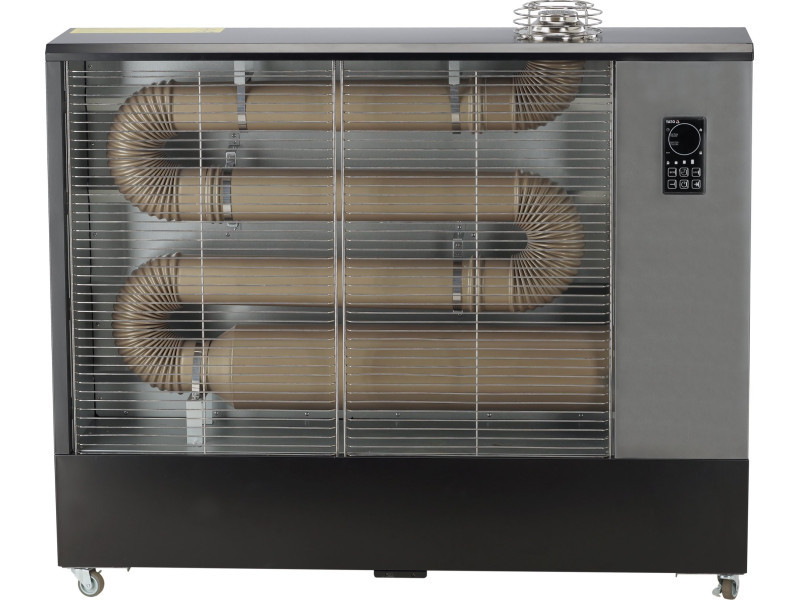

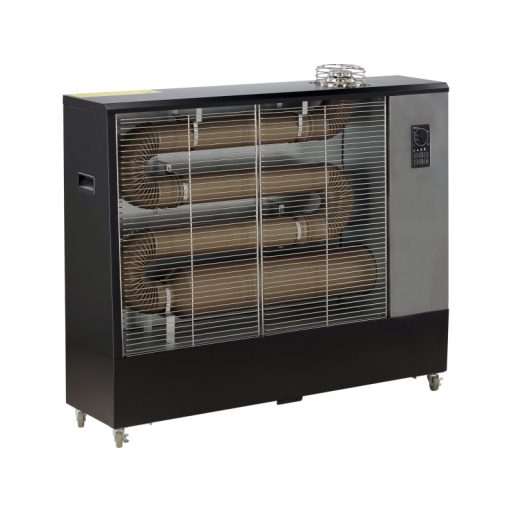

Portable oil infrared heater designed for efficient heating of public utility rooms. It helps to provide quick thermal comfort in workshops, halls, warehouses, and effective drying of wall surfaces during renovation and construction works.
Infrared heating evenly distributes heat and works directly, reaching objects, walls, and surfaces, which then release it to the surroundings. This prevents energy losses associated with the need to heat the entire air. The heat is felt very quickly after the system is turned on, and the lack of air currents does not generate drafts and dust suspension in the room. This technology also helps maintain a natural level of humidity without drying out the air.

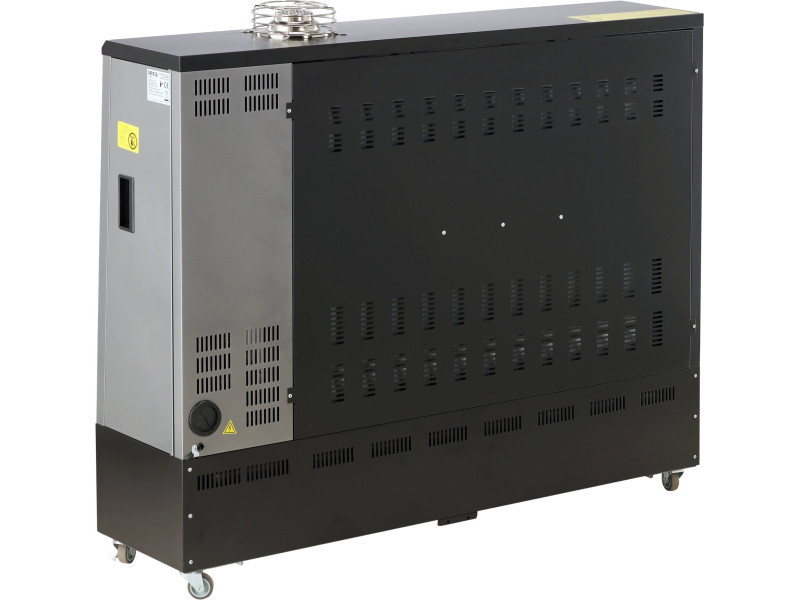

A manual thermostat and timer allow precise adjustment of temperature and working time according to current needs. The digital display indicates the operating parameters. The sturdy powder-coated metal housing protects the device from mechanical damage and corrosion.
- heating power: 18 kW
- engine power: 60 W
- heating area: 110-140 m²
- fuel: diesel/fuel oil
- fuel consumption: 1.42 l/h
- pump pressure: 10 bar
- fuel tank capacity: 60 l
- manual thermostat

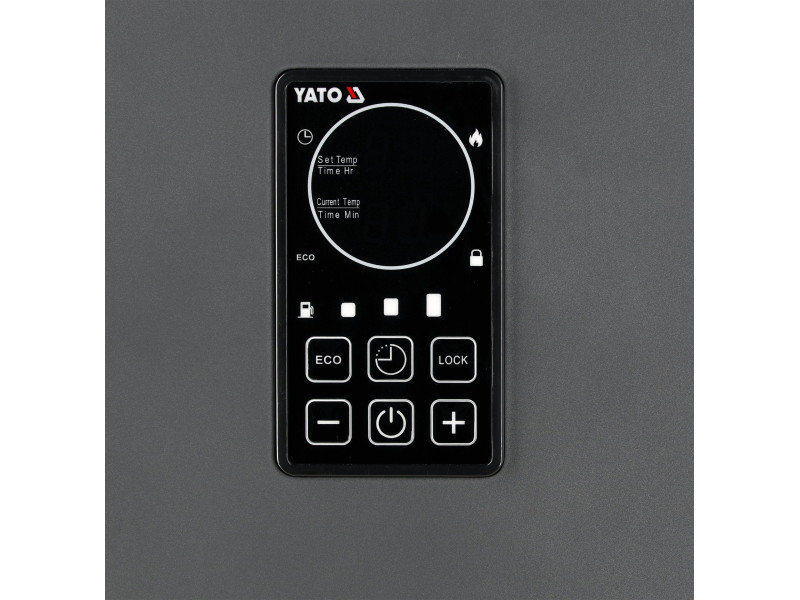

- digital control panel with LED display
- setting working time every 1 hour (1-24 h)
- working time on tank: 36 h
- working temperature range: 0-55˚C
- 1.2 m long cable
- dimensions: 130.5 x 43 x 111.5 cm
- weight: 56.2 kg
Usage warnings:
WARNING! 1. Read the full user manual before use. 2. Use only in well-ventilated areas. 3. Keep a minimum distance of 5 cm from the appliance — risk of burns from hot surfaces. 4. Place the appliance on a stable, non-flammable, and level surface. 5. Operate according to the user manual and applicable safety regulations.
WARNING! DO NOT OPEN THE DOOR DURING OPERATION
