| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Heating capacity | 13 kW |
| Max. heating area | 70-90 m² |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Engine (motor) power | 60 W |
| Fuel tank capacity | 22 l |
| Fuel type | diesel, oil |
| Fuel consumption | 1 kg/h |
| Pump pressure | 8 bar |
| Temperature control | yes |
| Thermostat type | manual |
| Digital control panel | yes |
| Display type | LED |
| Time setting (timer) | yes, every 1 hour (1-24 hours) |
| Dimensions | 820x426x1008 mm |
| Tank operating time | ~18 h |
| Working temperature range | 0-55 ˚C |
| Electric insulation class | I |
| Weight | 36.6 kg |
| Application | for heating public spaces |
| Symbol | YT-99760 |

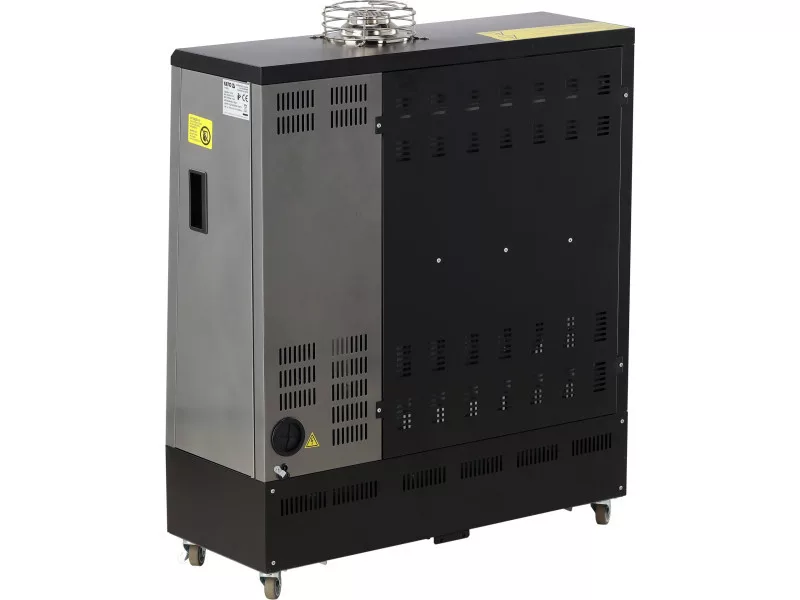

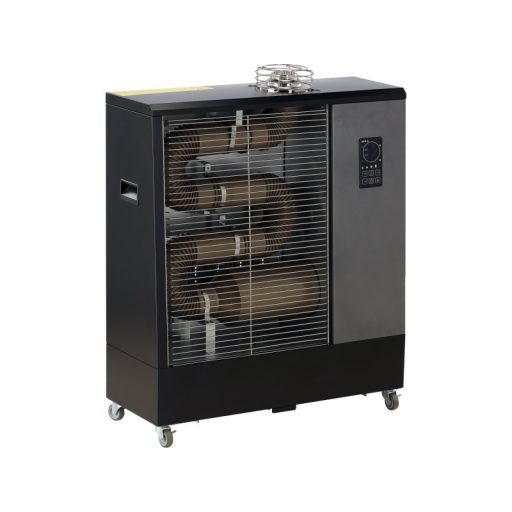

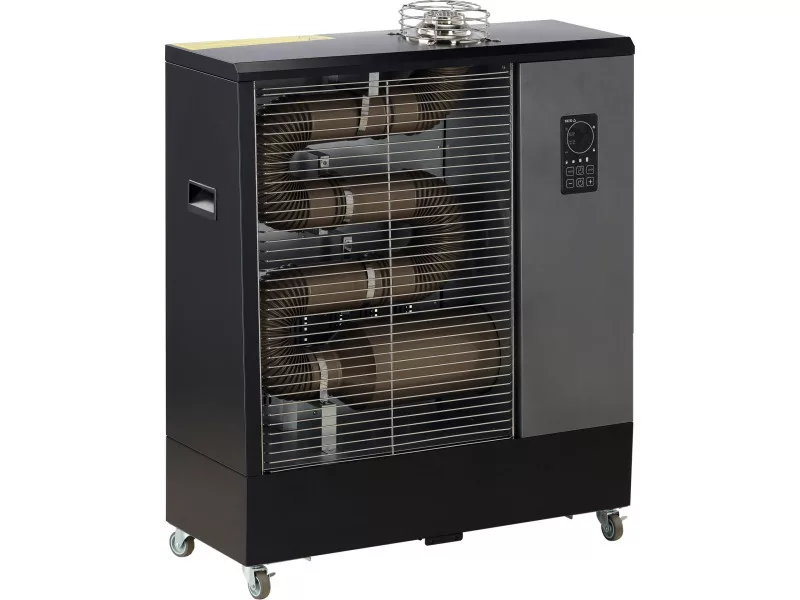

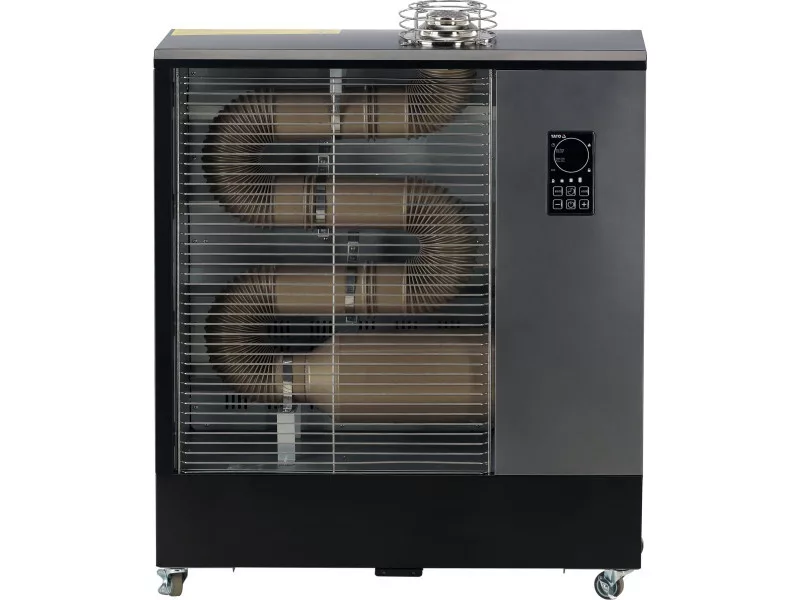

Portable oil infrared heater designed for efficient heating of public utility rooms. It helps to provide quick thermal comfort in workshops, halls, warehouses, and effective drying of wall surfaces during renovation and construction works.
Infrared heating evenly distributes heat and works directly, reaching objects, walls, and surfaces, which then release it into the environment. This prevents energy losses associated with the need to heat the entire air. The heat is felt very quickly after the system is started, and the lack of air currents does not generate drafts and dust suspension in the room. This technology also helps maintain a natural level of humidity without drying the air.
A manual thermostat and timer allow for temperature and working time adjustment according to current needs. The clear digital display accurately indicates the operating parameters. The powder-coated metal housing is resistant to damage, scratches, and corrosion.
- heating power: 13 kW
- engine power: 60 W
- heating area: 70-90 m²
- fuel: diesel oil
- fuel consumption: 1 l/h
- pump pressure: 8 bar
- fuel tank capacity: 22 l
- manual thermostat

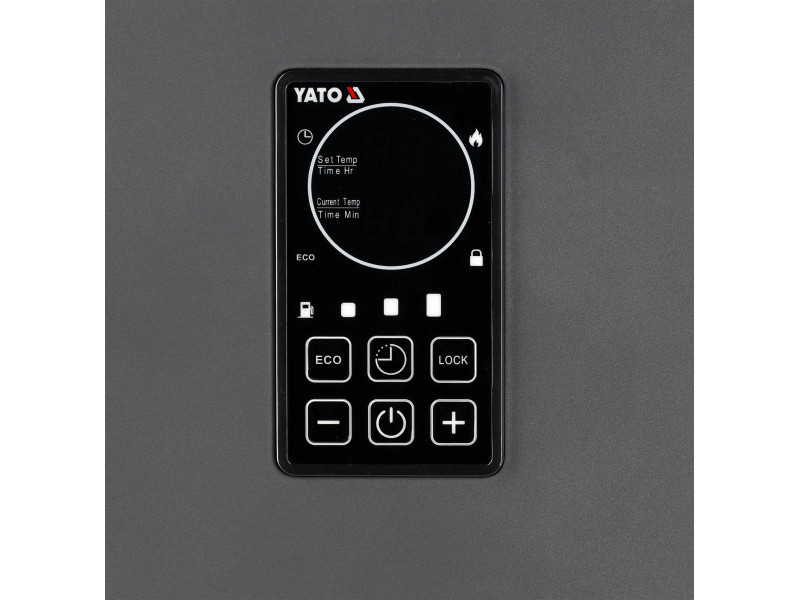

- digital control panel with LED display
- working time setting every 1 hour (1-24 h)
- working time on a full tank: 18 h
- temperature range: 0-55˚C
- 1.2 m long cable
- dimensions: 82 x 42.6 x 101 cm
- weight: 36.6 kg
Usage warnings:
WARNING! 1. Read the full user manual before use. 2. Use only in well-ventilated areas. 3. Keep a minimum distance of 5 cm from the appliance — risk of burns from hot surfaces. 4. Place the appliance on a stable, non-flammable, and level surface. 5. Operate according to the user manual and applicable safety regulations.

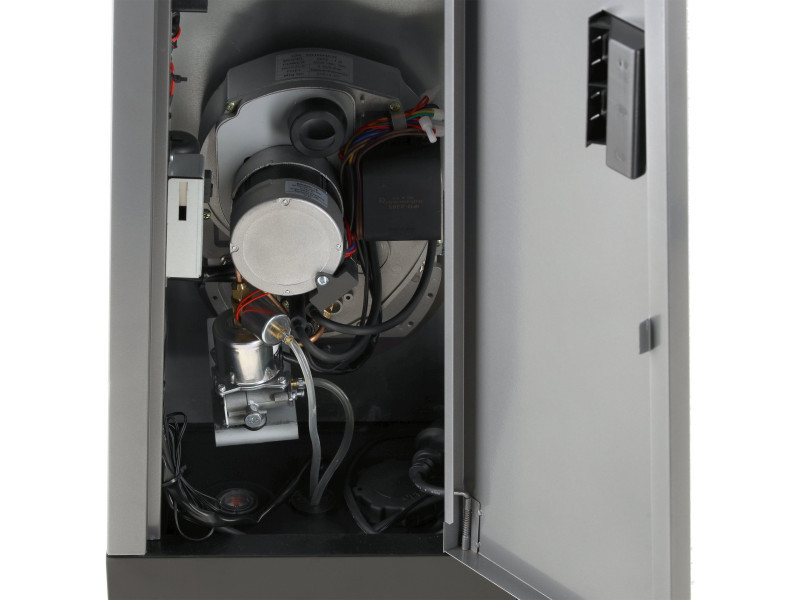

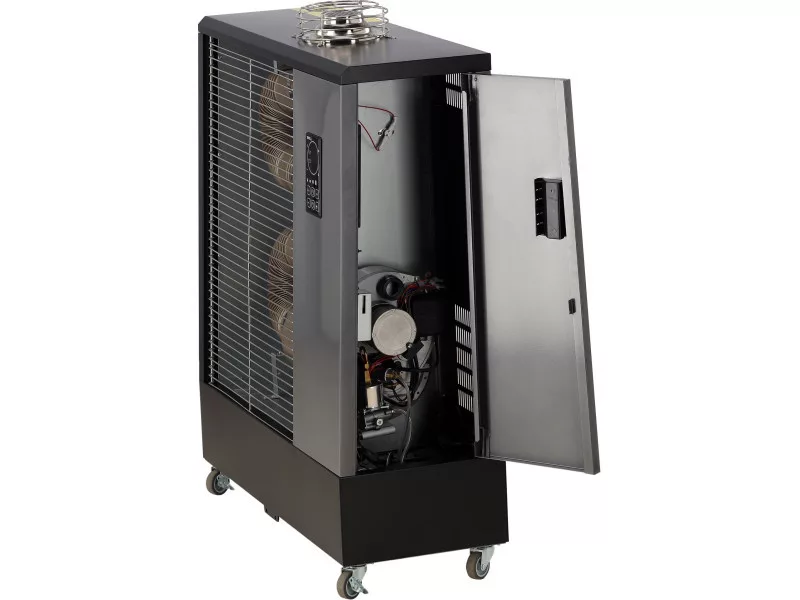

WARNING! DO NOT OPEN THE DOOR DURING OPERATION
