| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 4.8 kW |
| Engine (motor) capacity | 196 cm³ |
| Rotations | 3600 min⁻¹ |
| Max. shredding diameter | 100 mm |
| Fuel type | unleaded petrol E10 |
| Fuel tank capacity | 3.6 l |
| Oil type | SAE 15W-40 |
| Oil tank capacity | 0.6 l |
| Boot type | manual |
| Functions | emergency stop |
| Engine (motor) type | Loncin G200F |
| Ignition plug type | F7RTC |
| Cooling | air |
| Casing material | metal |
| Wheels | yes |
| Wheel quantity | 2 |
| Wheel type | pneumatic |
| Wheel diameter | 5.71" (145 mm) |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 4 |
| Working temperature range | 5~30 ˚C |
| Storage temperature | 5~30 ˚C |
| Acoustic pressure | 89.7 ± 3.0 dB(A) |
| Acoustic power | 104.9 ± 3.0 dB(A) |
| Weight | 100 kg |
| Application | for shredding branches and plant debris in gardens, orchards and on plots of land |
| Symbol | YT-86155 |

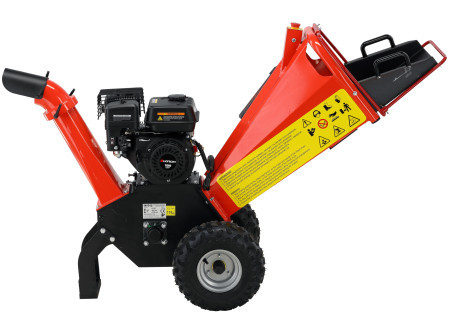

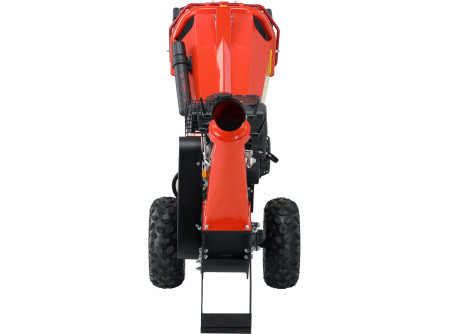

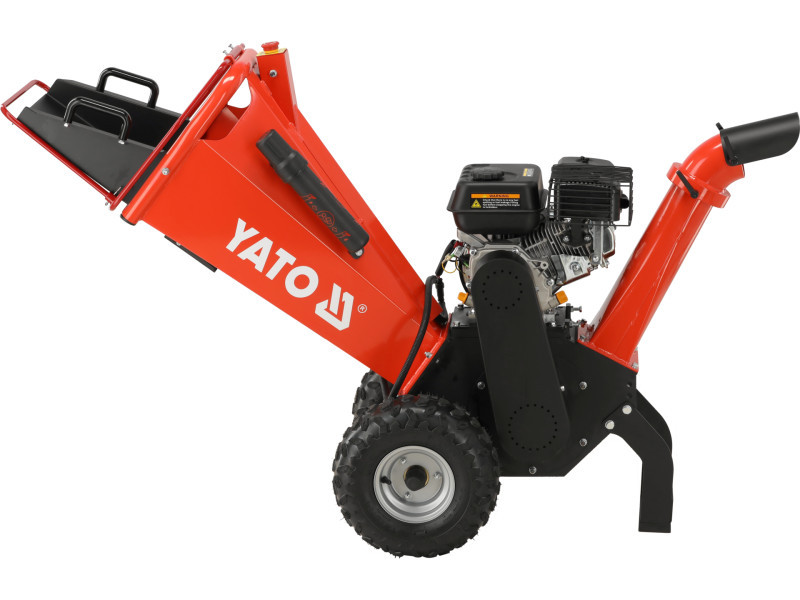

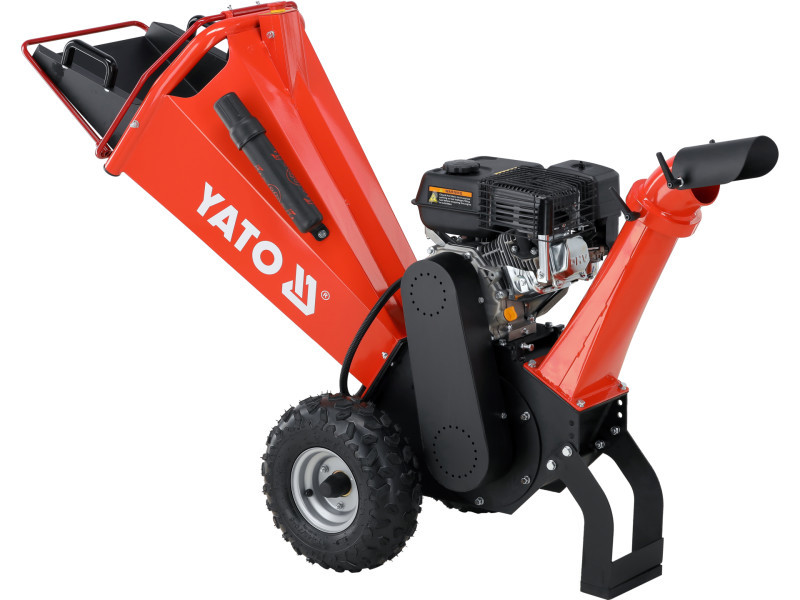

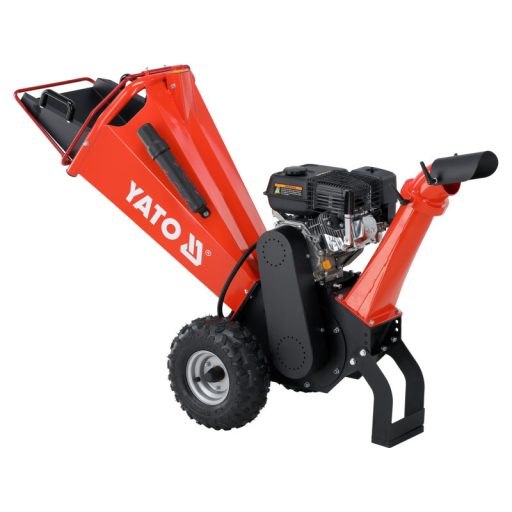

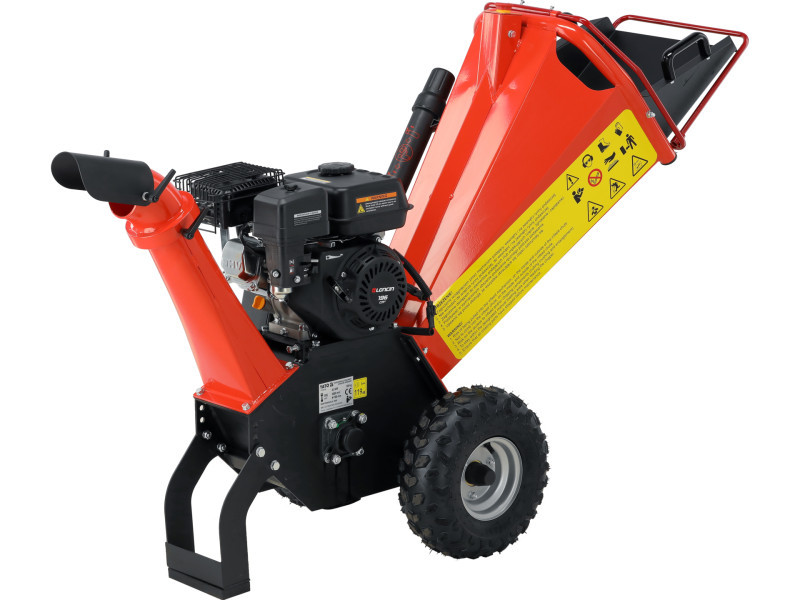

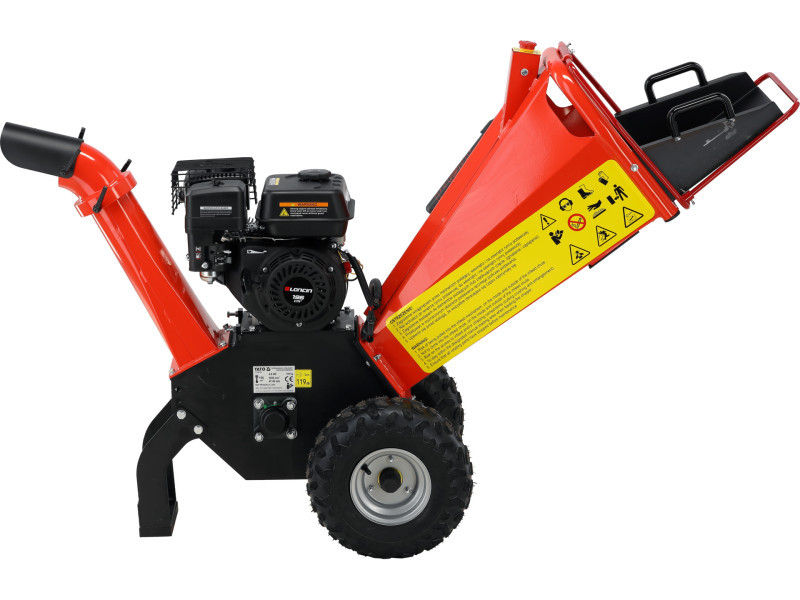

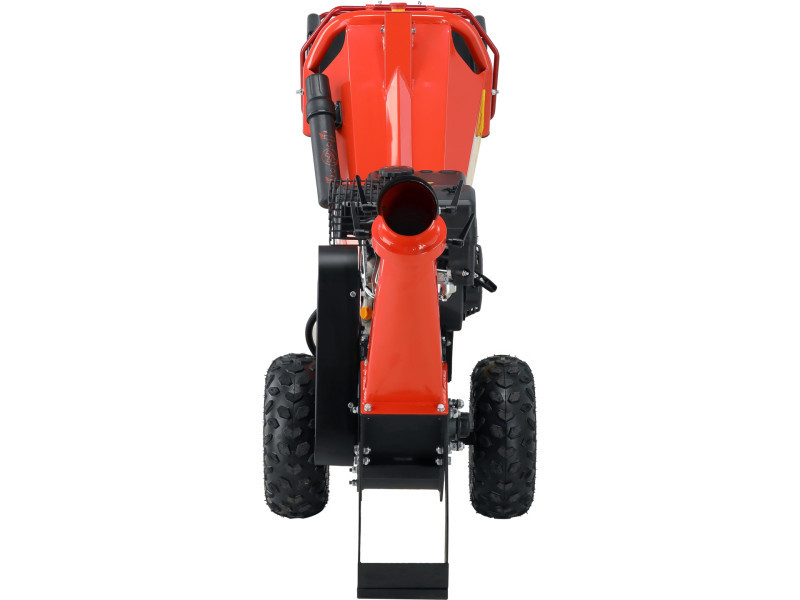

The petrol shredder equipped with LONCIN engine effectively and quickly shreds branches, wood waste and plant debris up to 100 mm in diameter. With its 4.8 kW of power, compact dimensions and robust design, it proves itself in private gardens, orchards and professional use for those involved in the care of green spaces, management of wood waste and cleanup work in forestry and municipal management.
The shredder facilitates the disposal of branches and plant debris. The waste processed into chips can be used as garden mulch, compost or fuel material.

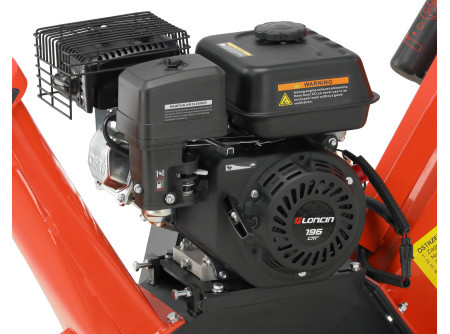

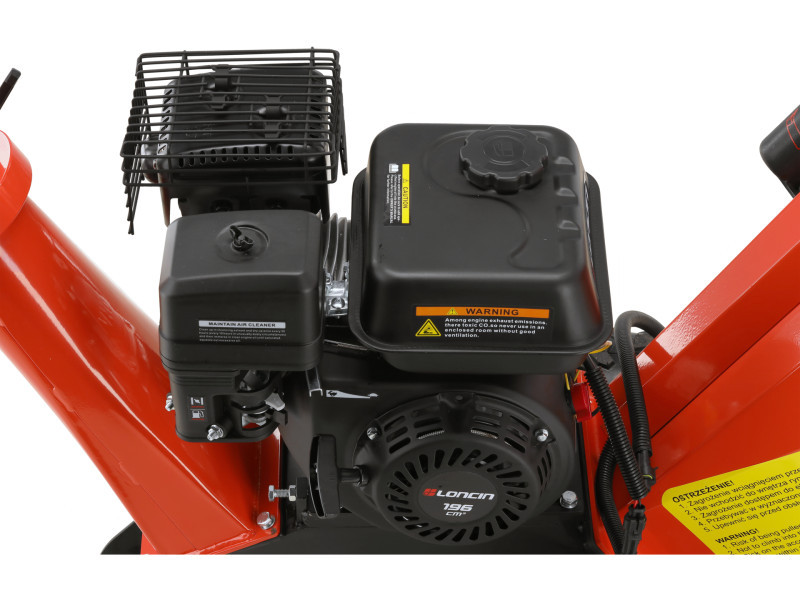

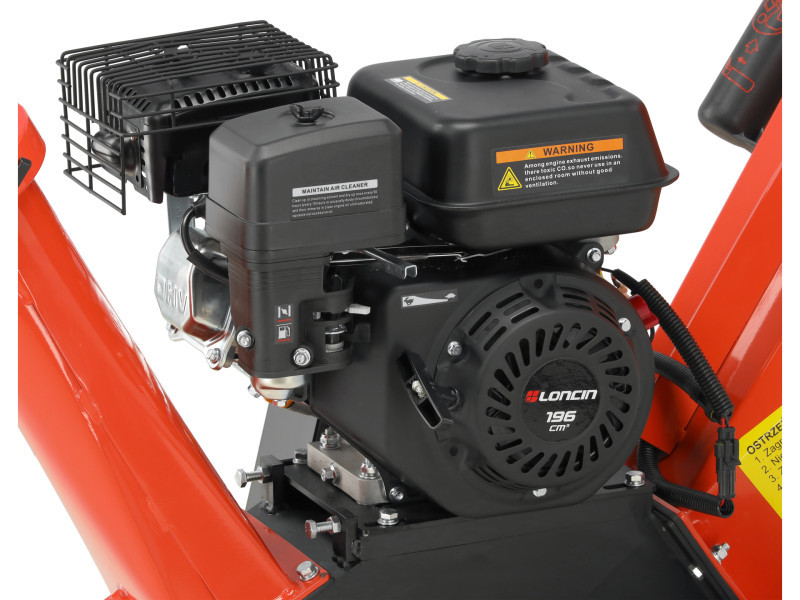

- LONCIN G200F engine with a power of 4.8 kW
- type: internal combustion engine, four-stroke
- capacity: 196 cm3
- max. torque: 3600 rpm
- starter: manual
- spark plug type: F7RTC
- fuel type: unleaded gasoline E10
- oil type: SAE 15W-40
- fuel tank capacity: 3,6 l
- oil sump capacity: 0.6 l
- max. branch diameter: 100 mm
- air cooling
- emergency stop function
- metal housing
- 2 pneumatic wheels with a diameter of 5.7" provide mobility in various terrain conditions
- weight: 100 kg
- noise emission: 119 dB
Usage warnings:

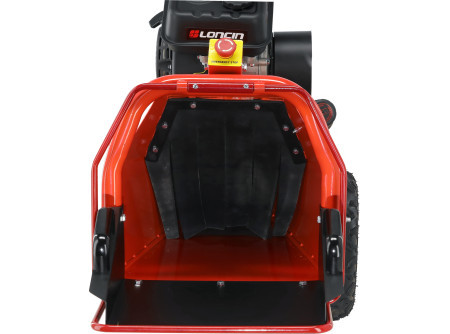

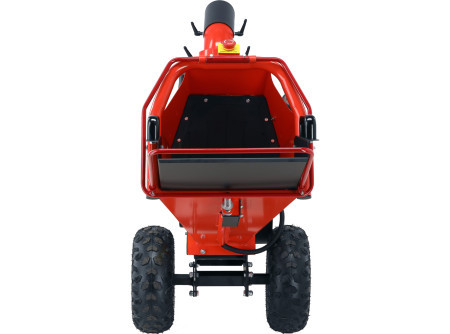

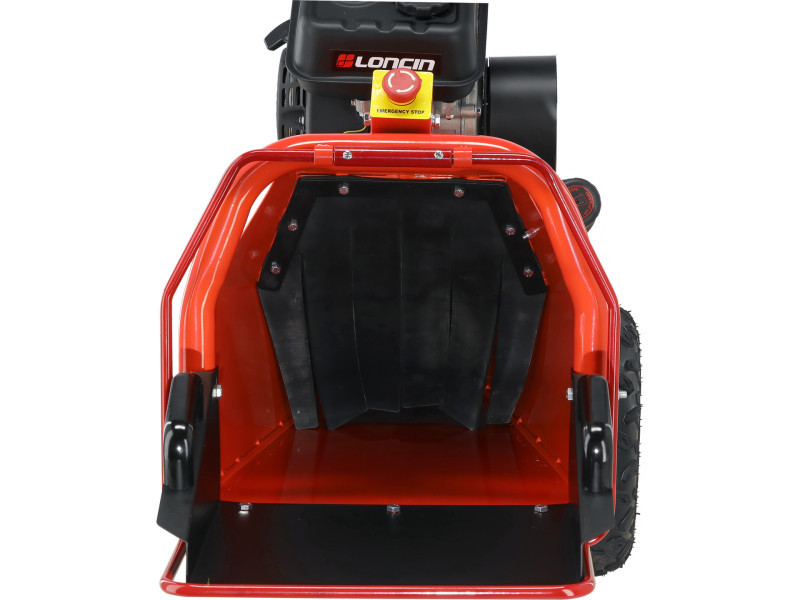

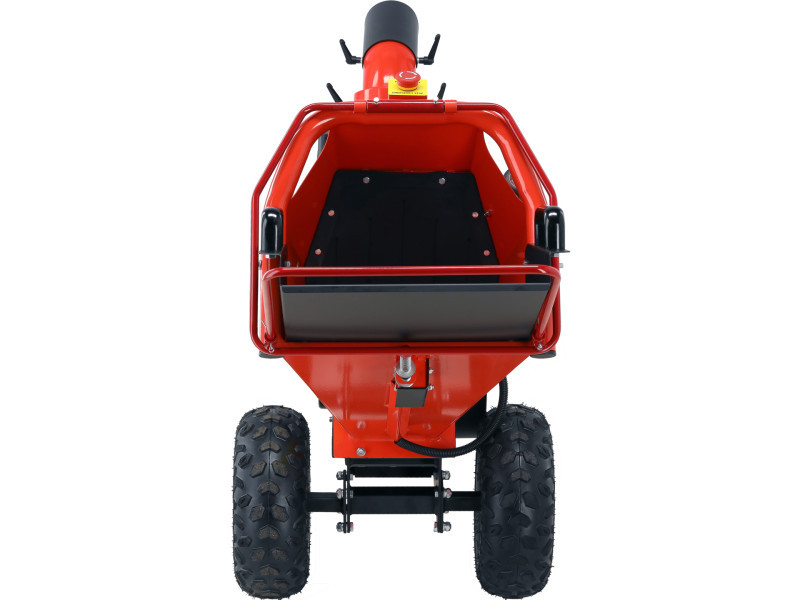

WARNING! 1. Risk of being pulled into the infeed mechanism, on the inside and outside of the infeed chute. 2. Not to climb into the infeed chute, on the inside and outside of the infeed chute. 3. Risk on the access to infeed and/or chipping components (cutting crushing and entanglement). 4. To stay within the designated manual loading area when feeding the chipper. 5. Ensure that all rotating parts have stopped before maintenance.
