| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 4.1 kW |
| Engine (motor) capacity | 196 cm³ |
| Rotations | 3600 min⁻¹ |
| Digging width | 100 mm |
| Max. digging depth | 450 mm |
| Fuel type | unleaded petrol E10 |
| Fuel tank capacity | 3.6 l |
| Oil type | SAE 15W-40 |
| Oil tank capacity | 0.6 l |
| Boot type | manual |
| Cooling | air |
| Engine (motor) type | Loncin G200F |
| Ignition plug type | F7RTC |
| Casing material | metal |
| Dimensions | 1760x700x900 mm |
| Number of teeth | 21 |
| Wheels | yes |
| Wheel quantity | 2 |
| Wheel type | pneumatic |
| Strokes number in engine (motor) | 4 |
| Cylinders number in engine (motor) | 1 |
| Working temperature range | 5~30 ˚C |
| Storage temperature | 5~30 ˚C |
| Acoustic pressure | 88.8 ± 1.5 dB(A) |
| Acoustic power | 112.4 ± 1.5 dB(A) |
| Vibrations | 12.38 ± 1.5 m/s² |
| Weight | 136 kg |
| Application | for the precise excavation of trenches for water, electrical installations, irrigation systems |
| Symbol | YT-86139 |

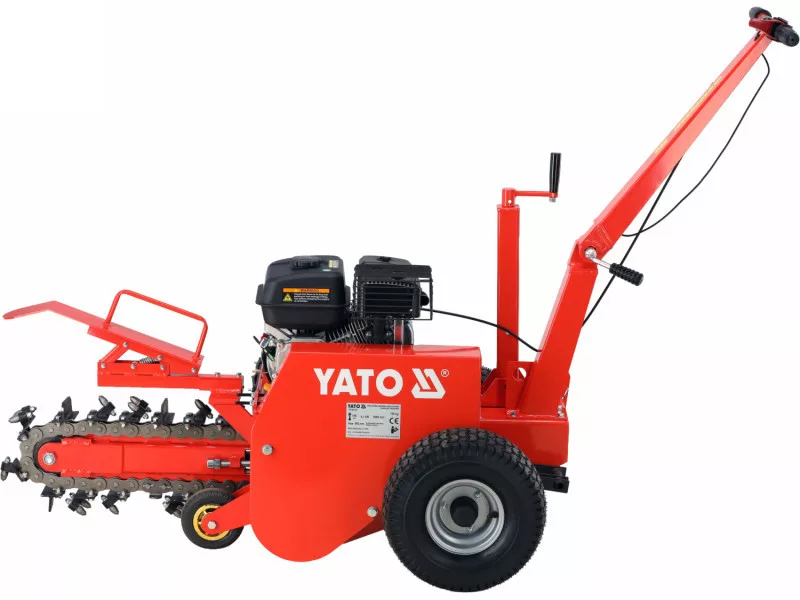

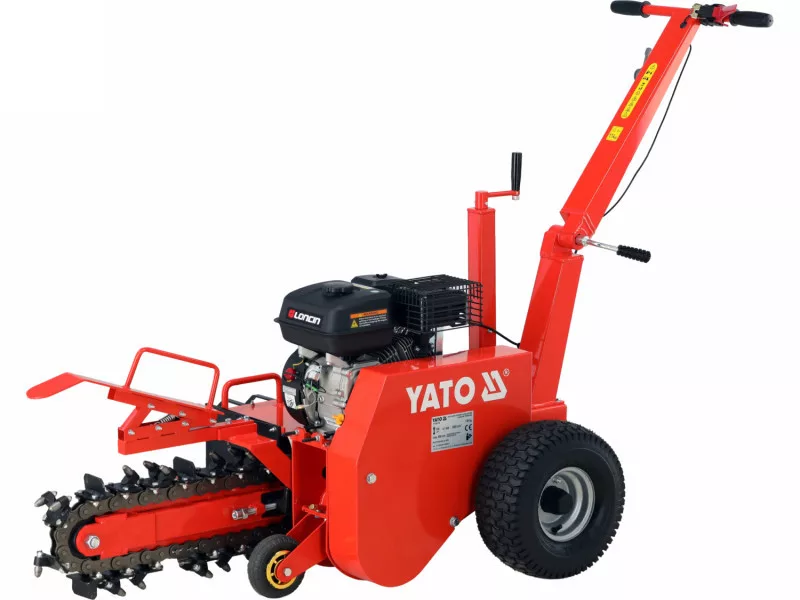

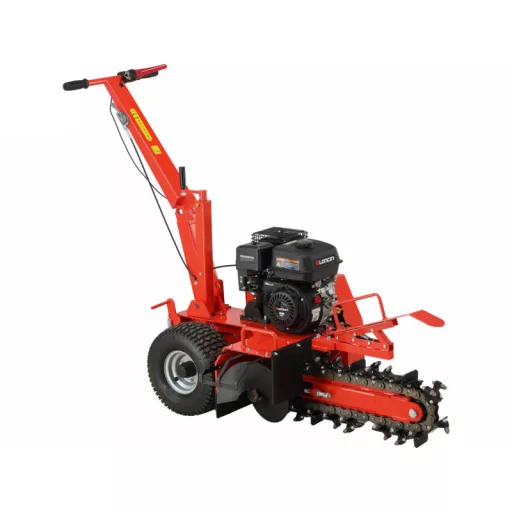

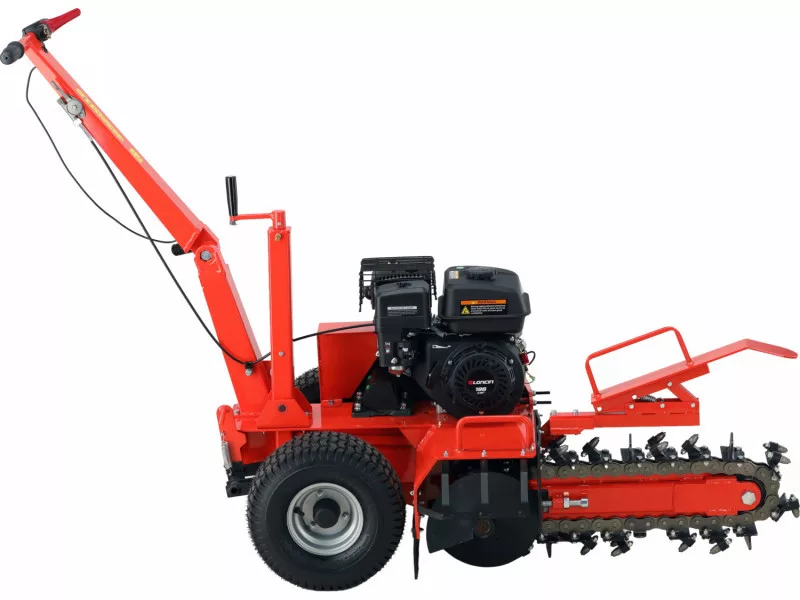

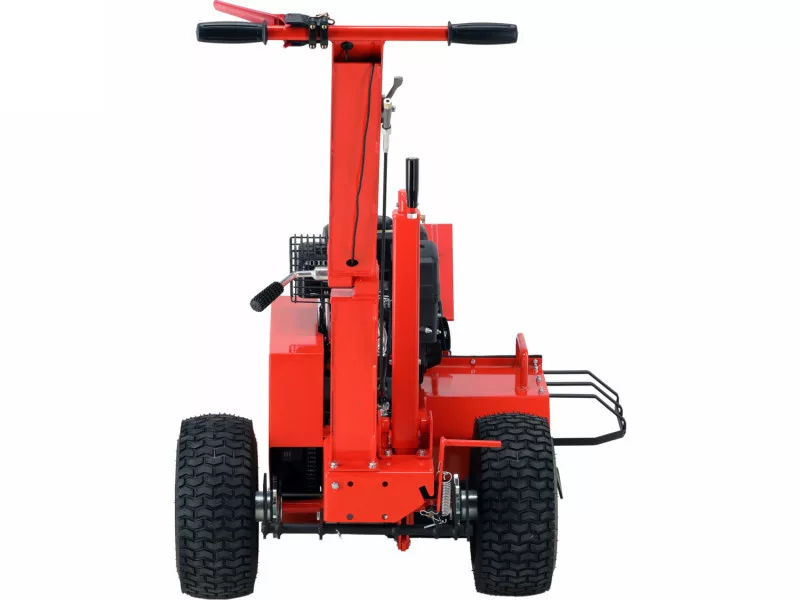

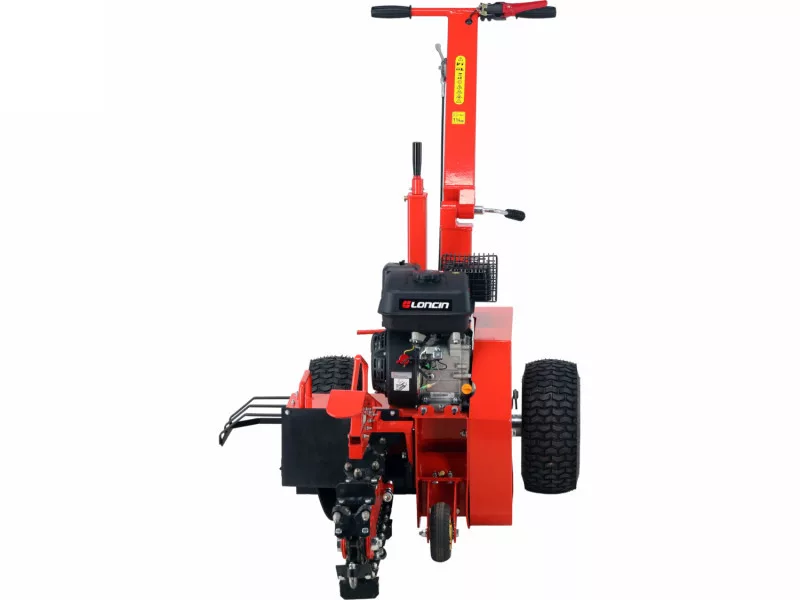

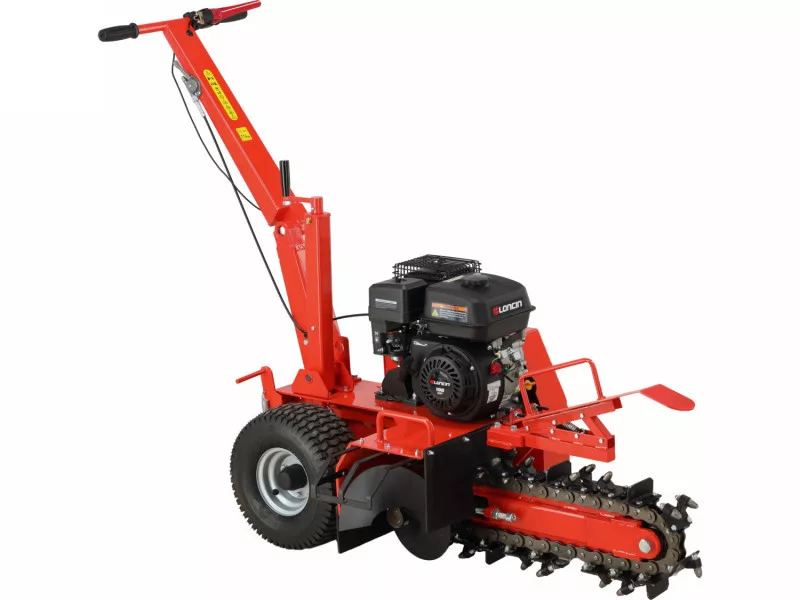

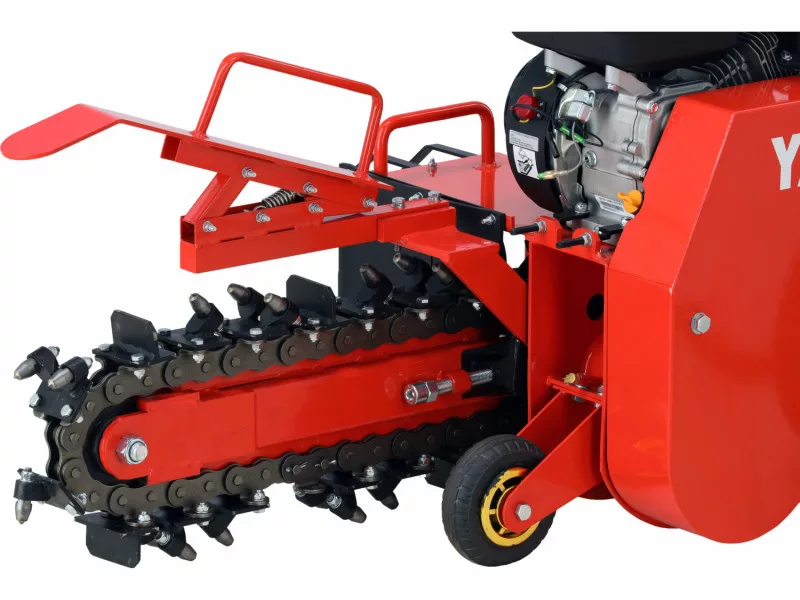

The YATO YT-86139 gas-powered chain excavator is designed for creating narrow, even trenches in a short time with repeatable accuracy. The device's construction meets the needs of installation and gardening teams, where the ability to work along fences, sidewalks, and existing infrastructure is crucial, without excessive disturbance to the ground. The machine enables linear operations with a limited trench width, significantly reducing the amount of spoil and the time required for backfilling.

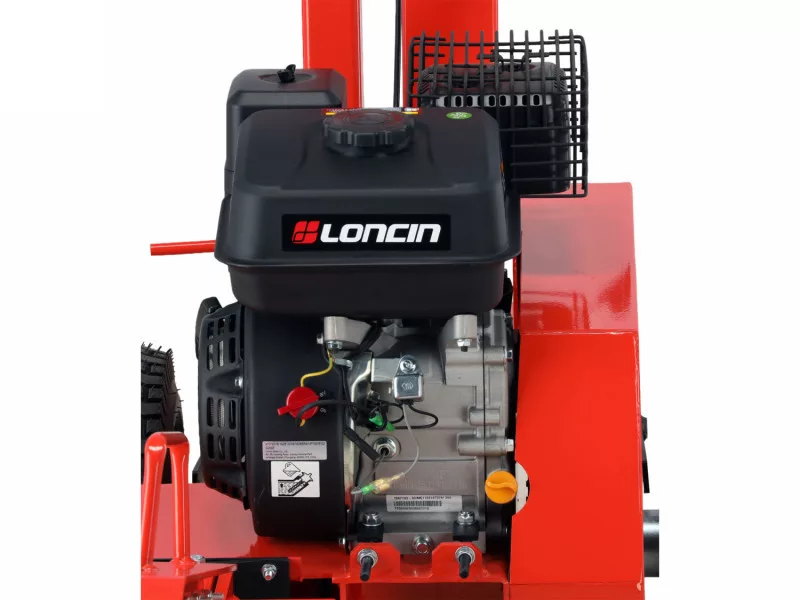

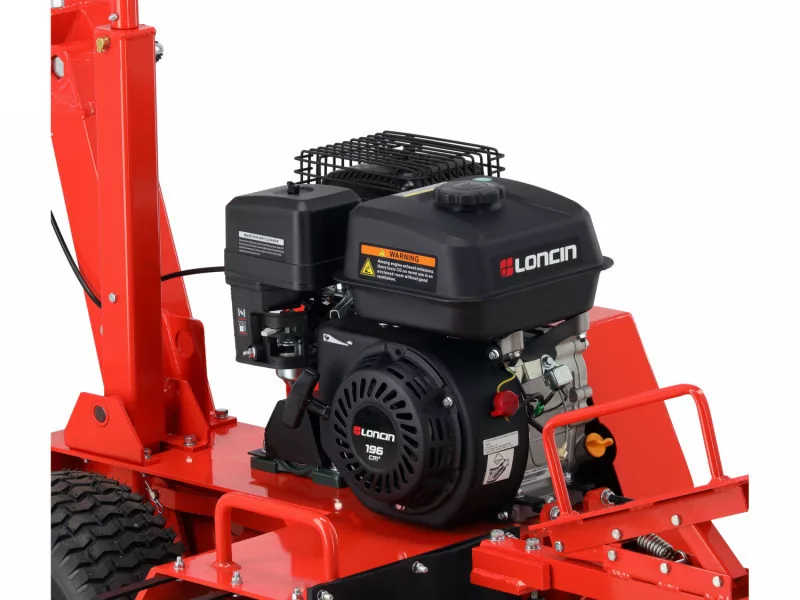

It is powered by a four-stroke Loncin G200F engine with a displacement of 196 cm³ and a power output of 6.5 HP. It ensures stable operation of the working chain even in compact soil and during continuous work. The parameters provide efficiency and control over the machine, allowing for precise excavations for cable installations, irrigation systems, or power lines.
Features and specifications:
- Loncin G200F engine, 4-stroke
- displacement: 196 cm³
- maximum power: 6.5 HP
- maximum torque: 3600 RPM
- trench width: 100 mm
- maximum trench depth: 450 mm
- stable operation in dry, moist, and slightly compacted soil
- linear guiding of the machine along the designated path
- even soil removal along the entire length of the trench
- repeatable trench depth without manual adjustments
- reduced risk of trench wall collapse, lawn damage, and surface disruption around the excavation
- facilitated backfilling after installation completion
Applications:
- trenches for cable, energy, and telecommunication installations
- excavations for irrigation systems
- linear gardening and construction work
- installation and electrical companies
- contractors for garden and irrigation systems
- construction teams performing ground works
