| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 4.1 kW |
| Engine (motor) capacity | 196 cm³ |
| Rotations | 3600 min⁻¹ |
| Power take-off speed (PTO) | 990 min⁻¹ |
| Fuel type | unleaded petrol E10 |
| Fuel tank capacity | 3.6 l |
| Oil type | SAE 15W-40 (engine), GL-5 SAE 80W-90 (gear) |
| Oil tank capacity | 0.6 l |
| Gearbox | 3 forward gears, 3 reverse gears |
| Coupling type | lubricant |
| Boot type | manual, electric |
| Drive type | handbook |
| Voltage | 12 V d.c. |
| Battery type | lead-acid |
| Battery capacity | 6500 mAh |
| Engine (motor) type | LONCIN G200FD |
| Ignition plug type | F7RTC |
| Lubrication system | oil bath |
| Cooling | air |
| Steering wheel | adjustable in height and laterally, with 180° adjustment for complete control of the machine |
| Wheels | yes |
| Wheel quantity | 2 |
| Wheel type | pneumatic |
| Wheel diameter | 500 mm |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 4 |
| Acoustic pressure | 82.5 ± 3.0 dB(A) |
| Acoustic power | 96.1 ± 2.23 dB(A) |
| Vibrations | 5.33 ± 1.5 m/s² |
| Weight | 104 kg |
| Compatible with | YT-85860, YT-85861, YT-85862, YT-85863, YT-85864, YT-85865, YT-85866, YT-85867, YT-85868, YT-85869, YT-85870, YT-85872, YT-85873, YT-85874, YT-85875, YT-85876, YT-85877, YT-85878, YT-85880, YT-85881 |
| Symbol | YT-85850 |

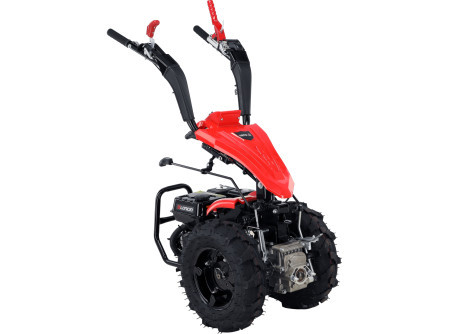

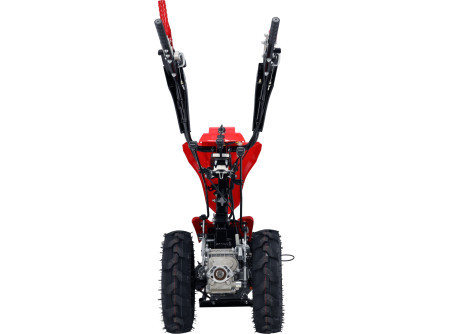

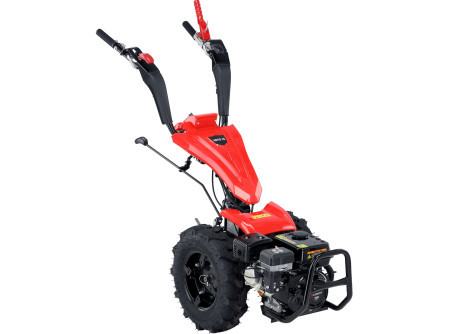

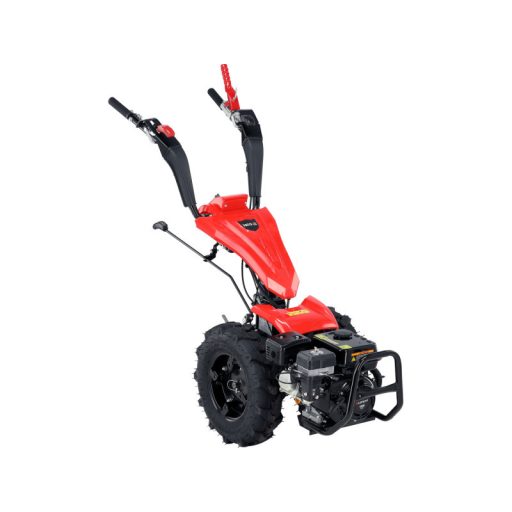

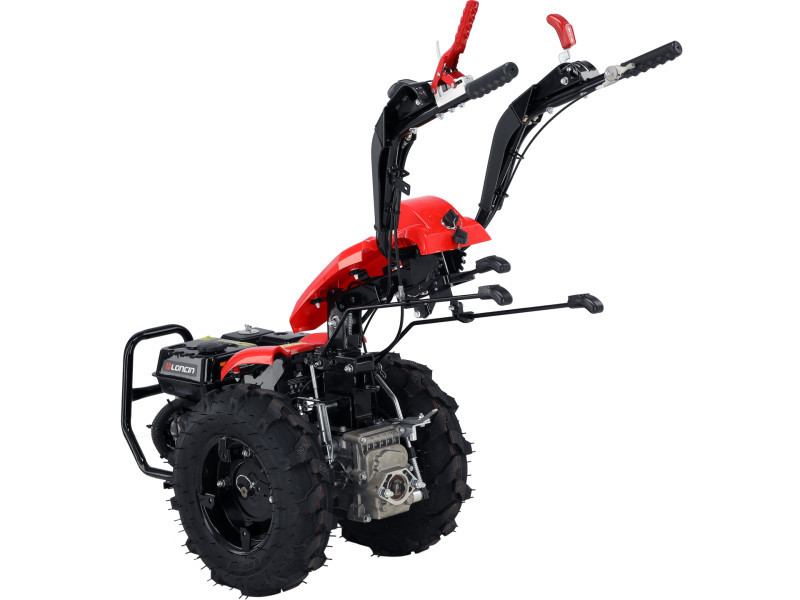

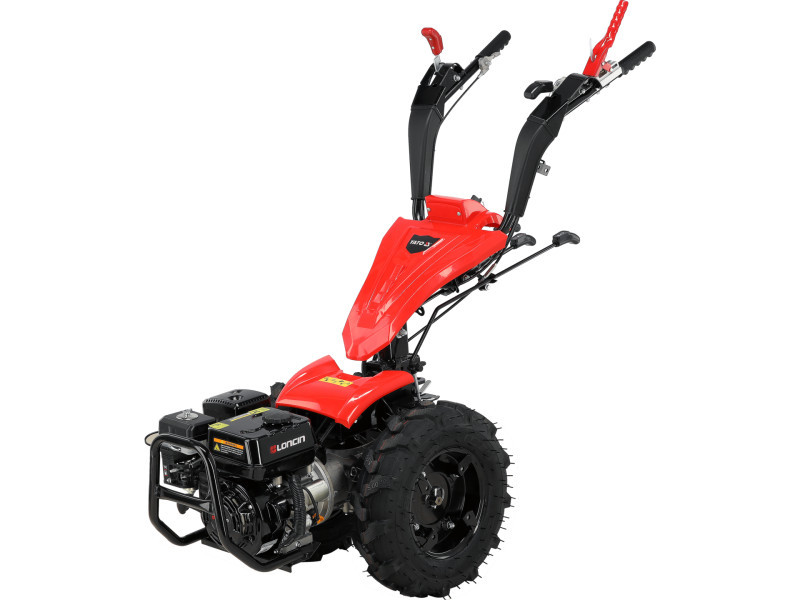

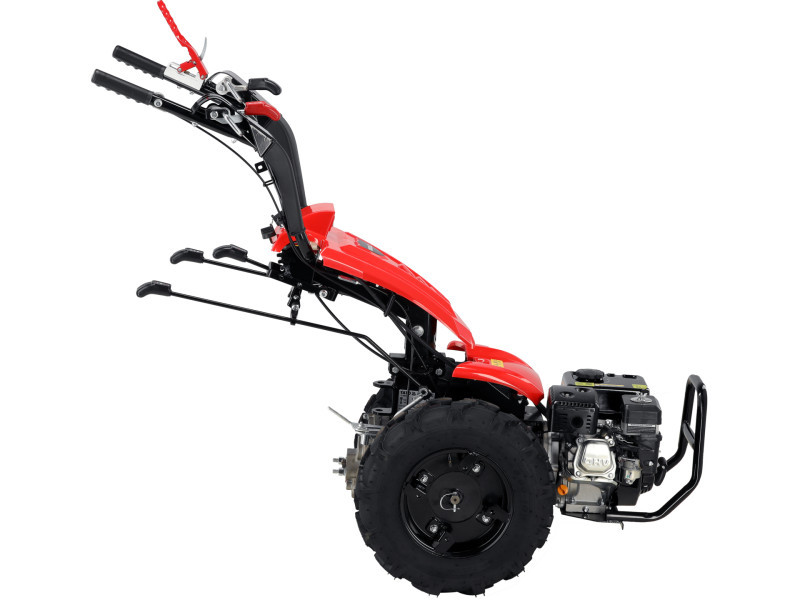

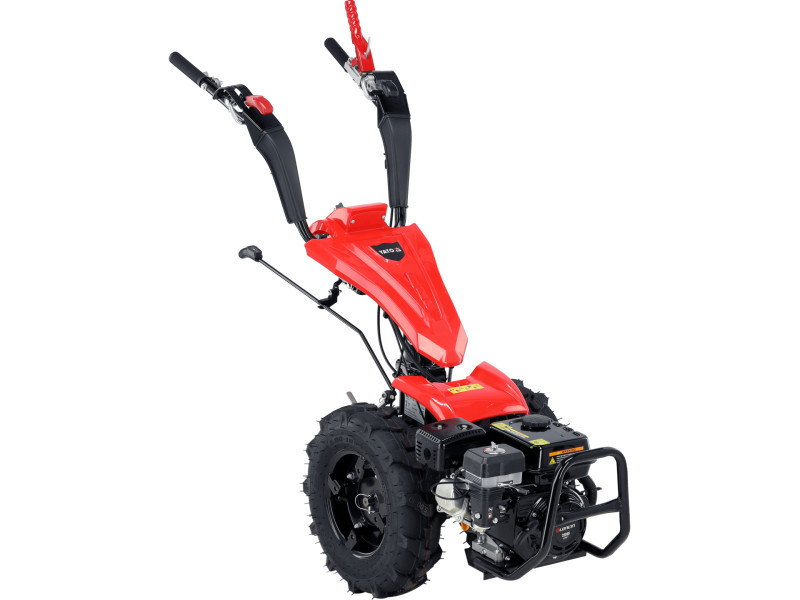

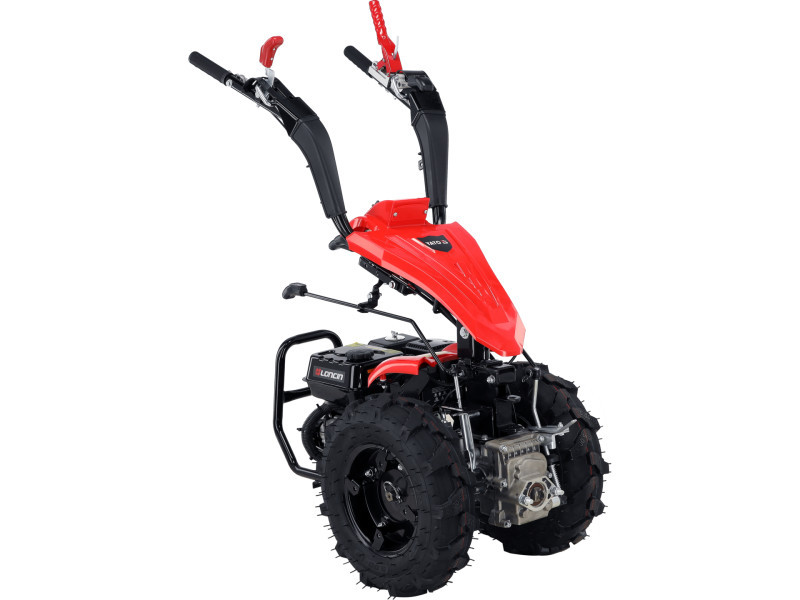

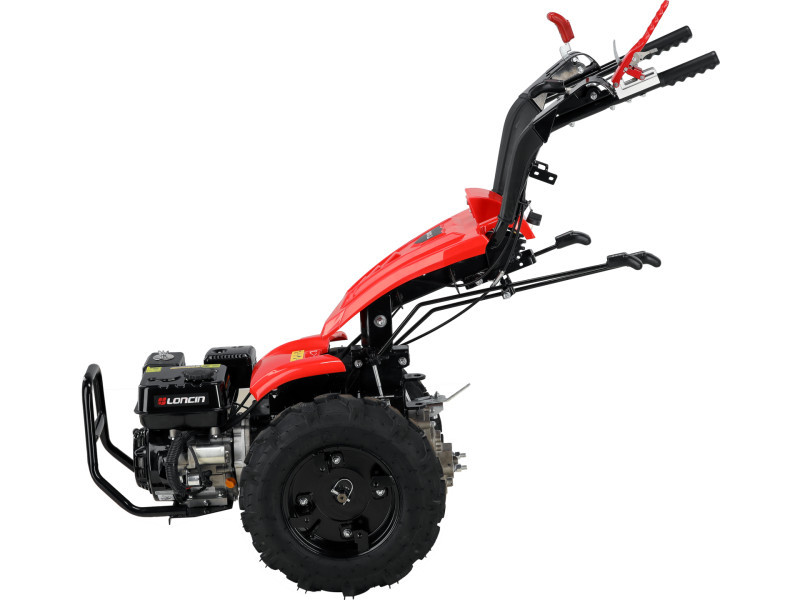

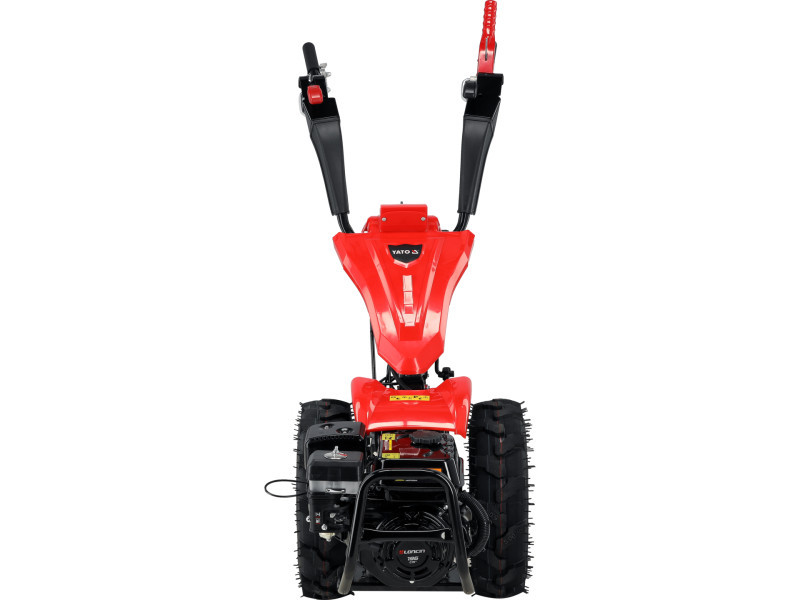

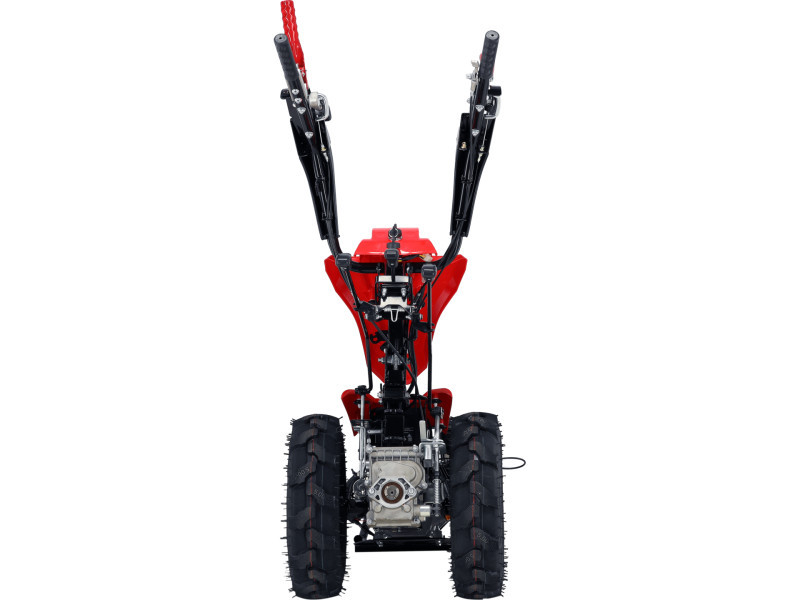

The single-axle tractor is a reliable agricultural machine, ideal for a variety of work on the farm, in the garden and on green spaces. Thanks to its robust construction and modern technological solutions, it provides efficient and comfortable work even in difficult conditions.

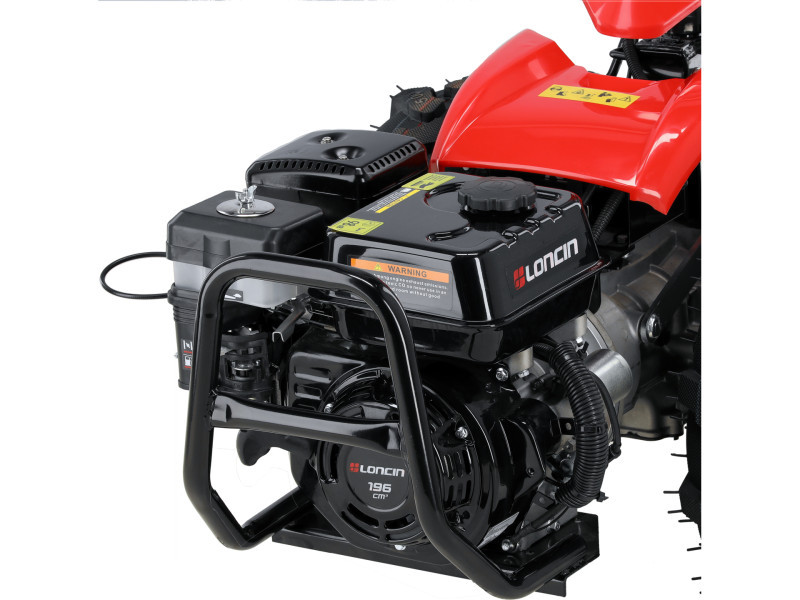

The single-axle tractor is equipped with a 196cc LONCIN gasoline engine (G200FD), ensuring reliable operation.
Key features:
- LONCIN G200FD engine
- type: internal combustion engine, four-stroke
- capacity: 196 cc
- power: 4.1 kW
- max. torque: 3600 rpm
- starting: manual or electric start for your convenience
- spark plug type: F7RTC
- fuel type: unleaded gasoline E10
- oil type: SAE 15W-40
- transmission oil type: GL-5 SAE 80W-90
- fuel tank capacity: 3.6 liters
- oil sump capacity: 0.6 liters
- battery capacity: 6.5 Ah, 12V
- Powertrain: All-wheel drive and direct power transmission for excellent traction and durability
- Transmission: 3 forward and 3 reverse gears, allowing you to adjust the speed to suit the job at hand
- Forward speed range:
- 1st gear 1.30 km/h
- 2nd gear 3.00 km/h
- 3rd gear 4.40 km/h
- Reverse speed range:
- 1 gear 1.40 km/h
- 2 gear 3.20 km/h
- 3rd gear 4.70 km/h

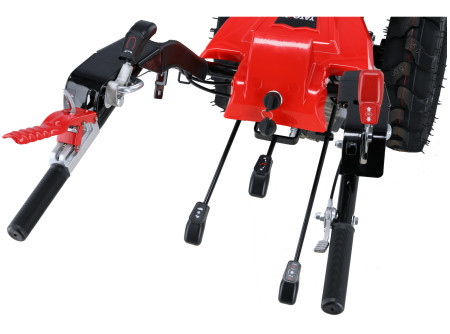

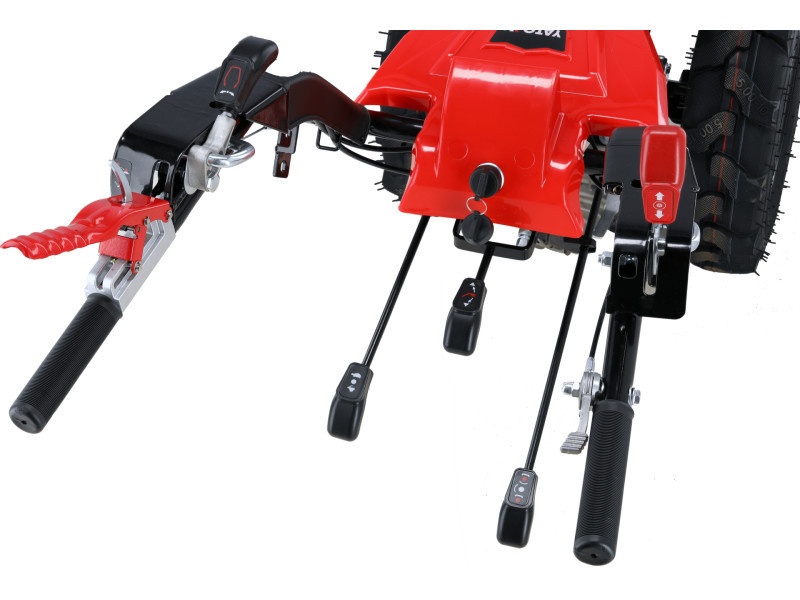

- Steering wheel: Height and side adjustable, with 180° adjustment for full control of the machine
- Lubrication system: Oil bath for long engine life
- Clutch type: Oil clutch - guarantees smooth power transmission and longer machine life
- Power take-off shaft (PTO): Speeds 990 rpm with 3600 engine rpm - ideal for use with attachments
- Wheels: 5.0 × 10 - robust and resistant to demanding terrain conditions
- Dimensions: 104 × 61.5 × 77.5 cm
- Weight: 104 kg net / 114 kg gross
A single-axle tractor is a versatile machine that can work with a wide variety of tools and attachments, increasing its functionality. Here are some of the most popular equipment that can be connected to it:
- Plow - forplowing and preparing soil for seeding
- Tiller - for loosening and leveling the soil
- Flail or slat mower - for mowing grass, hay and vegetation in pastures
- Sweeper - for cleaning pavement of dust, leaves or snow
- Topping machine - for forming ridges and cultivating root crops
- Cultivator - for loosening and aerating soil
- Snowblower - for clearing snow from roads, driveways and sidewalks
- Digger - for tearing up soil and separating crops with rods
- Snow plow - for clearing snow from roads, driveways and sidewalks
- and others
With a wide range of available tools, the single-axle tractor is a versatile solution that will work well in agriculture, gardening, horticulture and even municipal work.
Accessories such as metal wheels, PTO shaft extension, axle extension, air wheel weights, PTO shaft quick coupler and PTO shaft atapter are available.
