| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 3.5 kW |
| Engine (motor) capacity | 196 cm³ |
| Rotations | 3000 min⁻¹ |
| Max. shredding diameter | 45 mm |
| Basket capacity | 30 l |
| Fuel type | unleaded petrol E10 |
| Fuel tank capacity | 1 l |
| Oil type | SAE 15W-40 |
| Oil tank capacity | 0.6 l |
| Boot type | manual |
| Engine (motor) type | LONCIN LC1P70FC, overhead valve |
| Ignition plug type | F7RTC |
| Air filter type | T320 |
| Cooling | air |
| Casing material | metal |

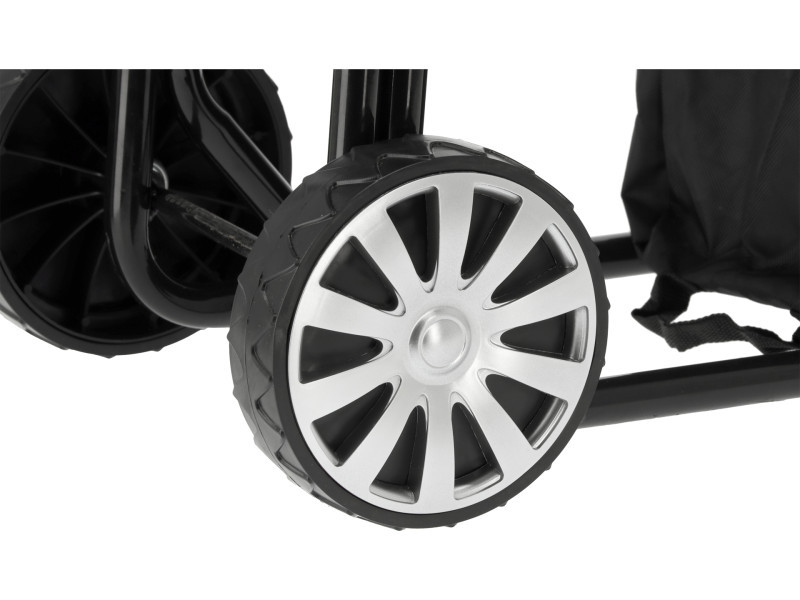

| Wheels | yes |
| Wheel quantity | 2 |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 4 |
| Acoustic pressure | 97.0 ± 3.0 dB(A) |
| Acoustic power | 107.0 ± 3.0 dB(A) |
| Weight | 38.3 kg |
| Application | for shredding branches and plant debris in gardens, orchards and on plots of land |
| Symbol | YT-85580 |

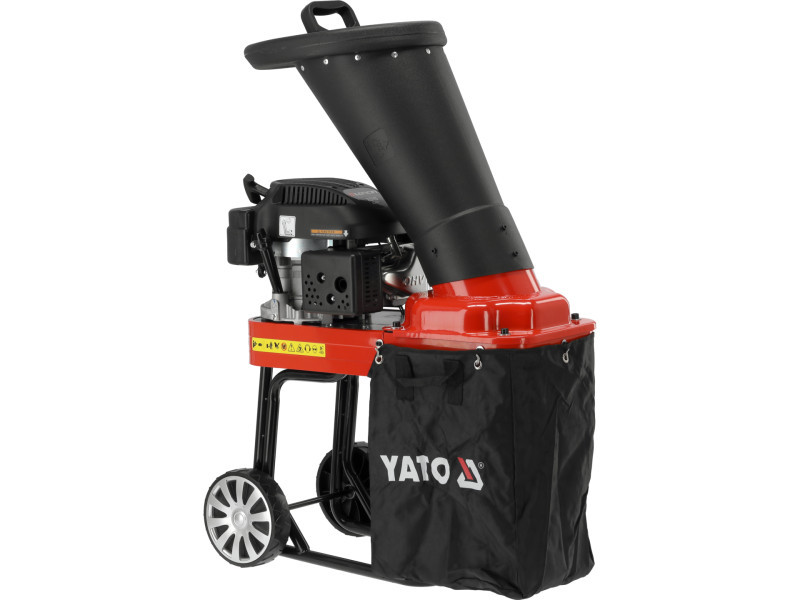

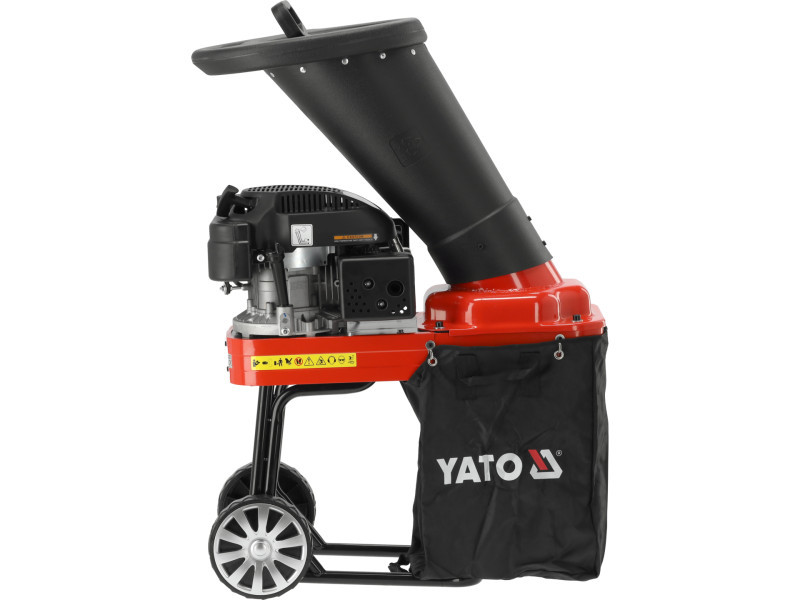

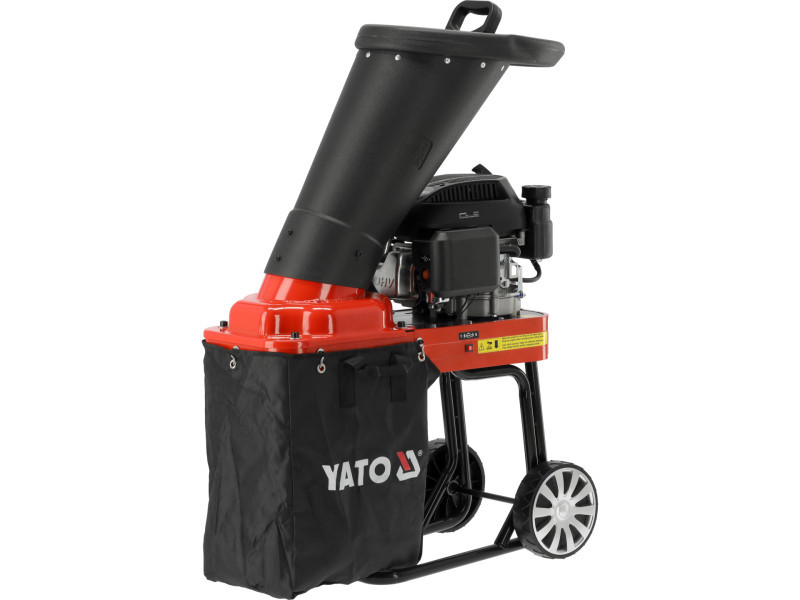

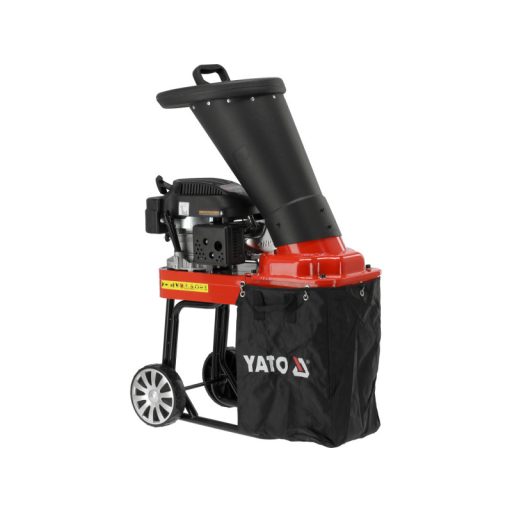

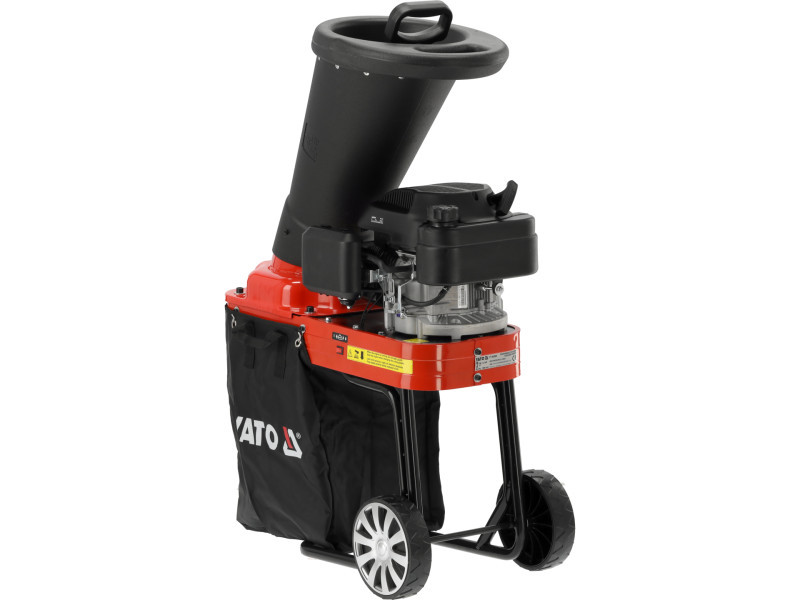

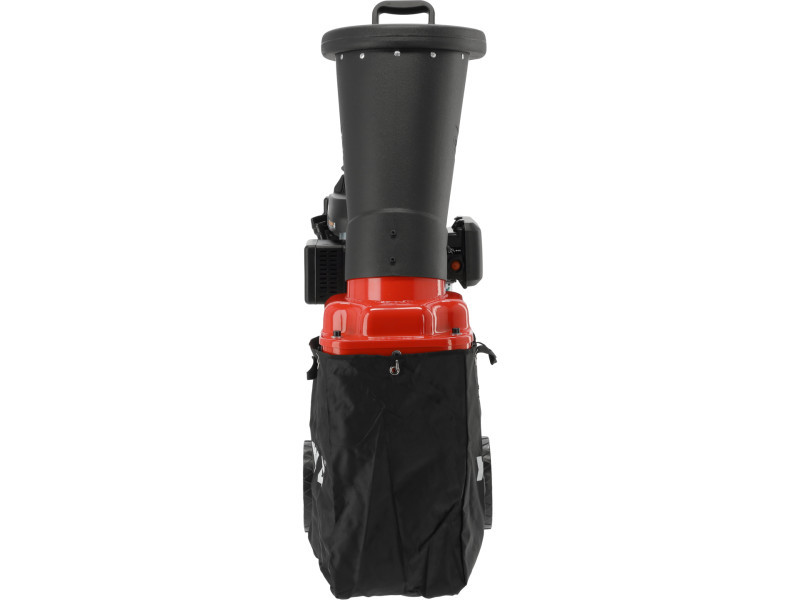

Gasoline shredder equipped with a LONCIN engine with a capacity of 196 cm3, which ensures high efficiency. Thanks to the powerful engine, the device can handle branches up to 45 mm in diameter and plant debris, making it an ideal solution for use in gardens, orchards, and plots.

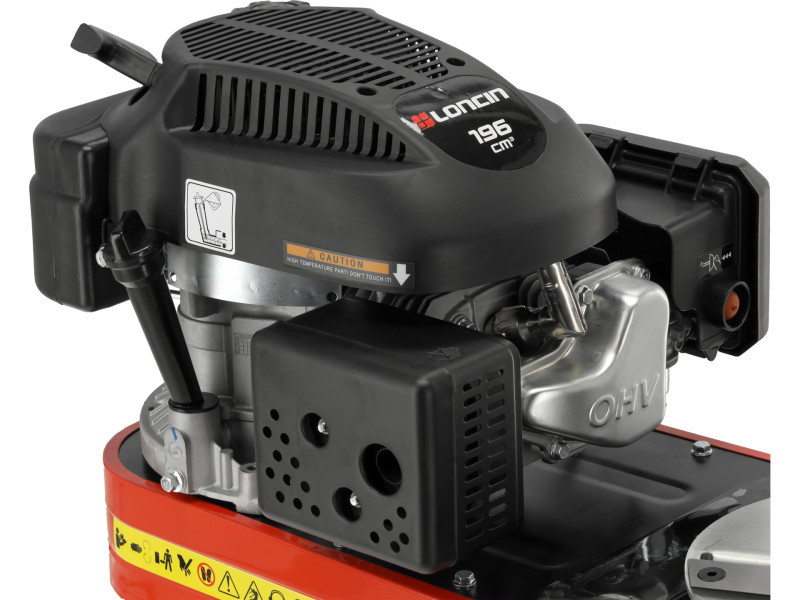

- LONCIN LC1P70FC engine with a power of 3.5 kW
- type: gasoline, four-stroke, overhead valve
- capacity: 196 cm3
- max. torque: 3000 rpm
- starter: manual
- spark plug type: F7RTC
- fuel type: unleaded gasoline E10
- oil type: SAE 15W-40
- fuel tank capacity: 1 liter
- oil tank capacity: 0.6 liters
- branch diameter: max. 45 mm

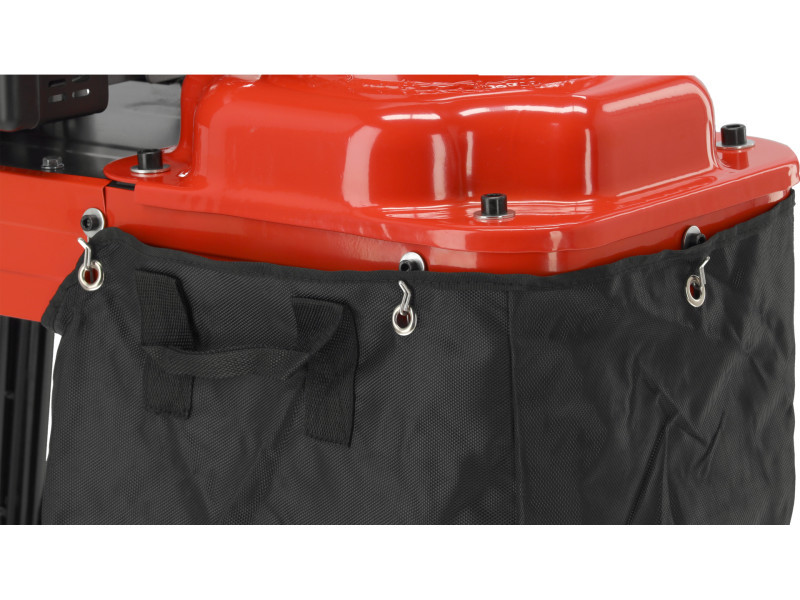

- 30-liter container for shredded debris
- metal housing
- weight: 38.3 kg
- noise emission: 113 dB
The engine of the provided shredder is not filled with oil, but with gasoline. Before starting it, you should pour in engine oil and fuel. The first oil change should be done after 5 hours of operation. Each subsequent change after 20-25 hours of operation.
Usage warnings:
When the engine is running, do not open guard.

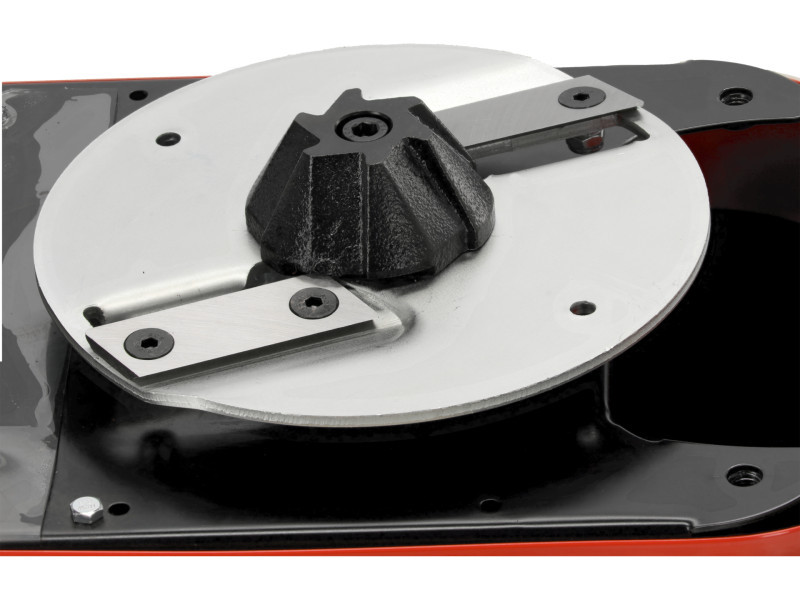

Stop the engine when changing the cutting blade.
