| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Moc maksymalna | 5500 (S2 5 min) W |
| Power | 5000 W |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Engine (motor) capacity | 224 cm³ |
| Fuel tank capacity | 19 l |
| Fuel type | unleaded petrol |
| Oil tank capacity | 0.8 l |
| Oil type | SAE 15W-40 |
| Direct current | 21.7 A |
| Alternating current | 8.3 A |
| Wheels | yes |
| Wheel quantity | 2 |
| Transportation holder | yes |
| Handle quantity | 2 |
| Dimensions | 746x634x605 mm |
| Boot type | manual, electric |
| Cooling | air |
| Engine (motor) type | R290-S |
| Ignition plug type | F7RTC |
| Max. engine (motor) power | 6.9 kW |
| Max. engine (motor) rotations | 3600 min⁻¹ |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 4 |
| Compression stage | 8.7:1 |
| Power factor | 1 |
| Working temperature range | 0~40 ˚C |
| Max. operating altitude | 1000 m n.p.m. |
| Quality class | B |
| Performance class | G2 |
| Electric insulation class | I |
| Protection grade | IP23M |
| Acoustic pressure | 73.7 ± 1.88 dB(A) |
| Acoustic power | 94.4 ± 1.89 dB(A) |
| Weight | 65 kg |
| Symbol | YT-85486 |

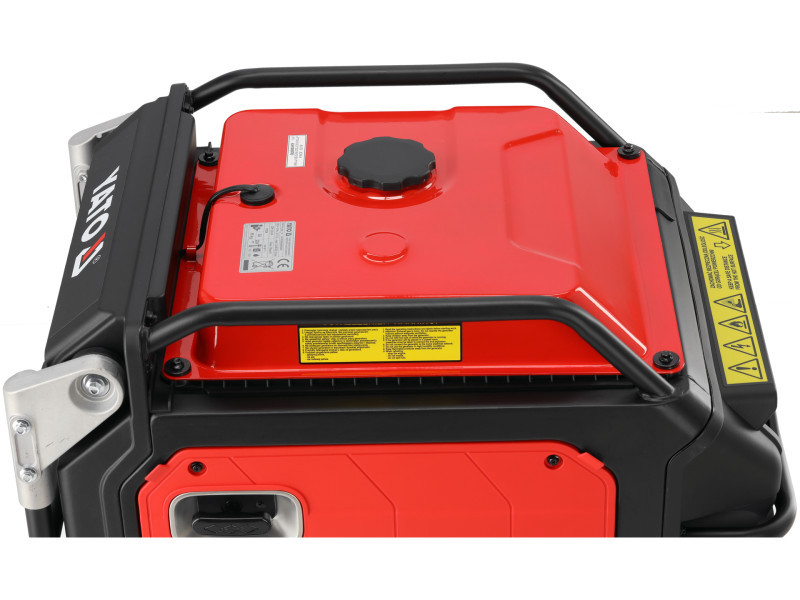

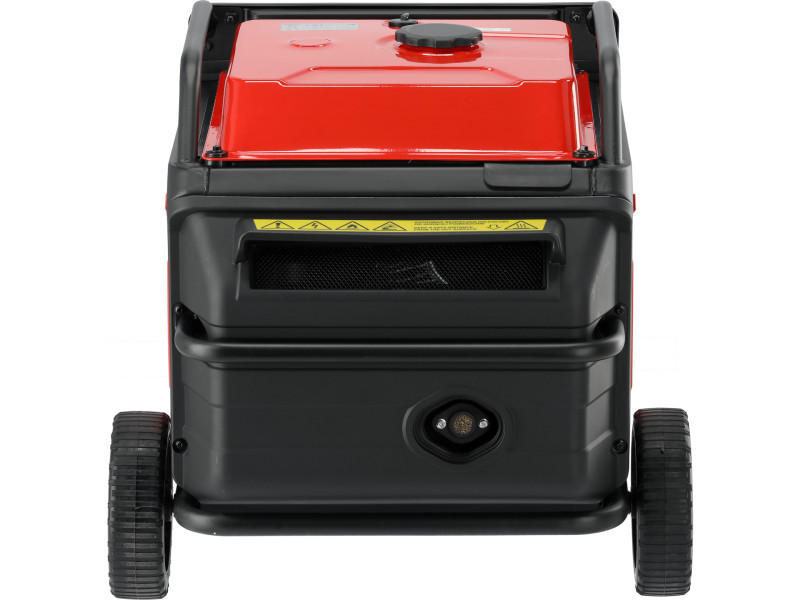

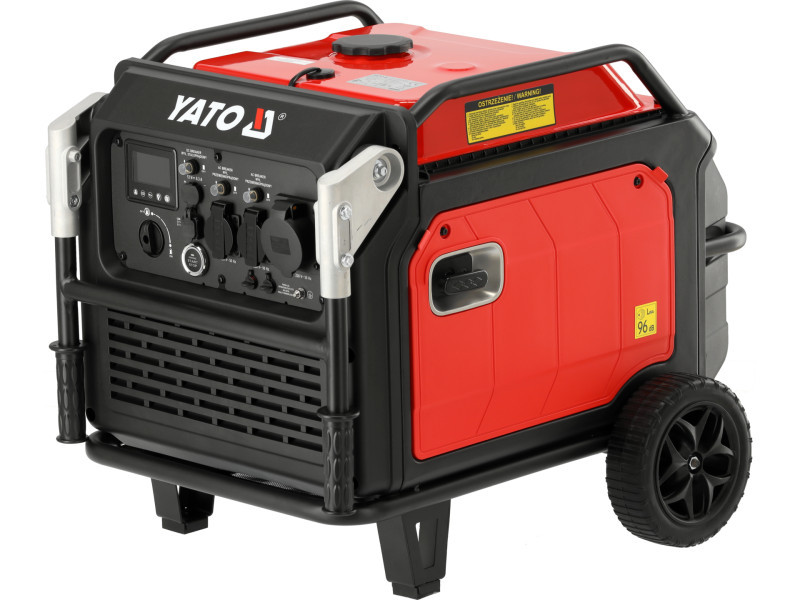

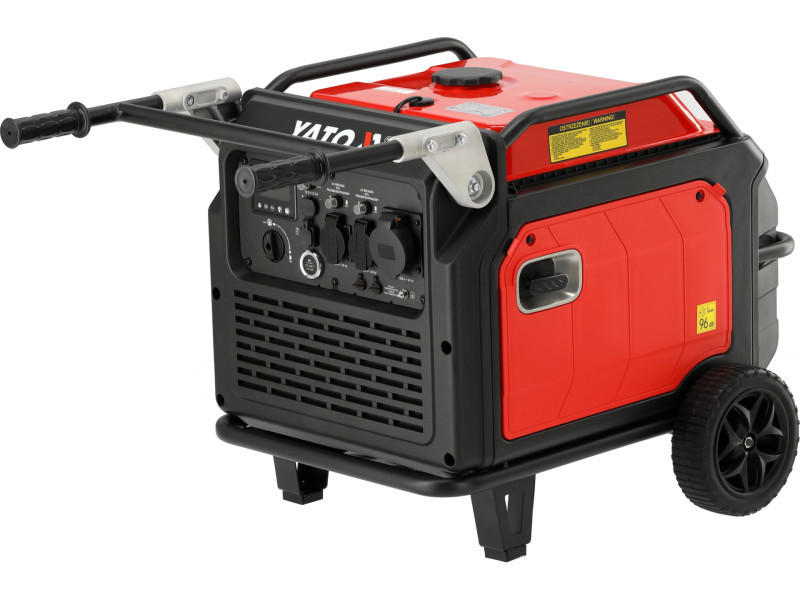

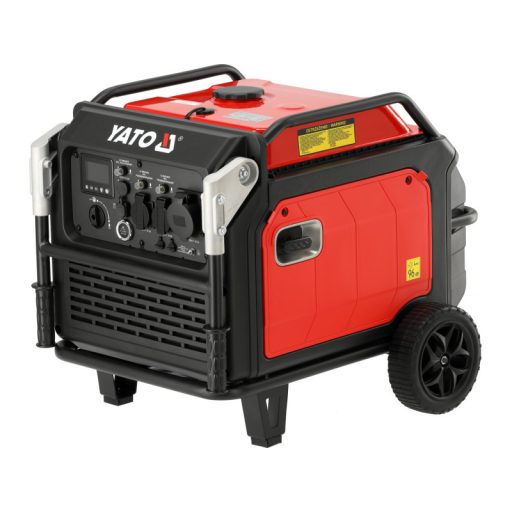

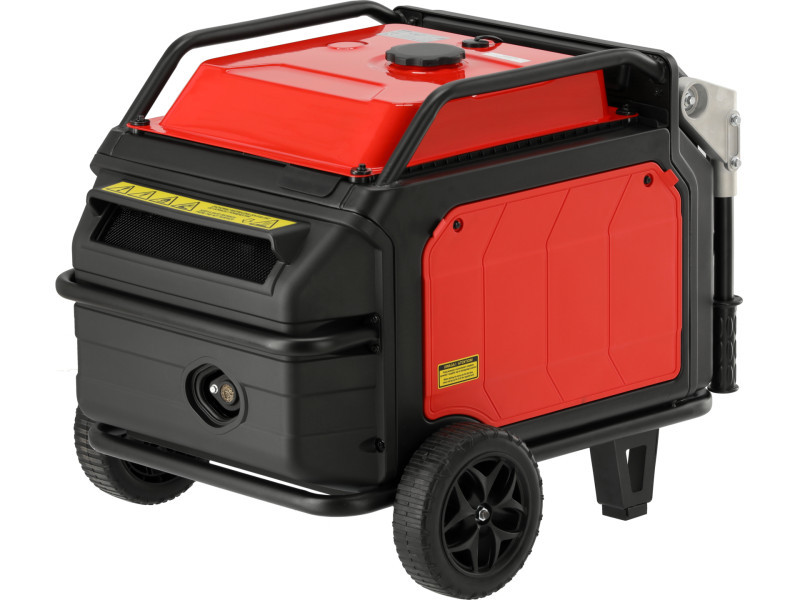

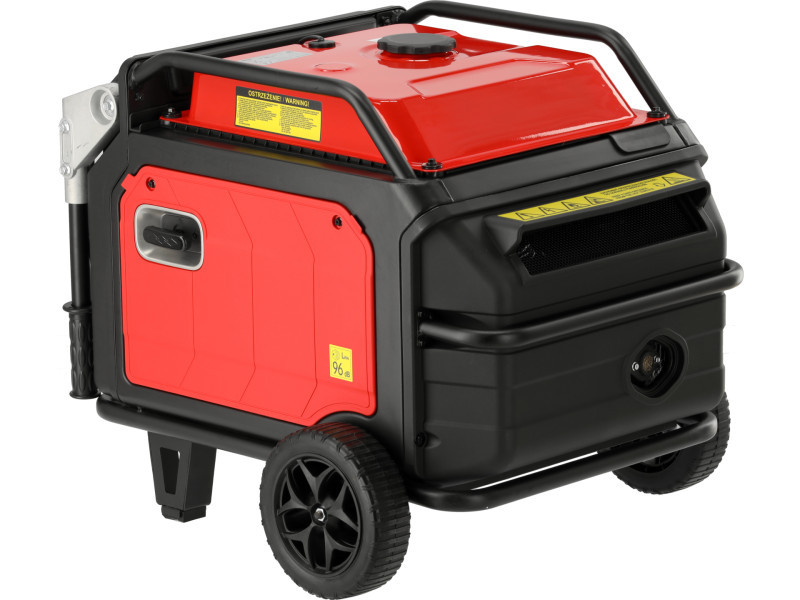

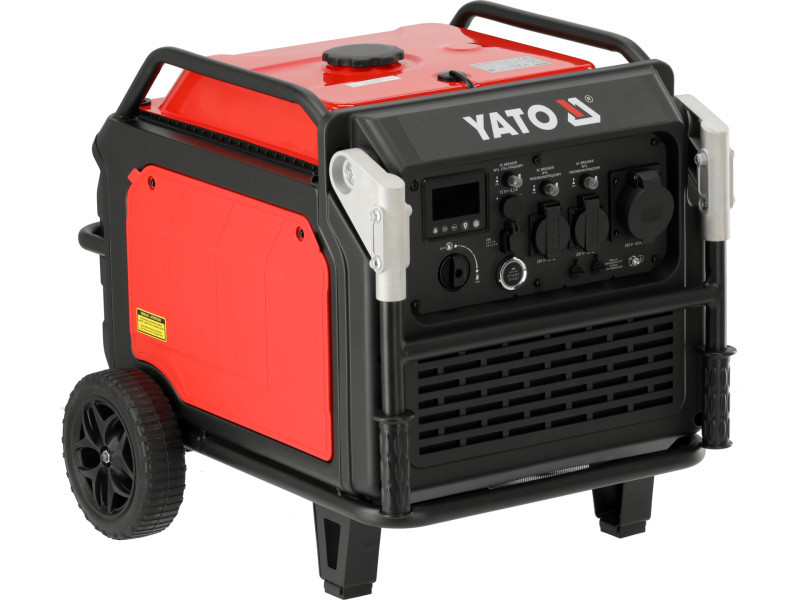

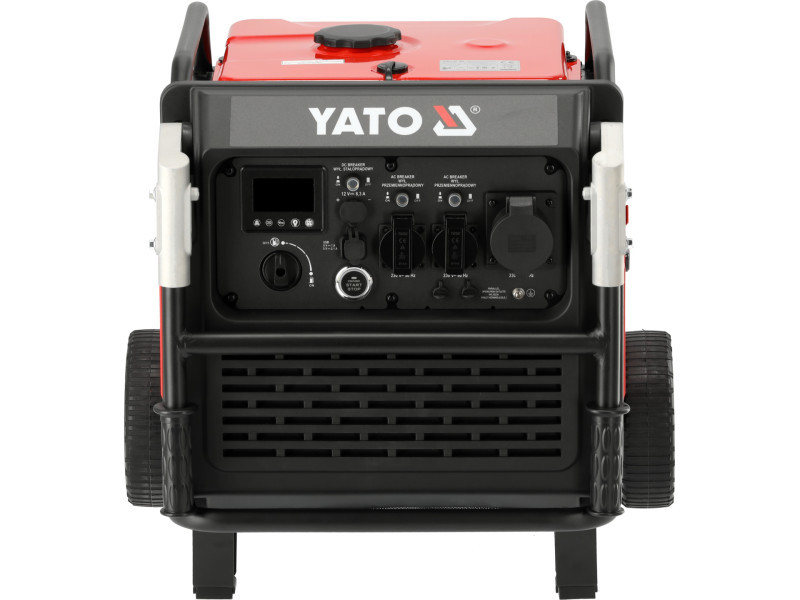

The petrol generator is a reliable source of energy in recreational plots, campsites, holiday cottages, and anywhere where there is no access to electricity or emergency electric power is necessary. The inverter power supply system allows for safe connection of even sensitive electronic devices and equipment.
Generator:
- power: 5000 W
- maximum power: 5500 W (S2 5 min)
- voltage: 230 V, 5, 12 V d.c.
- frequency: 50 Hz
- power factor: 1
- DC current: 21.7 A
- AC current: 8.3 A
- protection class: IP23M
- quality class: B
- efficiency class: G2
- electrical insulation class: I
Engine:
- engine type: R290-S
- single-cylinder, four-stroke engine
- fuel type: unleaded petrol
- oil type: SAE 15W-40
- start: manual and electric
- engine capacity: 224 cm3
- max. engine power: 6.9 kW
- max. engine speed: 3600 rpm
- air cooling
- compression ratio: 8.7:1
- fuel tank capacity: 19 l
- oil tank capacity: 0.8 l
- spark plug type: F7RTC
Device:
- operating temperature: 0-40˚C
- max. operating altitude: 1000 m above sea level
- easy-to-read control panel with indicators
- AC and DC protection
- ECO mode
- 2 carrying handles
- 2 transport wheels
- 2 230 V power sockets
- noise level: 96 dB
- dimensions: 746 x 634 x 605 mm
- weight: 65 kg
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
