| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Moc maksymalna | 2000 (S2 5 min) W |
| Power | 1900 W |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Engine (motor) capacity | 80 cm³ |
| Fuel tank capacity | 4 l |
| Fuel type | unleaded petrol |
| Oil tank capacity | 0.45 l |
| Oil type | SAE 15W-40 |
| Direct current | 8.3 A |
| Alternating current | 8.3 A |
| Wheels | no |
| Transportation holder | yes |
| Handle quantity | 1 |
| Dimensions | 440x290x440 mm |
| Cooling | air |
| Engine (motor) type | R80-i |
| Ignition plug type | TORCH A5RTC |
| Max. engine (motor) power | 2.4 kW |
| Max. engine (motor) rotations | 5200 min⁻¹ |
| Idling speed engine (motor) rotations | 3300 ± 100 min⁻¹ |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 4 |
| Compression stage | 10.5:1 |
| Power factor | 1 |
| Working temperature range | 0~40 ˚C |
| Max. operating altitude | 1000 m n.p.m. |
| Quality class | B |
| Performance class | G2 |
| Electric insulation class | I |
| Protection grade | IP23M |
| Acoustic pressure | 72.0 ± 2.0 dB(A) |
| Acoustic power | 92.0 ± 2.0 dB(A) |
| Weight | 17 kg |
| Symbol | YT-854837 |

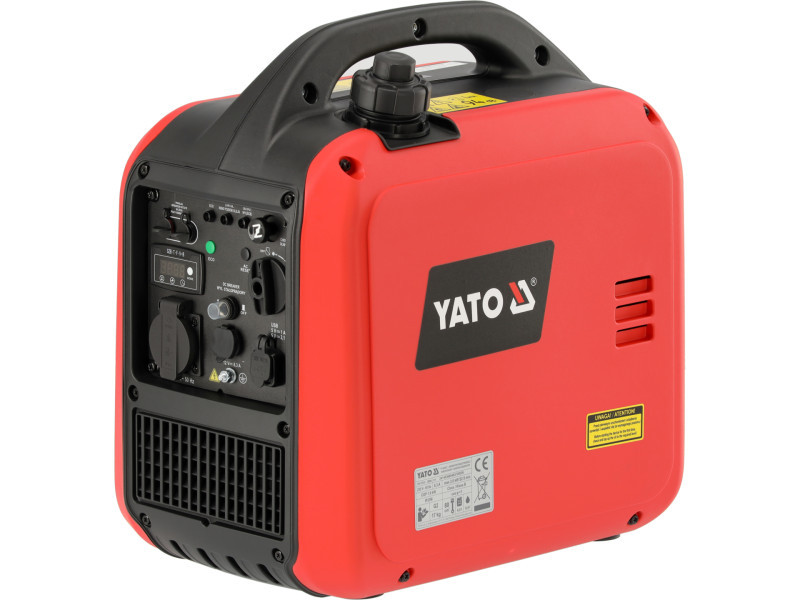

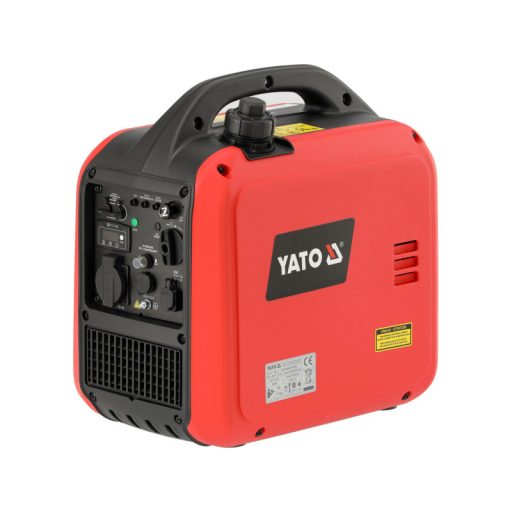

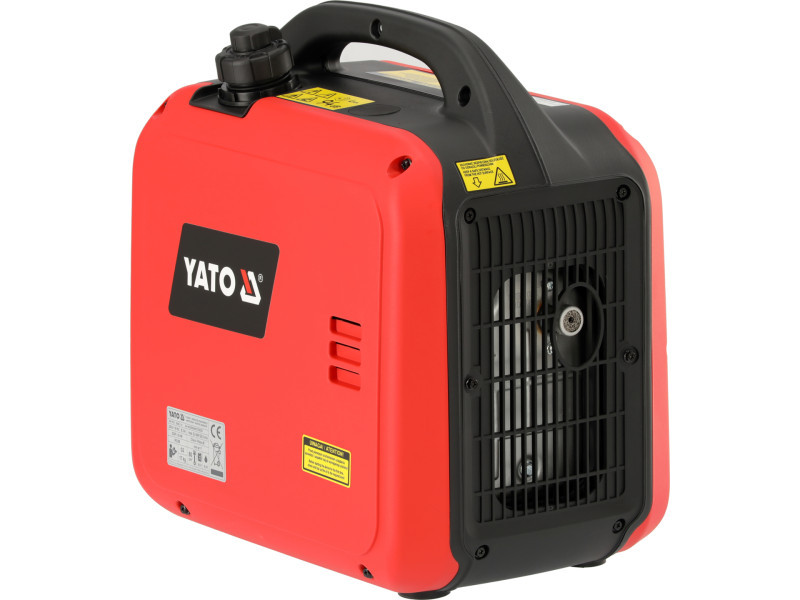

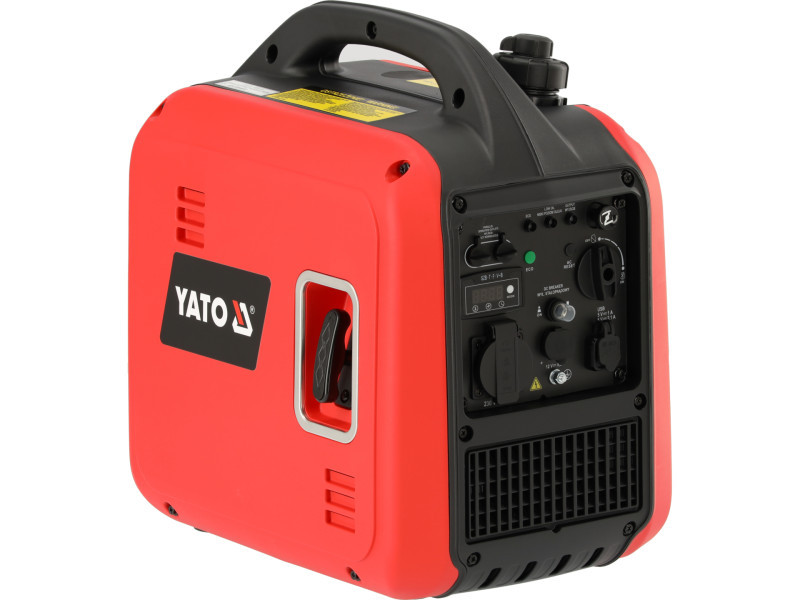

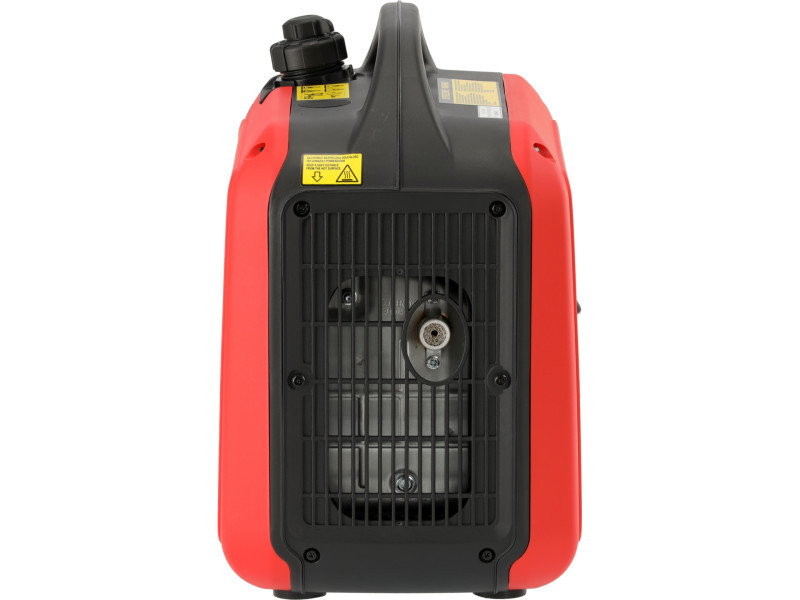

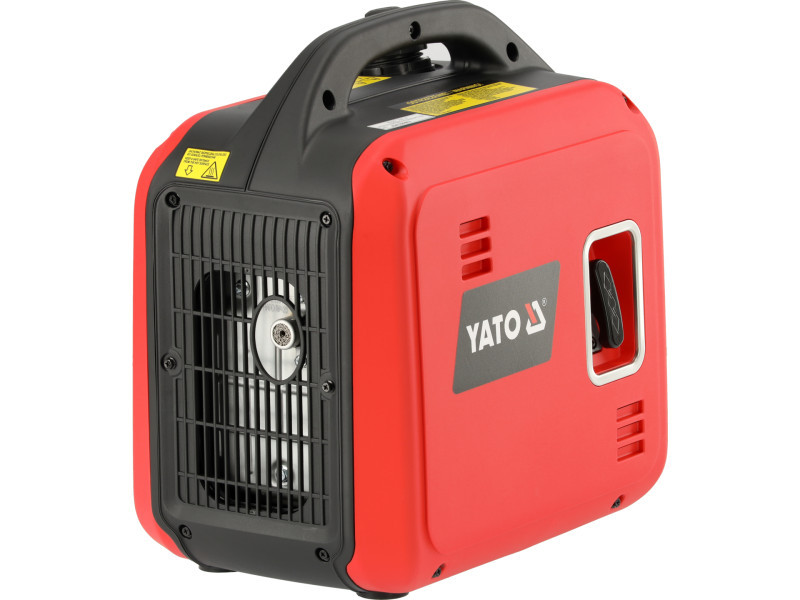

The petrol generator is a reliable source of energy in recreational plots, campsites, summer houses, and wherever there is no access to electricity or where the use of emergency power source is necessary. The inverter power supply system allows safe connection of even sensitive electronic devices and equipment.
Generator:
- power: 1900 W
- maximum power: 2000 W (S2 5 min)
- voltage: 230 V, 5, 12 V d.c.
- frequency: 50 Hz
- power factor: 1
- DC current: 8.3 A
- AC current: 8.3 A
- protection class: IP23M
- quality class: B
- efficiency class: G2
- electrical insulation class: I
Engine:
- engine type: R80-i
- single-cylinder, four-stroke engine
- fuel type: unleaded petrol
- oil type: SAE 15W-40
- start: manual
- engine capacity: 80 cm3
- max. engine power: 2.4 kW
- max. engine speed: 5200 rpm
- air-cooled
- compression ratio: 10.5:1
- fuel tank capacity: 4 l
- oil tank capacity: 0.45 l
- spark plug type: TORCH A5RTC
Device:
- operating temperature: 0-40˚C
- max. operating altitude: 1000 m above sea level

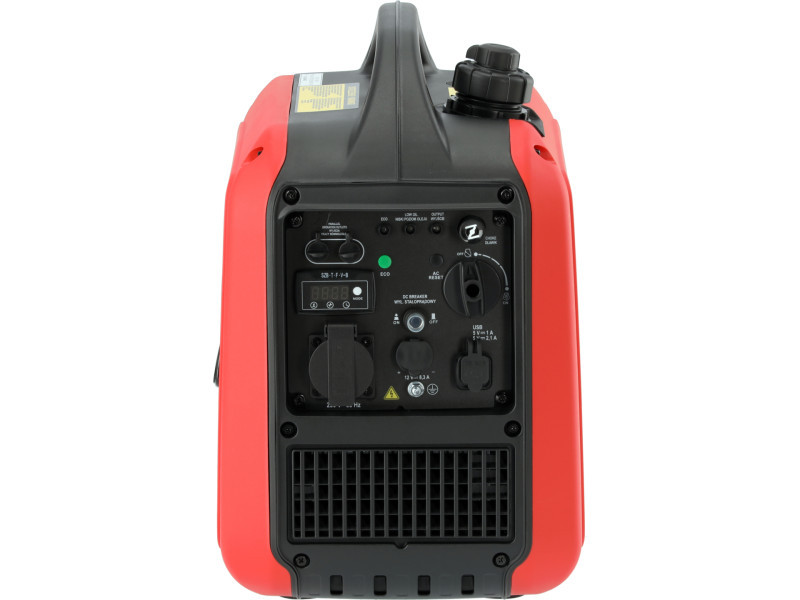

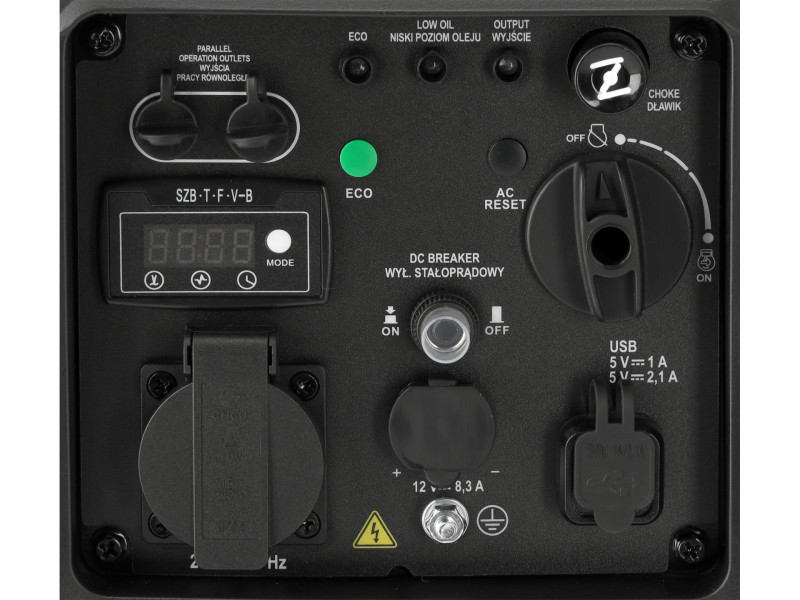

- clear control panel with indicators
- overload and constant current protection
- ECO mode

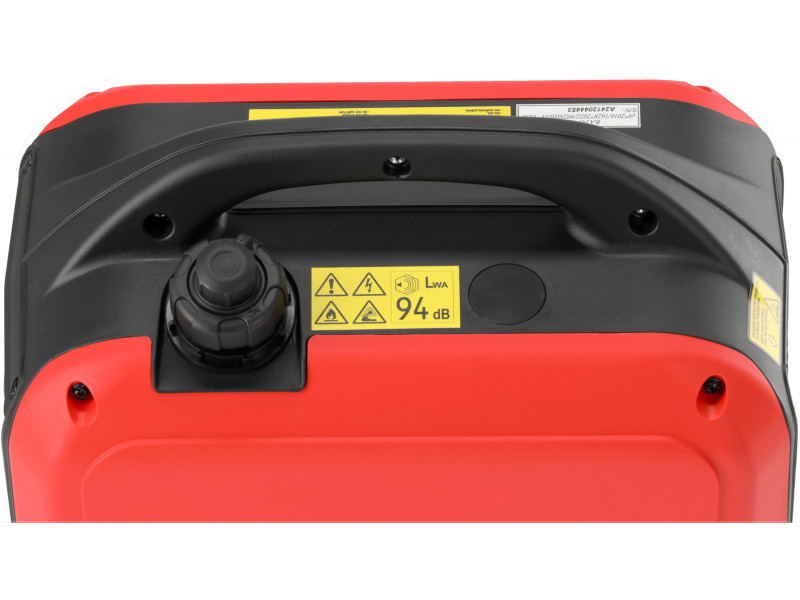

- carrying handle
- 2 power sockets 230 V
- noise level: 94 dB
- dimensions: 440 x 290 x 440 mm
- weight: 17 kg
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
