| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Moc maksymalna | 880 (S2 5 min) W |
| Power | 800 W |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Engine (motor) capacity | 42.7 cm³ |
| Socket quantity | 1 |
| Fuel tank capacity | 3.5 l |
| Fuel type | unleaded petrol + 2T oil |
| Oil and fuel ratio | 50:1 |
| Max. fuel consumption | 0.75 l/h |
| Alternating current | 3.47 A |
| Wheels | no |
| Transportation holder | yes |
| Handle quantity | 1 |
| Dimensions | 310x240x320 mm |
| Cooling | air |
| Automatic voltage regulation | no |
| Engine (motor) type | QL40F-E |
| Ignition plug type | LDL8RTF |
| Max. engine (motor) power | 1.25 kW |
| Max. engine (motor) rotations | 6500 min⁻¹ |
| Idling speed engine (motor) rotations | 3000 min⁻¹ |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 2 |
| Compression stage | 7.6:1 |
| Power factor | 1 |
| Working temperature range | 0~40 ˚C |
| Max. operating altitude | 1000 m n.p.m. |
| Quality class | B |
| Performance class | G1 |
| Electric insulation class | I |
| Protection grade | IP23M |
| Acoustic pressure | 70.46 ± 0 dB(A) |
| Acoustic power | 90.46 ± 0 dB(A) |
| Weight | 8.5 kg |
| Symbol | YT-85481 |

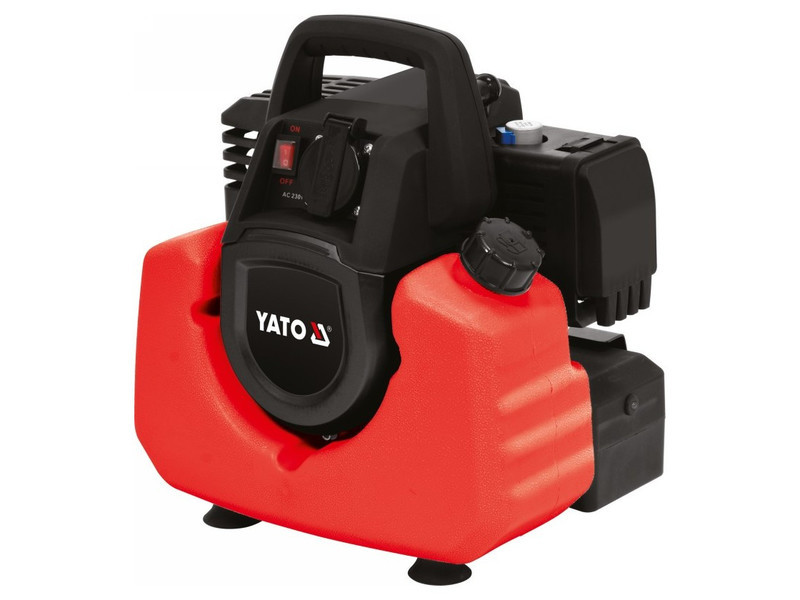

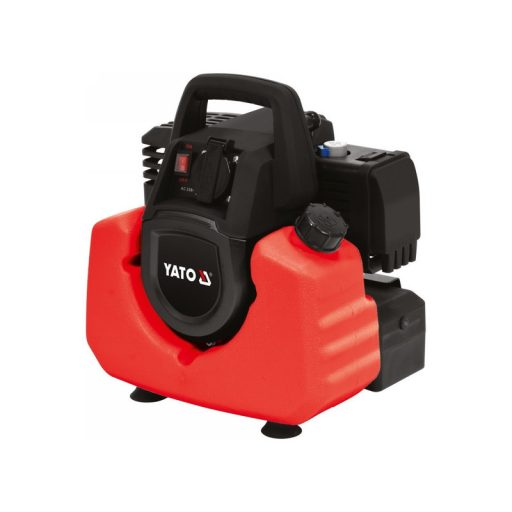

Inverter generators are a reliable source of energy on recreational plots, campgrounds, cottages and anywhere where there is no access to electricity or an emergency source of electricity is needed. The inverter power system allows you to safely connect even sensitive electronic equipment.
Characteristics:
- insulated copper winding resistant to overheating thanks to a thermal switch
- smoothed sine wave ensures safe connection and stable operation of electronic equipment, such as chargers, laptops, tablets, TVs, power tools
- durable and easy-to-use assisted starting system
- OHV engine
- fuel type: unleaded gasoline with oil for two-stroke engines
- compact dimensions and handle for easy transport
- max. alternator power: 880 W, constant power: 800 W
- very quiet operation - only 65 dB
- low fuel consumption: 0.75 L/h
- 230 V power socket
Parameters:
Generator:
- rated voltage [V]: A.C. 230
- rated power COP [W]: 800
- maximum power [W]: 880
- rated current (A.C.) [A]: 3,47
- maximum speed [min-1]: 6500
- electrical insulation class: I
- enclosure protection class (IP): IP23M
- performance class: G1
- quality class: B
Mechanical motor:
- Type: QL40F-E
- number of cylinders: 1
- number of bars: 2
- fuel type: unleaded gasoline + 2T oil
- fuel consumption [l/h]: 0,75
- engine displacement [cm3]: 42,7
- maximum power [kW]: 1,25
- maximum rpm [min-1]: 6500
- cooling: air
- fuel tank capacity [l]: 3,5
- spark plug type: LDL8RTF
Device:
- overall dimensions (L x W x H) [mm]: 310 x 240 x 320
- weight [kg]: 8,5
- operating temperature range [st. C]: 0 - +40
- maximum working altitude [m above sea level]: 1000
Usage warnings:
Warning 1. Read the operating instructions and labels before starting work. 2. Attention! Exhaust gas is toxic. Do not operate the generator indoors without adequate ventilation. 3. Keep children away from the generator. 4. Do not refill fuel and oil while the generator is running. 5. If the generator will be placed in a closed room, measures must be taken to prevent fire and explosion. 6. Do not connect the generator to the home electrical network. 7. Do not use the generator in high humidity conditions. 8. Keep flammable products away from the generator. 9. When refueling: - stop the engine, - do not smoke, - do not spill fuel.
Keep a safe distance from the hot surface.
