| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Type of | PC-13 |
| Water outlet diameter | 1" (25.0 mm) |
| Max. power | 1100 W |
| Initial pressure | 1.5-2.2 bar |
| Voltage | 220-240 V a.c. |
| Frequency | 50/60 Hz |
| Max. current | 10 A |
| Material | PP |
| Auto power on / off | yes |
| Dry-running protection | yes |
| Wire length | 1 (entrance), 0.5 (output) m |
| Max. water temperature | 60 ˚C |
| Ambient temperature | 5~40 ˚C |
| Protection grade | IP65 |
| Weight | 1 kg |
| Application | for the automatic control of water pumps |
| Symbol | YT-85393 |

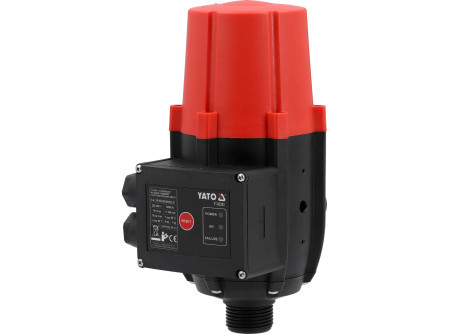

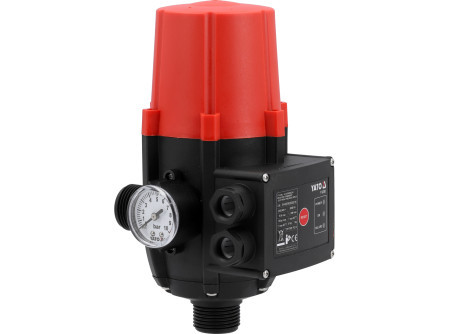

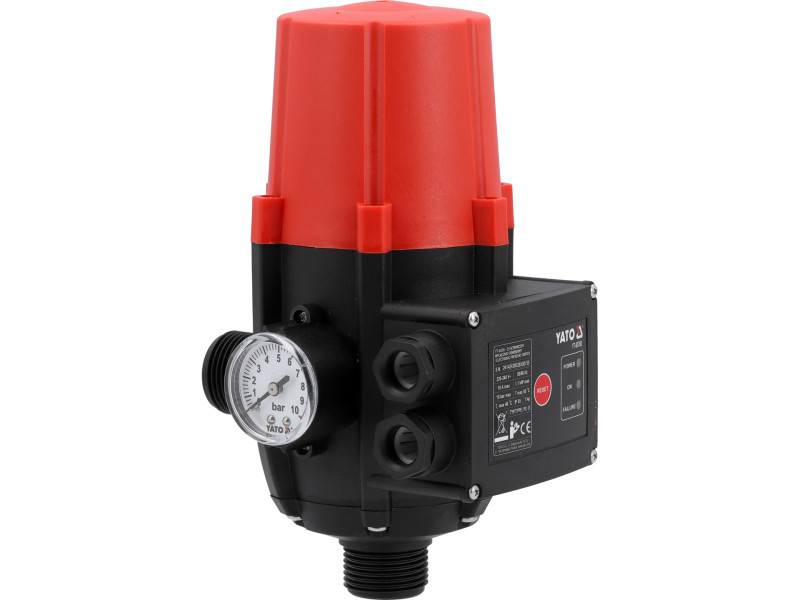

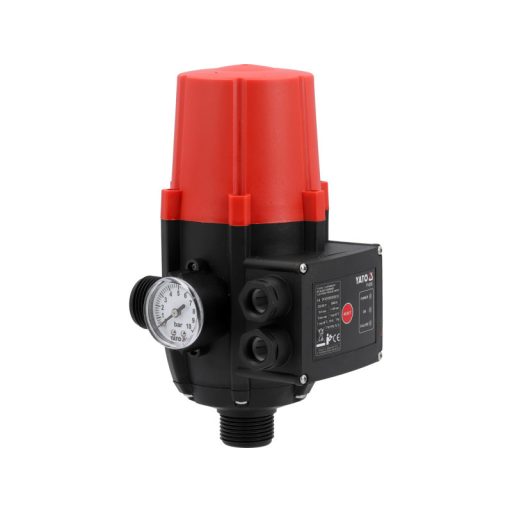

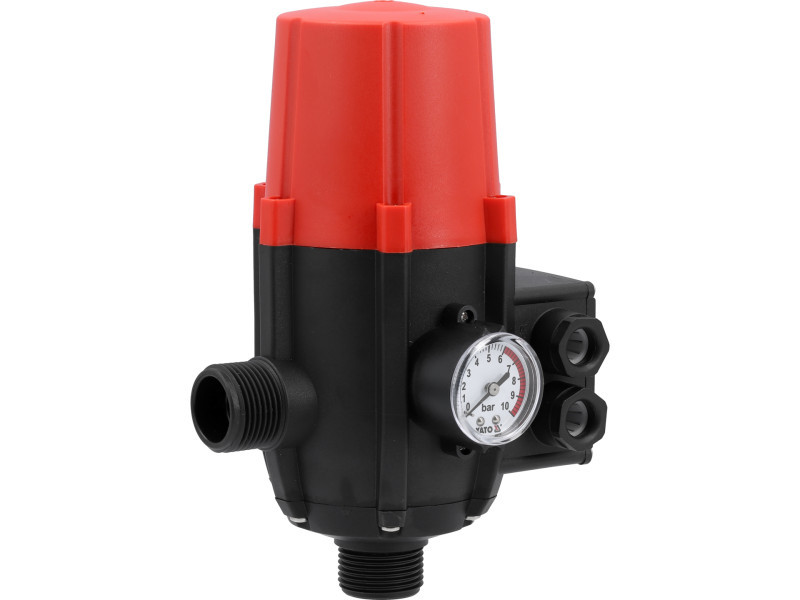

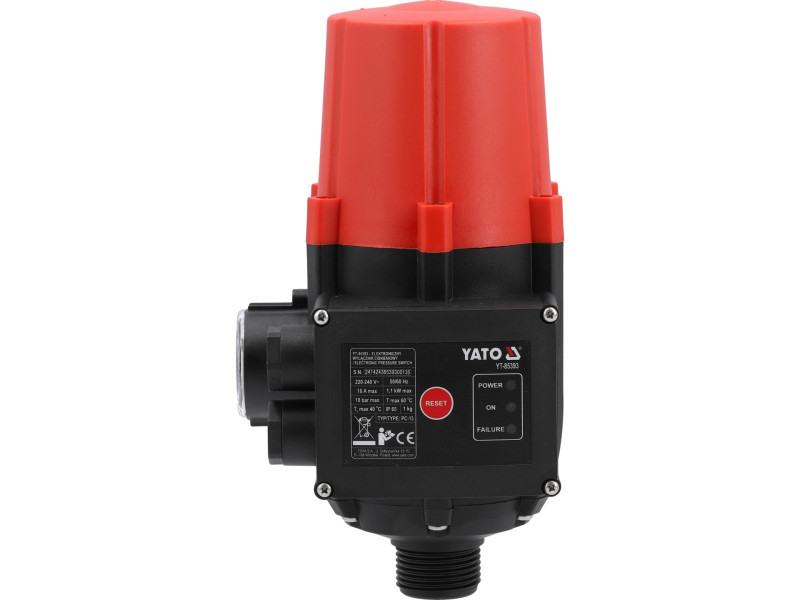

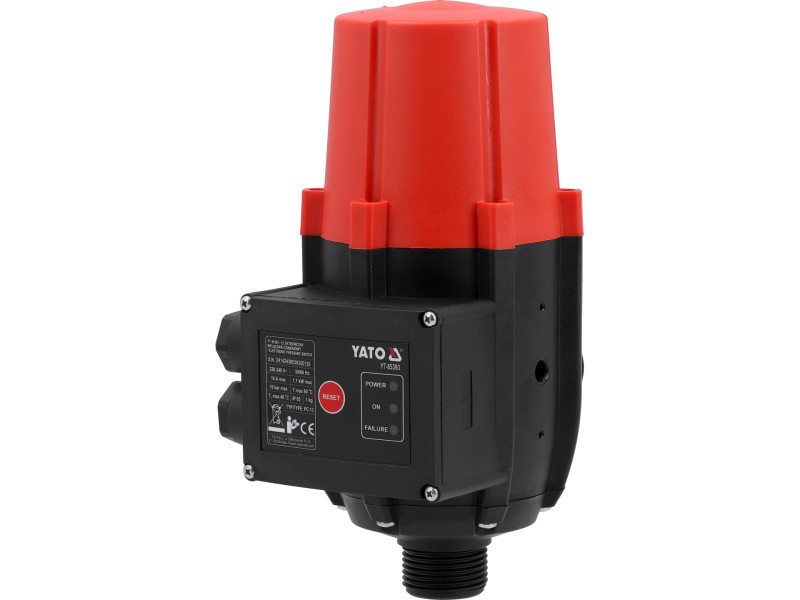

The pressure switch provides constant water pressure for garden irrigation or domestic water supply.
The line pressure in the connected system is monitored by a pressure switch. The water pump is automatically started and stopped according to the opening and closing of the valve.
Product benefits:
- monitors water pressure
- ensures constant water pressure
- protects against dry running
Technical specifications:
- type: PC-13
- initial pressure: 1.5–2.2 bar
- max. pressure 10 bar
- voltage: 220-240 V
- rated current: 10A
- max. power 1.1 kW
- max. liquid temperature 60°C
- max. ambient temperature 40°C
- protection rating: IP65
- housing material: polypropylene
- input: 1 m cable
- output: 0.5 m cable
