| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |

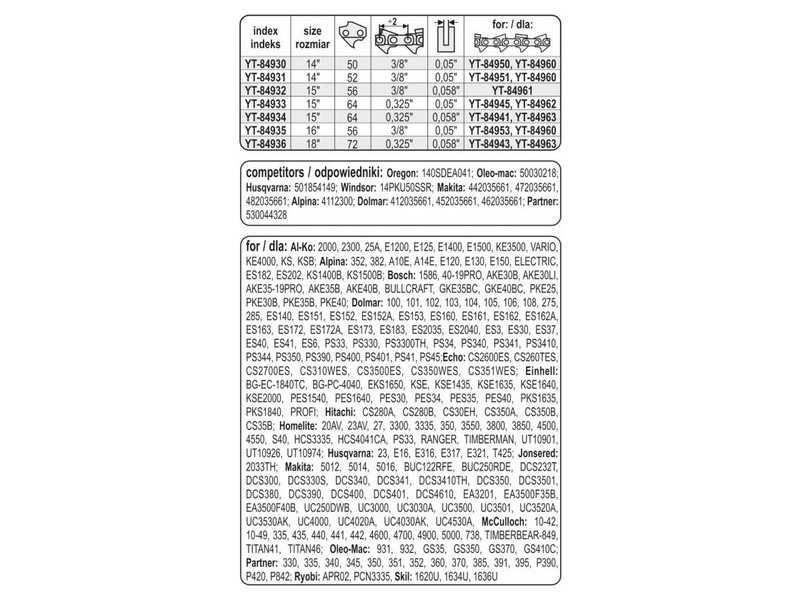

| For chainsaws | YT-84985, 79675 |
| For chains | YT-84951, YT-84960 |

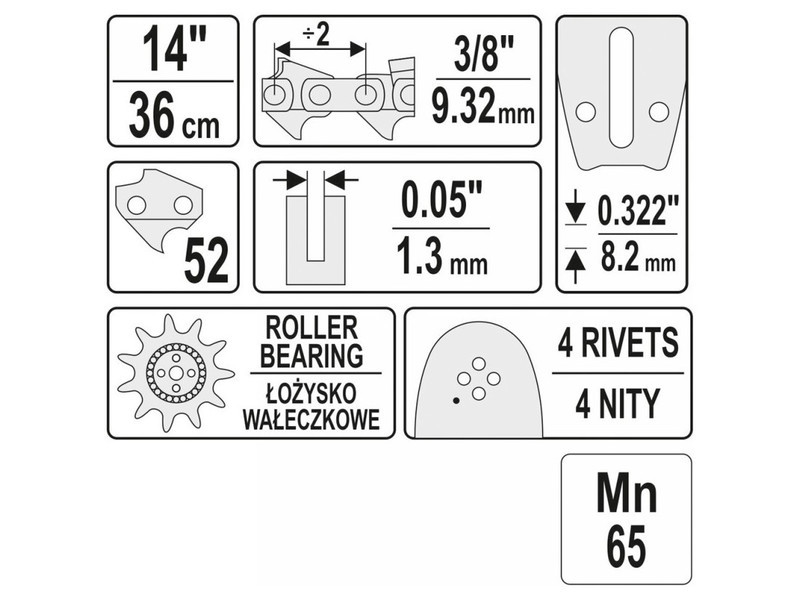

| Chain pitch | 3/8" (9.52 mm) |
| Guide link length | 0.05" (1.3 mm) |
| Links quantity | 52 |
| Guide bar length | 14" (360 mm) |
| Guide bar thickness | 0.322" (8.2 mm) |
| Material | steel 65Mn |
| Mounting type | P |
| Automatic chain lubrication | yes |
| Rivets quantity | 4 |
| Number of teeth | 9 |
| Bearing | yes |
| Bearing type | roller |
| Symbol | YT-84931 |

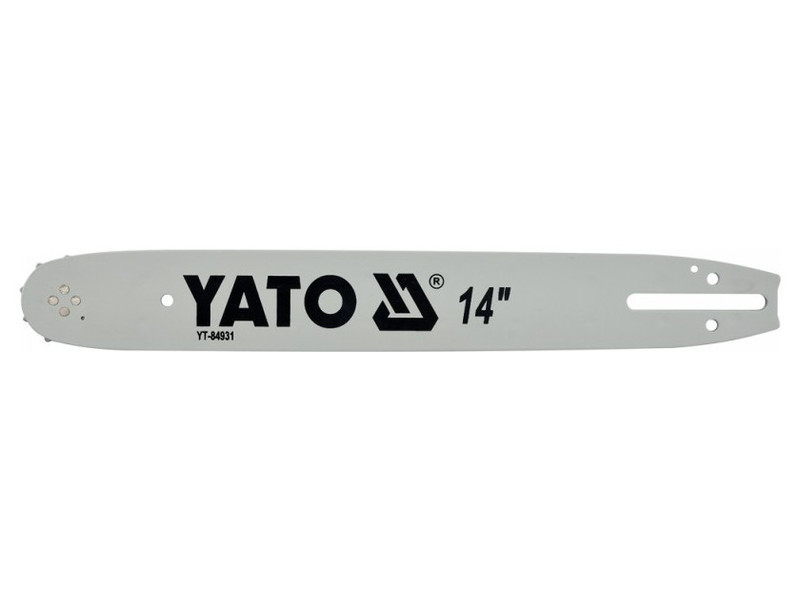

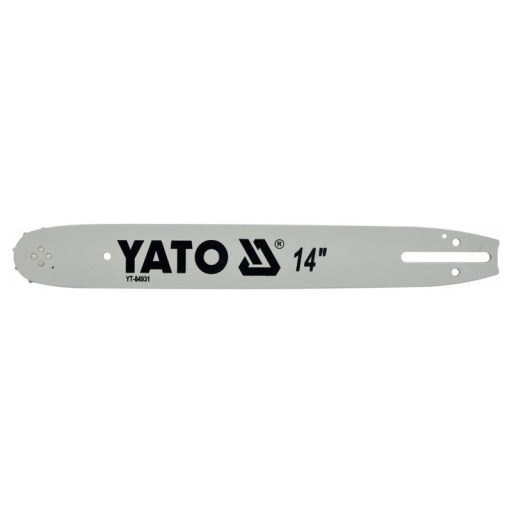

Chain guide for chainsaws. Manufactured from Mn65 manganese steel, which significantly increases the guide's resistance to abrasion and overheating, extending its life.
The star tip is attached with 4 rivets, ensuring the highest precision installation and increasing the strength of the guide. Besides, the star end has a roller bearing that guarantees precise chain guidance, minimizing resistance during operation.
YATO guides have a special lubrication system with an oil reservoir, from which the chain collects oil and distributes it evenly along the entire length of the bar. This reduces operating resistance and increases cooling, which significantly extends the life of the entire cutting system.
Bar guides have a special lubrication system
YATO guides are designed for home and professional use. They are dedicated to work around the house, in the garden. They are also successfully suitable for logging work. It is suggested to use the guides with chains YATO YT-84951 or YT-84960.It is also possible to use them with chains from other manufacturers.
Usage warnings:
Warning! Always use personal safety equipment at work.
