| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| For chains | YT-849395, YT-84963 |
| Chain pitch | 0.325" (8.25 mm) |
| Guide link length | 0.058" (1.5 mm) |
| Links quantity | 50 |
| Guide bar length | 12" (300 mm) |
| Guide bar thickness | 0.322" (8.2 mm) |
| Material | steel 65Mn |
| Mounting type | E |
| Automatic chain lubrication | yes |
| Rivets quantity | 4 |
| Number of teeth | 10 |
| Bearing | yes |
| Bearing type | roller |
| Symbol | YT-84928 |

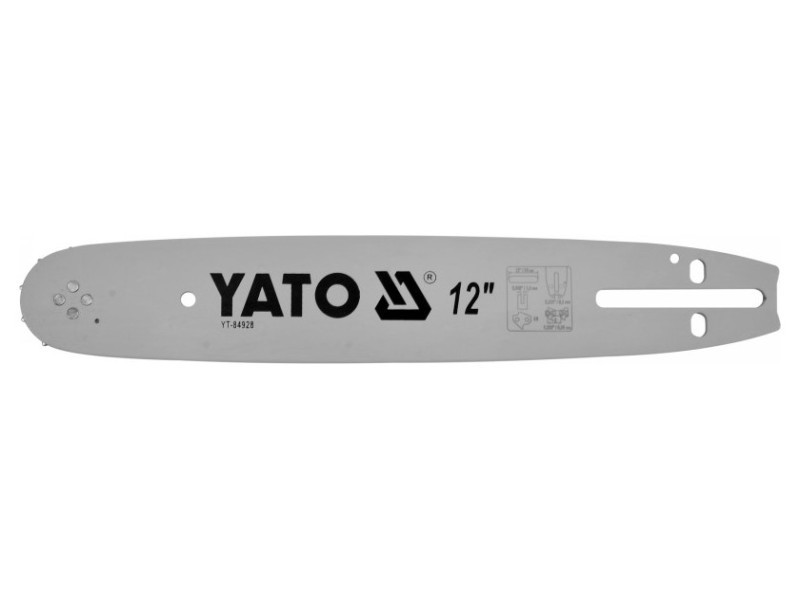

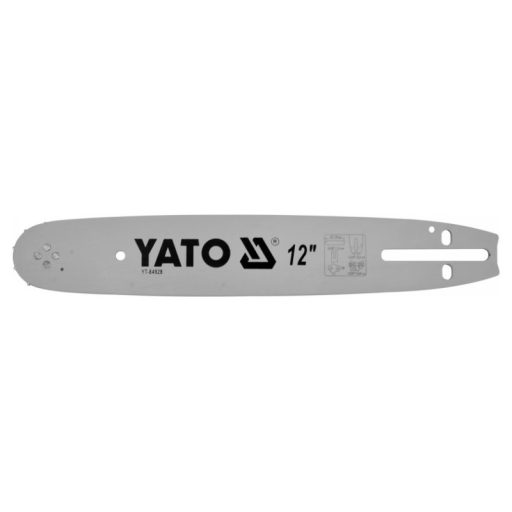

YATOYT-84928 brand chain guide for chainsaws.

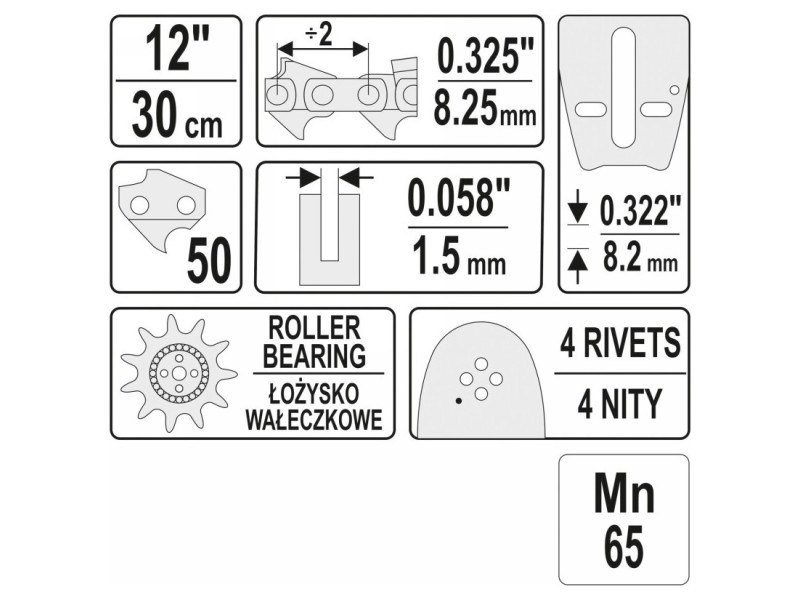

Length 12", 50 links, pitch 0.325", width 0.058" (1.5 mm).
It is made of manganese steel Mn65, whichóra significantly increases the guide's resistance to abrasion and overheating, extending its life. The star endós fastened with 4 rivetsós, ensuring the highest precision of installation and increasing the strength of the guide. In addition, the star endós star end has aroller bearing, whichóguarantees precise chain guidance, minimizing dragór during operation.
The YATO guides have a special lubrication system with an oil reservoir, from which the chain collects oil and distributes it evenly along the entire length of the guide. This reduces operating resistance and increases cooling, greatly extending the life of the entire cutting system.
The YATO guides are designed for home and professional use. They are dedicated to work aroundó3 the house, in the garden. They are also successfully suitable for tree felling work. It is suggested to use the guides with chains YATO YT-849395 or YT-84963. It is also possible to use them with chains from other manufacturersós.
Usage warnings:
Warning! Always use personal safety equipment at work.
