| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| For chains | YT-849472 |
| Chain pitch | 3/8" (9.52 mm) |
| Guide link length | 0.043" (1.1 mm) |
| Links quantity | 40 |
| Guide bar length | 10" (250 mm) |
| Guide bar thickness | 0.322" (8.2 mm) |
| Material | steel 65Mn |
| Mounting type | P |
| Automatic chain lubrication | yes |
| Rivets quantity | 1 |
| Number of teeth | 7 |
| Bearing | yes |
| Bearing type | roller |
| Symbol | YT-84916 |

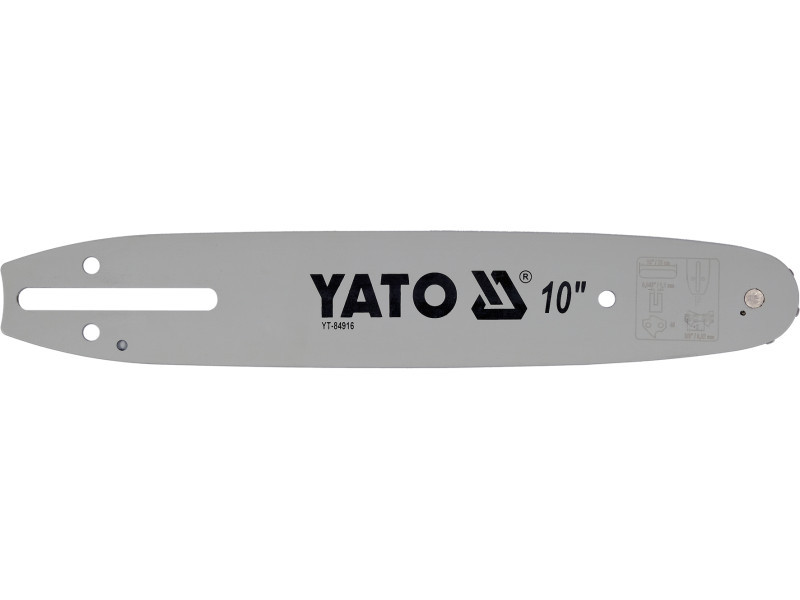

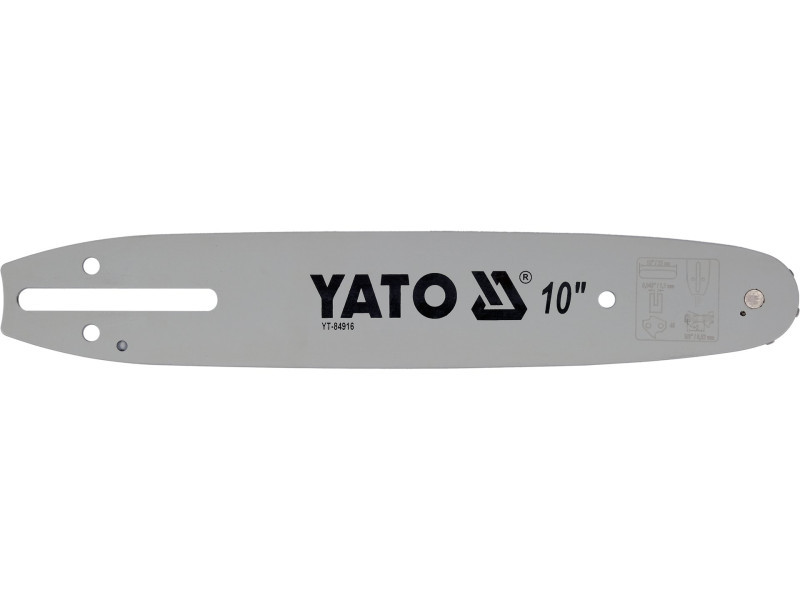

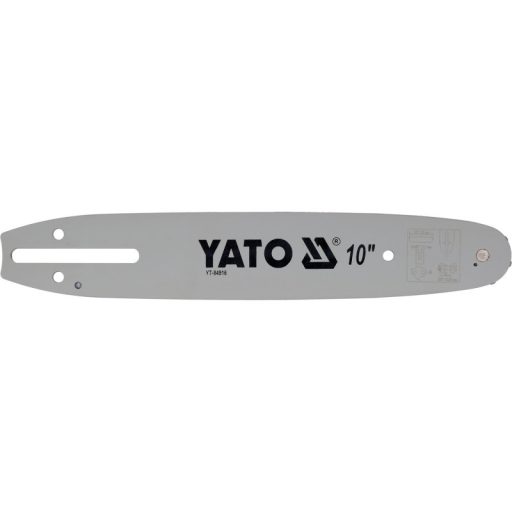

Chain guide for YATObrand chainsaws.
Length 10", 40 links, splitting 3/8", bar thickness .0.322" (8.2 mm), guide link thickness 0.043" (1.1 mm), mounting type P, A041.
It is made of manganese steel 65Mn, which significantly increases the guide's resistance to abrasion and overheating, extending its life.
Bars YATO have automatic lubrication system chain. This reduces operating resistance and increases cooling, greatly extending the life of the entire cutting system.
The guides YATO are designed for home and professional use. They are dedicated to work around the house, in the garden. They are also successfully suitable for tree felling work. It is suggested to use the guides with chains YATO YT-849472. It is also possible to use them with chains from other manufacturers.
Usage warnings:
Warning! Always use personal safety equipment at work.
