| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | chainsaw, pruner |
| Power | 750 W |
| Guide bar length | 10" (250 mm) |
| Voltage | 230-240 V a.c. |
| Frequency | 50 Hz |
| Chain type | 3/8.043x40 |
| Chain pitch | 3/8" (9.525 mm) |
| Max. chain travel speed | 12 m/s |
| Links quantity | 40 |
| Chain drive wheel teeth number and scale | 6 teeth x 9.525 mm |
| Chain guide type | AP10-40-437P |
| Mounting type | P |
| Oil tank capacity | 60 ml |
| Automatic chain lubrication | yes |
| Operation angle | handle: -180, -90, -45, 0, +45, +90, cutting head: -20, 0, +20, +40, +60 ˚ |
| Telescopic | yes |
| Soft handle | yes |
| Length of handle | 1100-1700 mm |
| Wire length | 0.35 m |
| Electric insulation class | II |
| Acoustic pressure | 89.5 ± 3.0 dB(A) |
| Acoustic power | 102.7 ± 2.47 dB(A) |
| Vibrations | 2.67 ± 1.5 / 3.32 ± 1.5 m/s² |
| Weight | 1.1 kg |
| Set includes | saw, chain guide, cutting chain, guide cover, handle extension, carrying belt |
| Symbol | YT-84877 |

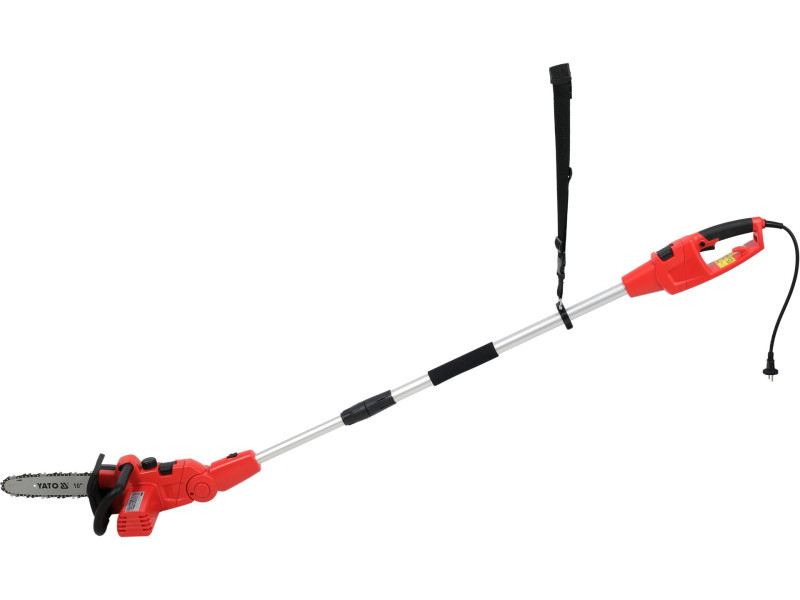

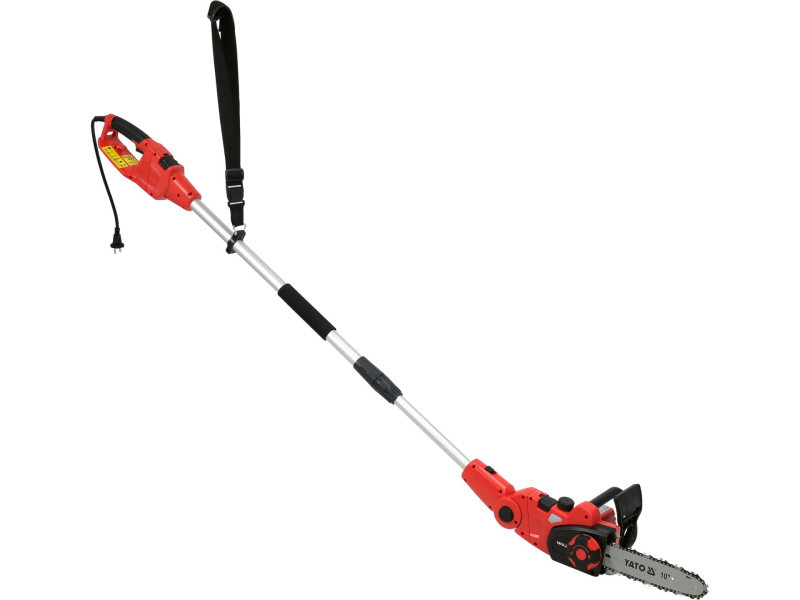

The device combines two functions - it is an electric chainsaw and a telescopic limbing machine for trimming branches. For your convenience when trimming branches, you can adjust the position of the saw head in two planes - tilting against the bar and rotating around the axis.
- adjust the angle of the pruning head: -60, -40, -20, 0, +20 degrees
- rotate the saw handle: -180, -90, -45, 0, +45, +90 degrees

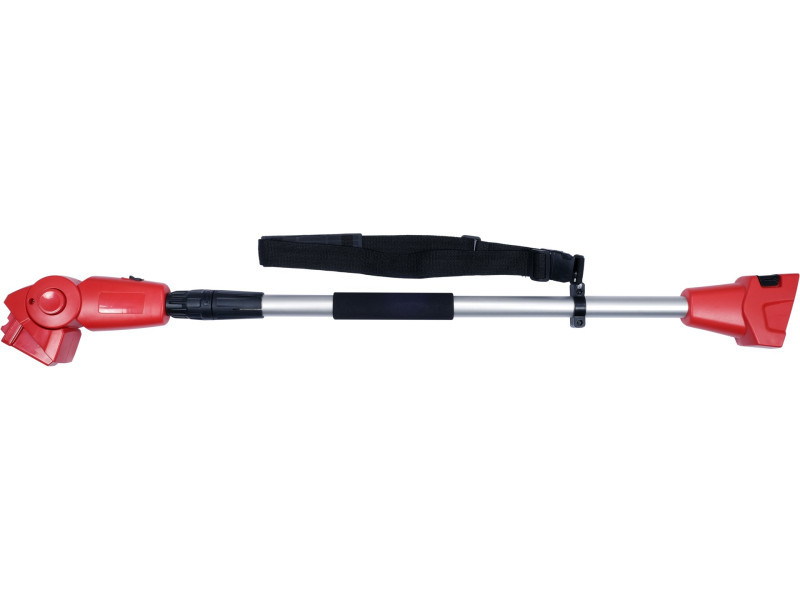

The pole of the limbing machine is telescopically extendable: 110-170 cm
The user can maintain the correct chain tension thanks to the SDS tool-free quick adjustment system.
Rubber additions on the handle increase grip confidence.
- Power: 750 watts
- bar length: 25 cm (10 inches)
- bar assembly: P (A041)
- chain : 0.043", 3/8", 40 links, recoil protection (low kickback)
- chain speed: 12 m/s
- oil reservoir capacity: 60 ml
- cable length: 0.35 m
- included shoulder strap and plastic bar guard
