| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Rotations | 4700 min⁻¹ |
| Power | 4 kW |
| Engine (motor) capacity | 93.6 cm³ |
| Max. cutting depth | 145 mm |
| Disc diameter | 400 mm |
| Mounting hole diameter | 25.4 mm |
| Spindle diameter | 14.3 mm |
| Water outlet diameter | 1/2" (12.7 mm) |
| Water pressure | 0.1-0.5 MPa |
| Fuel tank capacity | 1 l |
| Oil and fuel ratio | 40:1 |
| Max. fuel consumption | 2105 g/h |
| Cooling | air (engine), water (shield) |
| Low vibration | yes |
| Ignition plug type | L8RTF, BM6A |
| Cylinders number in engine (motor) | 1 |
| Strokes number in engine (motor) | 2 |
| Disc mounting torque | 15-25 Nm |
| Min. external diameter of disc mounting flange | 78 mm |
| Acoustic pressure | 93.35 ± 2.5 / 107.95 ± 2.5 dB(A) |
| Acoustic power | 112.33 ± 2.5 / 115.5 ± 2.5 dB(A) |
| Vibrations | 6.99 ± 1.5 / 7.79 ± 1.5 / 10.26 ± 1.5 / 9.77 ± 1.5 m/s² |
| Weight | 12 kg |
| Symbol | YT-84820 |

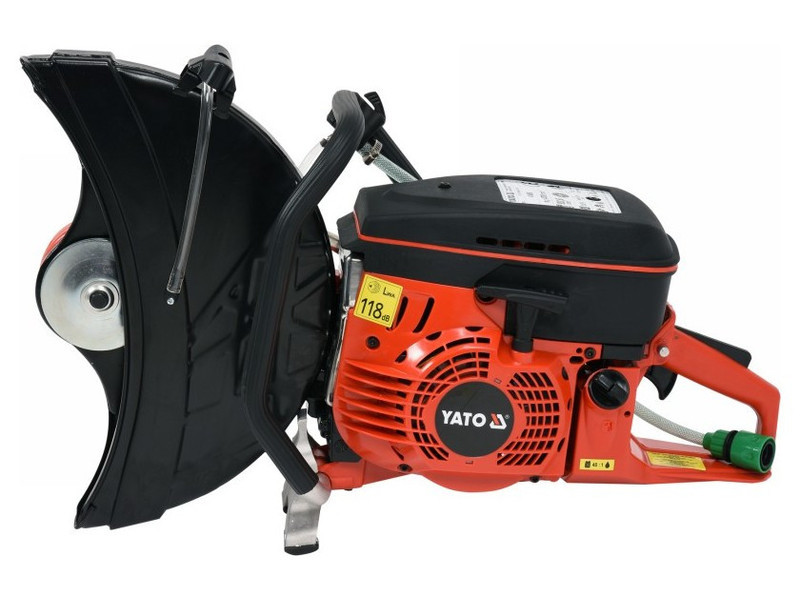

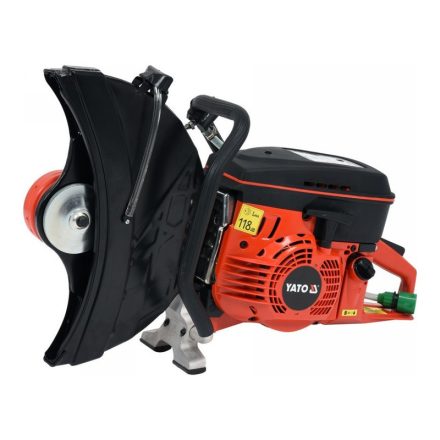

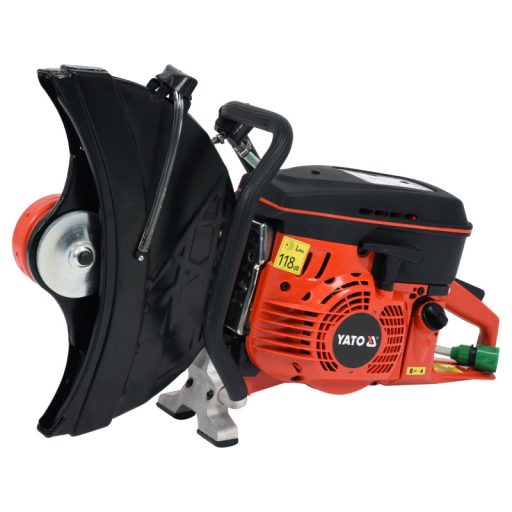

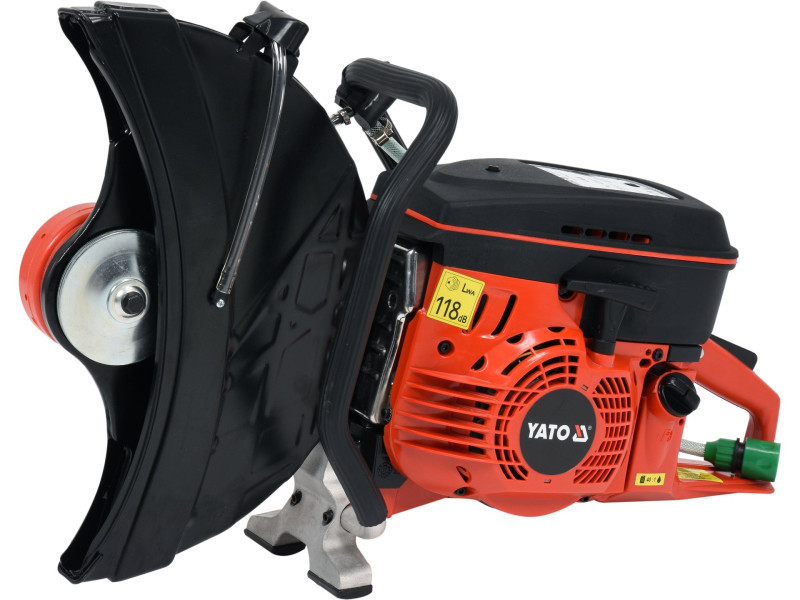

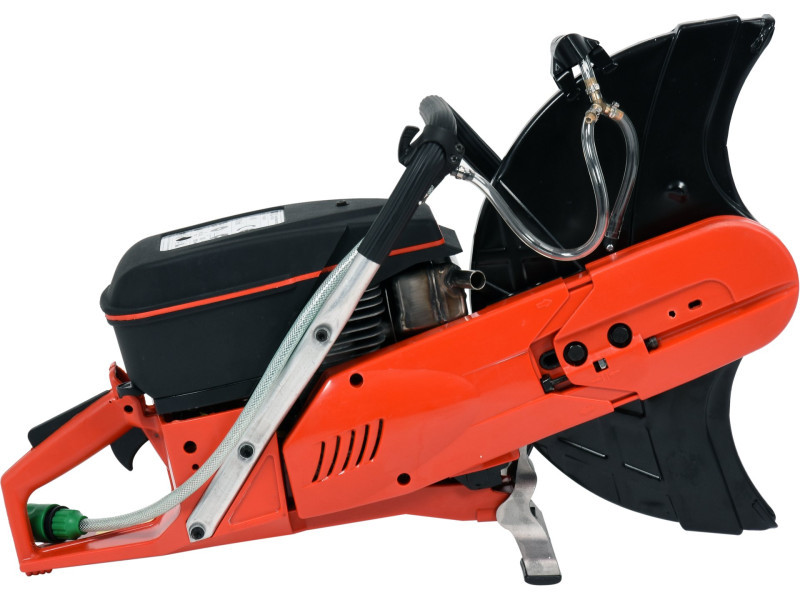

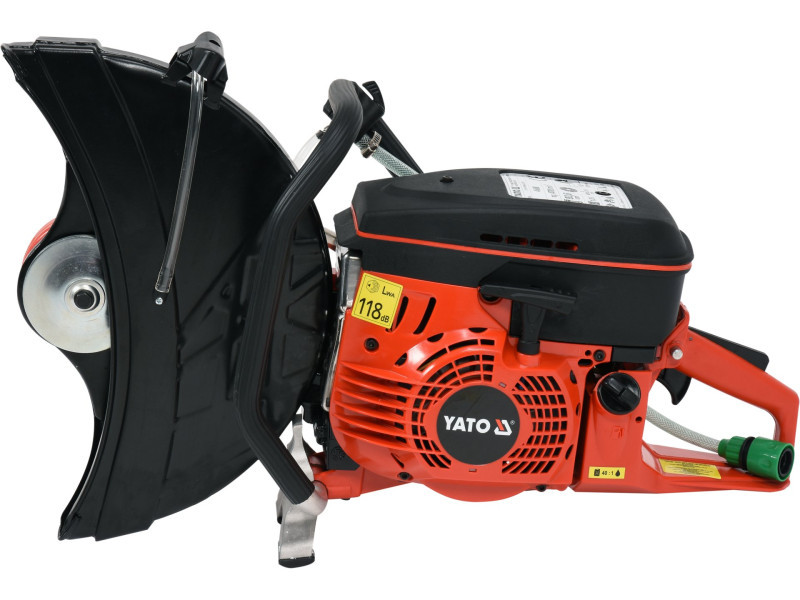

A very powerful two-stroke cutting machine designed for dry and wet cutting of concrete and - with the right type of disc - asphalt, stone and steel. Recommended for professionals. For the saw are recommended discs: YT-5965 and YT-5955.
- Required disc diameter: 400 mm
- maximum depth of cut: 145 mm
- power: 5.44 hp
- cooling of the blade with water.
- dust protection
- multiple V-belt
- ceramic cylinder coating
- adjustabledisc guard allows operation in any position
- cutting element mounted on shock absorbers
- precise cutting from idle
- fuel venting system
- precision cutting. nbsp;
- low vibration level
- adjustable water jet
- exhaust gas blowing in a different direction than dust blowing
- compliance with EURO 2
- water connection included
Parameters:
- weight (without disc and fuel) [kg]: 12
- fuel tank capacity [l]: 1
- max. spindle speed [min-1]: 4700
- spindle diameter [mm]: 14.3
- diameter of disc mounting hole [mm]: 25.4
- diameter of disc [mm]: 400
- disc mounting torque [Nm]: 15 - 25
- minimum outside diameter of disc mounting flange [mm]: 78
- maximum depth of cut [mm]: 145
- water pressure [MPa]: 0.1 - 0.5
Combustion engine:
- Number of cylinders: 1
- Number of bars: 2
- cooling: air
- spark plug type: L8RTF, BM6A
- engine displacement [cm3]: 93.6
- engine power [kW]: 4
- statement speed [min-1]: 8500
- idle speed [min-1]: 2500 ± 300
- max. fuel consumption [g/h]: 2105
.
Usage warnings:
Warning! Avoid the reactive movement (kickback) while using the machine.
Warning! Exhaust unit may produce the sparks - fire risk. Do not use damaged cut-off wheel. Do not use saw blade.
