| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 3600 W |
| Moc maksymalna | 7000 W |
| Output signal characteristics | pure sine |
| volume | 80 % |
| Battery voltage | 51.2 V d.c. |
| Battery capacity | 60000 mAh |
| Battery type | LiFePO4 |
| Battery energy | 3072 Wh |
| Charger type | mains 110-240V~ 50/60Hz, 12V car, charging from external solar panels |
| Dimensions | 642x305x438 mm |
| Functions | EPS mode (emergency power supply), control via mobile application, frequency change |
| Display type | LCD |
| Wheels | yes |
| Wheel quantity | 2 |
| Auto power off | yes |
| Safeguard | BMS: over current, short circuit, over discharge/over charge/over voltage/over heat, |
| Security continued. | inverter: against undervoltage/overvoltage/short circuit/overload/overheating |
| Storage temperature | -20 ~ +60 ˚C |
| Charging temperature | 0~40 ˚C |
| Discharge temperature | -15 ~ +40 ˚C |
| Electric insulation class | I |
| Protection grade | IP21 |
| Weight | 37.13 kg |
| Set includes | station, mains charger, cable for charging the product from a 12V DC electrical installation, cable for charging the product from an external solar panel with MC4 output, |
| Set includes cont’d | output cable with Anderson plug, output cable with plug 7909 |
| Symbol | YT-83096 |

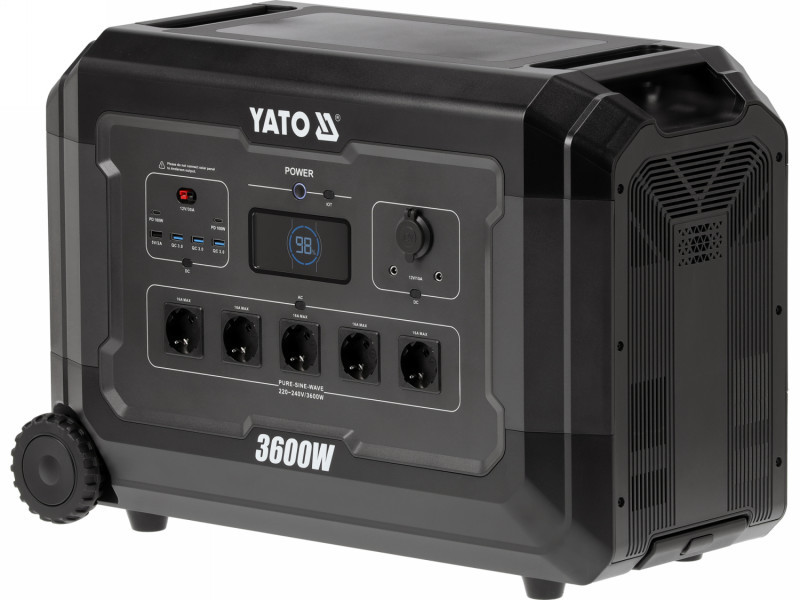

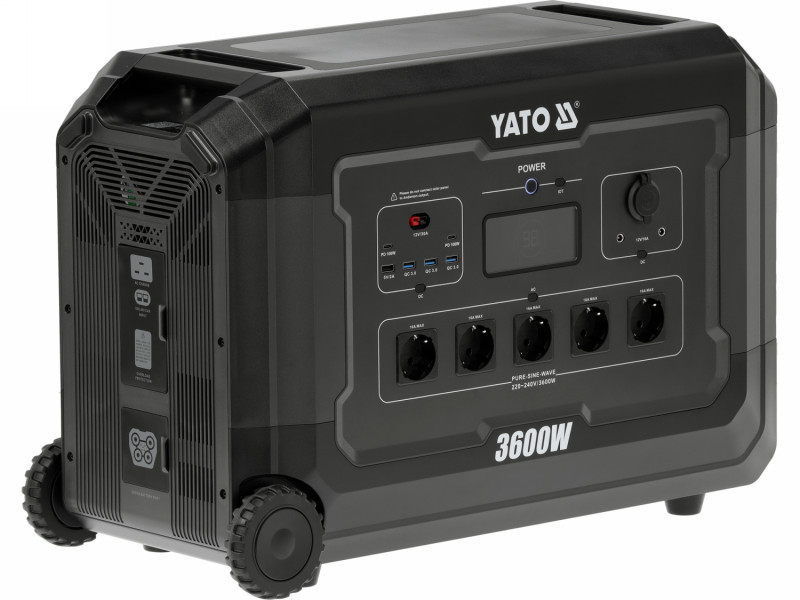

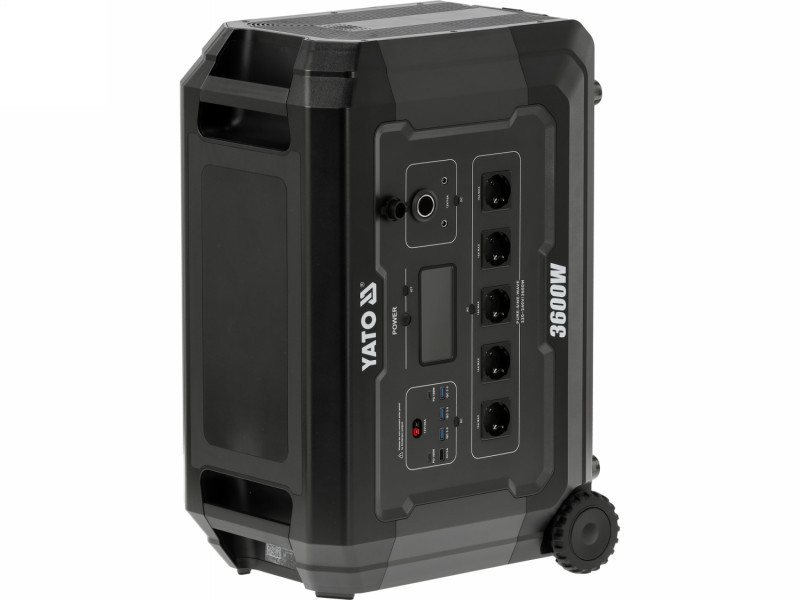

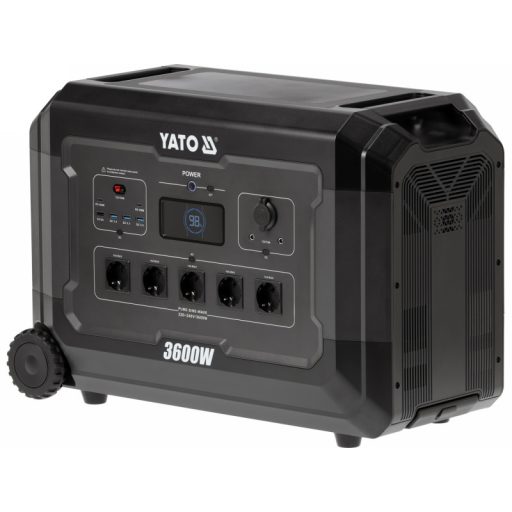

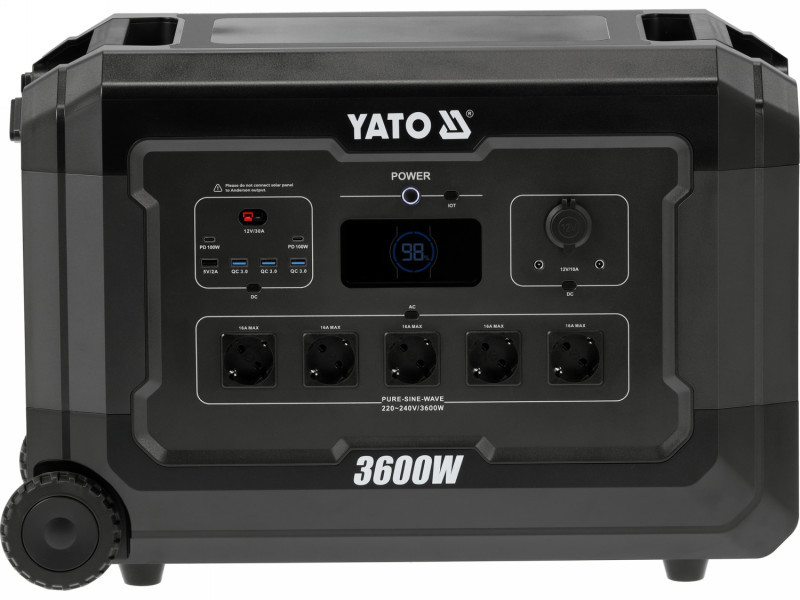

Portable, advanced YATO power station with a very large capacity of 3072 Wh and an output power of 3600 W, equipped with a modern LiFePO4 battery, is designed as a stable and long-term source of energy for demanding applications. Lithium-iron-phosphate technology provides above-average cell life, high resistance to deep discharges, and maintains constant operating parameters, even under prolonged and intense load. Such a large energy reserve allows powering both consumer electronics and lighting, as well as power tools and selected household appliances, without the need for frequent recharging.
The device serves as an independent power center for home, workshop, camper, or professional applications. It proves useful in emergency situations, such as power outages, as well as in places without permanent access to the grid – on a plot of land, during camping or field work. The high output power enables powering gas heaters, CO pumps, household appliances, power tools, and even air conditioners, ensuring continuous operation and user comfort.
The sturdy, ergonomic design and mobile nature facilitate transport and safe use in various conditions. An extensive set of AC, DC, and USB outputs allows simultaneous connection of multiple devices, and fast charging – also from solar panels with a power of up to 2100 W – increases energy independence. The combination of large capacity, high power, advanced electronics, and emergency EPS mode makes this station a universal solution as a backup power source, a mobile outdoor power station, and professional energy support in the field.
- backup power source (operates in emergency EPS mode like a UPS)
- camping and outdoor power supply
- energy support for professionals in the field
Sample applications:
- powering a gas heater and CO pump in case of a power outage – maintaining heating and installation safety
- emergency power source for appliances – refrigerator, router, laptop, TV, and other household electronics
- mobile power station for camping and hiking – for coffee makers, lighting, smartphones, laptops
- support for power tools during construction and workshop work in places without access to the grid
- powering devices in a car or on a boat – thanks to 12 V outputs, USB ports, and a cigarette lighter socket
- powering photographic and video equipment
- energy independence with solar panels (MPPT)
Key features:
- huge battery capacity:
- 3072 Wh – allows for hours of refrigerator operation or multiple charging of mobile devices
- LiFePO4 battery – maximized lifespan exceeding 3500 charge cycles, high level of safety, and stable operating parameters
- AC output power:
- continuous power: 3600 W, 220-240 V / 50 Hz
- peak power: 7000 W, 220-240 V / 50 Hz

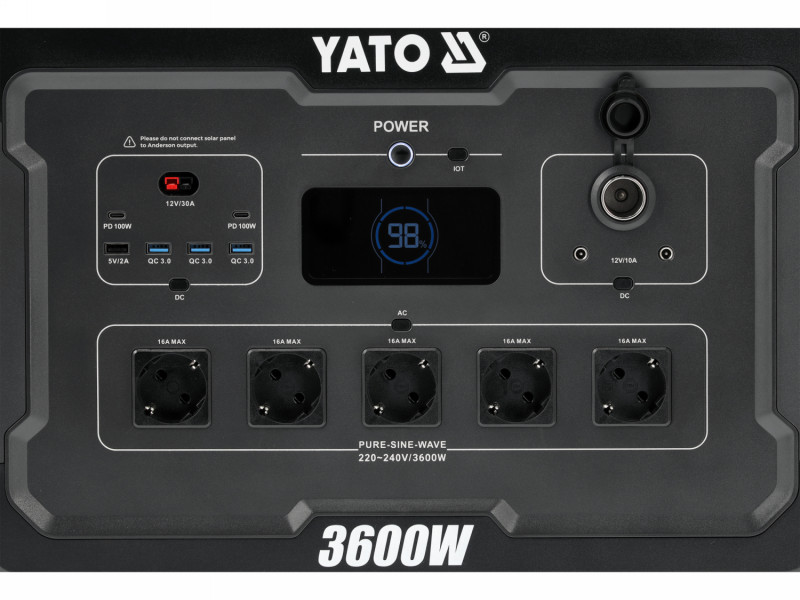

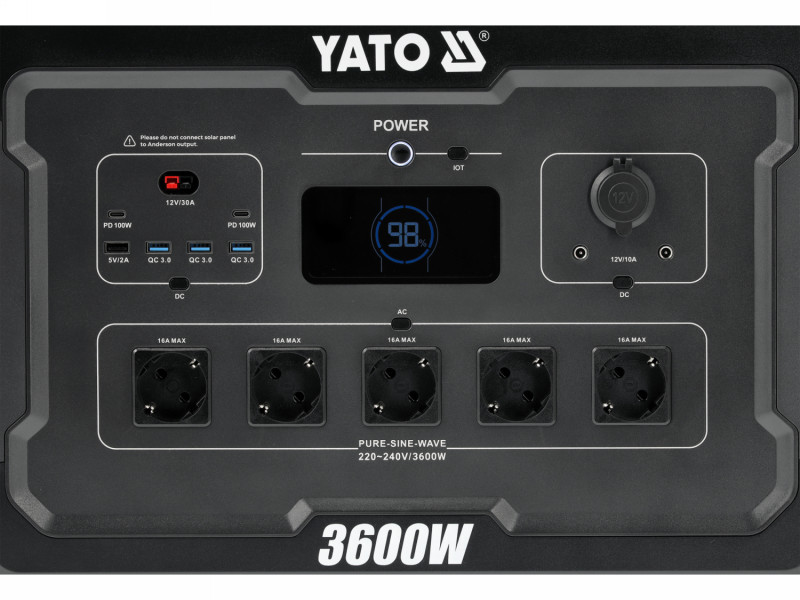

- output sockets and ports:
- 5 AC power sockets 230 V (EU) with overload protection
- 4 USB-A outputs – up to 18 W, 5 V / 2 A
- 2 USB-C Power Delivery outputs – up to 100 W, suitable for laptops and modern electronics
- 2 DC 12 V outputs
- 12 V / 10 A cigarette lighter socket
- Anderson 12 V / 30 A output
- emergency EPS mode (UPS):
- automatic switch to battery power in about 20 ms
Additional features:
- remote control and monitoring of operating parameters through a mobile app
- overcurrent protection for AC inputs and outputs – increased user safety
- BOOST mode – ability to handle devices with increased power demand during startup
- LCD display – excellent visibility in all conditions
- automatic shutdown in case of no load or after completion of work, equipment and station protection, energy consumption limitation
- protection:
- BMS – overcurrent, short circuit, over-discharge, overcharge, overvoltage, overheating
- inverter – against too low voltage, too high voltage, overheating, short circuit, overload

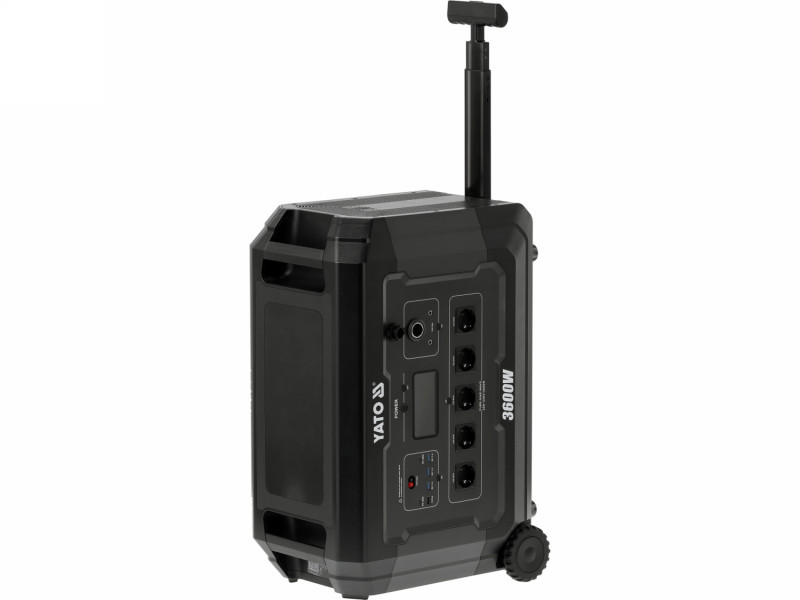

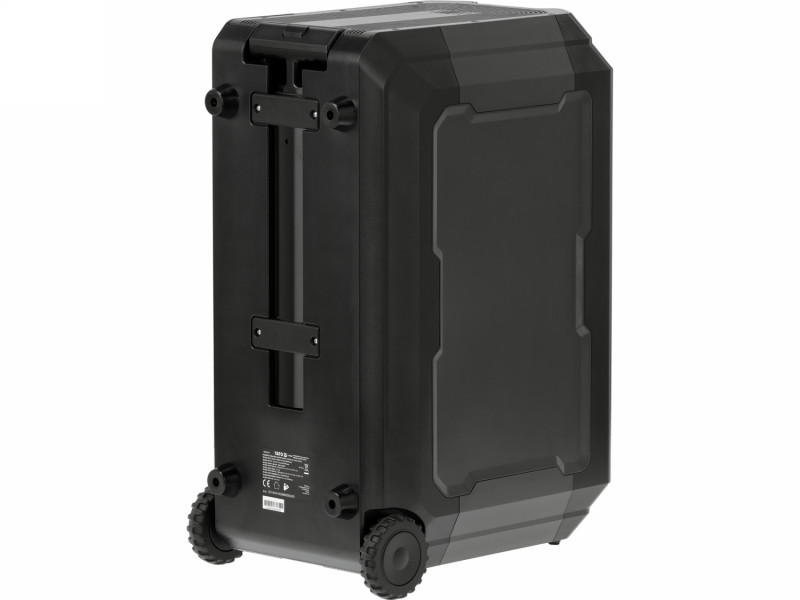

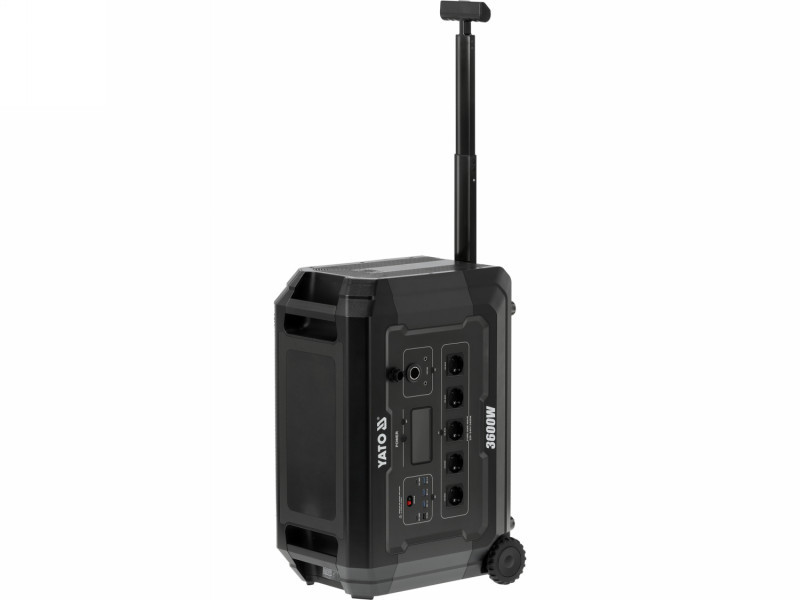

- 2 wheels for easy transport

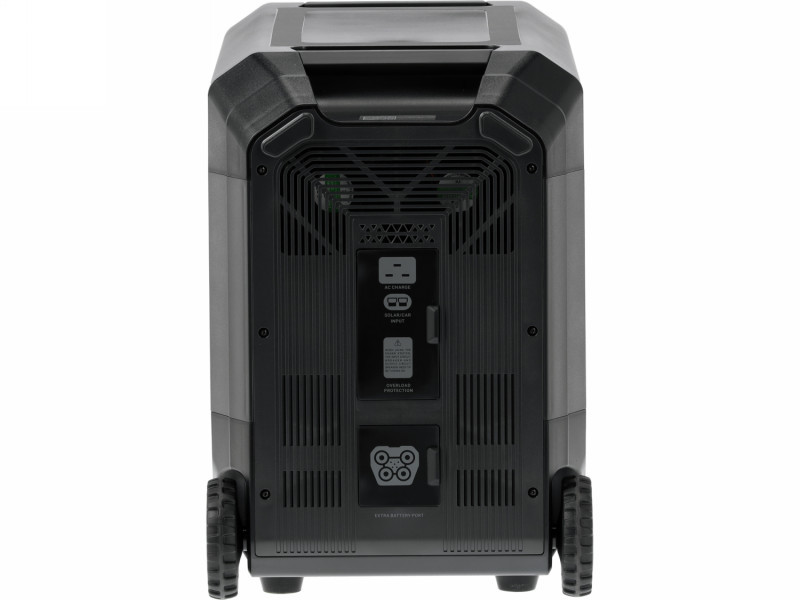

Charging methods:
- AC network charging:
- standard mode: 1250 W
- fast charging mode: up to 2500 W
- solar charging:
- MPPT controller
- voltage range: 18-140 V
- maximum input power: up to 2100 W
- maximum current: 15 A
- charging from a car installation:
- voltage range: 12-15.5 V
- current: 8.5 A
Technical data:
- weight: 37.13 kg
- dimensions: 642 x 305 x 438 mm
Set contents:
- AC power cable
- car cigarette lighter socket cable
- Anderson-Anderson cable
- Anderson-MC4 cable (for connecting solar panels)
- Anderson-7909 cable
Who is it for?
- individuals looking for home or apartment power backup
- gardeners, campers, and mobile users
- DIY enthusiasts and professionals working in the field
- anyone who wants to maintain access to energy regardless of the situation
