| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Type | SMD LED |
| Luminous flux | 10000 (100%), 5000 (50%), 2500 (25%), 1000 (10%) lm |
| Lighting modes | 4: 100%, 50%, 25%, 10% |
| Material | PA12 |
| Cloche color | P.C |
| Dimensions | 278x256x333 mm |
| Color temperature | 2700, 3500, 4500, 5500, 6500 K |
| Operation angle | 360 ˚ |
| Hook | yes |
| Hook quantity | 1 |
| Transportation holder | yes |
| Charge level indicator | yes |
| Battery type | Li-Ion |
| Battery voltage | 18 V d.c. |
| Working time | 14 (100%), 28 (50%), 60 (25%), 120 (10%) min |
| Battery quantity | lack |
| Charger included | no |
| Wire length | 3 m |
| Wire section area | 2Gx1 mm² |
| Wire insulation type | H05RN-F |
| Electric insulation class | III |
| Mechanical strength | IK08 |
| Protection grade | IP65 |
| Lifetime | 100000 h |
| Working temperature | -10 ~ +40 ˚C |
| Weight | 3.05 (without battery) kg |
| Symbol | YT-829670 |

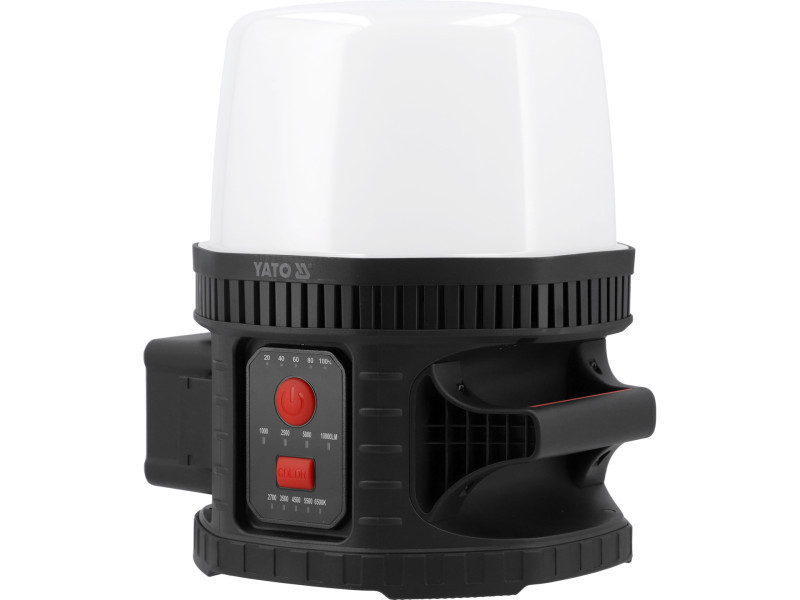

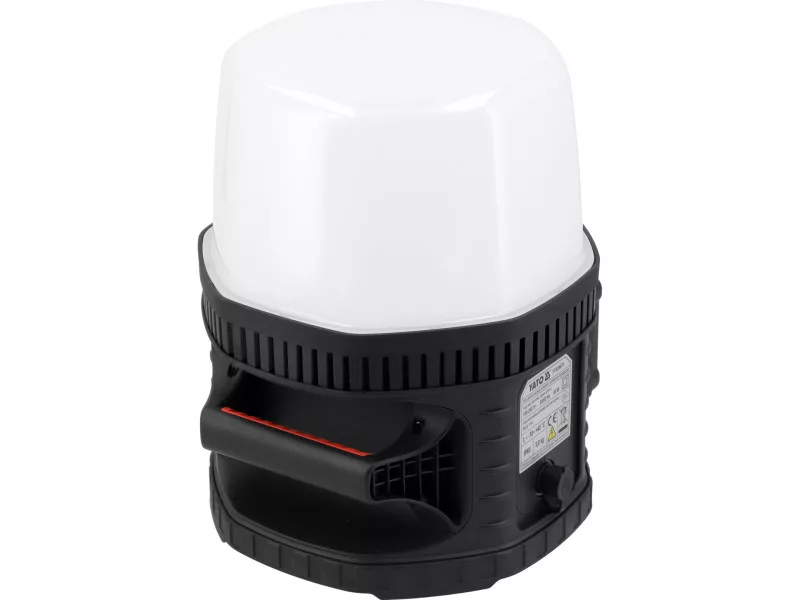

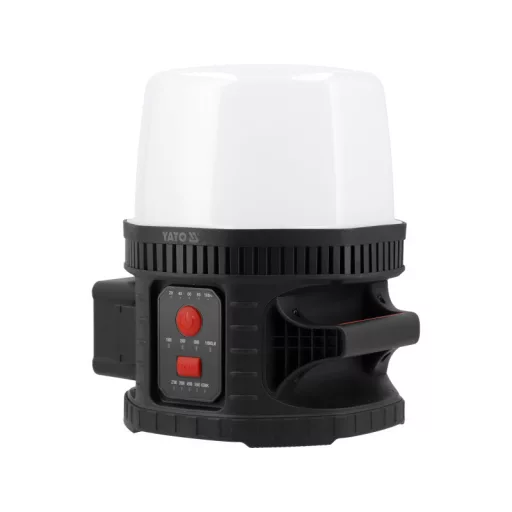

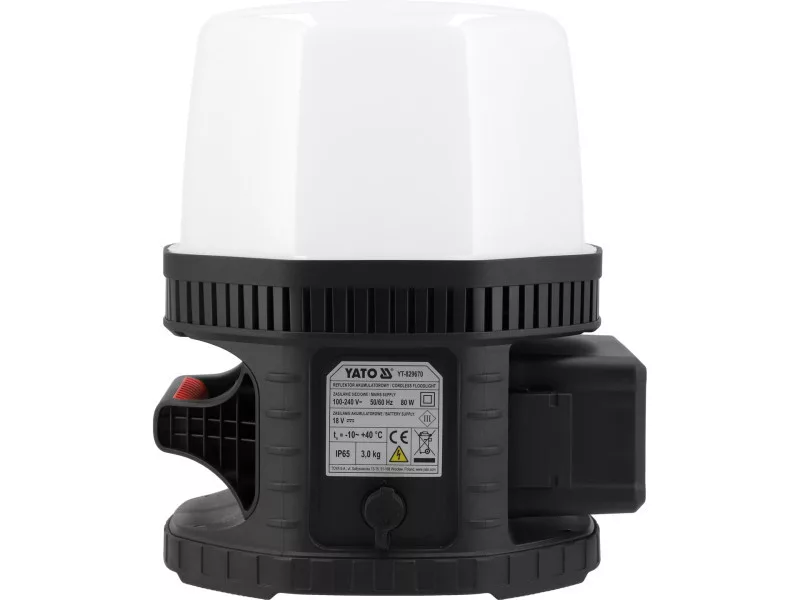

Very powerful portable 18 V spotlight with a shade emitting non-glare light. Adapted for work on construction sites, in workshops, industrial plants, during finishing works in various weather conditions. Provides excellent 360° light dispersion.
Four operating modes, adjustable light intensity from 1000 up to 10000 lumens and 5 light colors to choose from allow you to adjust optimal lighting to the environmental conditions and tasks performed. The solid housing made of high-quality materials is resistant to mechanical damage and external factors (sand, dust, water), allowing work inside and outside premises.
Built-in hook allows hanging the spotlight in a convenient place, while the hole in the base allows mounting it on a tripod. It can also be placed directly on the ground thanks to a stable, scratch-resistant base.

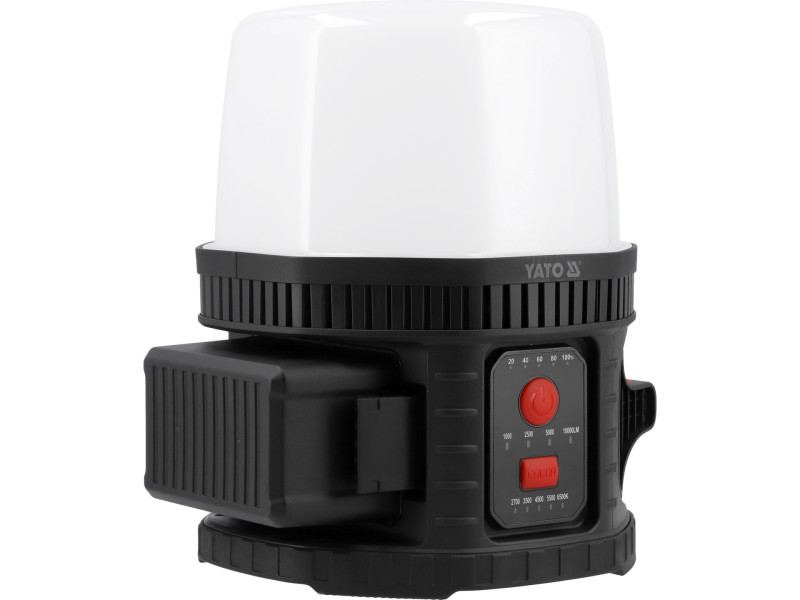

The spotlight operates powered by mains or YATO 18 V platform batteries. Unlike many other models that lose power in mains mode, the YT-829670 lamp provides the same light intensity (lumens) regardless of the power source. Additionally, thanks to adapters, it allows work on batteries of other types.
Light source:
- durable SMD LED diodes
- 4 operating modes: 100%, 50%, 25%, 10%
- light intensity: 10000 lm (100%), 5000 lm (50%), 2500 lm (25%), 1000 (10%)
- beam angle: 360°
- diode lifespan: 100000 h
Power source:
- battery: Li-Ion 18 V (not included)
- operating time: dependent on battery capacity - 120 min/Ah (10%), 60 min/Ah (25%), 28 min/Ah (50%), 14 min/Ah (100%)
- charging time: dependent on battery capacity
- 5-level battery charge indicator (20%-40%-60%-80%-100%)
Construction and features:
- very high mechanical resistance: IK08
- waterproof: IP65
- adjustable light color: 2700 K, 3500 K, 4500 K, 5500 K, 6500 K
- non-glare light with excellent dispersion
- operating temperature: -10 ~ +40˚C
- on/off button - turns on the spotlight and changes operating modes
- electrical insulation class: III

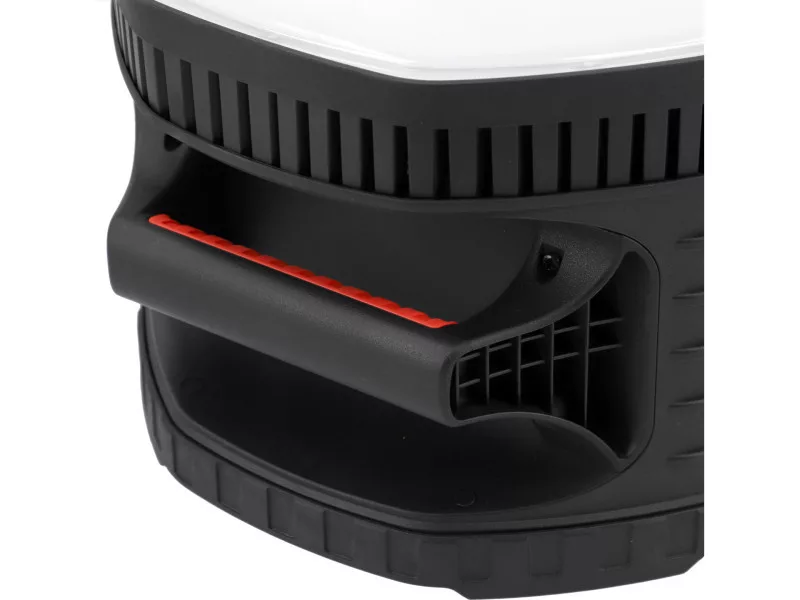

- handle for carrying

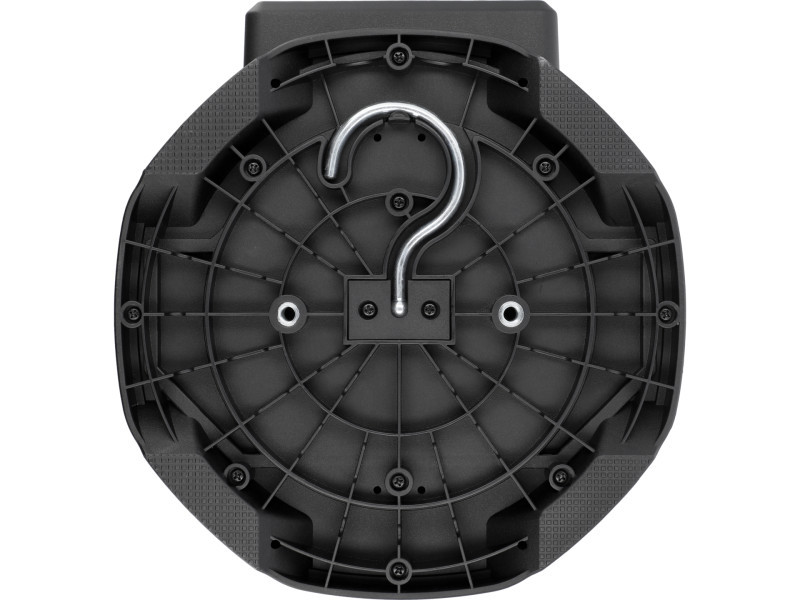

- foldable hook for hanging the lamp
- material: PA12 (housing) + PC (shade)
- weight: 3.05 kg
- dimensions: 278 x 256 x 333 mm

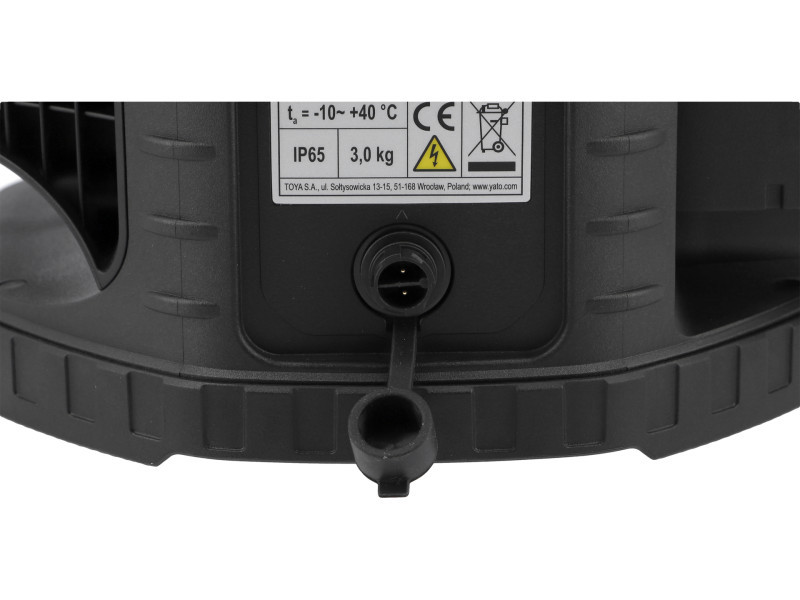

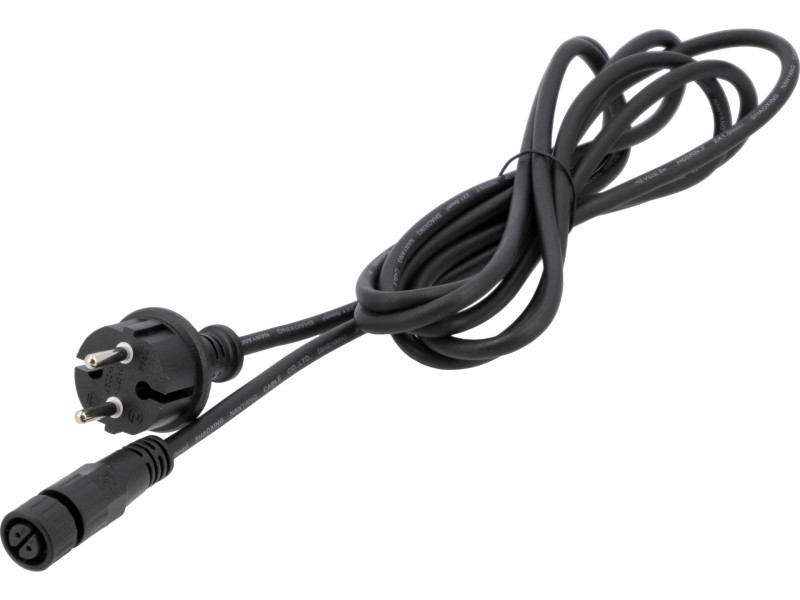

- 3-meter power cord with waterproof quick connector (H05RN-F 2X1.0 mm²)
Body version - without battery and charger. Available accessories can be found here.
Compatible with 18 V series batteries*:
- YT-82842 (2 Ah)
- YT-82843 (3 Ah)
- YT-82844 (4 Ah)
- YT-828461 (2 Ah)
- YT-828462 (3 Ah)
- YT-828463 (4 Ah)
- possibility to purchase:
- tripod YT-829671

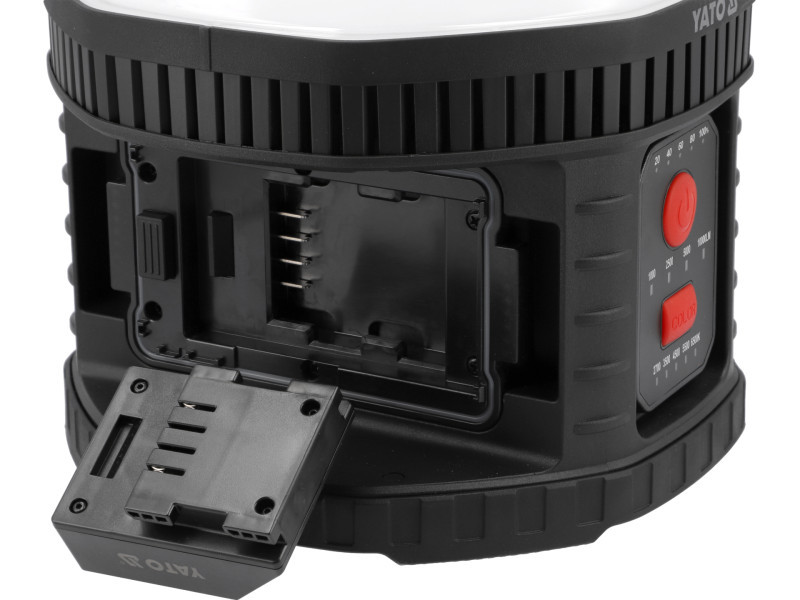

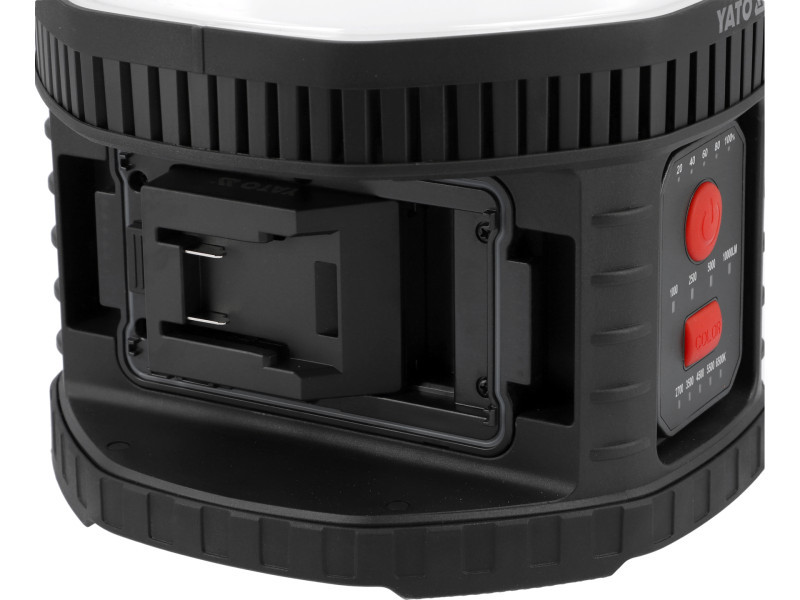

- adapters YT-829672 (Milwaukee type), YT-829673 (Dewalt type), YT-829674 (Makita type) and YT-829675 (Metabo type)
* using batteries with a higher capacity than 4ah is possible, but at the cost of not being able to close the battery cover.
IK08 - resistance to impacts up to 5 J and with a weight of up to 1.7 kg from a height of 29.5 cm, providing protection for device interiors against strong impacts.
IP65 - dustproof and resistant to water jets sprayed in any direction.
5 light colors (2700 K, 3500 K, 4500 K, 5500 K, 6500 K) - allows adjusting the light - from warm, through neutral, to cold - to the place of work, activities, and the location of the light source.
PA12 - high-quality synthetic material from the polyamide group, characterized by excellent mechanical strength, chemical resistance (oils, fuels, greases), and low moisture absorption.
PC (polycarbonate) - high-quality synthetic material from the polyamide group, characterized by excellent mechanical strength, chemical resistance (oils, fuels, greases), and low moisture absorption. Additionally, it is highly transparent (even 90%), which is why it is often used in covers, lamp shades, protective glass, and technical elements.
