| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | screwing, drilling |
| Max. torque | 30 Nm |
| Rotations | 0-400 / 0-1300 min⁻¹ |
| Voltage | 12 V d.c. |
| Battery type | Li-Ion |
| Battery capacity | 2000 mAh |
| Battery quantity | 1 |
| Charger included | yes |
| Charging time | 1 h |
| Stroke | no |
| Max. hole diameter in wood | 20 mm |
| Max. hole diameter in steel | 10 mm |
| Holder size | 0.8-10 mm |
| Toolholder type | self-centering |
| Electronic rotation adjustment | yes |
| Spindle brake | yes |
| Rotation switch | yes |
| Work mode switch | yes |
| Work area lighting | yes |
| Quick charging | yes |
| Charge level indicator | yes |
| Electric insulation class | III |
| Protection grade | IP20 |
| Acoustic pressure | 71.50 ± 5.0 dB(A) |
| Acoustic power | 82.50 ± 5.0 dB(A) |
| Vibrations | 2.70 ± 1.5 m/s² |
| Weight | 0.8 kg |
| Symbol | YT-82901 |

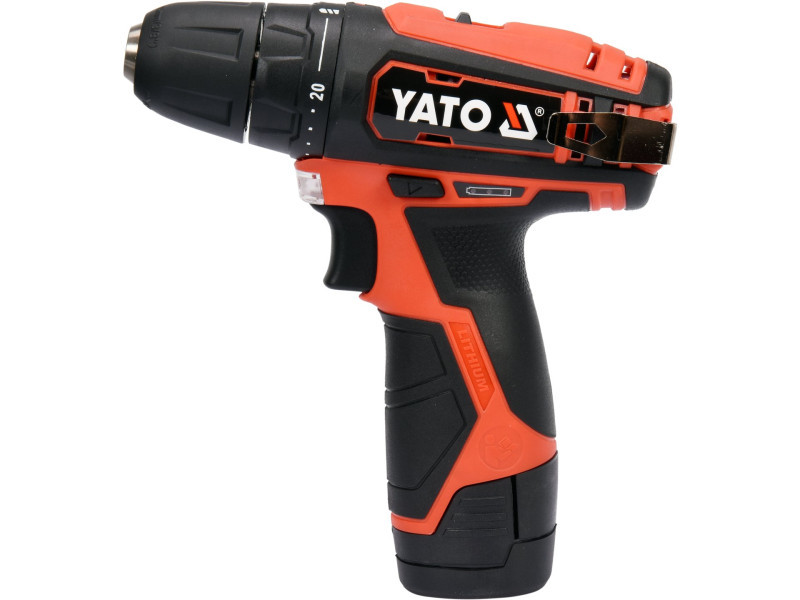

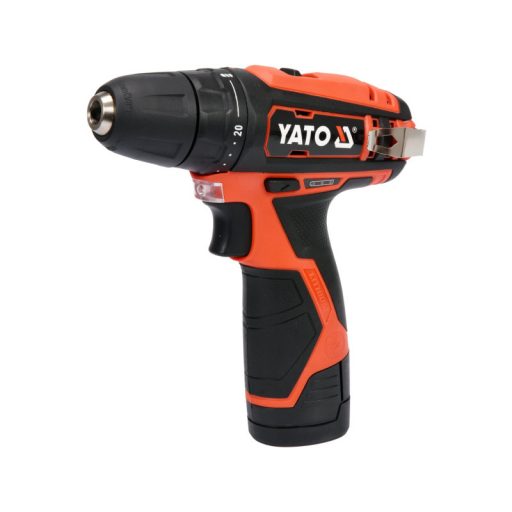

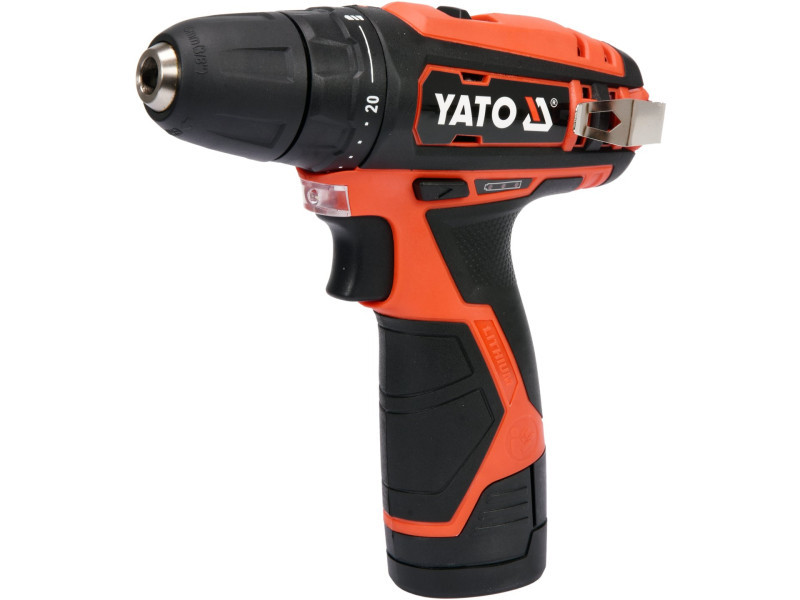

Powerful, compact drill/driver recommended for mechanics, carpenters and installers. The compact size combined with 2-speed steel gearbox guarantee optimal power for drilling in metal, even with tumbler drills for hinges, as well as driving confirms and screws.
Characteristics:
- high torque matched to the fast working speed in 2nd gear makes the spindle rotate even at high speeds
- .precision drill chuck designed for drill bits from 0.8 to 10 mm in diameter (or larger with rolled chuck)
- metal gear housing (tooth hardness: 53-56 HRC)
- LED light illuminating the work area
- functional clip and light weight allow you to comfortably attach .nbsp;screwdriver to your pants
- the 2 Ah battery allows for prolonged work without the need to recharge (on a single charge the tool screws approx. 1 kg of screws with a 45 mm long PH2 bit into pine wood)

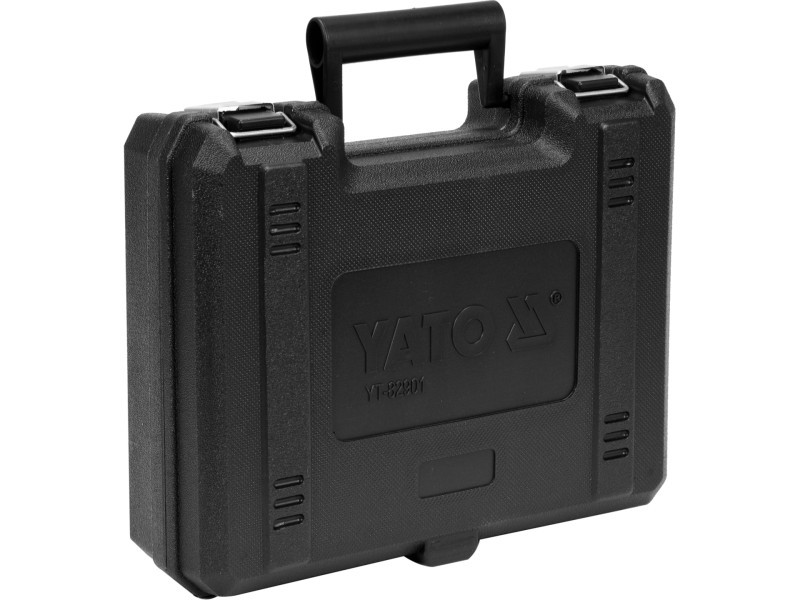

- packaged in a durable case with metal latches

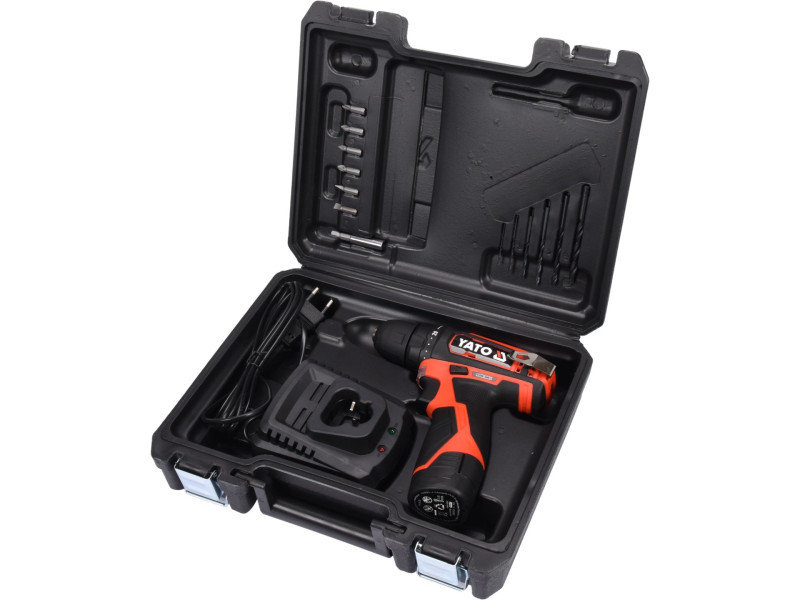

Included:
- 2 Ah battery
- charger 1 h
- set of high quality HSS bits and drills
Parameters:
- working voltage [V]: 12 DC
- rpm (idle) [min-1]: 0 - 400 / 0 - 1300
- max. torque [Nm]: 30
- protection rating: IP20
- insulation class: III
- weight [kg]: 0.8
- tool handle [mm]: 0.8 - 10
- maximum drilling diameter - in wood [mm]: 20 - in steel [mm]: 10
- type of battery: Li-Ion
- battery capacity [Ah]: 1.5
charger
- input voltage [V~]: 100 - 240
- network frequency [Hz]: 50 / 60
- rated power [W]: 25
- output voltage [V]: 12
- output current [A]: 1.5
- charging time [h]: 1
The tool has built-in charging indicator. Pressing the switch will light up the indicator LEDs, the more, the more charged the battery. If the LEDs do not light up after pressing the button, it means a discharged battery.
The screwdriver has two mechanically switchable gears. Depending on the selected maximum speed, one of them must be selected. The gear that has a lower speed is recommended for tightening and loosening screws, while the gear with a higher speed is recommended for drilling.
The torque is set using a ring located behind the drill chuck. If the screwdriver reaches the maximum set torque the overload clutch will engage.
