| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Battery quantity | 1 |
| Rotations | 3500 min⁻¹ |
| Guide bar length | 6" (158.5 mm) |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Battery capacity | 4000 mAh |
| Battery energy | 72 Wh |
| Charger included | yes |
| Charging time | 2 h |
| Chain type | half chisel |
| Chain pitch | 0.3" (7.62 mm) |
| Guide link length | 0.043" (1.1 mm) |
| Max. chain travel speed | 6.2 m/s |
| Links quantity | 28 |
| Chain drive wheel teeth number and scale | 28 zębów x 7.62 mm |
| Chain guide type | półotwarta |
| Mounting type | G |
| Engine (motor) type | brushless |
| Automatic chain lubrication | no |
| Quick chain tension system | yes |
| Brake | yes, odśrodkowy |
| Soft handle | yes |
| Quick charging | yes |
| Charge level indicator | yes |
| Electric insulation class | III |
| Acoustic pressure | 85.1 ± 3.0 dB(A) |
| Acoustic power | 93.1 ± 3.0 dB(A) |
| Vibrations | 2.5 ± 1.5 m/s² |
| Weight | 1.5 kg |
| Set includes | saw, chain guide, cutting chain, nóż rozdzielający, additional handle, guide cover, measure, battery, charger |
| Symbol | YT-828115 |

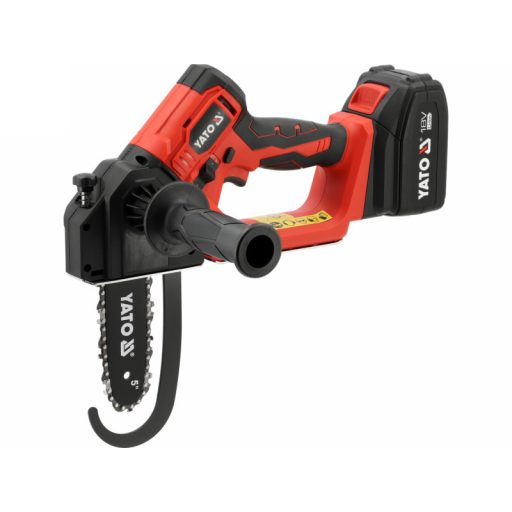

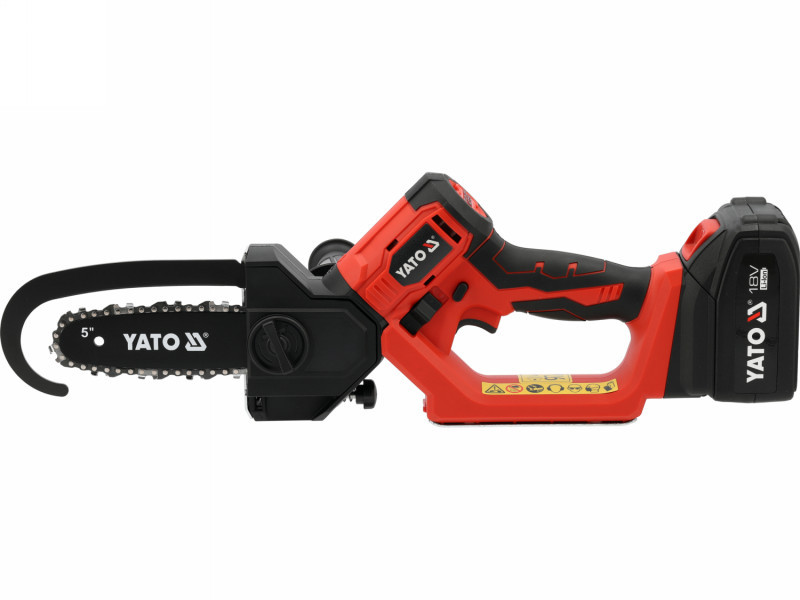

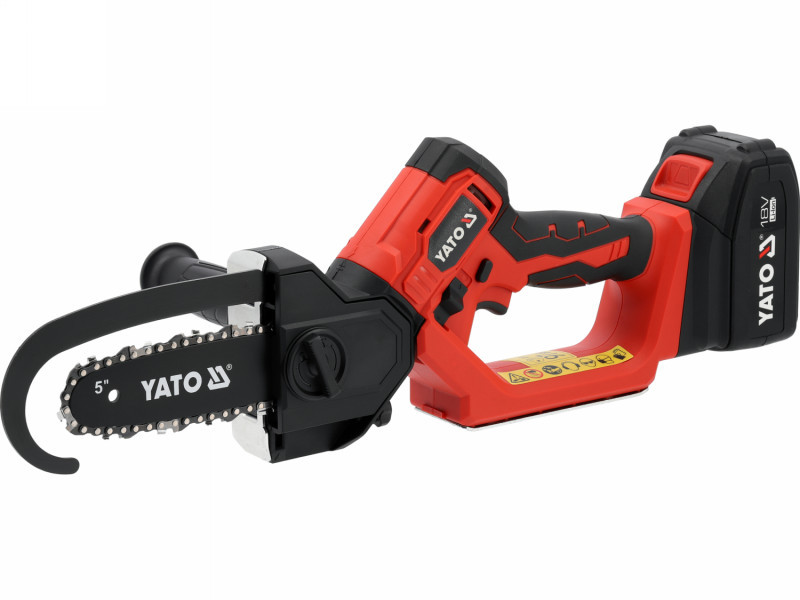

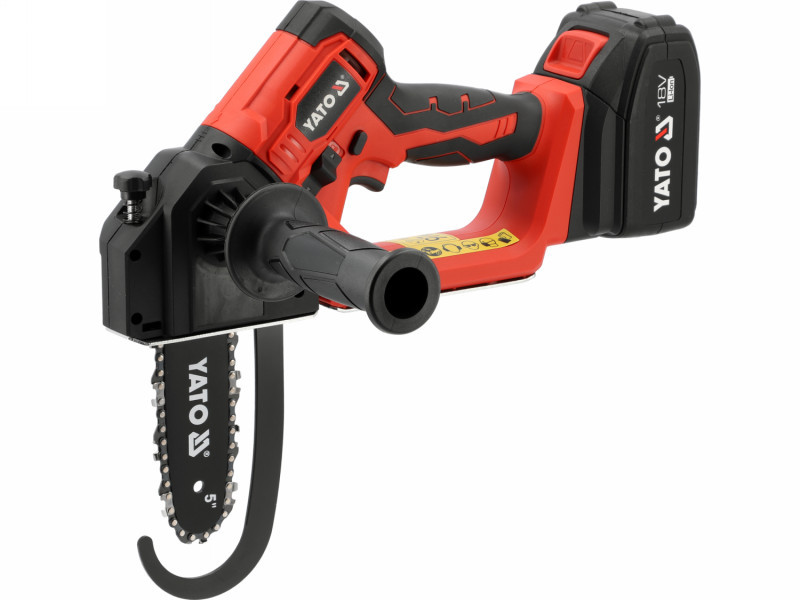

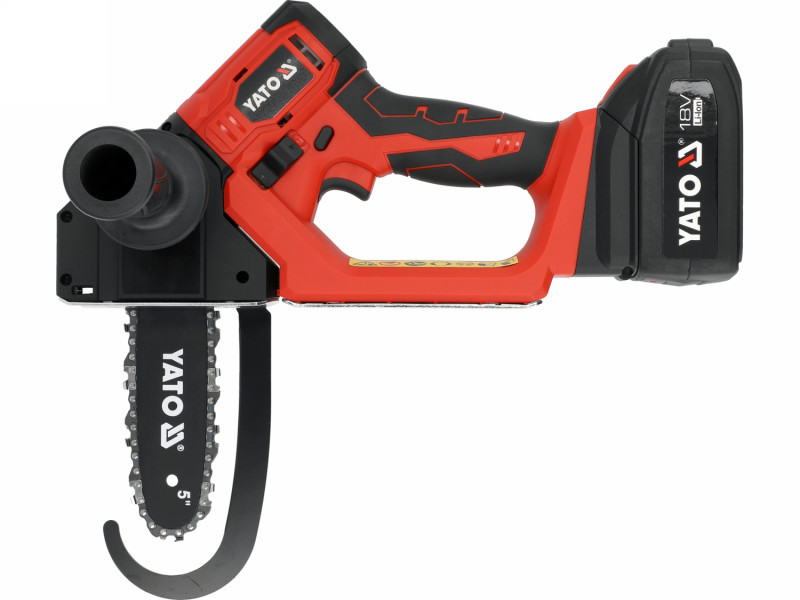

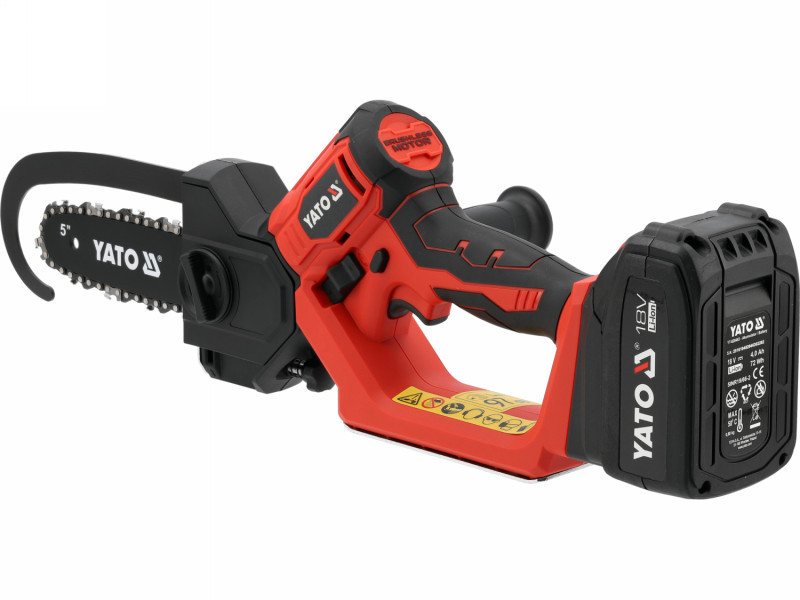

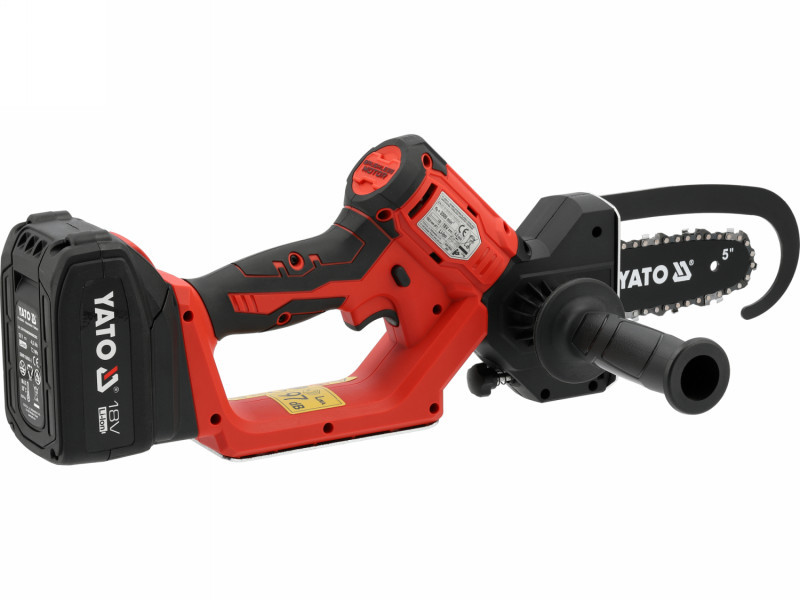

The cordless carpentry chainsaw is a functional and solid tool designed for precise woodworking, carpentry, and lighter gardening tasks. It is perfect where a classic chainsaw is too large and unwieldy, while still requiring excellent tool control and cutting precision. The 18 V battery power supply provides full freedom of work in the field, and the compact, well-balanced design allows for precise cutting of beams, boards, corners, branches, and structural elements made of wood.
The cutting system has been designed with stable, controlled operation in mind. The chainsaw allows for clean cuts across and along the fibers, without excessive vibrations and material jerking. This is important both for assembly work and for precisely fitting wooden elements. The ergonomic handle and stable chain guidance increase safety and control, even during cuts made in limited space or at height.
Features and functions of the mini chainsaw:
- efficient 18 V Li-Ion battery power system ensures constant power and comfortable cordless operation; low noise level and no exhaust fumes allow for use in workshops, on construction sites, and in the garden
- brushless motor guarantees longer lifespan, higher efficiency, and lower energy consumption
- fast charging function and battery charge level indicator facilitate work planning and reduce downtime

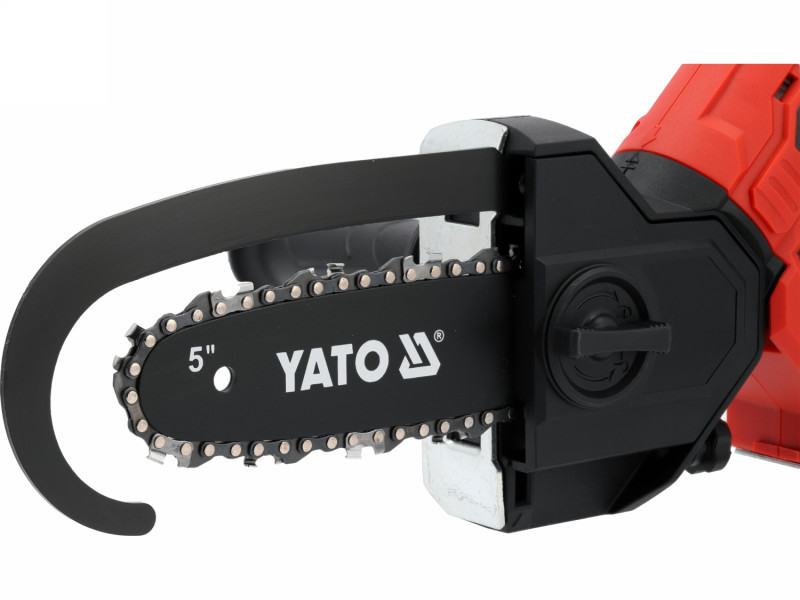

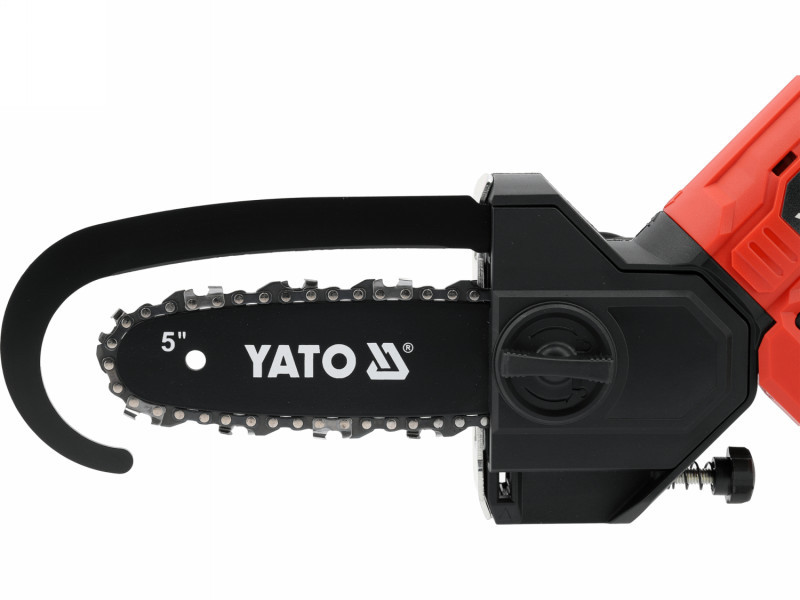

- precise cutting system with a 6" (158.5 mm) guide bar allows for accurate cutting of wooden elements and branches, while maintaining good tool control
- semi-chisel chain provides an optimal combination of cutting performance and smooth operation

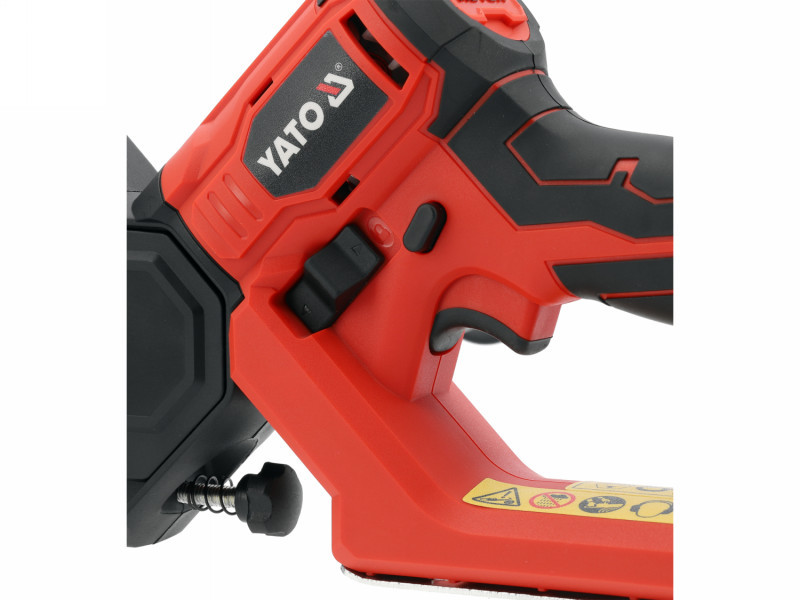

- soft, ergonomic handle improves grip confidence and reduces hand fatigue
- lightweight – 1.5 kg – facilitates maneuvering and precise one-handed cutting
- semi-open guide bar type G mounting ensures stable chain guidance and cut repeatability, essential for assembly work
Technical parameters:
- speed: 3500 rpm
- guide bar length: 6" (158.5 mm)
- chain pitch: 0.3" (7.62 mm)
- guide bar thickness: 0.043" (1.1 mm)
- number of links: 28
- number of teeth: 28 x 7.62 mm
- maximum chain speed: 6.2 m/s
Kit contents:
- chain guide bar
- cutting chain
- splitting knife
- additional handle

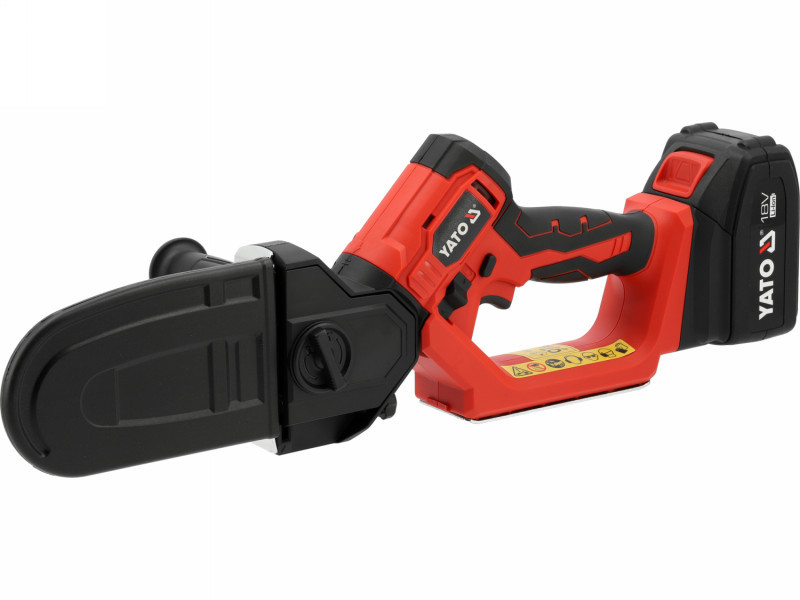

- guide bar cover
- measuring tape
The product is available in two versions:
- YT-828115 - tool with 4 Ah battery and fast charger
- YT-828116 - tool only, ideal for use with any YATO 18 V series battery
