| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Working part material | PTFE |
| Casing material | PVC |
| Size | 30x330 mm |
| Application | collecting excess solder during soldering or desoldering |
| Symbol | YT-82744 |

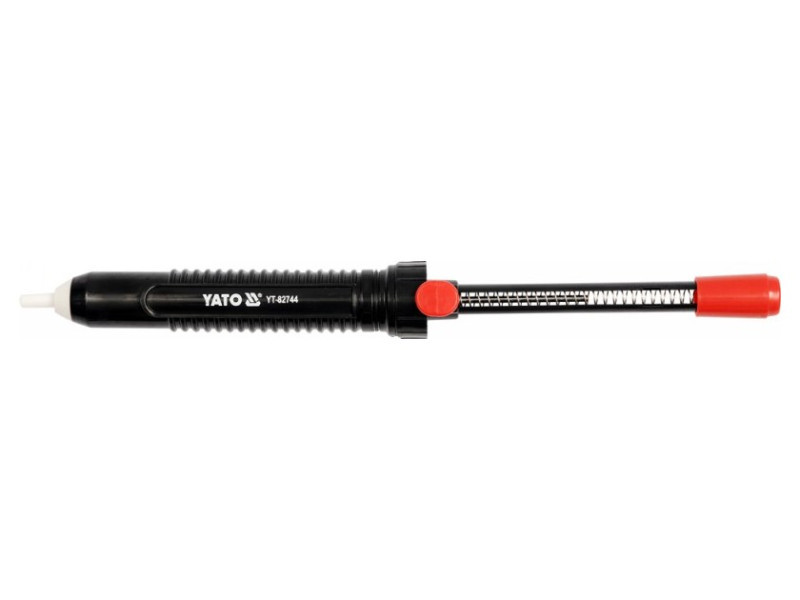

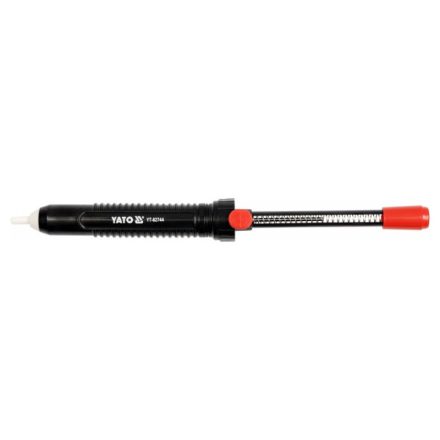

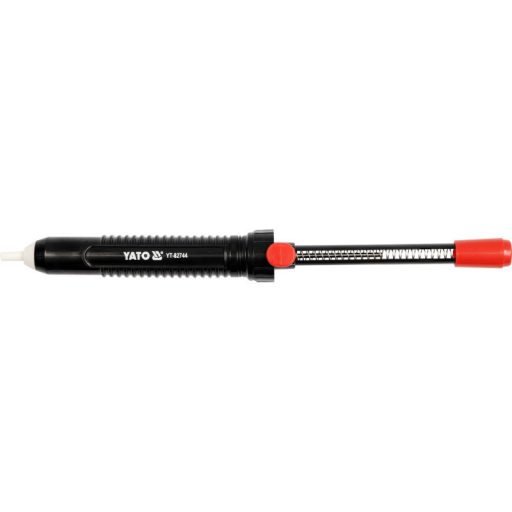

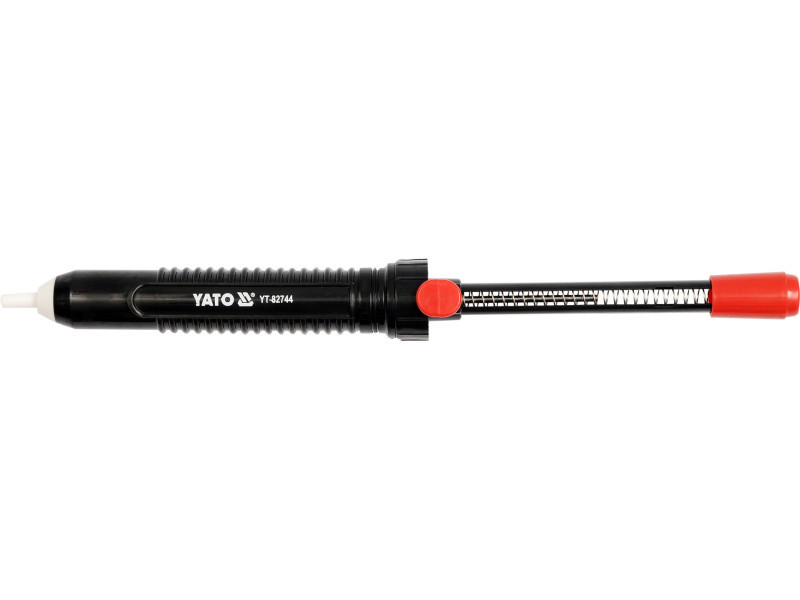

Lightweight, large suction device made of plastic, the working endós made of PTFE. The tin extractor is designed to collect excess solder when soldering or desoldering.
Dimensions:
- length - 330 mm
- width - 30 mm
- outside diameter of the end&.oacute;working end - 5.5 mm
- internal diameter of working end - 3.4 mm
.
Usage warnings:
Caution! Liquid solder is hot, take special care when soldering and extraction work.
Periodically clean the interior of the extractor from the remaining solder.
Do not use sharp objects to clean.
Do not use heat to melt the remaining solder.
Lubricate piston seal with vaseline.
Warning! Always use personal safety equipment at work.
