| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1600 W |
| Rotations | 180-480 / 300-750 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50/60 Hz |
| Max. mixer diameter | 160 mm |
| Thread size | M14 |
| Electronic rotation adjustment | no |
| Soft start | yes |
| Rotation switch | no |
| Work mode switch | no |
| Max. construction mass volume | 140 l |
| Wire length | 0.9 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 87.0 ± 3.0 dB(A) |
| Acoustic power | 98.0 ± 3.0 dB(A) |
| Vibrations | 5.23 ± 1.5 m/s² |
| Weight | 6.5 kg |
| Symbol | YT-82607 |

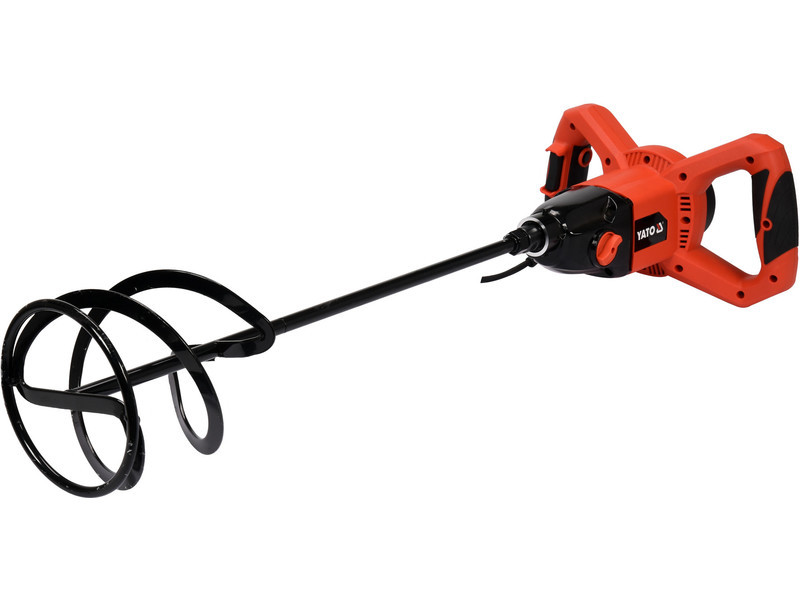

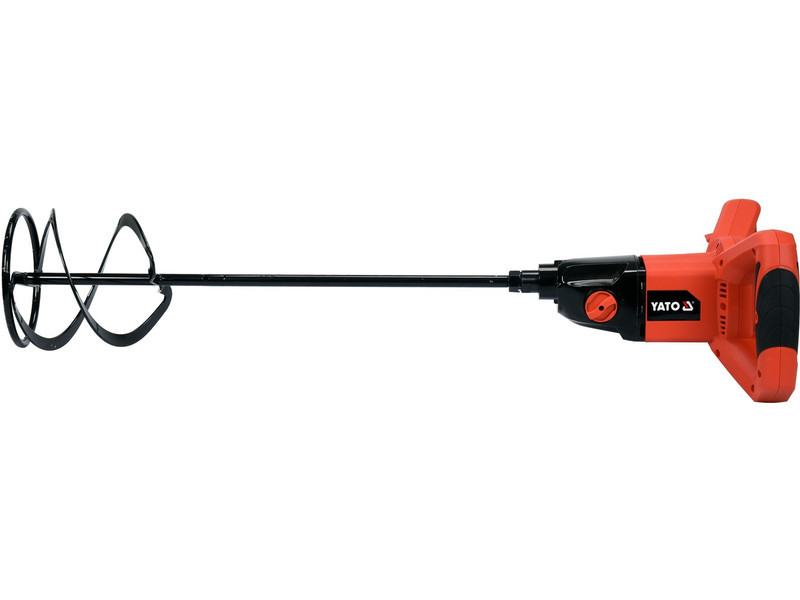

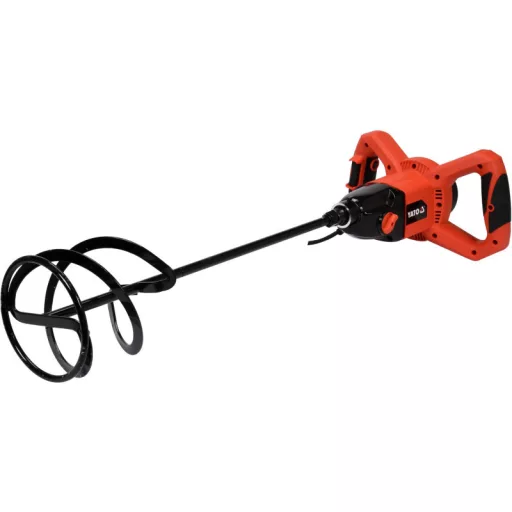

Building mixer II gears 1600w
Mortar mixer is a power tool that enables fast and thorough mixing of mortars, paints, adhesives and other liquid building compounds.
Regulation of the speed and the ability to change the agitator ensures easy adjustment of the working characteristics to the mass being mixed.
Application
The machine makes it possible to mix gypsum mortars (plasters, smooths), as well as cement masonry mortars, self-leveling screeds, tile adhesives.
- Machine for mixing gypsum mortars (plasters, smooths), as well as cement mortars, self-leveling screeds, tile adhesives
- low speed in 1st gear is suitable for air binders (drying by contact with air) - this extends the time of open work on the wall, because you can apply the distributed but not aerated mortar and take longer than with a normal mixer to process with a trowel (smooth out the unevenness gradually)
- the mixer has the ability to mix up to 140l of mortar in one cycle, thanks to its high torque, powerful motor and large mixer diameter (140mm). This is a key feature when working with today's fashionable high-speed anhydrite or cementitious screeding compounds, as you can pour a bathroom floor, for example, in one cycle without the risk of the primer poured in several layers separating from the screed
Regulating speed
The speed of the spindle should be adjusted with a regulator. The dial of the regulator has digits applied to it, the larger the digit shown on the dial the higher the spindle speed. RPM adjustment is done in a smooth manner.
Additional information:
Conveniently located handles are designed to make the operator's job easier by not having to bend over in a forced position while mixing mortar.
- standard M14 thread causes that when the mixer is worn out, we can replace it with a new one without any trouble
- The machine's housing is designed to increase resistance to splashing and dusting characteristic of working with dry mixtures spread with water
Parameters:
- Rating voltage [V~]: 220 - 240
- Rating frequency [Hz]: 50/60
- rated power [W]: 1600
- insulation class: II
- rated rpm [min-1]: 1: 180 - 480 / 2: 300 - 750
- mixer attachment: M14
- max. agitator diameter [mm]: 160
- grade of protection: IP20
- weight [kg]: 6.5
.
