| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Working part material | stainless steel (needle), silicone (suction tips) |
| Handle material | aluminum, PVC |
| Length | 150 mm |
| Weight | 15 g |
| Set includes | gripper, suction tip x3 (Ø3 mm lifts elements to a weight of 3 g, Ø6 mm lifts elements to a weight of 18 g, Ø10 mm lifts elements to a weight of 40 g) |
| Application | electronics repair |
| Symbol | YT-82514 |

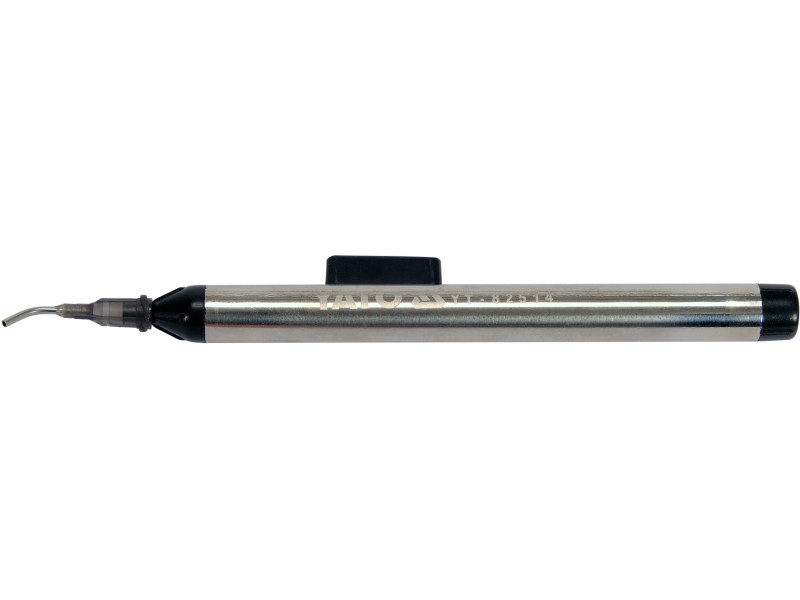

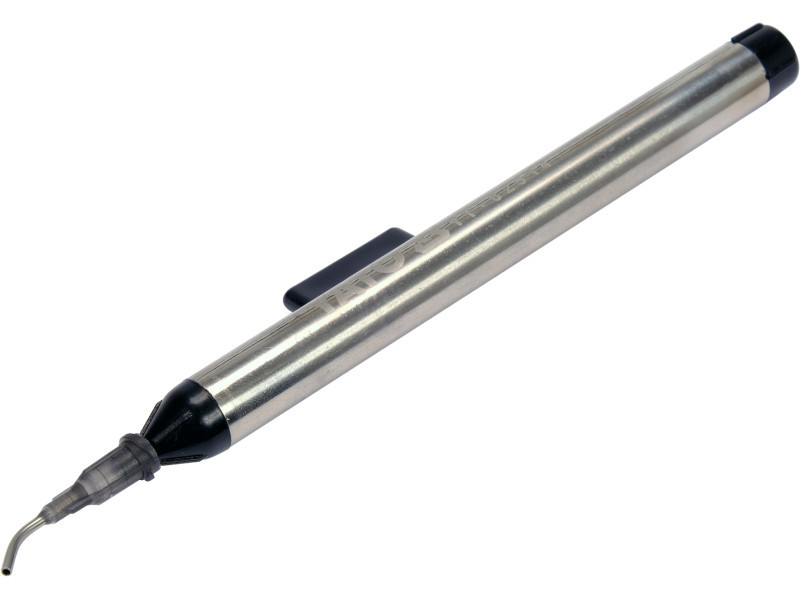

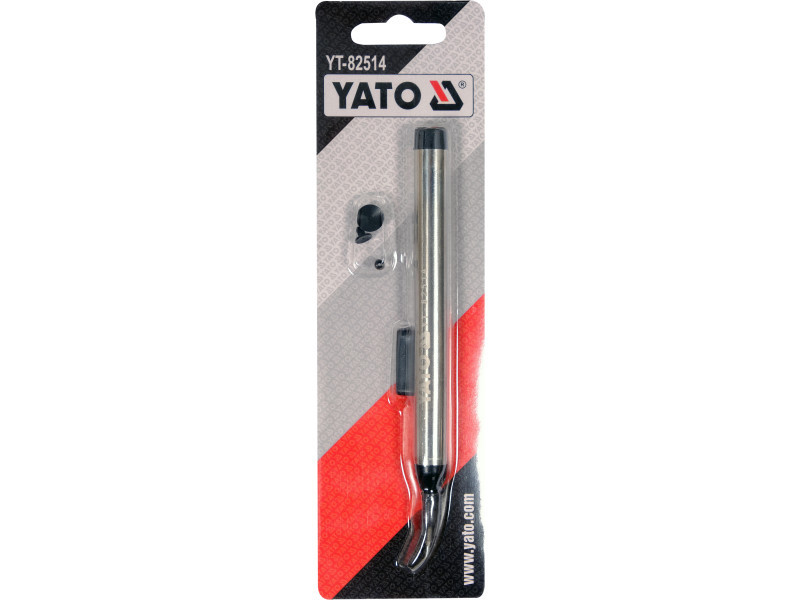

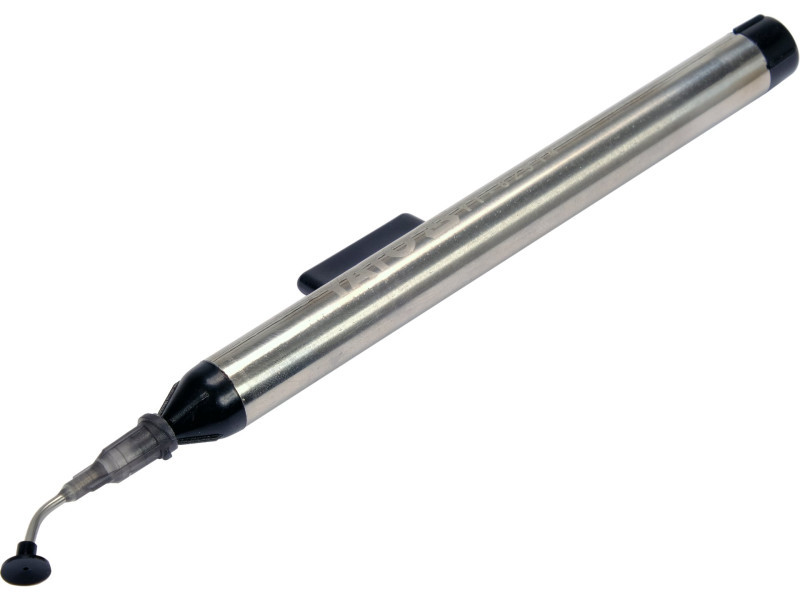

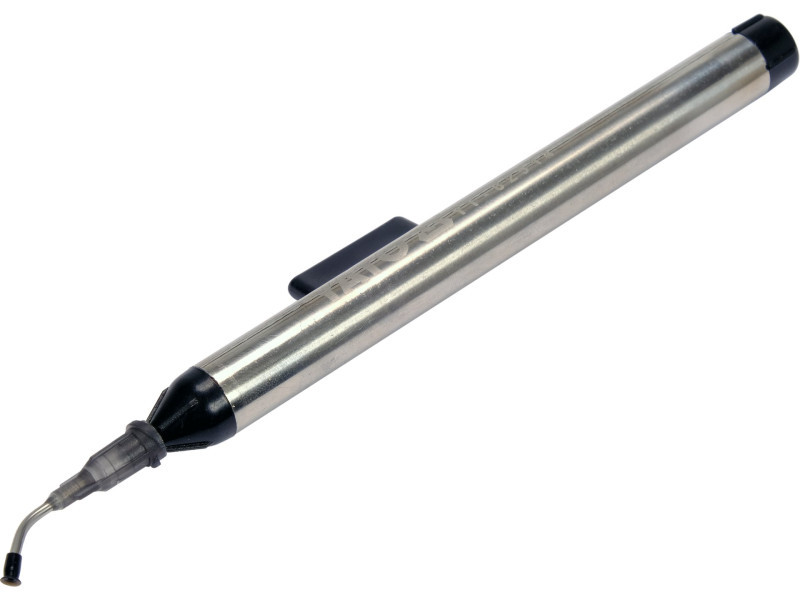

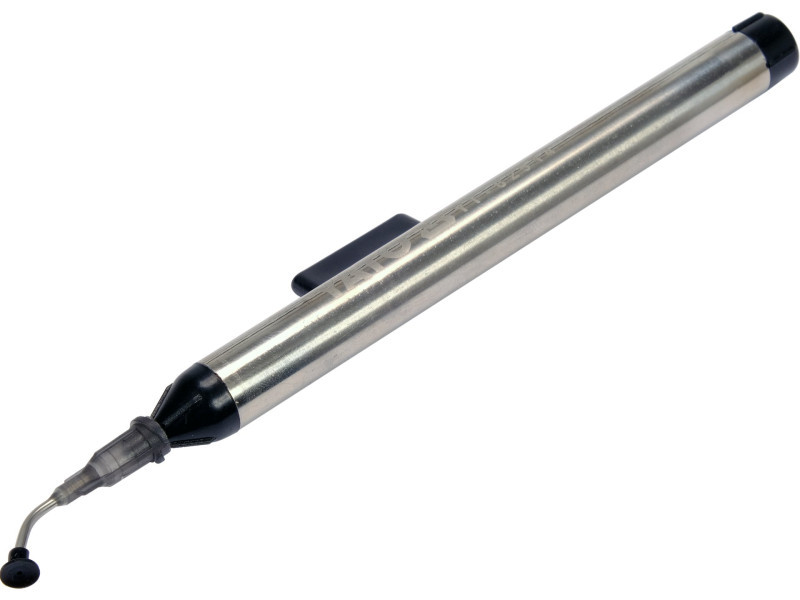

Prós gripper YT-82514 designed for electronics repair work. Thanks to the vacuum generated mechanically with a button, we can grasp the BGA or SMD chip to be soldered without using tweezers. The stainless steel needle and three suction tips made of special silicone guarantee resistance to high temperatures.
- length: 150 mm
- handle material: aluminum + plastic elements
- needle material: stainless steel
- material of suction ends: heat-resistant silicone
- grip weight: approx. 15 gramsów
- 3 mm diameter suction end lifts items to a weight of 3 gramsów
- endó6 mm diameter suction end lifts items to a weight of 18 gramsów
- 10 mm diameter suction end lifts items to a weight of 40 gramsów
