| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 18-65 W |
| Working temperature | 90-480 ˚C |
| Temperature stability | ±2 ˚C |
| Max. temperature of soldering tip | 90-480 ˚C |
| Point style | T12 |
| Heating time | 5-10 s |
| Functions | hibernation (temporary shutdown), temperature calibration |
| Switch | yes |
| Display type | OLED |
| Max. current | 3 A |
| Max. voltage | 24 V d.c. |
| Charger type | USB |
| Power standard QC, PD (voltage/current) | 9/1.5, 12/2, 15/2.5, 20/3.25 V d.c./A |
| Weight | 25 g |
| Set includes | T12-D24 soldering tip, type C cable, USB-C male to DC 5.5x2.5 mm female adapter, adapter from DC 5.5x2.5 mm male to DC 7.4x5.0 mm female, |
| Set includes cont’d | 1.5 m silicone insulated cable with a USB-C connector on one end and two car battery crocodile clamps on the other end, zipper case |
| Symbol | YT-82490 |

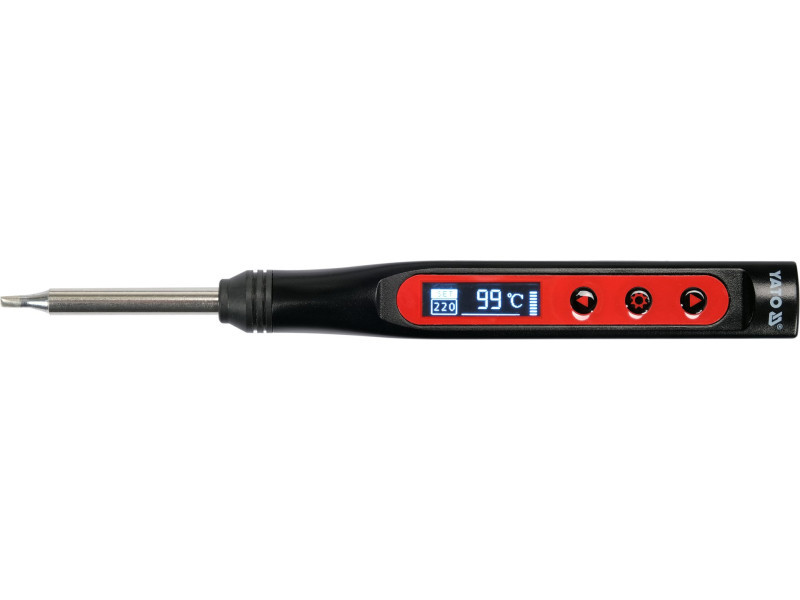

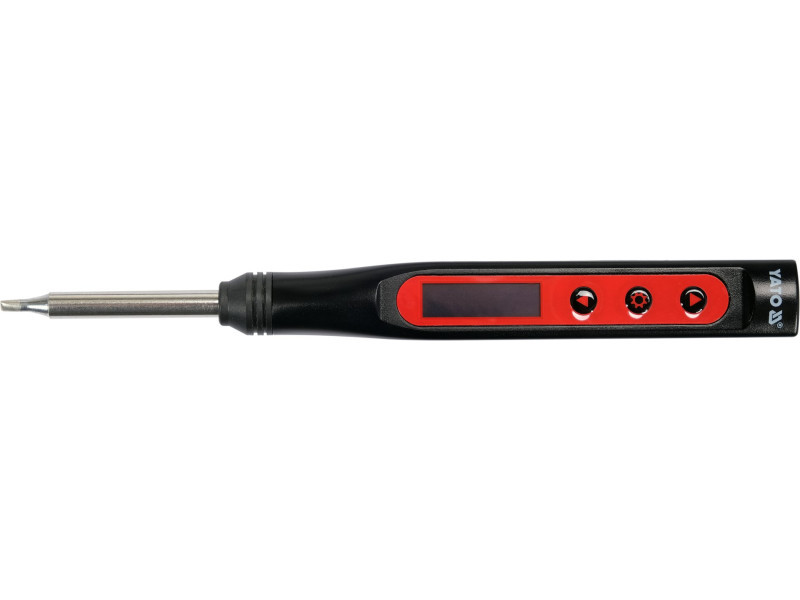

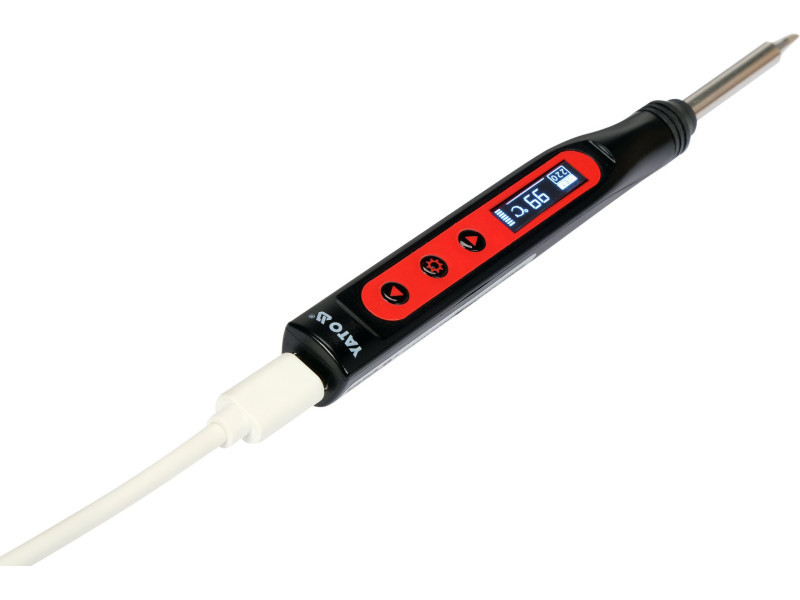

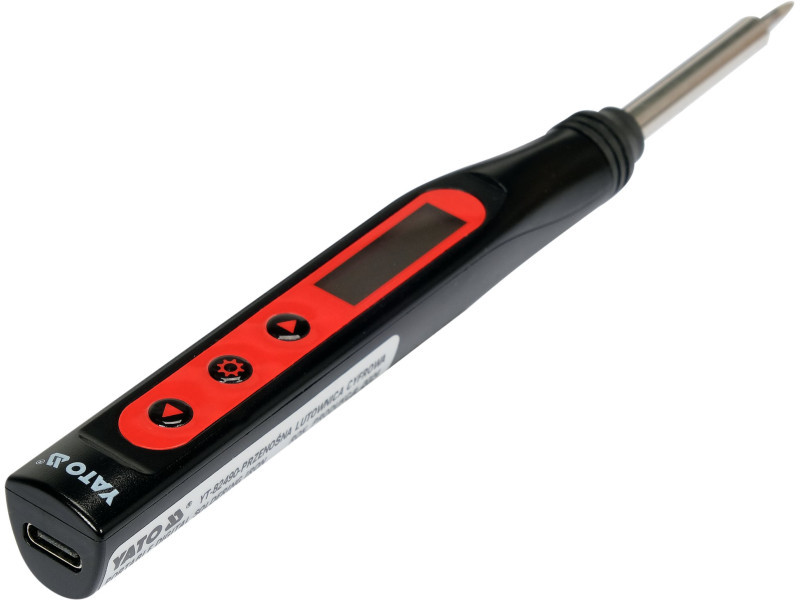

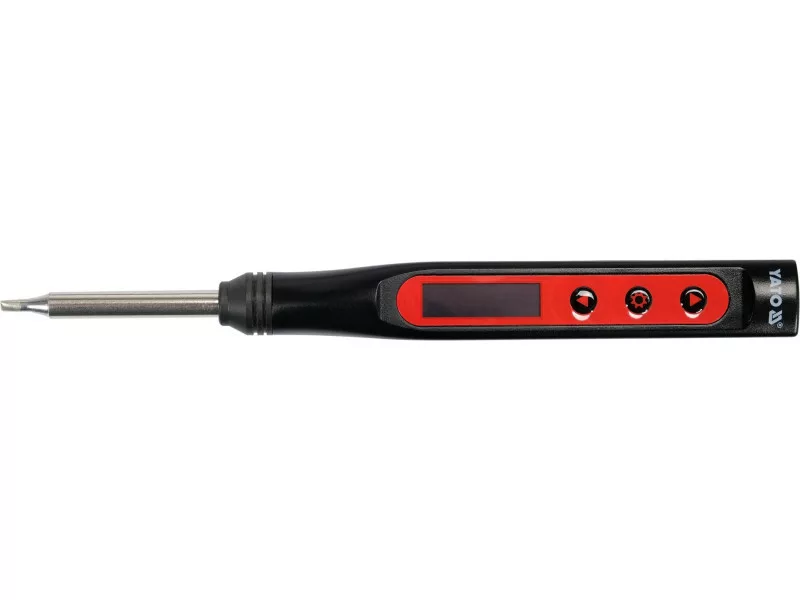

Portable digital soldering iron for T-12 tips powered by a USB-C port. The T12 soldering tips are a combination of ceramic-sunk resistance wire, temperature sensor and high-quality soldering tip. The integrated arrowhead design allows for express heating and a very fast temperature stabilising effect. The soldering iron works with any power source with a voltage from 9 to 24 V and a current capacity of more than 1.5 A. These can be either fast phone chargers, laptop power supplies, powerbanks with QC or PD technology ports, Li-Ion cell assembly, some YATO travel adapters, etc.
It takes approximately 9 seconds to heat up the spearhead to 350°C, using a 65 W fast phone charger. Built-in functions such as temperature stabilisation, calibration and the hibernation function work in a similar way to the large soldering stations, such as the YT-82462.

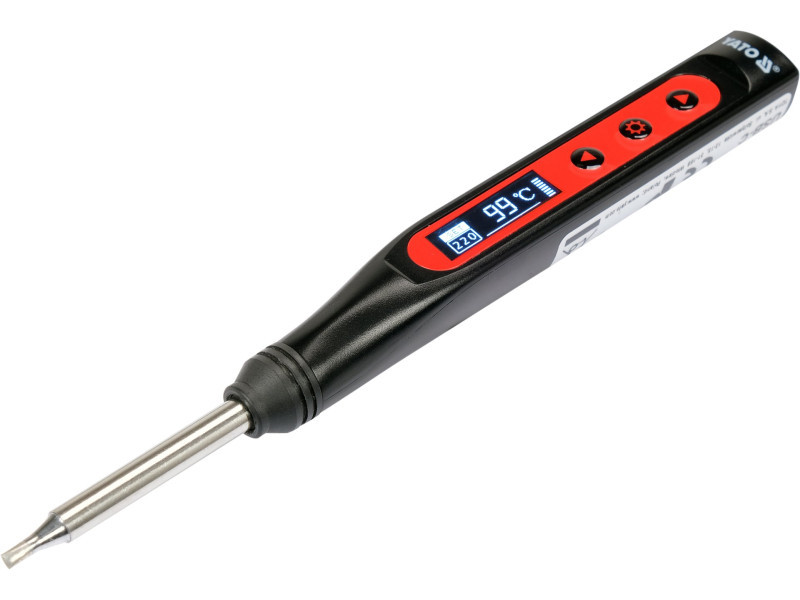

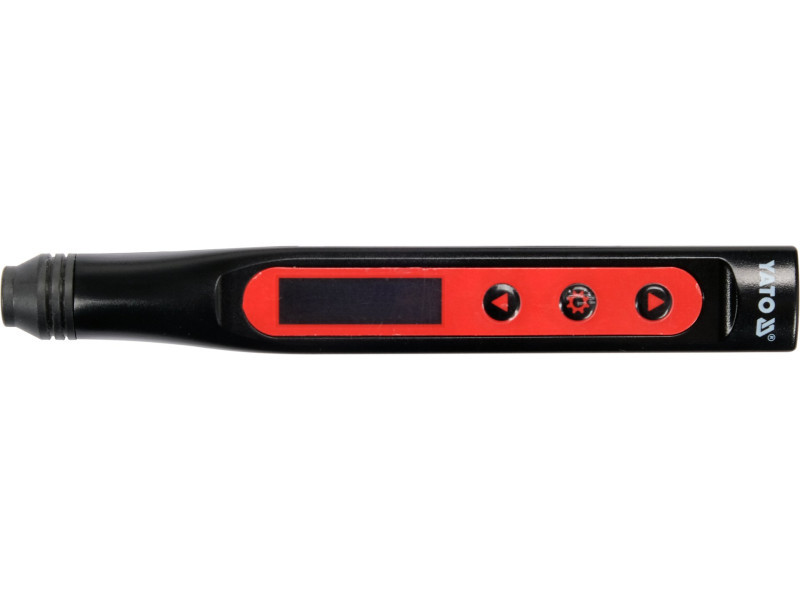

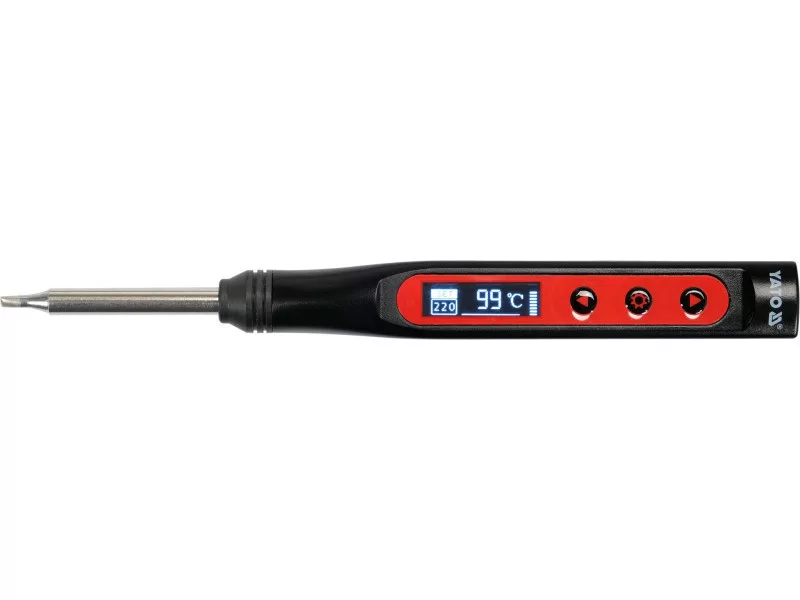

The OLED display provides information on:
- the set and actual blade temperature
- the currently used power of the device in the form of a bar graph
- the selected temperature unit
- temperature calibration function settings
- auto sleep settings
- the language of your choice
- supply voltage
- the device goes into auto sleep mode
- power source with insufficient capacity (voltage below 7 V)
- no blade

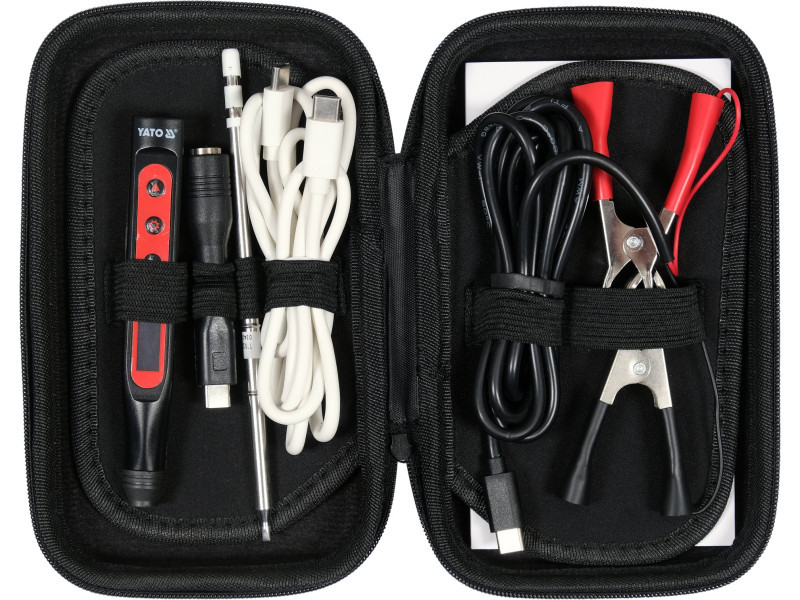

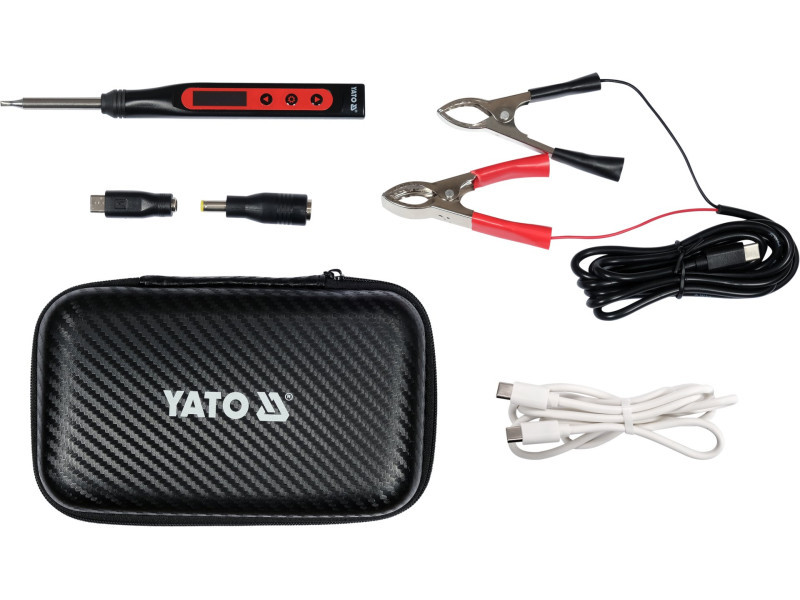

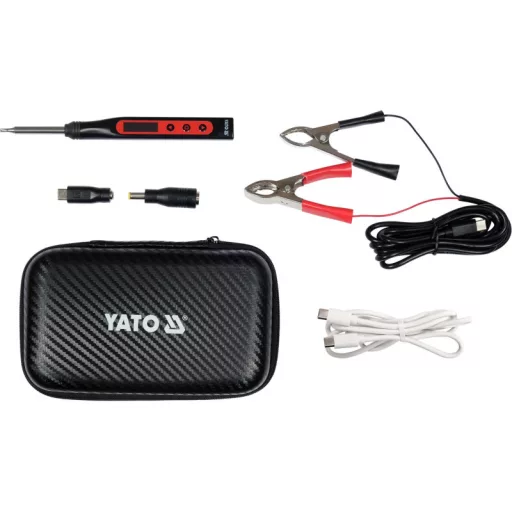

Accessories included:

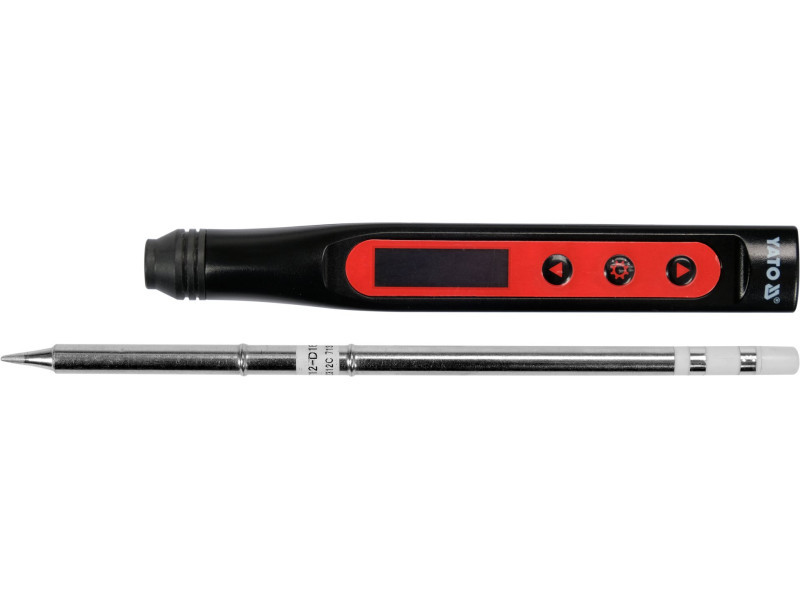

- soldering tip: T12-D24

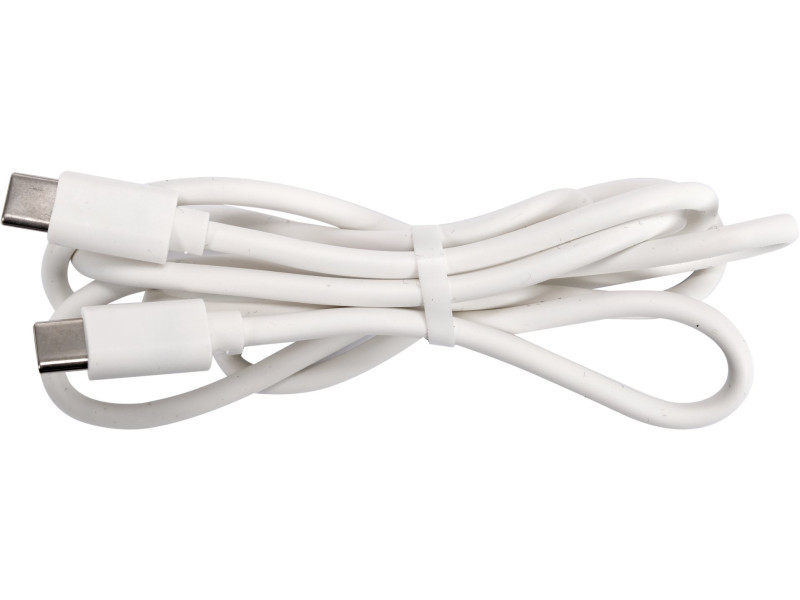

- uSB-C -> USB-C cable
- uSB-C cable -> crocodile cable, for power supply from e.g. the car battery
- two adapters for power supply with jack connector
- handy carrying case
