| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 190 W |
| Voltage | 110-240 V a.c. |
| Frequency | 50/60 Hz |
| Working temperature | 90-500 ˚C |
| Temperature stability | ±2 ˚C |
| Point style | C245 |
| Functions | Temperature calibration (range -80 ~ +80˚C), device hibernation, automatic shutdown |
| Temperature setting memory | x3 |
| Switch | yes |
| Auto power off | 20~999 s |
| Display type | LCD |
| Soldering iron supply voltage | 25 V d.c. |
| Tip-to-ground voltage | ˂2 mV |
| Tip-to-ground resistance | ˂2 Ω |
| Wire length | 1.1 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Weight | 0.6 kg |

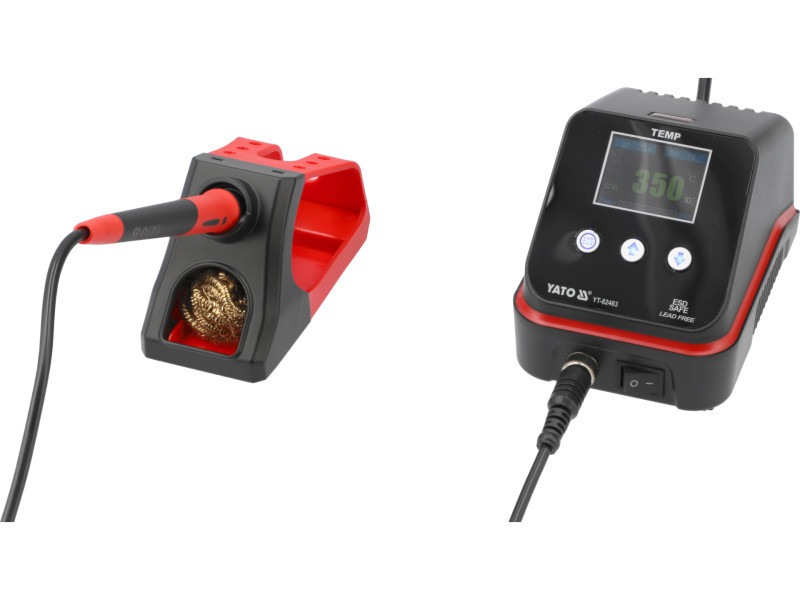

| Set includes | soldering station, soldering iron tip, stock stand with a pocket for a brass shavings tip cleaner |
| Symbol | YT-82463 |

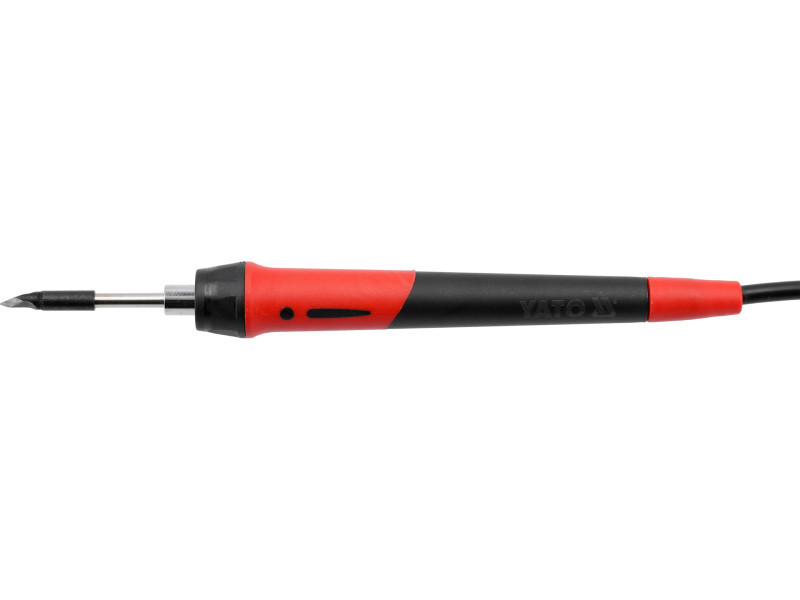

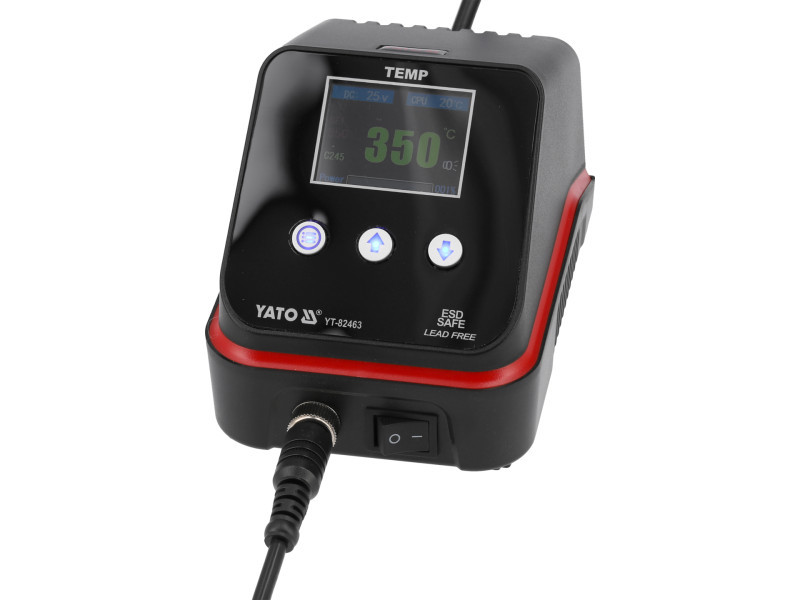

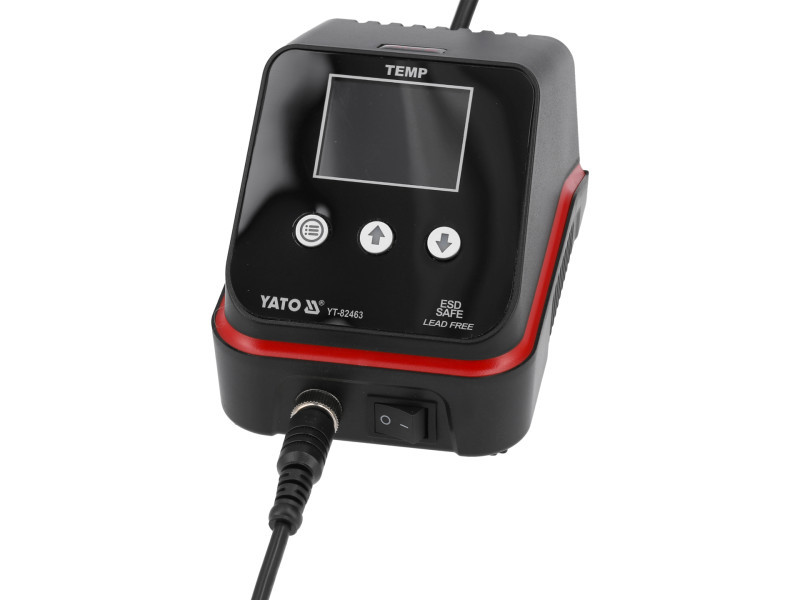

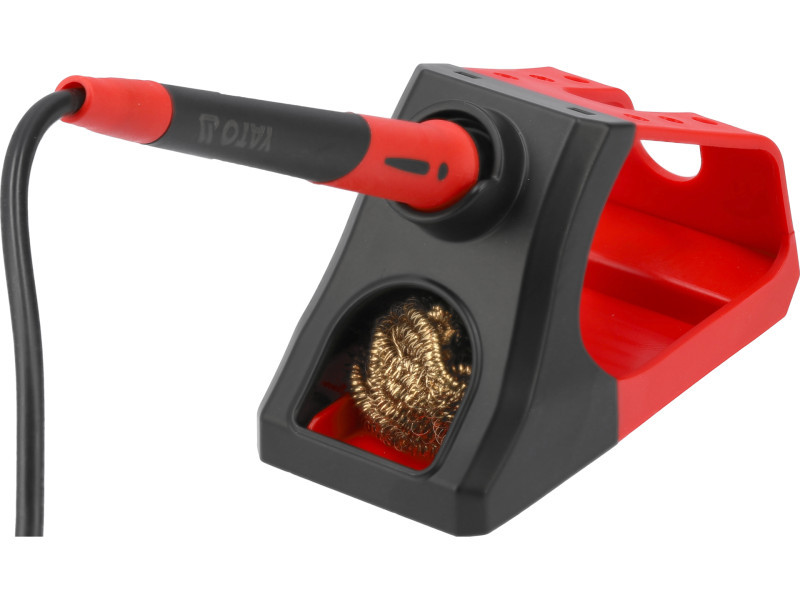

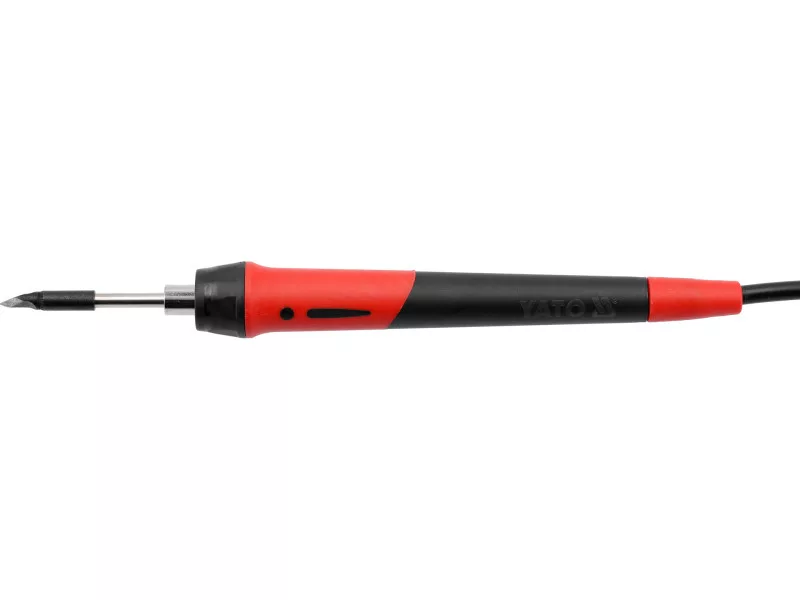

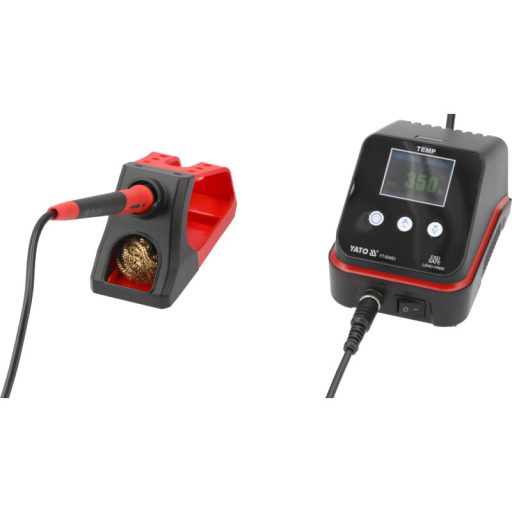

Soldering station with colour LCD display, temperature control and calibration, sleep and shutdown functions and three memory channels. Works with type 245 arrowheads. It takes just three seconds to heat the blade to 350°C. The soldering iron flask allows the quick exchange of soldering tips. The flask's power cable is flexible, housed in a heat-resistant silicone lagging. Soldering iron stand with brass chip cleaner and 245 Type K soldering iron tip included.

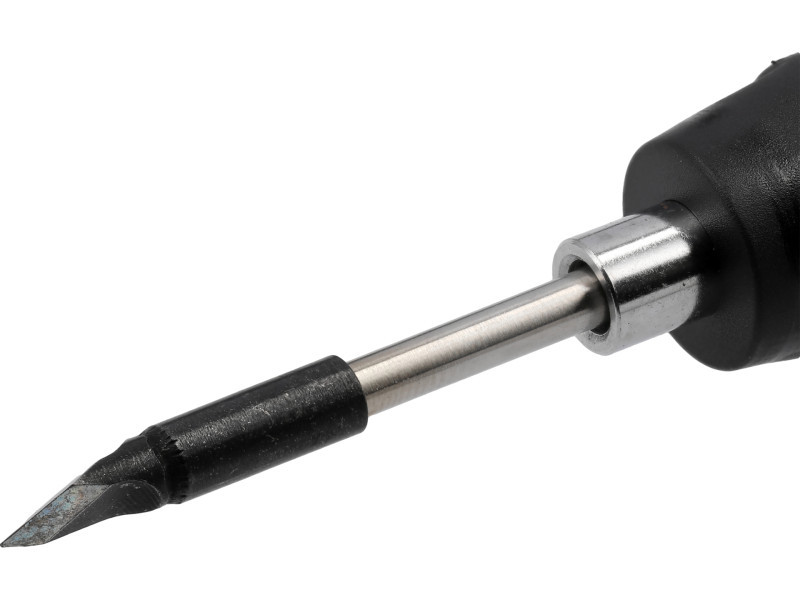

Like the T12 soldering irons, the 245 type K-heads are a combination of a ceramic-sunk resistance wire, a temperature sensor and a high-quality soldering tip. Among other things, the 245 and T12 arrowheads differ in maximum power. The 245 arrowheads are equipped with a heater that is almost three times as powerful, making both the heating up and the temperature stabilisation action much faster, together with a properly selected power supply and electronics.
- power: 190 W
- working voltage of the heater: 24 V
- temperature range: 90-500°C
- temperature accuracy: +/- 2°C
- temperature stabilisation
- temperature calibration: -80°C to +80°C
- sleep function: 20 to 999 seconds
- auto-off function: 20 to 999 seconds
Usage warnings:
Warning! Always use personal safety equipment at work.
