| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 60 W |
| Voltage | 220-240 V a.c. |
| Frequency | 50/60 Hz |
| Working temperature | 90-480 ˚C |
| Temperature stability | ±2 ˚C |
| Max. temperature of soldering tip | 480 ˚C |
| Point style | 900M |
| Functions | temperature stabilization, device hibernation, automatic shutdown |
| Temperature control | yes |
| Switch | yes |
| Display type | LED |
| Electric insulation class | I |
| Weight | 0.61 kg |
| Symbol | YT-82460 |

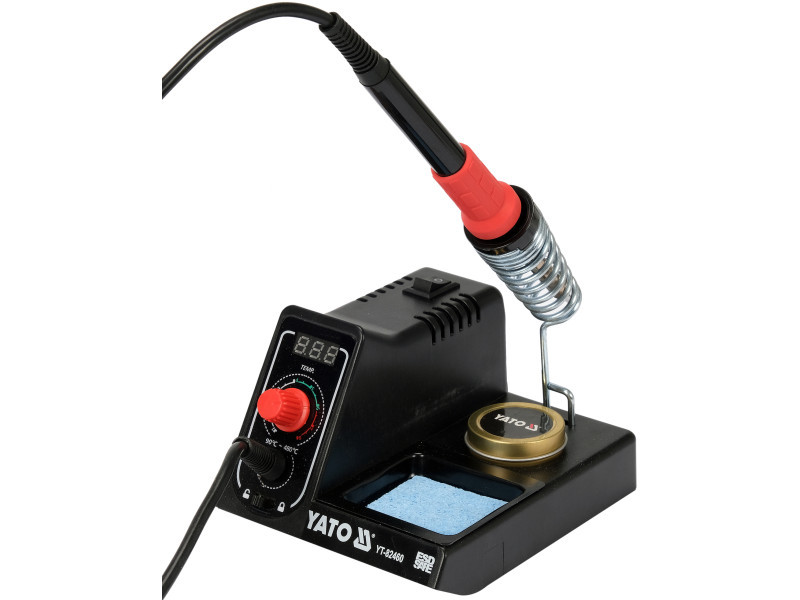

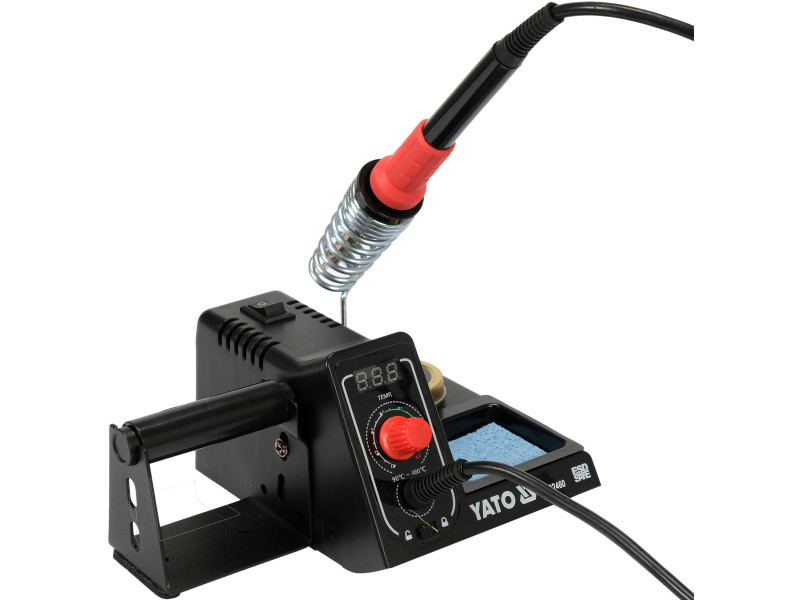

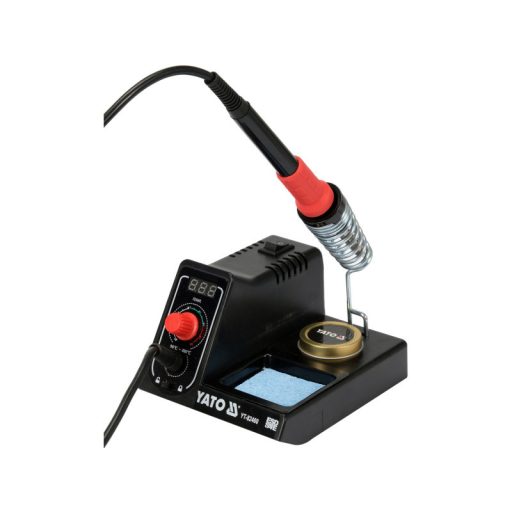

Soldering station YT-82460 with digital LED display, temperature control and stabilization, and hibernation function. Multi-functional case with a flask stand, space for a spool of tin, and for the included brass wiórós tip cleaner. The station supports a soldering flask with a built-in ceramic heater suitable for the very popular 900M series interchangeable grotós. Relatively high power combined with the necessary functions to facilitate soldering and a robust flask with a silicone, heat-resistant power cord will meet the expectations of both the electronics novice and the hobbyist-amateur.
- power: 60W
- temperature range: 90 - 480°C
- temperature accuracy: +- 2°C
- temperature stabilization
- device hibernation: 10 min
- on-off button on side

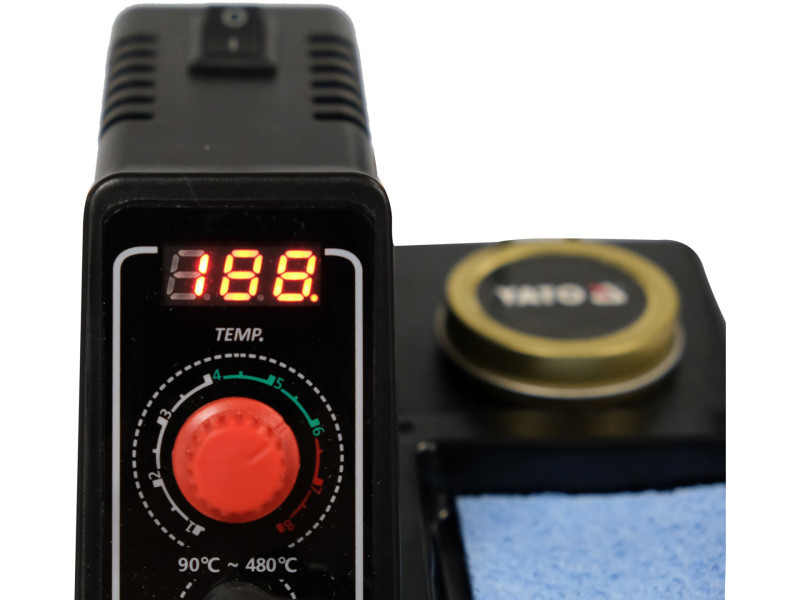

Digital display with blue LED backlight informs us:
- the set and then the real temperature of the mainsheet
- the device enters hibernation mode

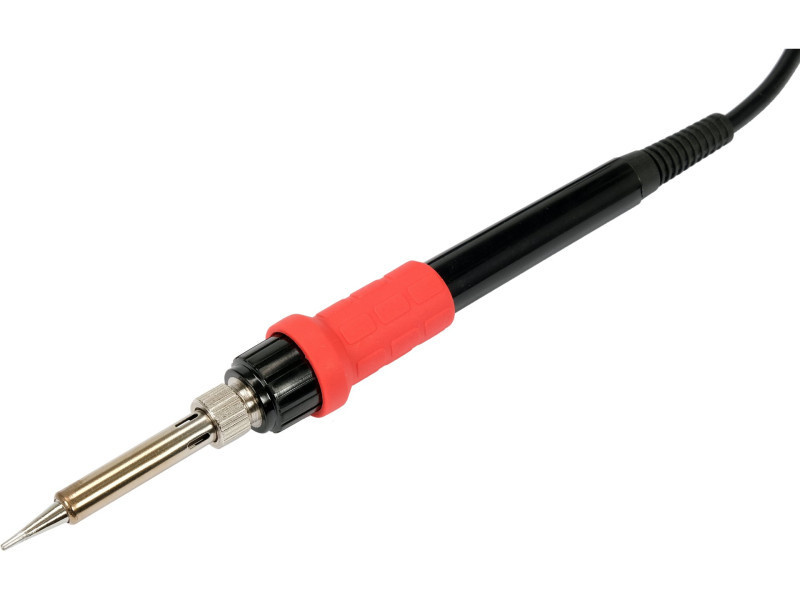

Soldering flask put down on the stainless steel handle.
- Working voltage of the heater: mains, about 230V
- Tong type: 900M
- ceramic heater
- heater outer diameter: 3.85 mm
- cable length: 100 cm
- flask weight: about 50 g
The YT-82460 soldering station is made with ESD-safe technology, whichóra guarantees that no excess electrostatic charge accumulates on the housing. This reduces the risk of damage to sensitive SMD circuitsós, for example. It heats up to an operating temperature of 350°C in about 30 seconds.
The Temperature Stabilization function allows you to maintain the set temperature of the soldering tip under different conditions of heat demand to make a proper soldering joint. The soldering tip, depending on the size of the soldering element and the soldering field, gives off more or less heat, and the device, with the help of a tip temperature sensor built into the heater, constantly reads its real value and correlates it to the set temperature, then, depending on the needs, increases or decreases the power consumption to maintain the set temperature. The best effect of this function will be obtained by selecting a blade with an inside diameter as close as possible to the diameter of the heater. We recommend arrowheads with an inside diameter in the range of 4.0 to 4.5 mm
The hibernation function of the device allows the station to go into standby mode, which automatically reduces the operating temperature to 200°C. This avoids unnecessary heating of the arrowhead, which significantly prolongs its life. The function activation time on the YT-82460 model has been factory set to 10 minutes.
