| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Type | ESD-safe |
| Power | 75 (soldering iron), 750 (hot air blower) W |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Working temperature | 200-480 (soldering iron), 100-480 (hot air blower) ˚C |
| Temperature stability | ±1 (soldering iron), ±2 (hot air blower) ˚C |
| Max. temperature of soldering tip | 480 (soldering iron), 480 (hot air blower) ˚C |
| Point style | 900M |
| Airflow | 120 l/min |
| Functions | temperature stabilization, automatic cooling and hibernation, device hibernation, detecting sensor failures, automatic shutdown |
| Temperature control | yes |
| Fuse | yes |
| Switch | yes |
| Display type | LED |
| Electric insulation class | II |
| Weight | 1.88 kg |
| Set includes | soldering station, nozzle x4 (Ø4.4 mm, Ø8 mm, Ø10 mm, 12 mm) |
| Symbol | YT-82458 |

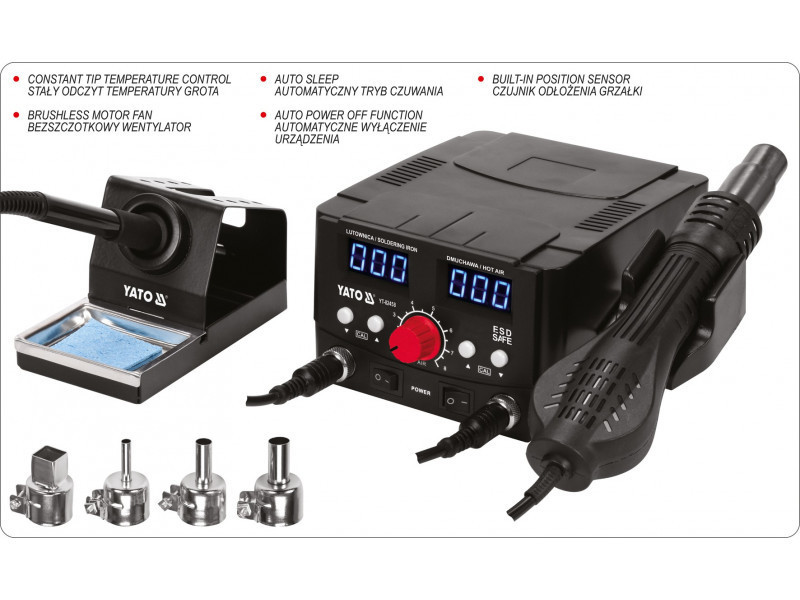

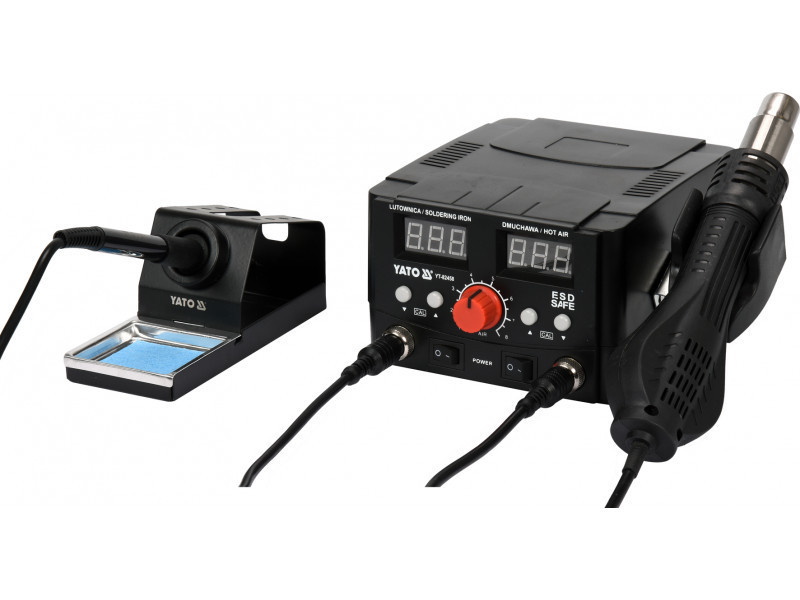

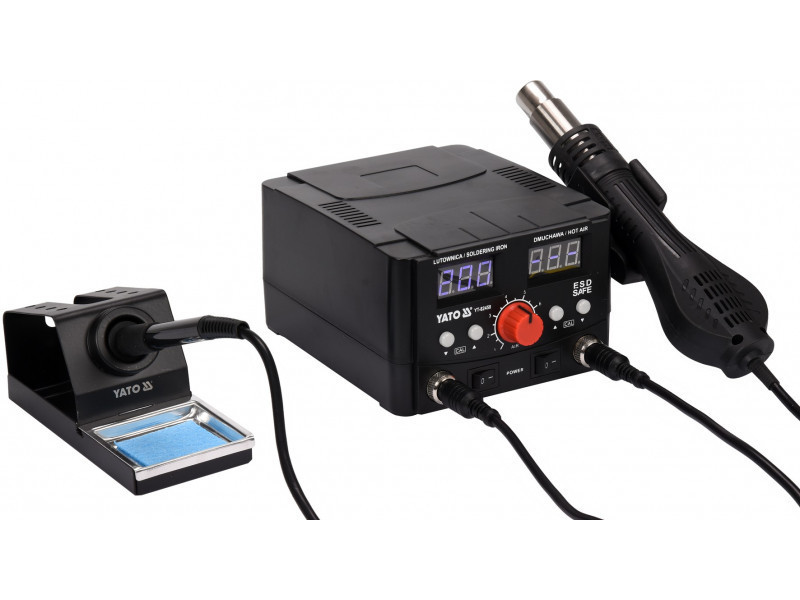

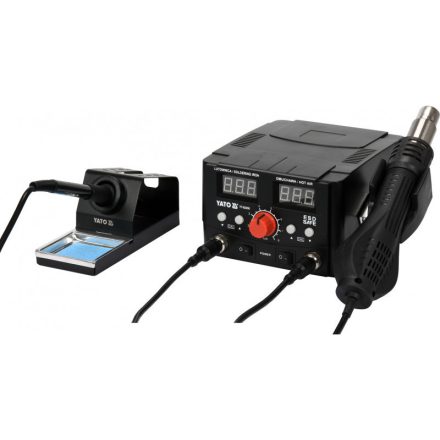

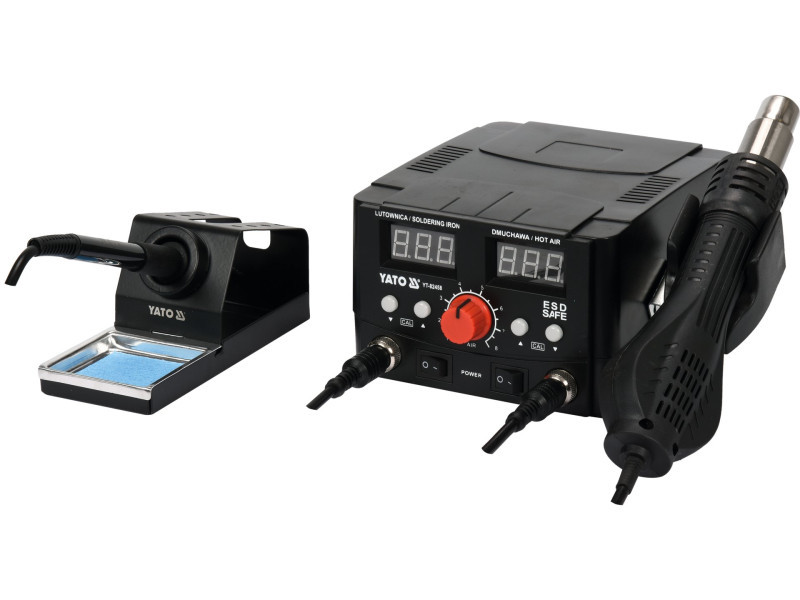

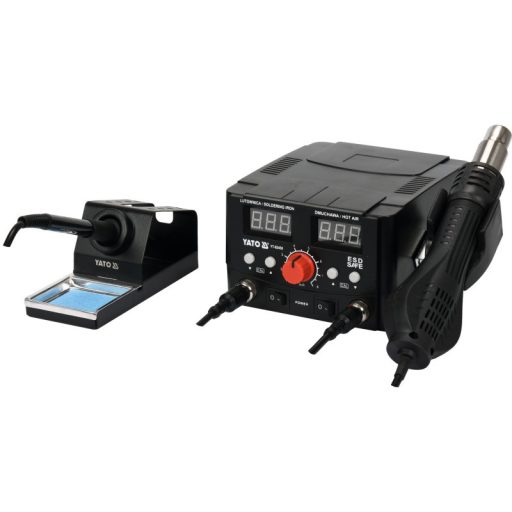

Soldering station with hot air 2 in 1 with symbol YT-82458 featuring a dual digital LED display, temperature control, and numerous functions to facilitate proper soldering connections. The station supports the 908D soldering iron adapted for very popular interchangeable tips from the 900M series and the HOT-AIR handle with a brushless fan.
Soldering station:
- power: 75W
- temperature range: 200 - 480°C
- temperature accuracy: +- 1°C
- device hibernation: 10 min
Hot-air station:
- power: 750W
- temperature range: 100 - 480°C
- temperature accuracy: +- 2°C
- air flow: max 120 l/min
- smooth airflow adjustment
- brushless fan for quiet operation
- automatic cooling and device hibernation after placing the hot-air handle in the side holder of the station

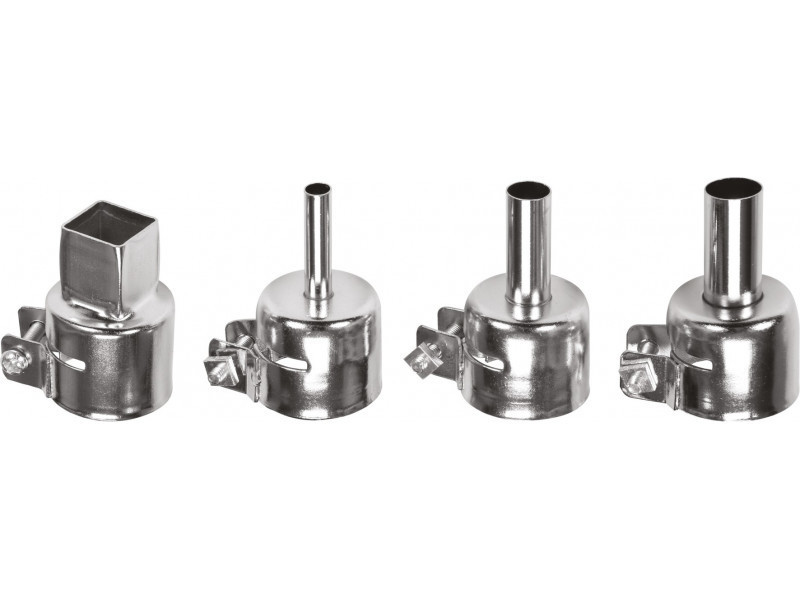

- three round hot-air nozzles with diameters: 4.4mm, 8mm, 10mm
- square hot-air nozzle side: 12mm
Common functions:
- temperature stabilization
- sensor failure detection
- front on-off buttons
- fuse in the power socket

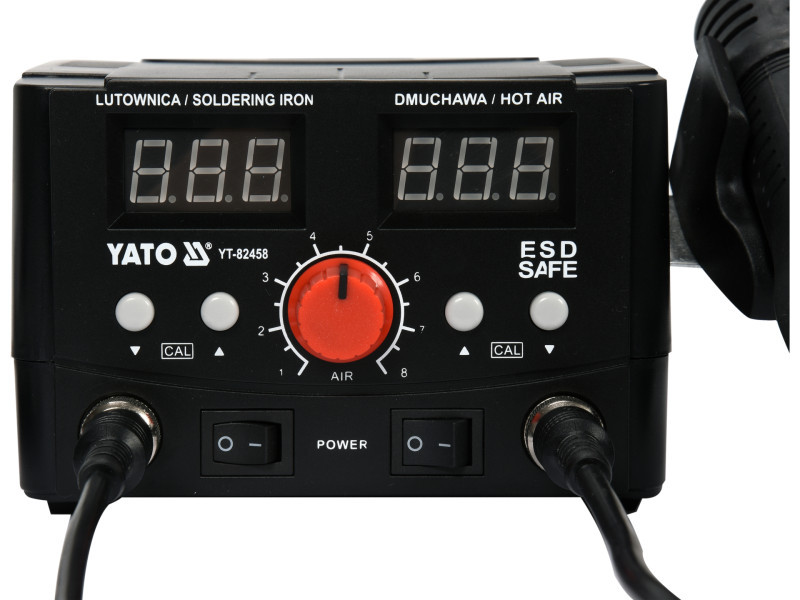

Dual digital display with blue LED backlight provides information on:
- set and then actual tip/air temperature from the hot-air nozzle
- station transitioning to sleep mode
- service messages
- heating mode of the tip/hot-air nozzle

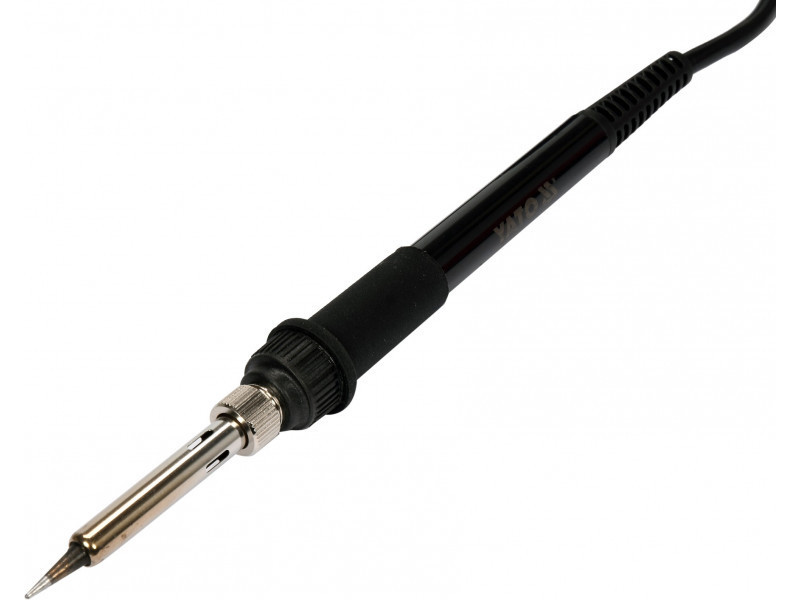

908D soldering iron placed on a sturdy metal stand:
- heater operating voltage: 24V
- tip type: 900M
- ceramic heater
- outer diameter of the heater: 3.85 mm
- cable length: 1m
- iron weight: approximately 100g

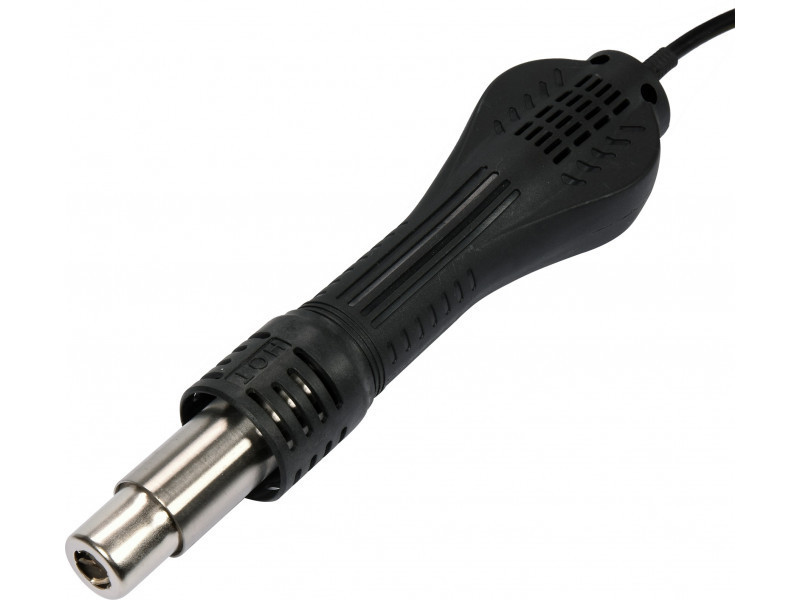

Hot-Air handle with brushless fan:
- nozzle handle diameter: 21mm
- ceramic heater
- cable length: 1m
- handle weight: approximately 200g
Additional information about the Hot-Air handle <click here> The YT-82458 2 in 1 soldering station with hot air is made using ESD-safe technology, which ensures that excess electrostatic charge does not accumulate on the housing. This reduces the risk of damaging sensitive SMD circuits. The soldering station heats up to the working temperature of 350°C in approximately 15 seconds, and the hot air reaches the temperature in about 10 seconds.
The temperature stabilization function allows the soldering iron tip to maintain the set temperature in various heat demand conditions for proper soldering joints. Depending on the size of the soldered element and the soldering area, the tip releases more or less heat, and the device continuously reads the actual temperature of the tip using the built-in sensor and adjusts the power consumption to maintain the set temperature. The best results with this function are achieved by selecting a tip with an inner diameter as close as possible to the heater's diameter. We recommend tips with an inner diameter in the range of 4.0 to 4.5 mm
The device hibernation function allows the soldering station to enter a standby mode, automatically reducing the operating temperature to 200°C. This prevents unnecessary heating of the tip, significantly extending its lifespan. The YT-82458 model, specifically the soldering station module, will enter sleep mode after 10 minutes of operator inactivity.
The automatic cooling function combined with the hibernation function allows the hot-air module to cool the nozzle to 100°C and then enter sleep mode. After completing work, the operator should place the handle in the plastic holder with a built-in sensor, triggering nozzle cooling and automatic hibernation. Lifting the handle from the holder automatically activates the hot-air module to the pre-set parameters.
The sensor failure detection function enables auto-diagnosis of the electronic circuits necessary for the proper operation of the device. The station performs self-diagnosis upon power button activation and displays an error message in case of issues.
Overview of functions in soldering stations YT-82456-YT-82459 <click here>
Usage warnings:
Hot surface near the nozzle outlet.
