| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Type | ESD-safe |
| Power | 750 W |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Working temperature | 100-500 ˚C |
| Temperature stability | ±2 ˚C |
| Max. temperature of soldering tip | 500 ˚C |
| Airflow | 120 l/min |
| Functions | temperature stabilization, automatic cooling and hibernation, settings memory |
| Temperature control | yes |
| Switch | yes |
| Display type | LED |
| Electric insulation class | I |
| Weight | 1.15 kg |
| Set includes | soldering station, nozzle x4 (Ø4.4 mm, Ø8 mm, Ø10 mm, 12 mm) |
| Symbol | YT-82457 |

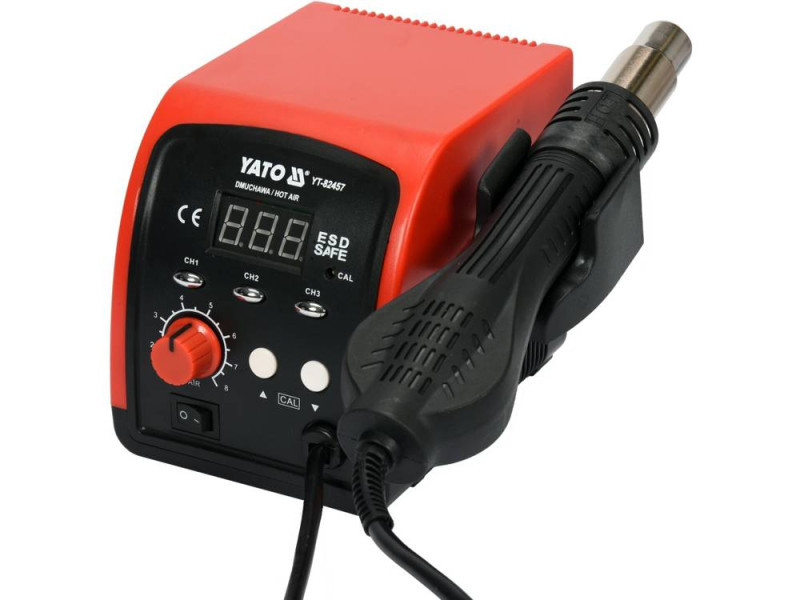

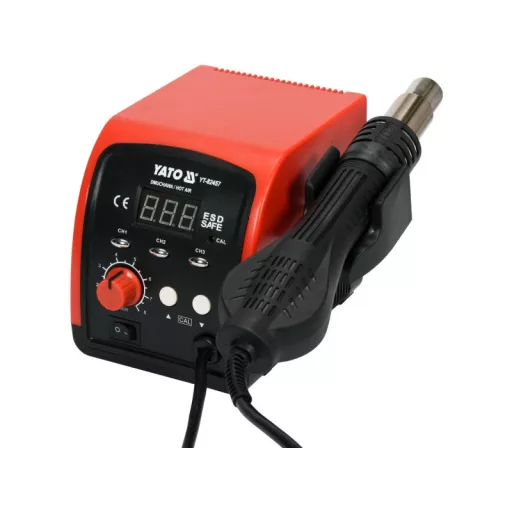

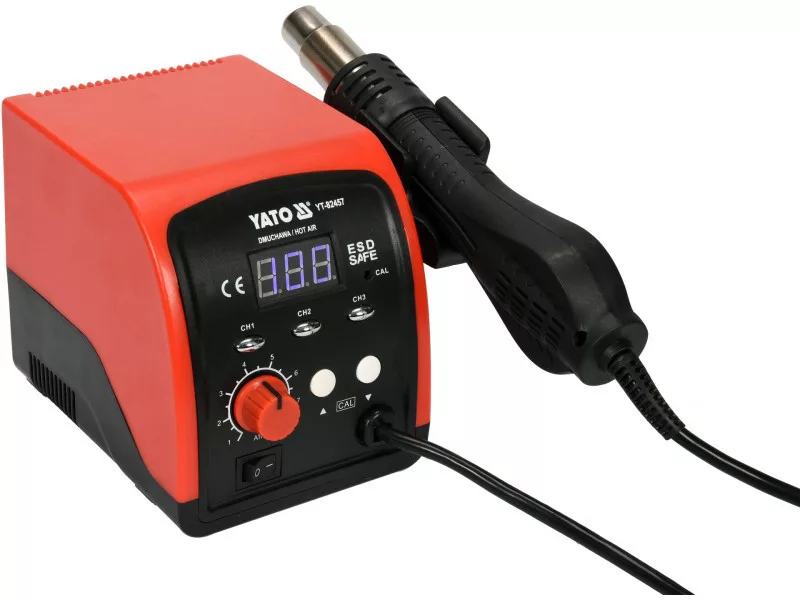

HOT-AIR hot-blow station YT-82457 with digital LED display, temperature control and features to improve working comfort and make it easier to make proper soldering connections. The station is equipped with a blowing handle driven by a brushless fan.
- power: 750W
- temperature range: 100 - 500°C
- temperature accuracy: +- 2°C
- temperature stabilization
- airflow: 120 l/min max
- infinitely adjustable airflow
- brushless fan thatós quiet in operation
- automatic cooling and going into hibernation when the handle is put down in the handle on the side of the station
- three dedicated buttons for saving temperature settings
- three round nozzles with diameters: 4.4mm, 8mm, 10mm
- square nozzle with side: 12mm
- on-off button on front
- fuse in power socket

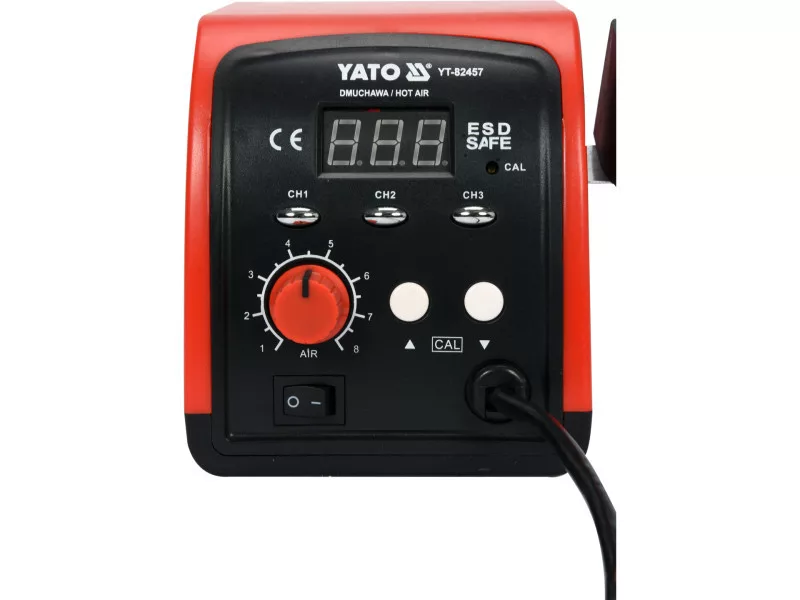

Digital display with blue LED backlight informs:
- the set and then the real temperature of the air from the hot-air nozzle
- the station's transition to sleep mode
- service messages

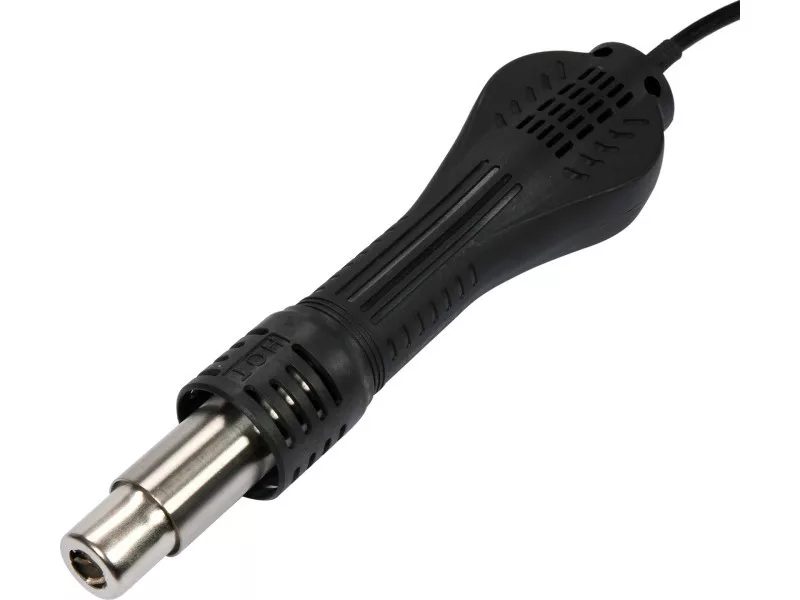

Hot-Air handle with blowing driven by brushless fan:
- nozzle holder diameter: 21mm
- ceramic heater
- cable length: 1m
Additional information on Hot-Air handle <click here>
The YT-82457 hot-air soldering station is made with ESD-safe technology, which guarantees no accumulation of excess electrostatic charge on the housing. This reduces the risk of damage to sensitive SMD circuits, for example. It heats up to an operating temperature of 350°C in about 6 seconds.
The temperature stabilization function allows you to maintain the preset blowing temperature under varying conditions of heat demand to make a proper solder joint. Thanks to a temperature sensor built into the heater, the real temperature of the air blown out of the nozzle is read in real time and correlated to the set temperature. The station then increases or decreases power consumption as needed to maintain the set temperature.
The automatic cool down function combined with the hibernation function allows the hot-air module to cool the nozzle to 100°C and then go into sleep mode. The operator, after the work is done, should put the handle in a plastic holder with a built-in sensor activation element, at which time the nozzle is cooled down and automatically hibernates. Picking up the handle from the handle automatically activates the hot-air module to the pre-set parametersós.
The settings memory function allows saving favorite temperature settings to three memory channels. Once saved, the operator can quickly switch to previously saved settings.
Overview of features in YT-82456-YT-82459 soldering stations <click here>
Usage warnings:
Hot surface near the nozzle outlet.
