| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 850 W |
| Rotations | 10000-30000 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Holder size | 6 or 8 mm |
| Cutting unit stroke | 40 mm |
| Speed adjustment | yes |
| Electronic rotation adjustment | yes |
| Soft start | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 81.0 ± 3.0 dB(A) |
| Acoustic power | 89.0 ± 3.0 dB(A) |
| Vibrations | 1.067 ± 1.5 m/s² |
| Weight | 2 kg |

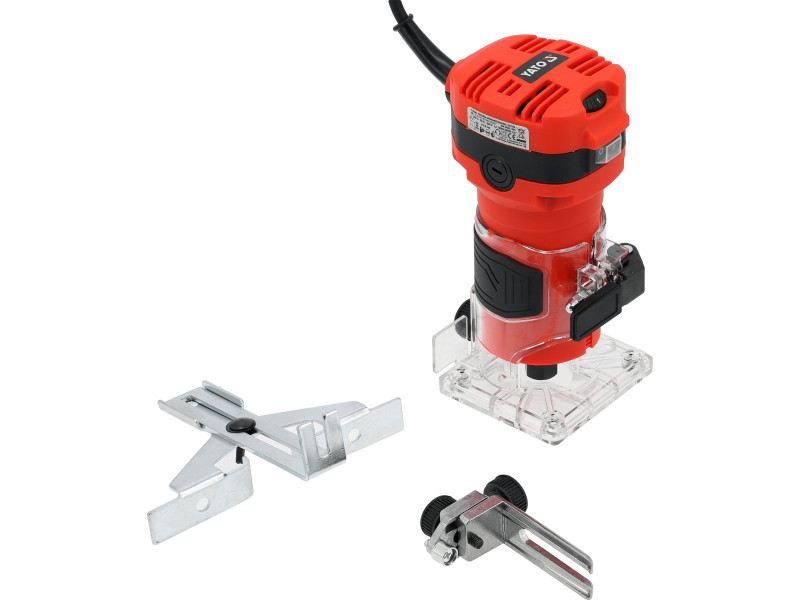

| Set includes | milling machine, guide x2, reducing sleeve |
| Symbol | YT-82389 |

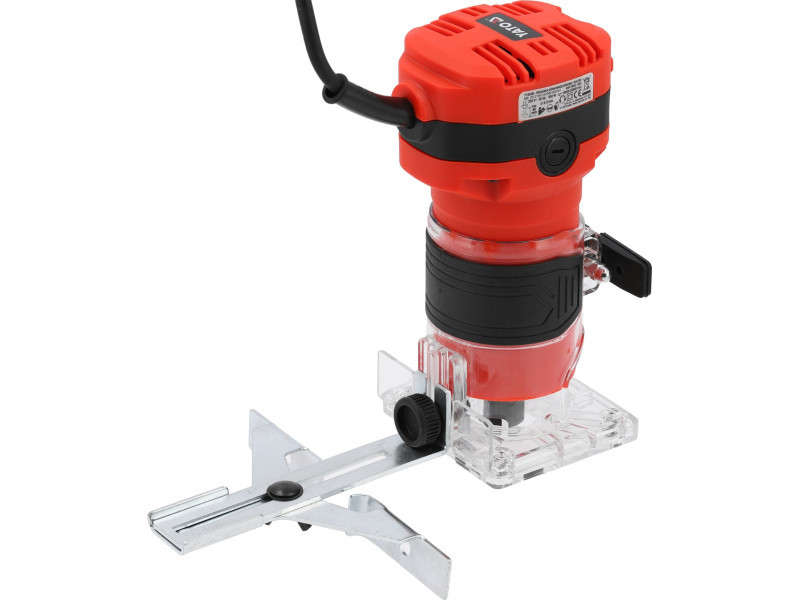

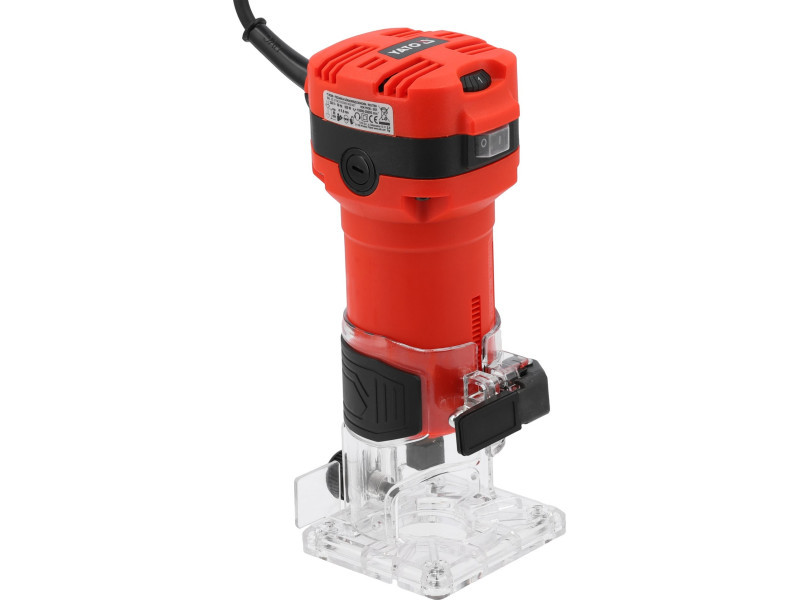

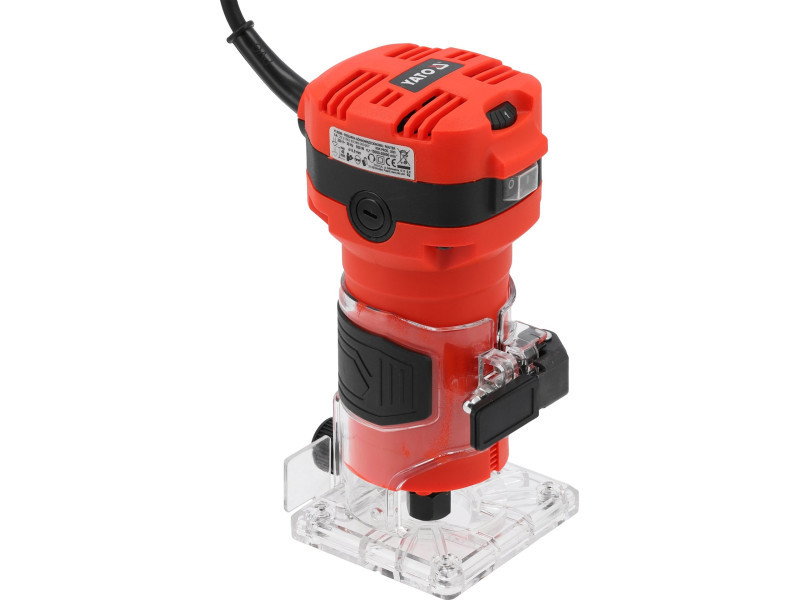

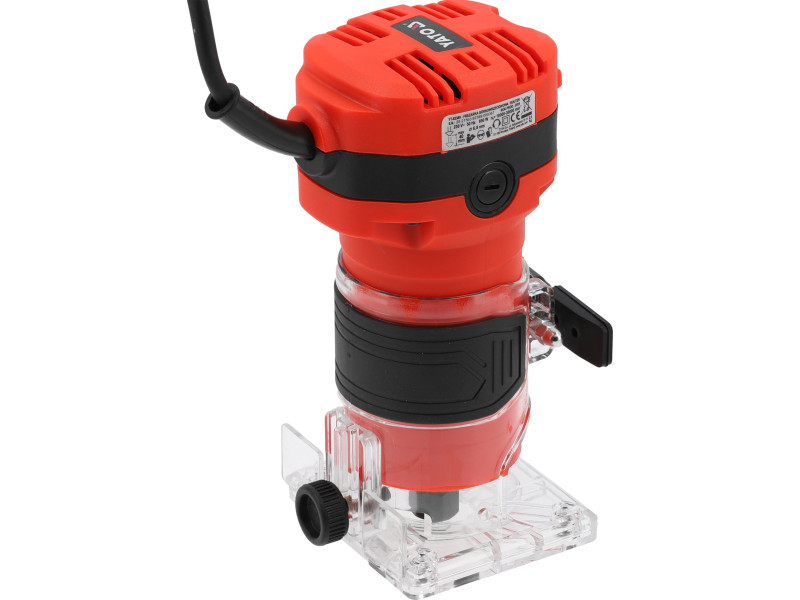

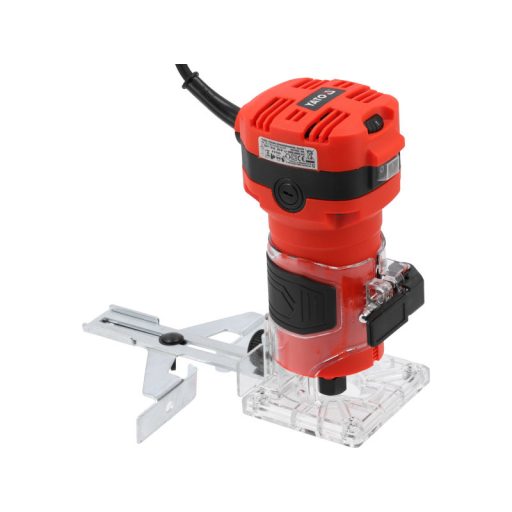

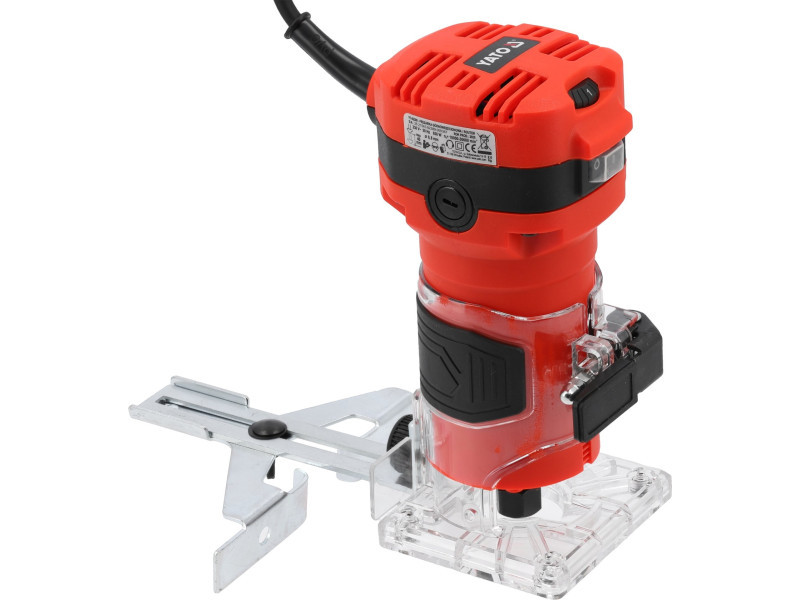

Edge milling machine designed for precise processing of wood and furniture boards. The device is equipped with an 850 W motor, which ensures smooth and stable operation in a wide range of speeds from 10000 to 30000 min⁻¹, allowing for speed adjustment to the material being processed and the cutter.

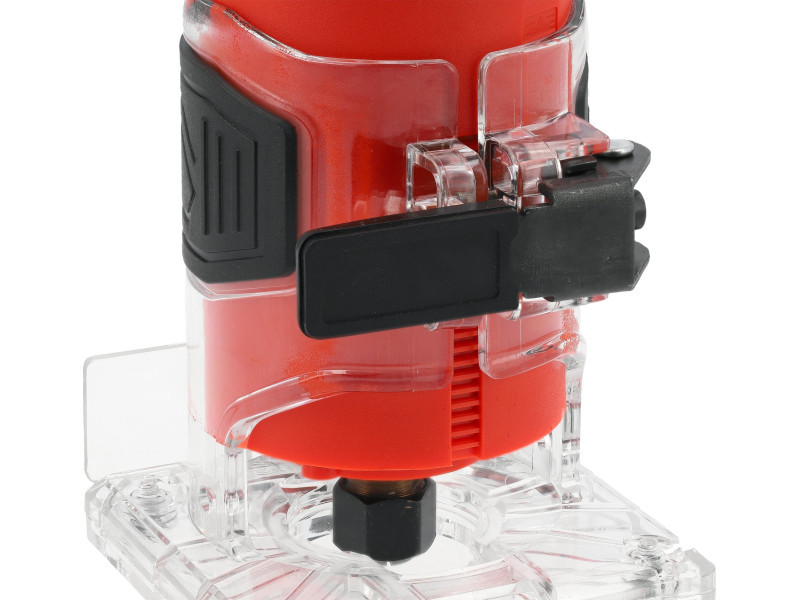

Speed regulation combined with the soft start function and speed stabilization guarantees safe use and eliminates vibrations during work, increasing milling precision. The 40 mm stroke of the milling unit allows for setting the depth of the cut, and the possibility of using tool holders with a diameter of 6 or 8 mm increases the versatility of applications.
Low weight and handy design make it easier to handle comfortably in various working positions, and a 3 m power cord ensures adequate working range in carpentry workshops and during furniture assembly, guaranteeing precise cuts, safe operation, and repeatability.
Parameters:
- power: 850 W
- speed: 10000-30000 min⁻¹
- tool holder: 6 or 8 mm
- stroke of the milling unit: 40 mm

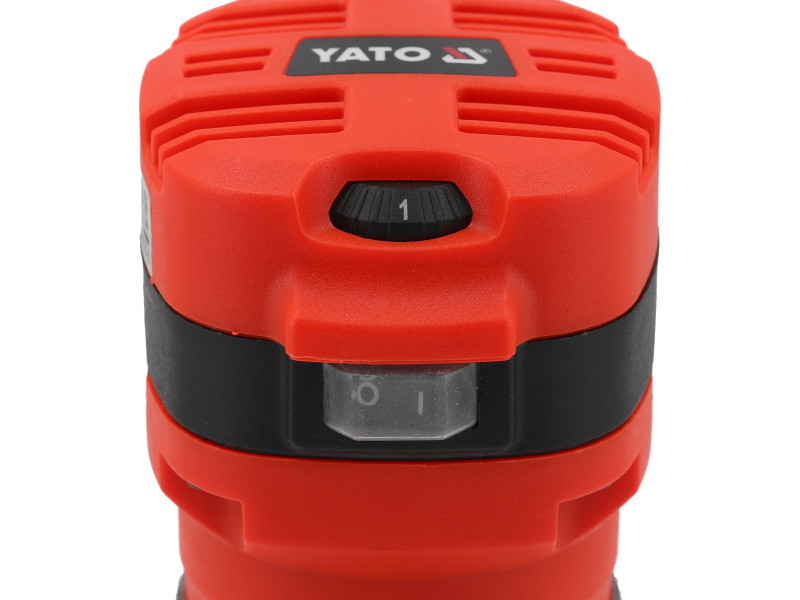

- electronically adjustable rotational speed
- soft start and speed stabilization function
- 3 m power cord
- weight: 2 kg
- included: milling machine, 2 guides, reduction sleeve
