| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1010 W |
| Voltage | 230-240 V a.c. |
| Frequency | 50 Hz |
| Belt travel speed | 120-380 m/min |
| Abrasive belt size | 533x75 mm |
| Electronic rotation adjustment | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 90.0 ± 3.0 dB(A) |
| Acoustic power | 101.0 ± 3.0 dB(A) |
| Vibrations | 5.1 ± 1.5 m/s² |
| Weight | 3.5 kg |
| Set includes | grinder, dust extraction connection, dust bag, a sheet of sanding tape |
| Compatible with | YT-83227, YT-83228, YT-83229, YT-83230, YT-83231, YT-83232, YT-83233 |
| Symbol | YT-82240 |

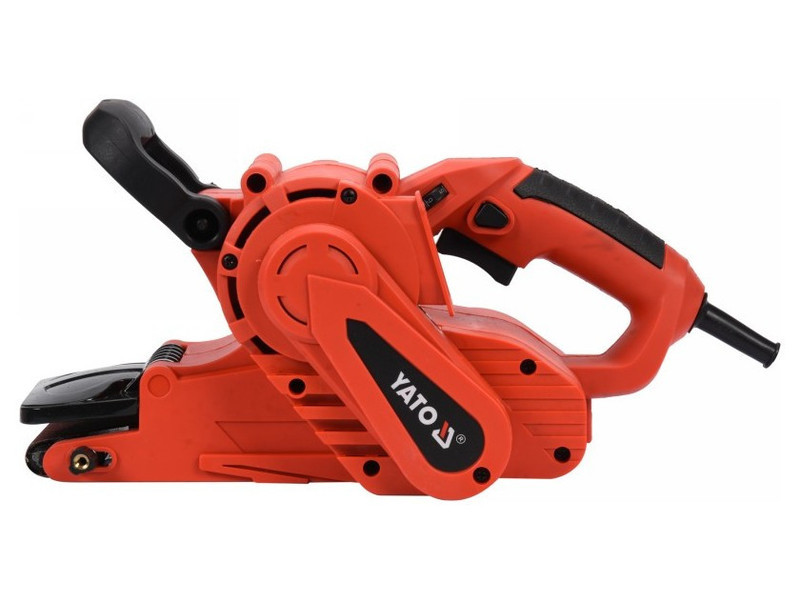

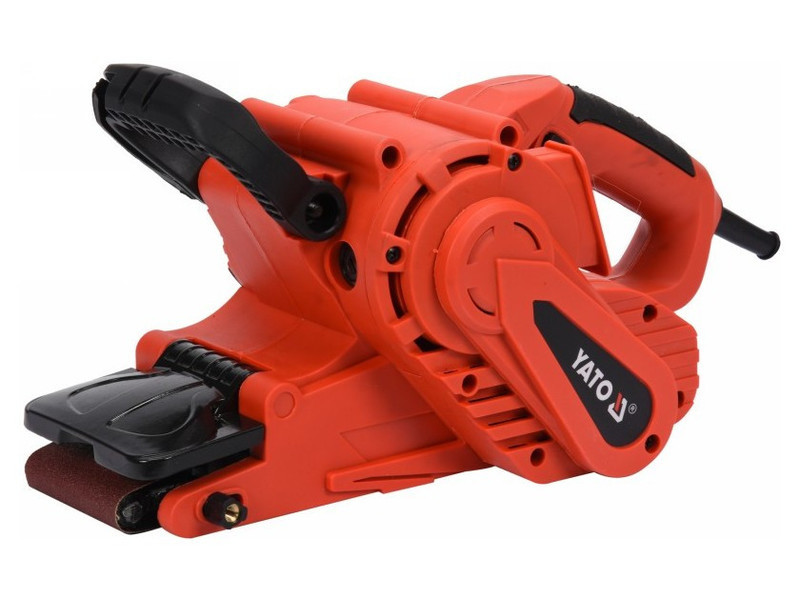

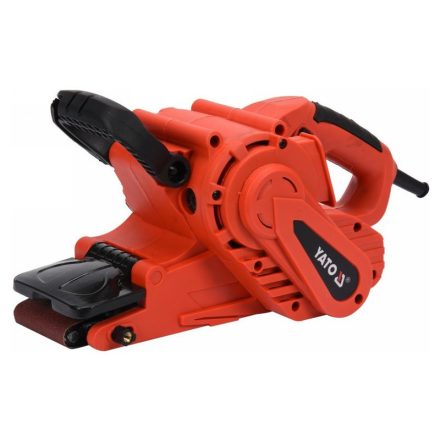

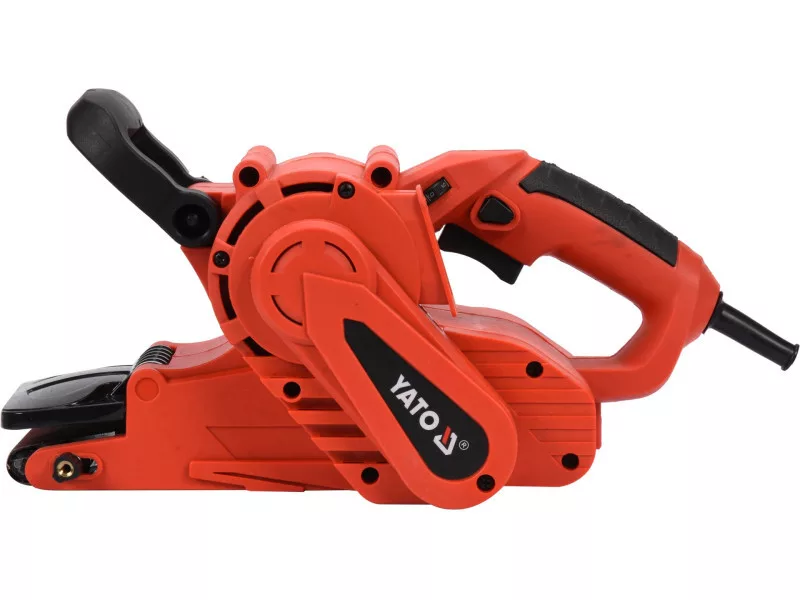

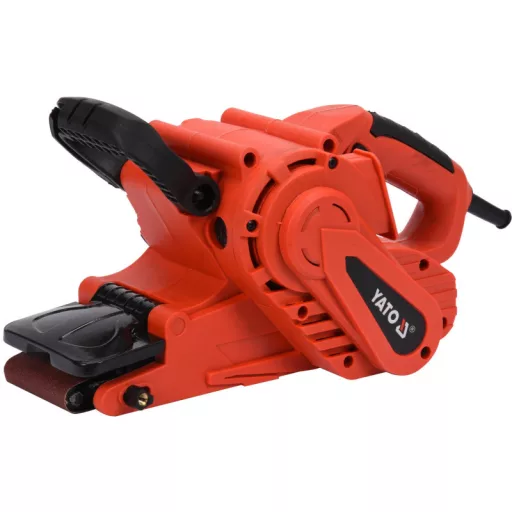

Powerful and compact 1010 Watt belt sander for sanding in hard-to-reach areas, thanks to tilting guard located above the belt at the front of the machine.
Designed for sanding wooden, metal and plastic parts. Ideal for surface finishing, removal of corrosion, varnish and paint. The narrow front roller is perfect for working in confined spaces, such as balusters, railings, fence rails, garden furniture.
The narrow front roller is perfect for working in confined spaces, such as balusters, railings, fence rails, garden furniture
- top multi-position handle
- tilting front guard allows sanding of hard-to-reach surfaces
- .infinitely adjustable belt travel allows you to adjust the appropriate grinding speed to the surface to be sanded
- multi-pulley belt drive
- belt drive . rubber power cable
- belt size 75 x 533 mm
- dust extraction port. tool-free belt tensioning system
- system quick brush change
- small size makes it easy to work in awkward positions, such as. overhead or on outstretched arms
- adjustable, non-slip handle additional, makes work easier
Parameters:
- network voltage [V~]: 230 - 240
- network frequency [Hz]: 50
- rated power [W]: 1010
- belt speed [m/min]: 120 - 380
- electrical protection class: II
- protection class (IPXX): IP20
- weight [kg]: 3.5
- abrasive belt size [mm]: 533 x 75

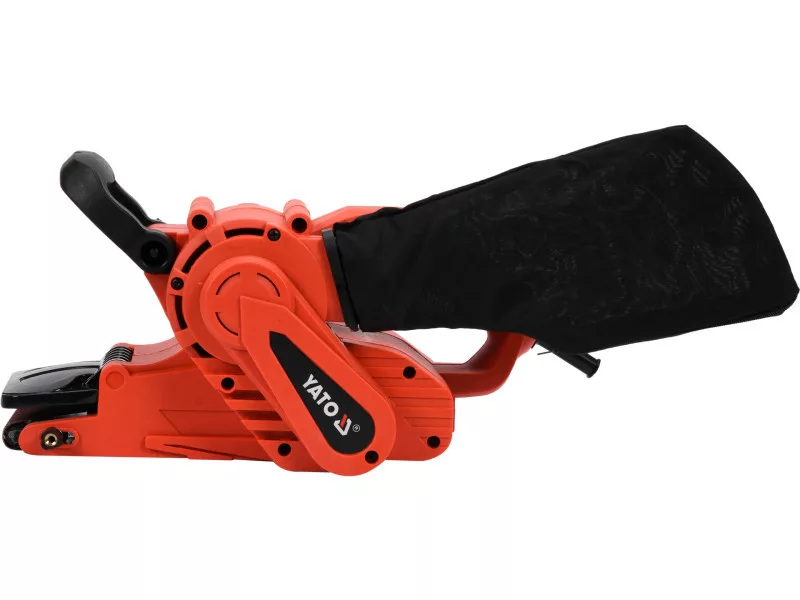

Dust extraction
The grinder is equipped with extraction, which allows you to collect the dust generated during operation. On the dust extraction opening put the bag included with the grinder. An external dust extraction system, such as one based on an industrial vacuum cleaner, can also be connected to the connector.
Adjustable belt speed
The grinder allows infinite adjustment of the speed of the belt travel via a dial. The higher the number shown on the dial, the higher the belt travel speed.
Regulation of the position of the auxiliary handle
The grinder allows you to adjust the handle to one of three positions. This allows you to adjust the grinder's grip, for example, according to the type of work to be performed.
It is possible to set the handle in one of the three positions signaled by the operation of the ratchet mechanism.
Tilting the front of the housing
The grinder allows the front part of the housing to be raised, which, combined with the small diameter of the front tension roller, makes it possible to grind places inaccessible with a traditional belt grinder, such as inside corners.
Switch lock
The grinder's on/off switch has been equipped with a locking device that can be used to lock a depressed switch for prolonged use.
Package contents:
Along with the product are provided:
- one piece of abrasive belt
- a bag for collecting dust generated during operation
- a bag attachment
.
