| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Application | wood, panels, laminates, plastics |
| Power | 1800 W |
| Rotations | 5000 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 255 mm |
| Cutting disc internal diameter | 30 mm |
| Cutting disc max. thickness | 3 mm |
| Number of teeth | 24 |
| Max. cutting height x max. cutting length rotating angle at level 0° / gradient 0° | 70x305 mm |
| Max. cutting height x max. cutting length rotating angle at level 45° / gradient 0° | 70x210 mm |
| Max. cutting height x max. cutting length rotating angle at level 0° / gradient 45° | 35x305 mm |
| Max. cutting height x max. cutting length rotating angle at level 45° / gradient 45° | 35x210 mm |
| Min. dimensions of processed material processed | 200x20x20 mm |
| Laser | yes |
| Laser class | 2 |
| Laser power | ˂1 mW |
| Laser wave length | 650 nm |
| Laser pointer colour | red |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 94.3 ± 3.0 dB(A) |
| Acoustic power | 107.3 ± 3.0 dB(A) |
| Weight | 15.2 kg |
| Set includes | miter saw, dust collection bag, circular saw, work table extension x2, work table clamp, work table locking screw |
| Compatible with | YT-60733 |
| Symbol | YT-82173 |

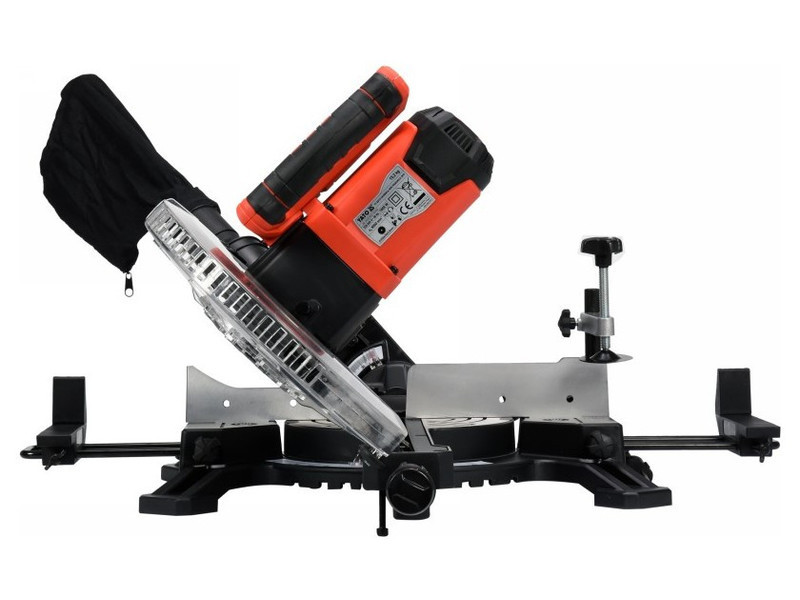

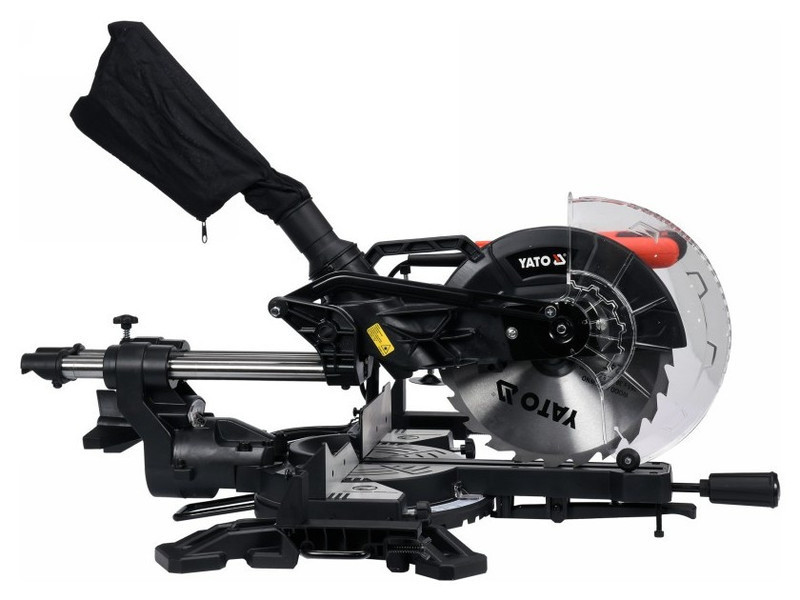

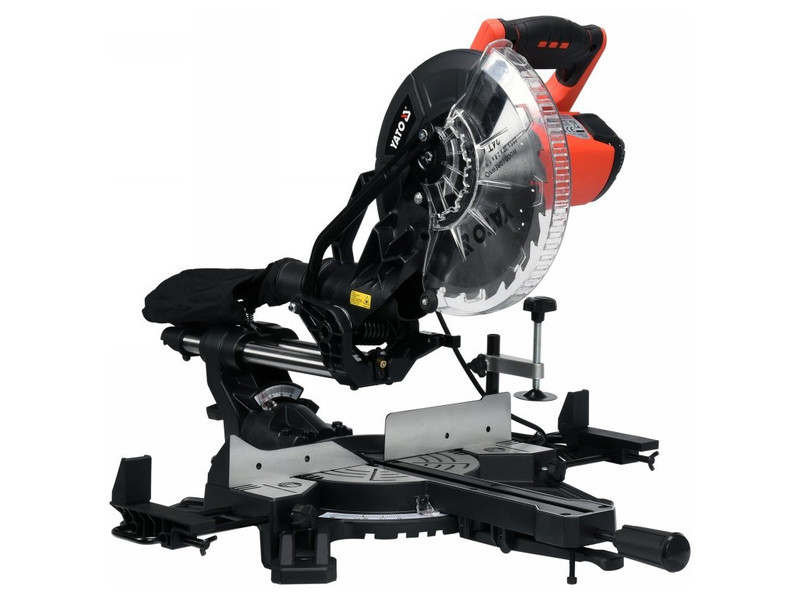

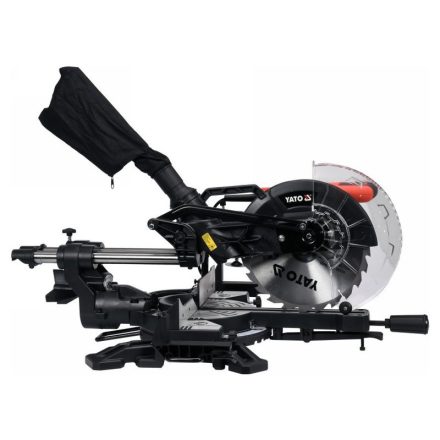

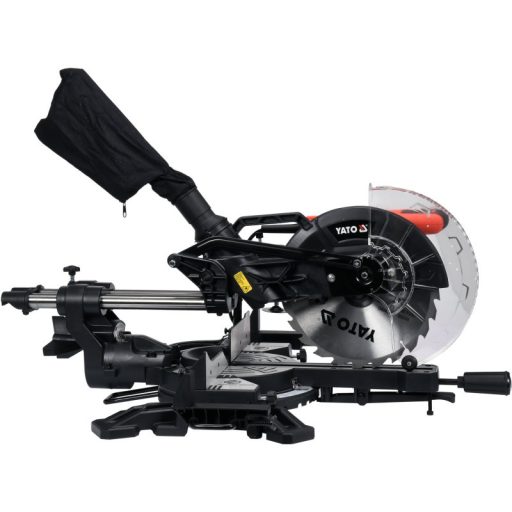

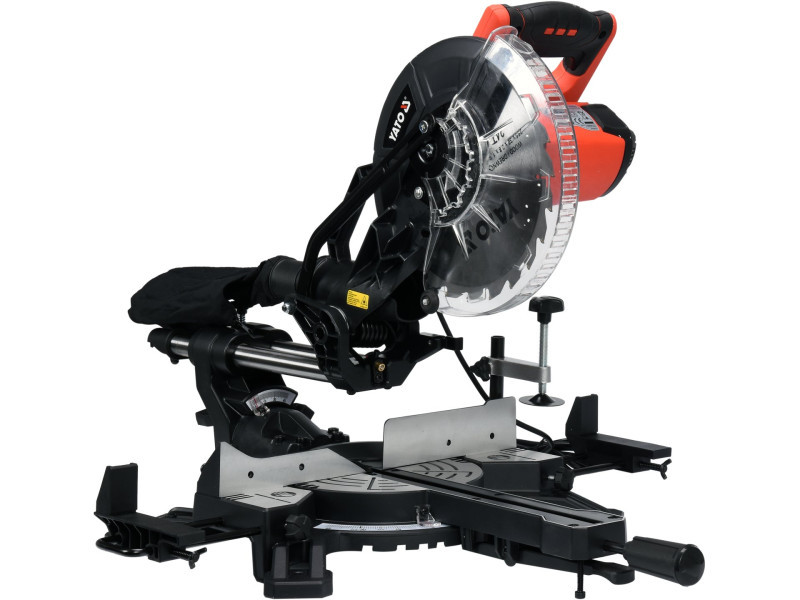

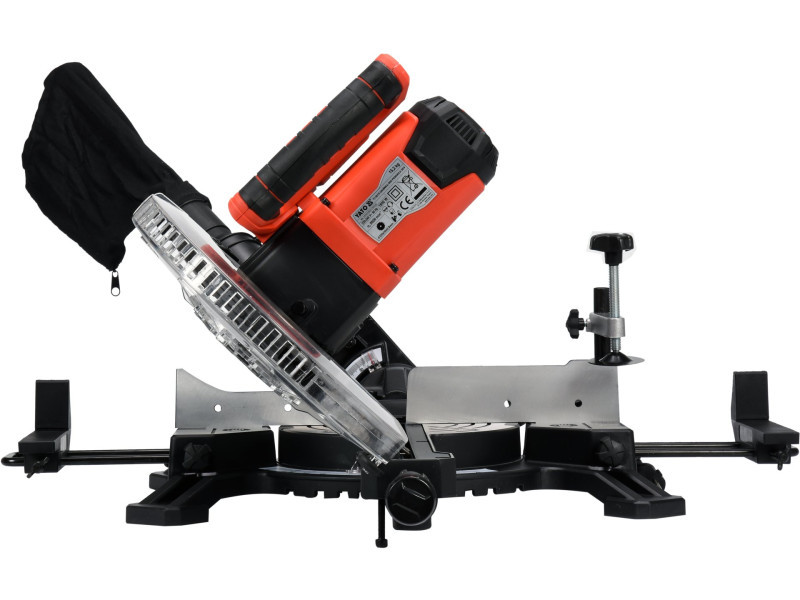

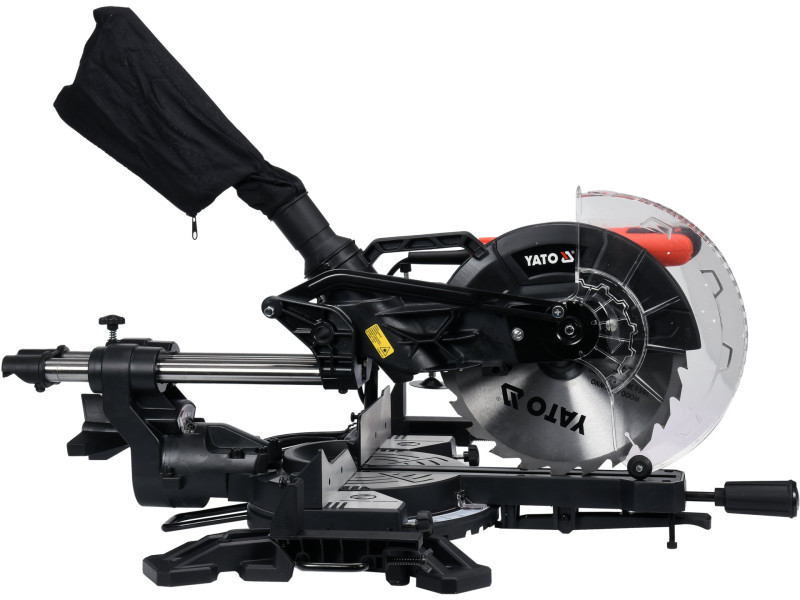

Professional miter saw designed for cutting skirting boards, panels, fascia, parquet, baseboards and PVC, cable ducts, edge banding, laths, etc. Ensures precise and fast cutting of materials.
- laser cutting line indicator
- side supports for cutting longitudinal elements

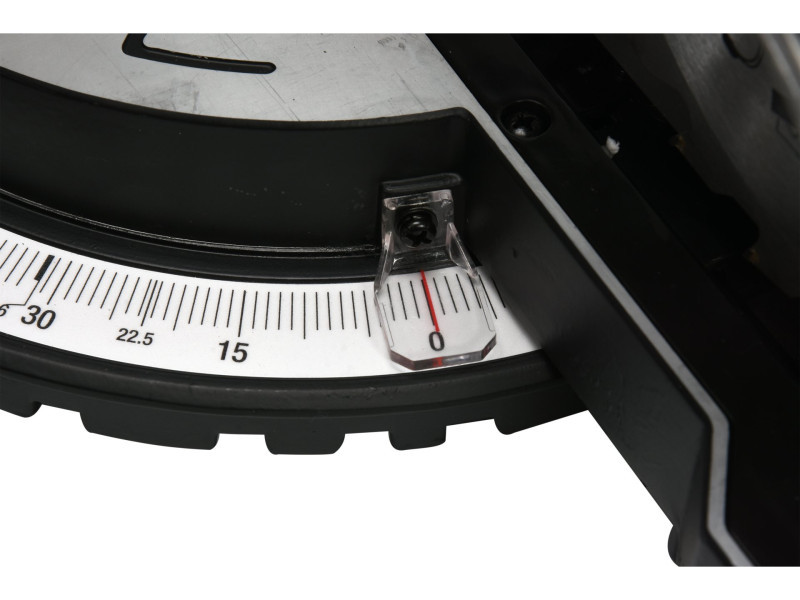

- stable and flat base with precise angle adjustment in vertical and horizontal
- bearing blade feed
- smoothly operating tilting blade guard integrated with the switch
- clamp integrated with the base allows safe and quick fixing of the workpiece
- built-in dust extraction system
- compact dimensions and transport handle in the central part of the housing ensure proper balance and ease of carrying
- blade adjustable vertically and horizontally
- blade mounting hole: 30 mm
- dust bag included

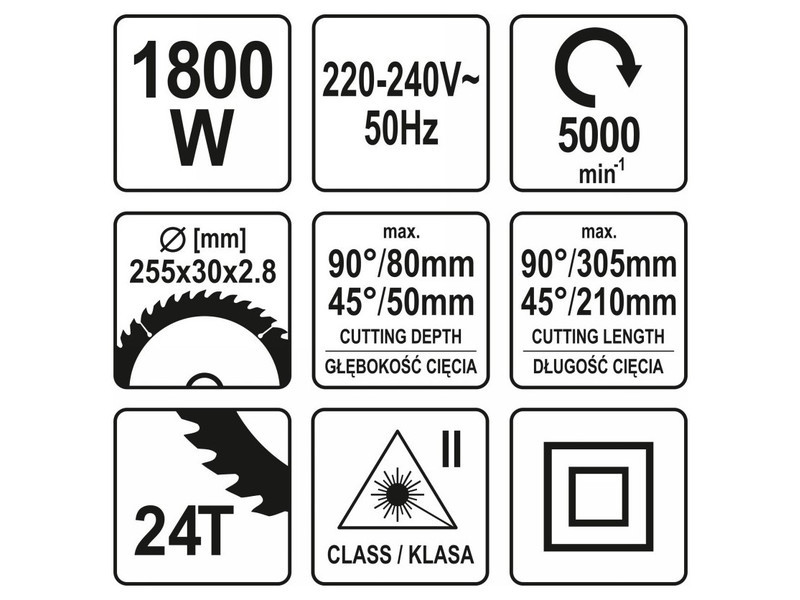

Parameters:
- Rated speed [min-1]: 5000
- Rated power [W]: 1800
- Saw blade: outer diam. x mounting diam. x max thickness [mm]: 255 x 30 x 3.0
Max. height x max. cutting length:
- horizontal rotation angle 0 deg. / tilt angle 0 deg [mm]: 70 x 305
- horizontal rotation angle 45 deg. / tilt angle 0 deg [mm]: 70 x 210
- horizontal rotation angle 0 deg. / tilt angle 45 deg [mm]: 35 x 305
- horizontal rotation angle 45 deg. / tilt angle 45 deg. [mm]: 35 x 210
Usage warnings:
Caution: laser radiation. Do not stare into the beam.
Class 2 laser device.
