| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Battery quantity | lack |
| Rotations | 2800-5500 min⁻¹ |
| Max. cutting depth | 52 (90˚), 38 (45˚) mm |
| Voltage | 18 V d.c. |
| Battery type | Li-Ion |
| Charger included | no |
| Cutting disc outer diameter | 140 mm |
| Cutting disc internal diameter | 20 mm |
| Cutting disc max. thickness | 2 mm |
| Cutting angle regulation | 0-45 ˚ |
| Electric insulation class | III |
| Acoustic pressure | 79.8 ± 3.0 dB(A) |
| Acoustic power | 87.8 ± 3.0 dB(A) |
| Vibrations | 3.1 ± 1.5 m/s² |
| Weight | 3.6 kg |
| Set includes | zagłębiarka, circular saw, parallel guide, prowadnica szynowa |
| Symbol | YT-821702 |

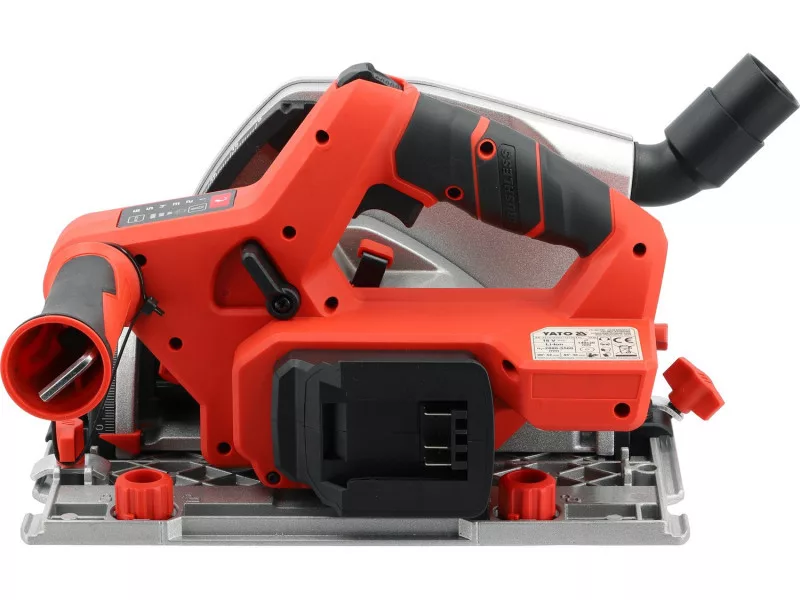

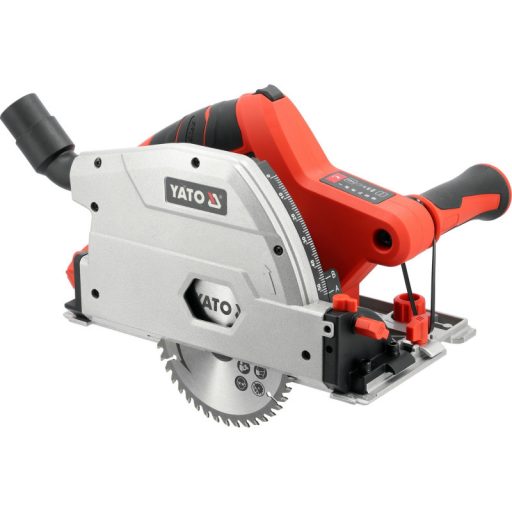

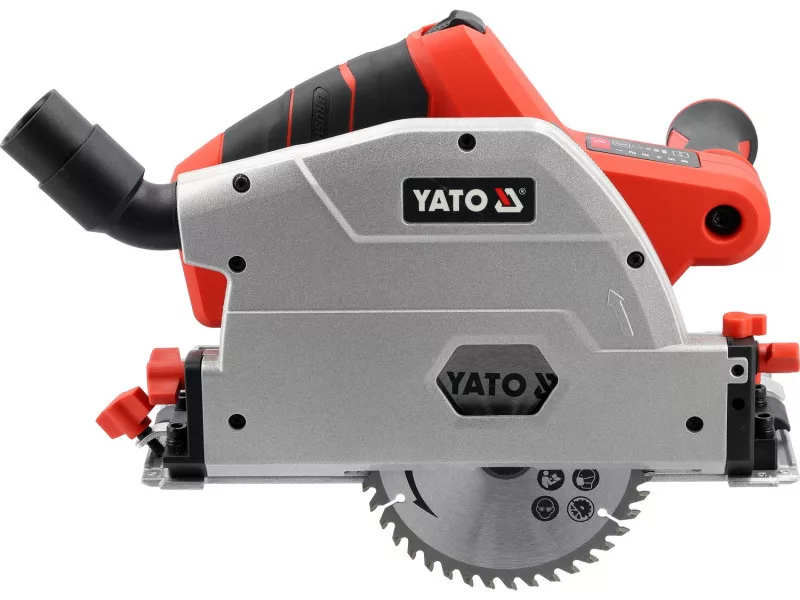

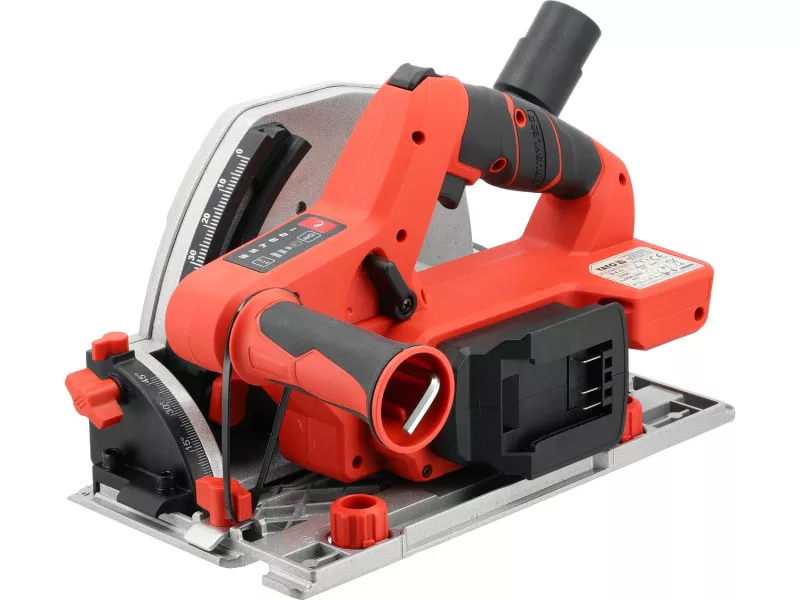

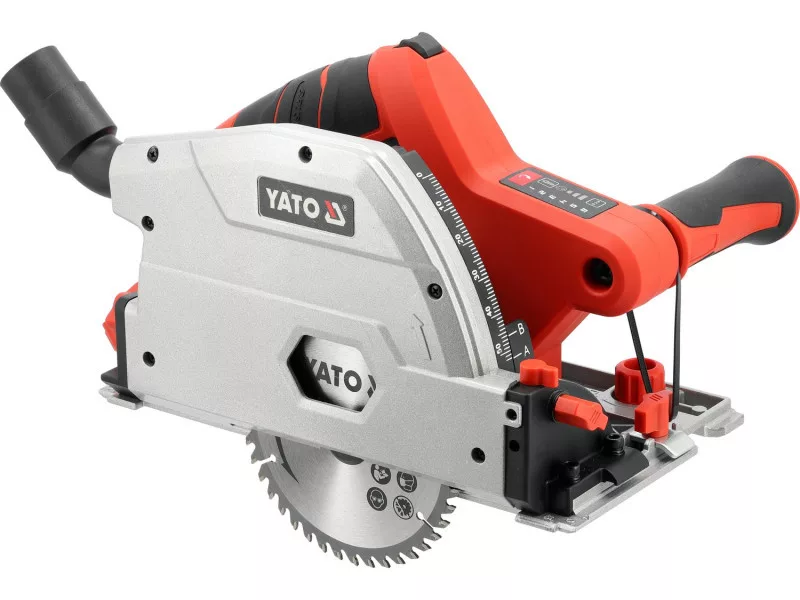

Brushless cordless plunge saw designed for precise cutting of wood and wood-based materials such as plywood, particle boards, MDF, or laminates using circular saw blades. The tool's design allows for straight cuts from the edge of the material as well as plunge cutting mode, enabling work to begin at any point on the workpiece. With the use of a parallel guide and a rail guide, it is possible to guide the tool along a stable line, facilitating accurate and repeatable results (rail and clamps included).
Powered by an 18 V Li-Ion battery, it ensures mobility and comfort of use in areas without access to electrical outlets. The adjustable rotational speed ranging from 2800 to 5500 RPM allows for tailoring the working parameters to the type of material, while the adjustable cutting depth and angle enable various types of processing. The tool is also equipped with a dust extraction system and safety features that enhance user safety.
The plunge saw is ideal for carpentry, assembly, and finishing work, allowing for precise cuts in furniture boards, wooden structural elements, and other wood-based materials.
Key features and functions:
- brushless motor
- 18 V Li-Ion battery power – freedom to work without a power cord
- smooth speed adjustment 2800-5500 RPM – adapting parameters to the type of material
- plunge cutting capability – starting cuts at any point on the work surface

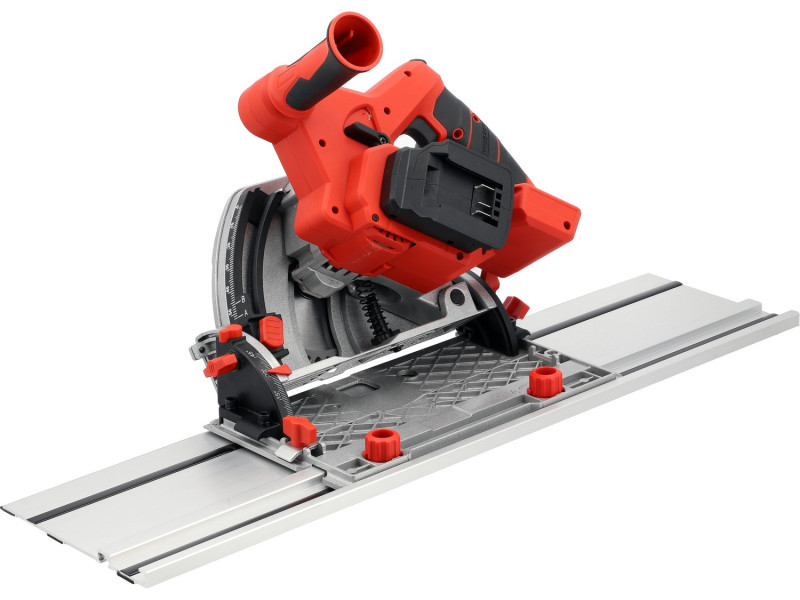

- cutting angle adjustment 0-45° – making precise angled cuts

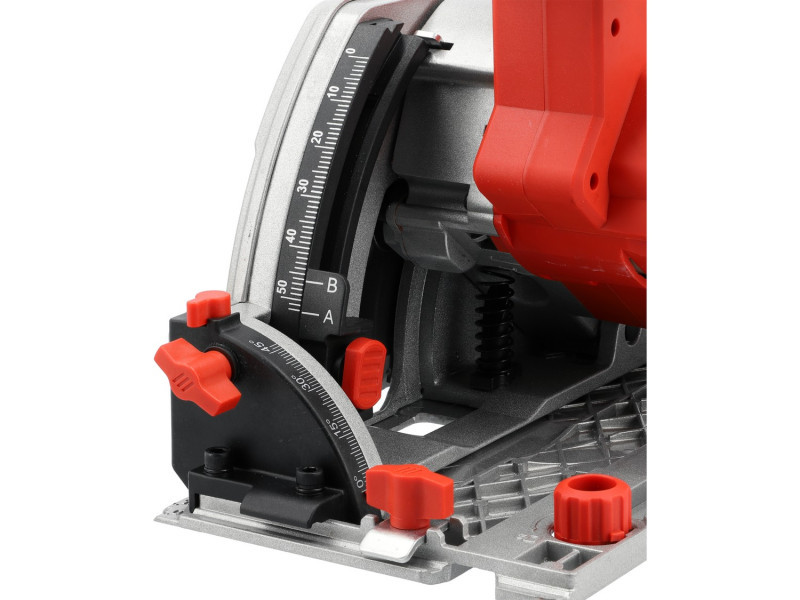

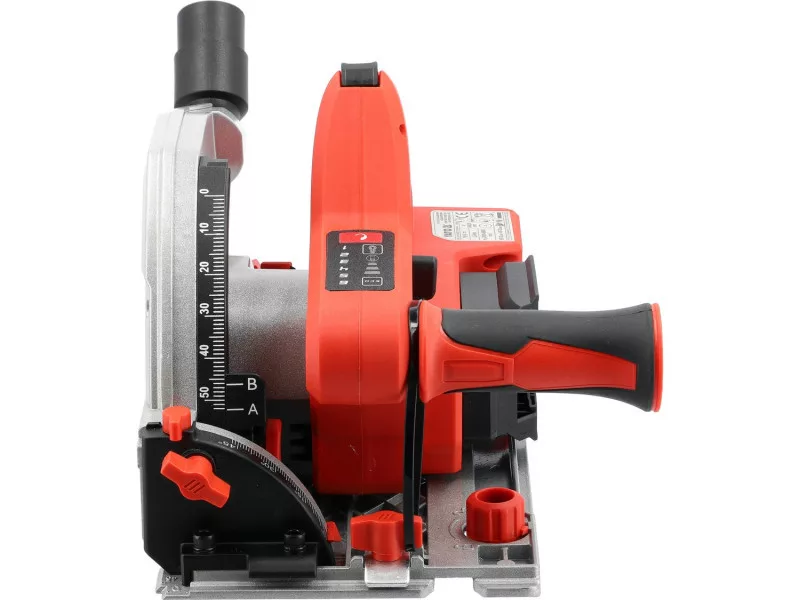

- cutting depth adjustment with a clear scale – easy setting of required working parameters
- parallel guide – facilitates guiding the saw along the edge of the material

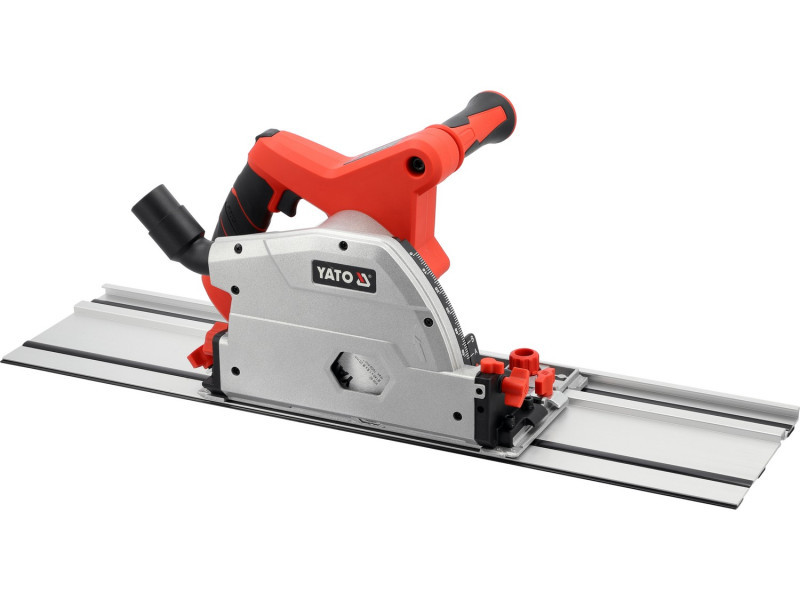

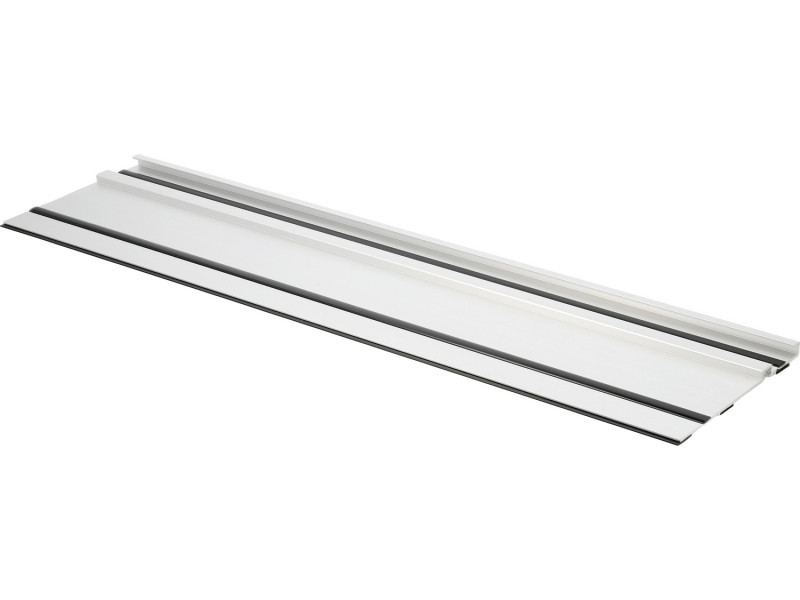

- rail guide – stable tool guidance when cutting long elements

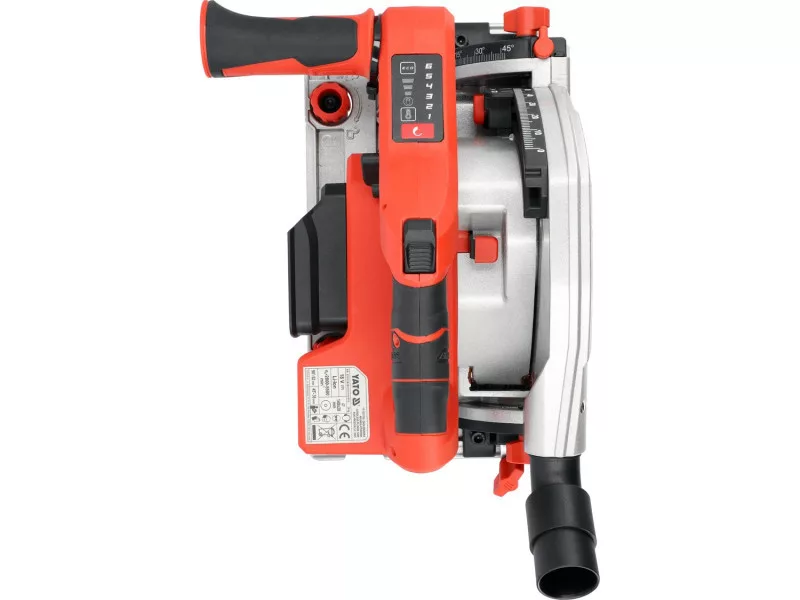

- control panel – convenient management of the device's working settings
- ECO mode – operation with reduced energy consumption for less demanding tasks
- switch lock – increases safety during use
- spindle lock – quick and convenient blade change
- circular saw guard – protects the user from material splinters
- additional handle – better control over the tool during work
- dust extraction port – possibility to connect an external dust extraction system, e.g., an industrial vacuum cleaner
- adjustment knobs and locking levers – precise setting of depth, tilt, and tool guidance
Technical parameters:
- power supply: 18 V Li-Ion
- blade diameter: 140 mm
- rotational speed: 2800-5500 min⁻¹
- maximum cutting depth: 52 mm (90°) / 38 mm (45°)
- device weight: 3.6 kg
Set equipment:
- 140 mm circular saw blade
- parallel guide
- rail guide
- 2 clamps
Available versions:
- YT-821701 – set with a 4 Ah battery and charger
- YT-821702 – tool only, compatible with YATO 18 V batteries YT-828461-YT-828465
