| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1800 W |
| Rotations | 5000 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 250 mm |
| Cutting disc internal diameter | 30 mm |
| Number of teeth | 24 |
| Cutting disc max. thickness | 2.8 mm |
| Cutting disc min. thickness | 2.1 mm |
| Max. cutting depth | 85 (90˚), 65 (45˚) mm |
| Working table dimensions | 893x583 mm |
| Riving knife thickness | 2 mm |
| Dust extraction outlet diameter | 35 mm |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 91.0 ± 3.0 dB(A) |
| Acoustic power | 104.0 ± 3.0 dB(A) |
| Weight | 21 kg |
| Set includes | table saw, circular saw, base |
| Compatible with | YT-6071 |
| Symbol | YT-82165 |

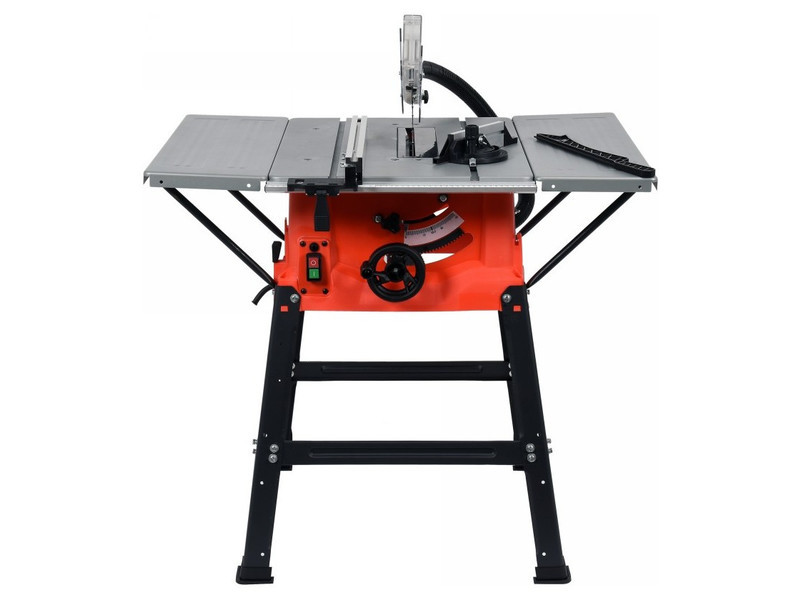

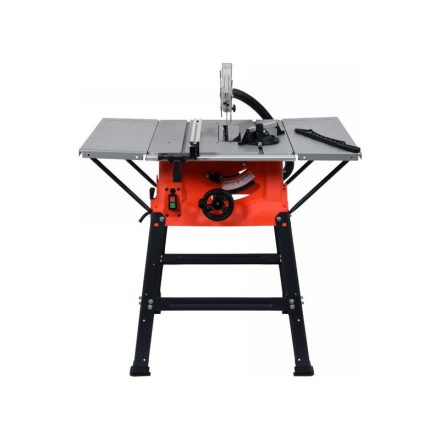

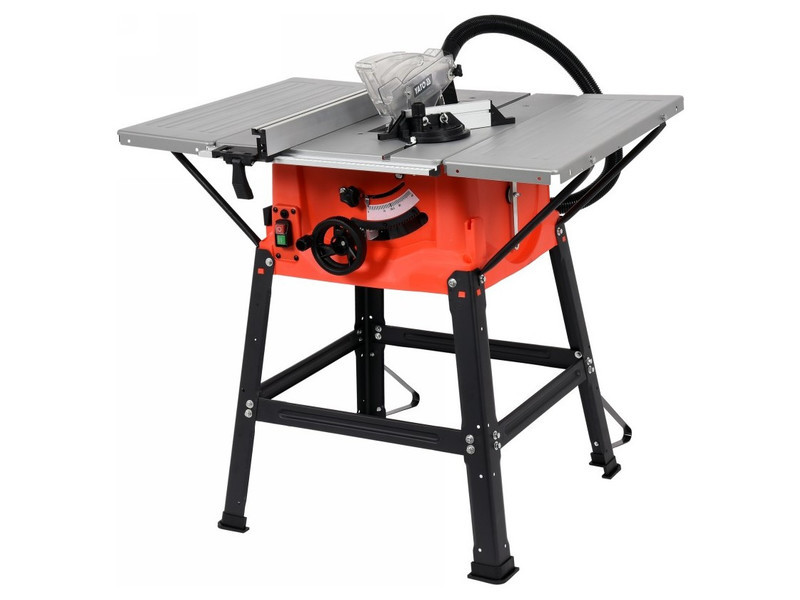

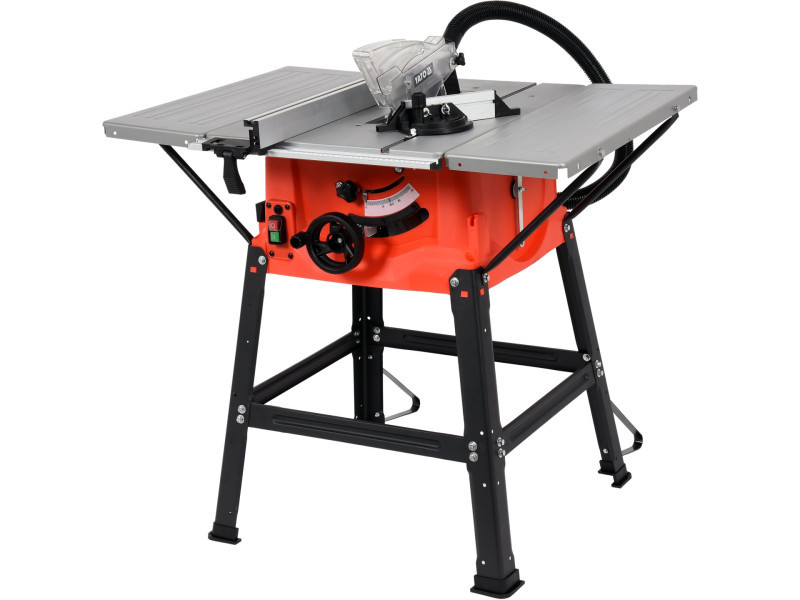

Multifunction table saw designed for straight, angled and rip cuts in hardwood, softwood and wood-like materials. Recommended for carpentry and formwork work.
- Efficient commutator motor with maximum power of 2000 watts and continuous power of 1800 watts

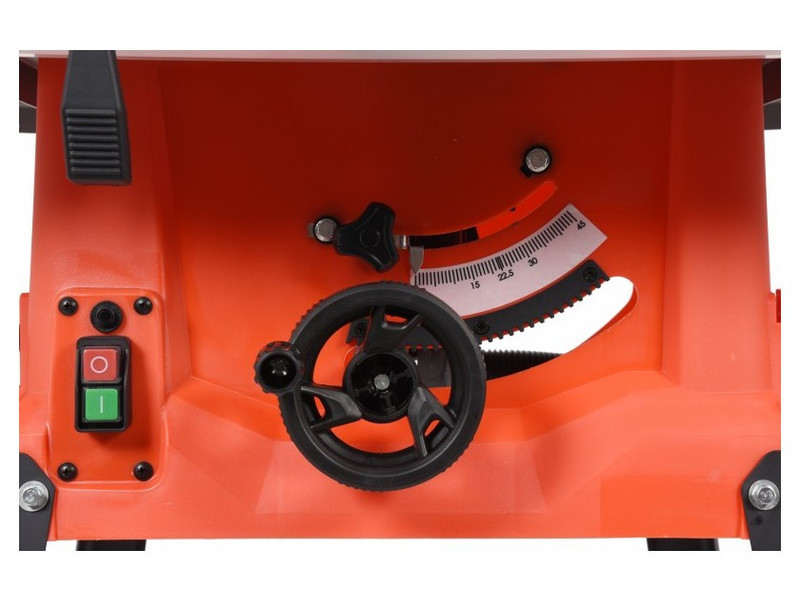

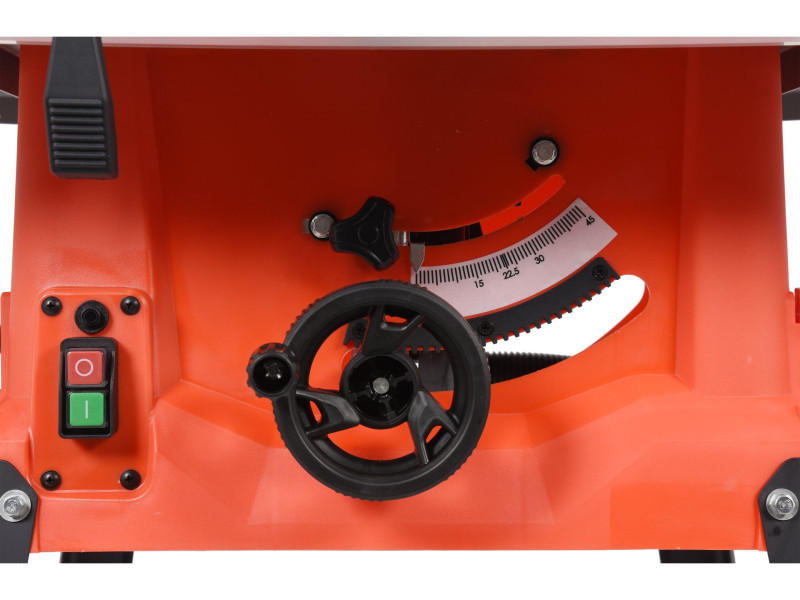

- Cutting height adjustment from 0-85 mm with a convenient and durable knob
li>Cutting height at 90˚: 85 mm - cutting height at 45˚: 65 mm

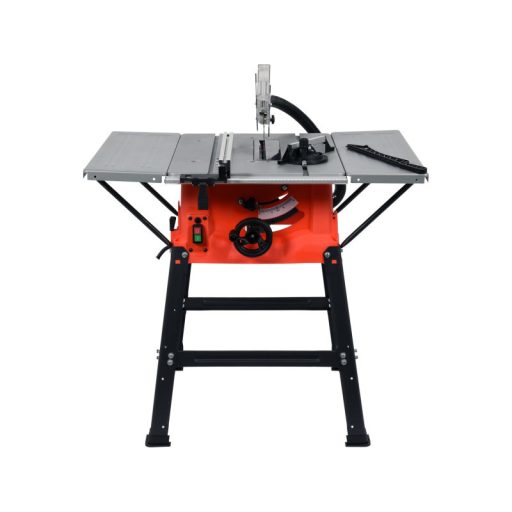

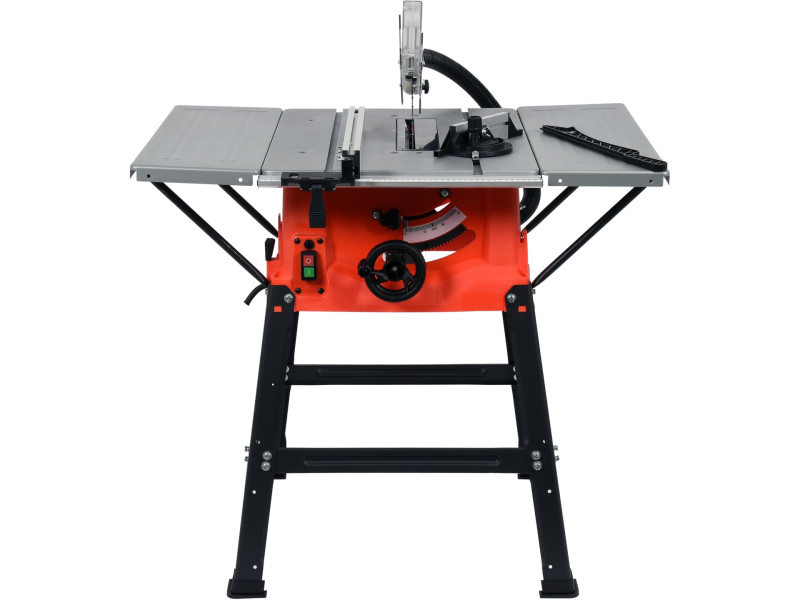

- possibility to extend the table from 485 mm to 940 mm by unfolding the side tops
- stable steel support structure ensures safe and comfortable work
- .body made of strong plastic resistant to corrosion and mechanical damage

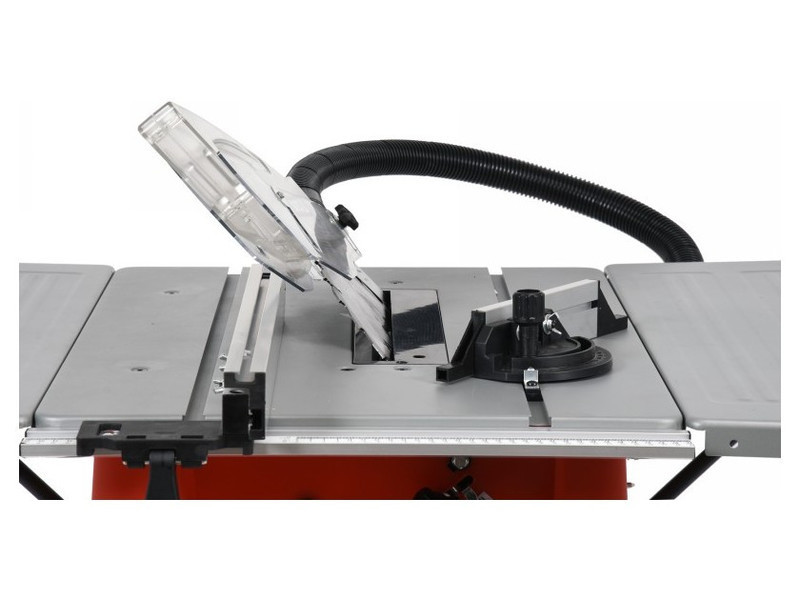

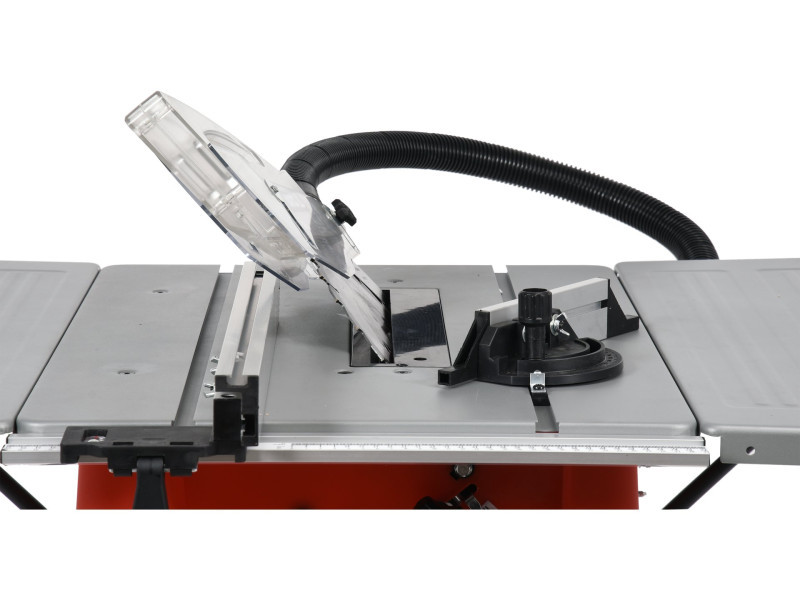

- protective cover with extraction hose
- included 250 mm diameter cutting disc with 24 teeth, with standard 30 mm diameter mounting hole
Parameters:
- Rating voltage [V~]: 220-240
- Rating frequency [Hz]: 50
- rated power [W]: 2000
- electrical protection class: II
- nbsp; 2,000
- rated speed [min-1]: 5000
- outside diameter of cutting disc [mm]: 250
- internal diameter of cutting disc [mm]: 30
- minimum thickness of cutting disc [mm]: 2.1
- maximum cutting disc thickness [mm]: 2.8
- thickness of parting blade [mm]: 2
- thickness of cut (90 deg.) [mm]: 85
- thickness of cut (45 deg. ) [mm]: 65
- diameter of dust extraction socket [mm]: 35
- weight [kg]: 21
- protection rating: IPX0
.
Usage warnings:
Caution! For your safety, please read and understand the instruction manual before use.
You should insure the saw guard is at all times attached and operative before use.
Wear eye protection at all times.
Keep hands well clear of the blade tooth and never reach over the saw table when the machine is in operation.
Use a feeder stick for narrow or small work.
