| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1500 W |
| Rotations | 2990 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Max. cutting length | 1250 mm |
| Cutting disc outer diameter | 250 mm |
| Cutting disc internal diameter | 25.4 mm |
| Max. cutting depth | 50 (90˚), 37 (45˚) mm |
| Work type | dry, wet |
| Operation angle | 0-45 ˚ |
| Switch | yes, residual current |
| Laser | yes |
| Laser class | 2 |
| Laser wave length | 655 nm |
| Laser power | ≤1 mW |
| Power supply for the laser module | 2x1.5V; AAA |
| Working table dimensions | 1000x460 mm |
| Electric insulation class | I |
| Protection grade | IP54 |
| Acoustic pressure | 85.0 ± 3.0 dB(A) |
| Acoustic power | 98.0 ± 3.0 dB(A) |
| Vibrations | 2.5 m/s² |
| Weight | 51 kg |
| Symbol | YT-821597 |

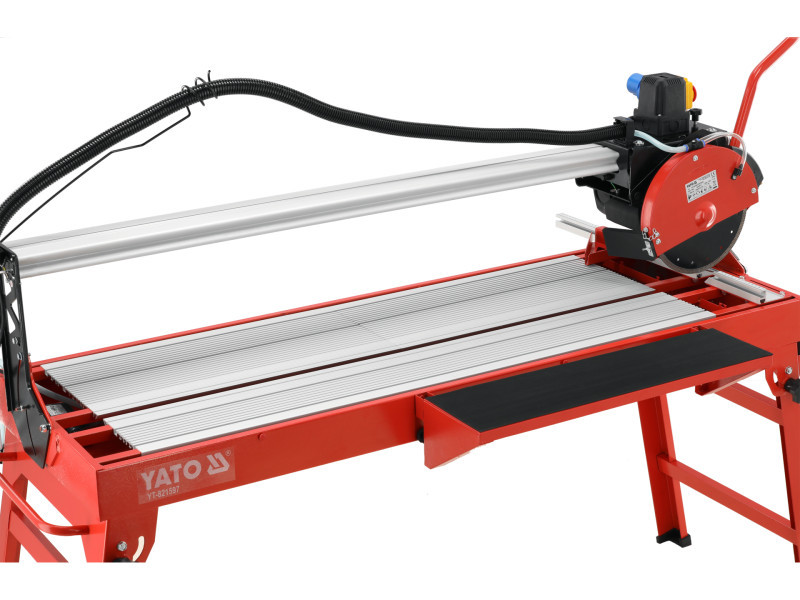

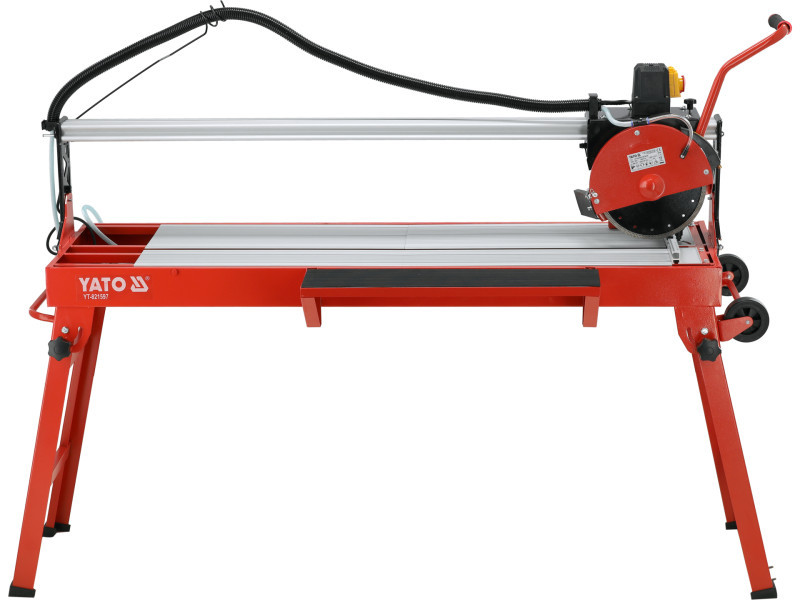

Table saw with guide rail and laser pointer designed for wet cutting with diamond discs of ceramic materials - tiles, glazed tiles, porcelain stoneware, terracotta. Robust table with a large working surface and an additional table top allows cutting large-format tiles with a maximum size of 1200 x 600 mm.
- precise cutting without the need for scribing thanks to the laser-determined line and guide rail

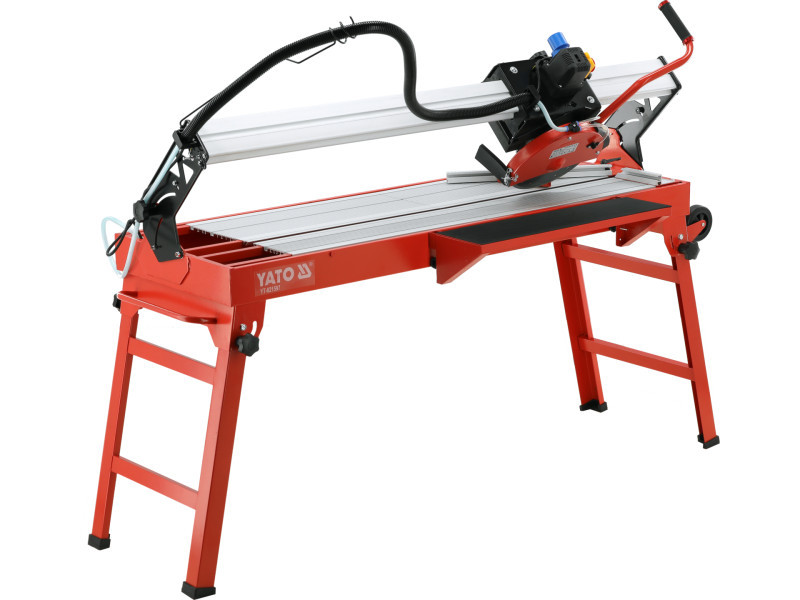

- diamond blade and rotational speed of up to 2990 rpm ensure burr-free cutting in a straight line and at an angle of 45°

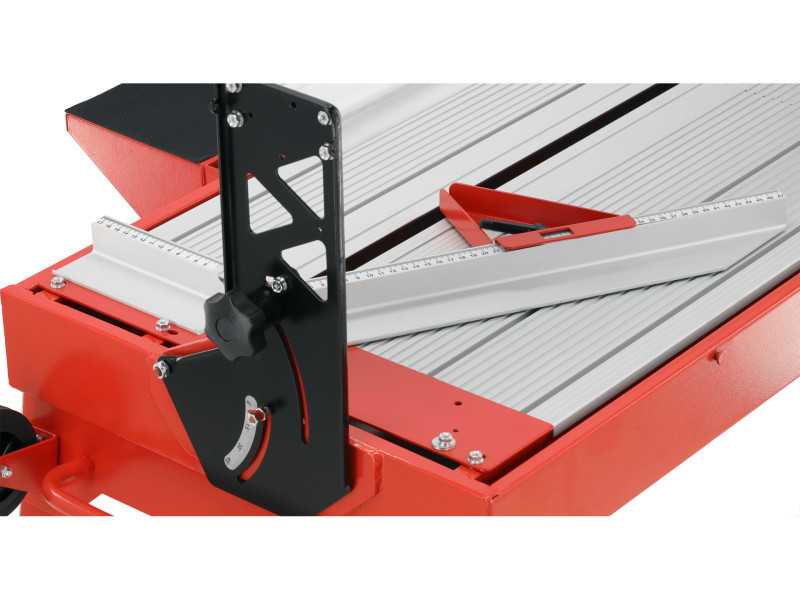

- adjustable length, depth and angle of cut

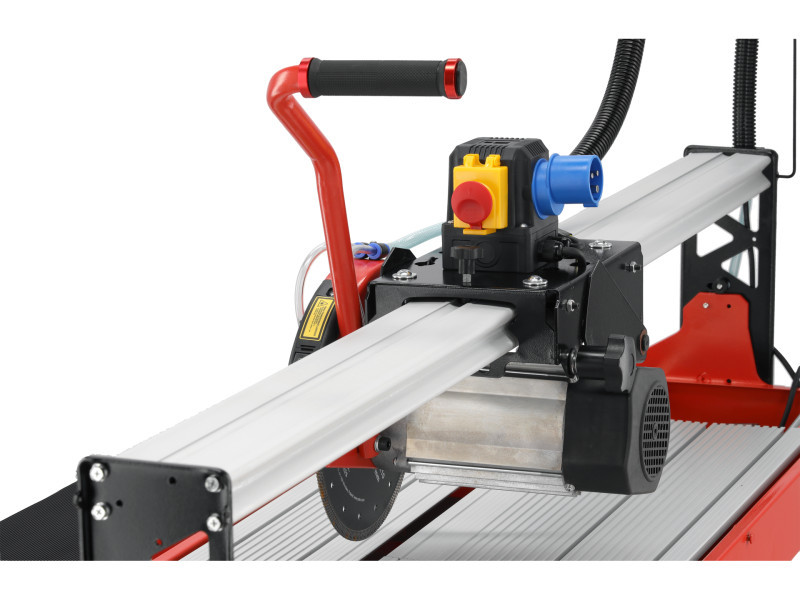

- head also movable in the vertical axis
- max. cutting length: 1250 mm
- max. cutting depth: 50 mm - 90°/37 mm - 45°
- cutting angle: 0-45°
- blade diameter: 250 x 25,4 mm
- laser with a wavelength of 655 nm powered by 2 AAA batteries
- duralumin table top

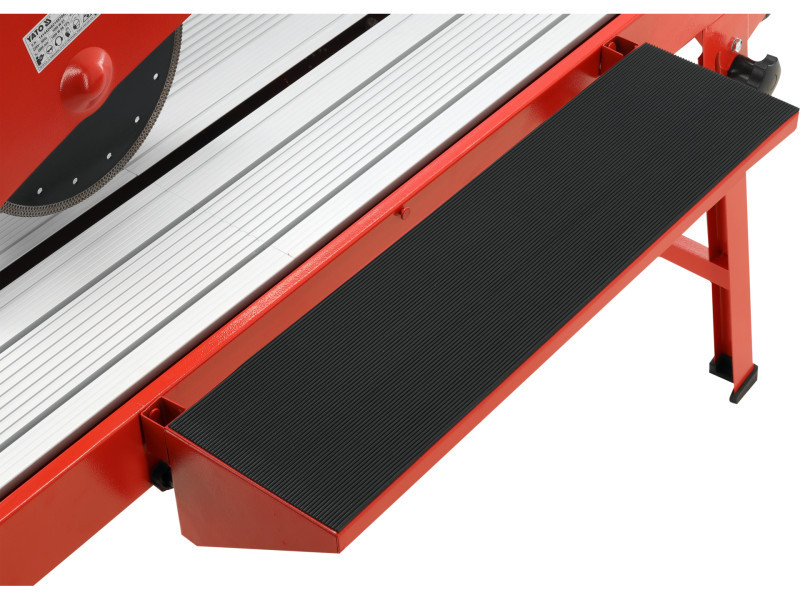

- additional table top allows to enlarge the working surface

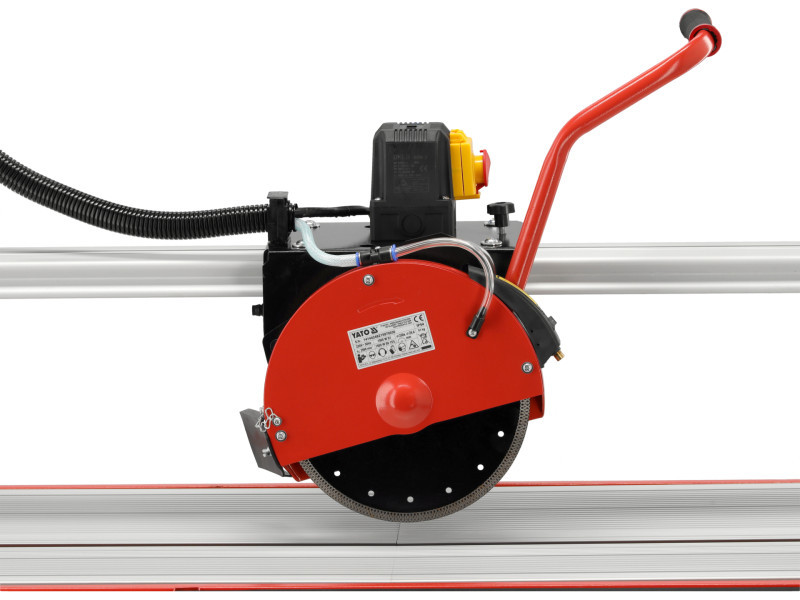

- cutting blade guard increases operator safety
- residual current circuit breaker

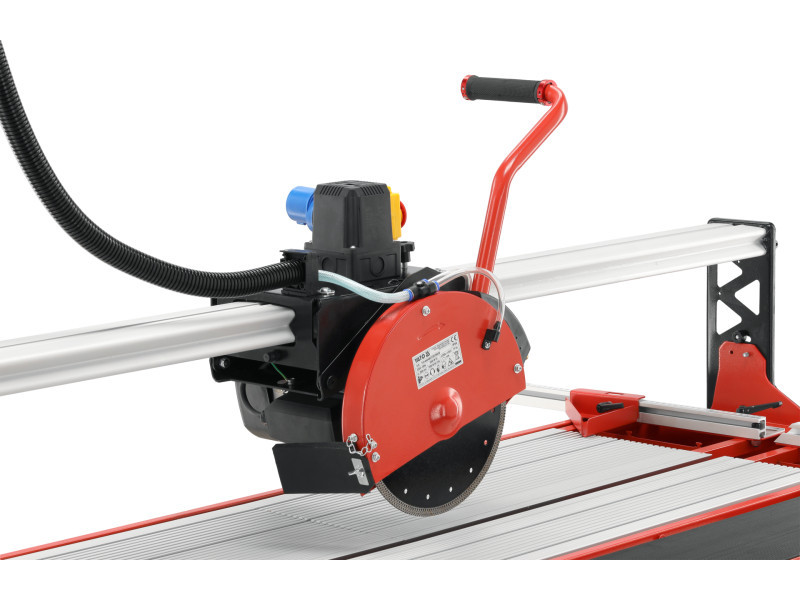

- wet operation with attached water pump and hose

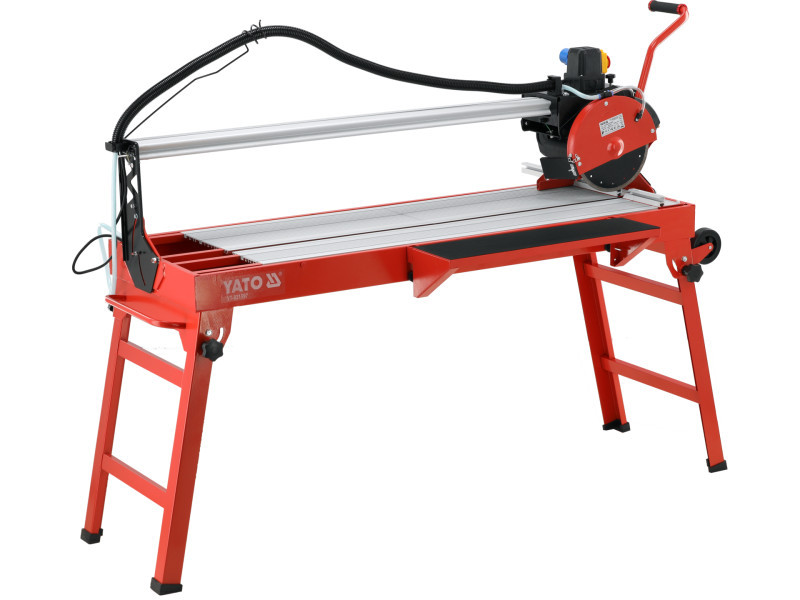

- 4 folding legs with possibility of locking with knobs

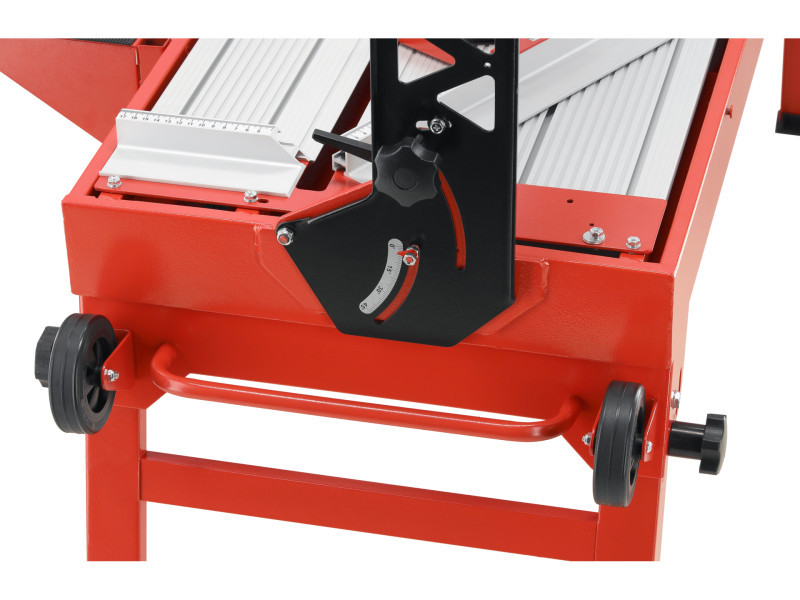

- large wheels and handle make the machine easy to transport
Usage warnings:
Caution: laser radiation. Do not stare into the beam.
Class 2 laser device.
