| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Work type | dry, wet |
| Power | 1400 W |
| Rotations | 12250 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 125 mm |
| Cutting disc internal diameter | 22.2 mm |
| Cutting disc max. thickness | 2.2 mm |
| Spindle thread size | M6 |
| Guide bar length | 1500 (500 x3) mm |
| Guide material | high-quality aluminum profile |
| Operation angle | 0-45 ˚ |
| Switch | yes, residual current |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 91.0 ± 3.0 dB(A) |
| Acoustic power | 102.0 ± 3.0 dB(A) |
| Vibrations | 4.46 ± 1.5 m/s² |
| Weight | 3.6 kg |
| Application | stoneware, natural stone |
| Set includes | cutter, cutting disc, connection to the water installation, guide x3 (500 mm), squeeze x2, suction cup x2, dust extraction adapter, bag |
| Symbol | YT-821591 |

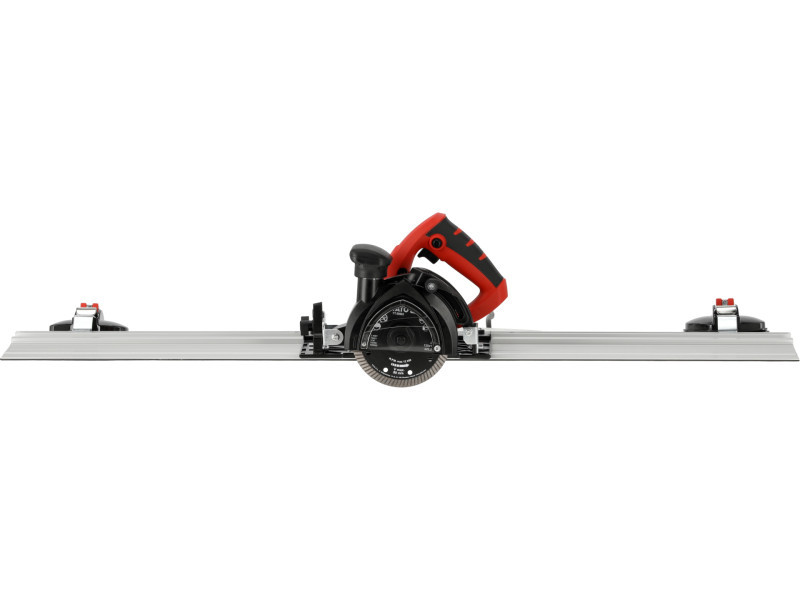

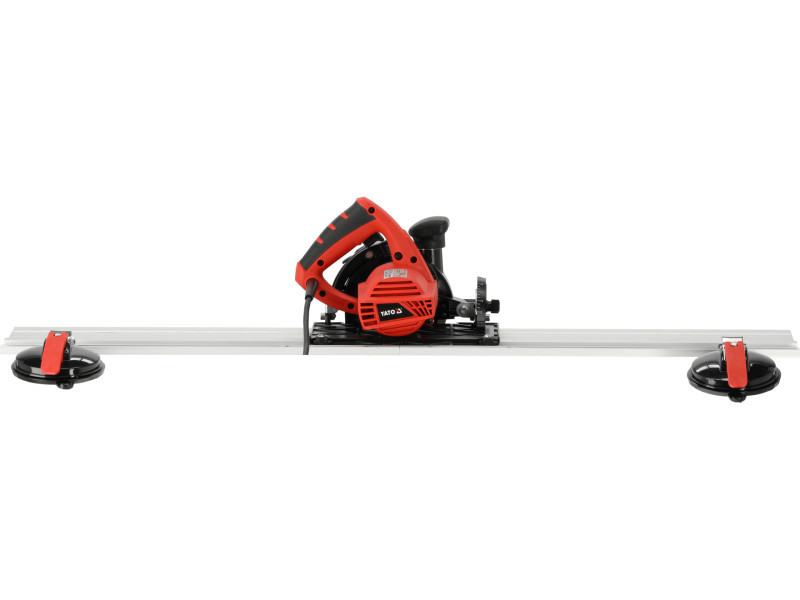

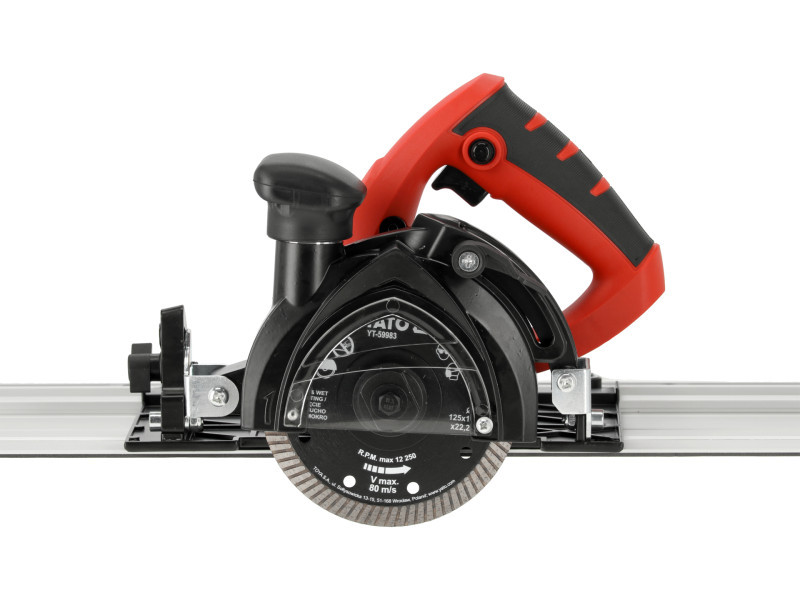

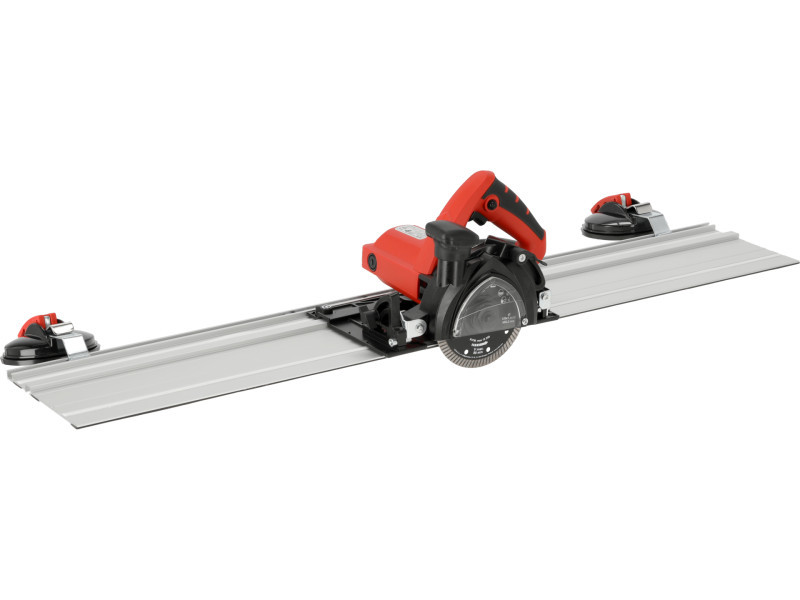

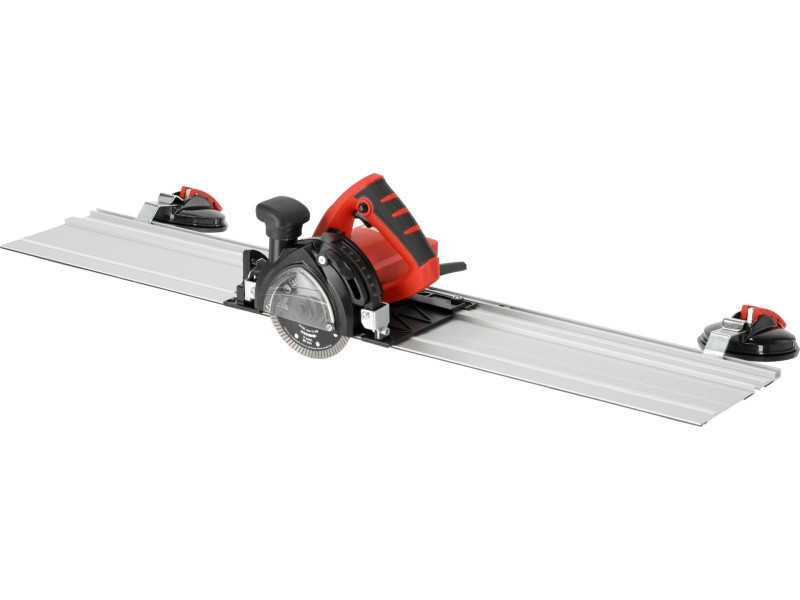

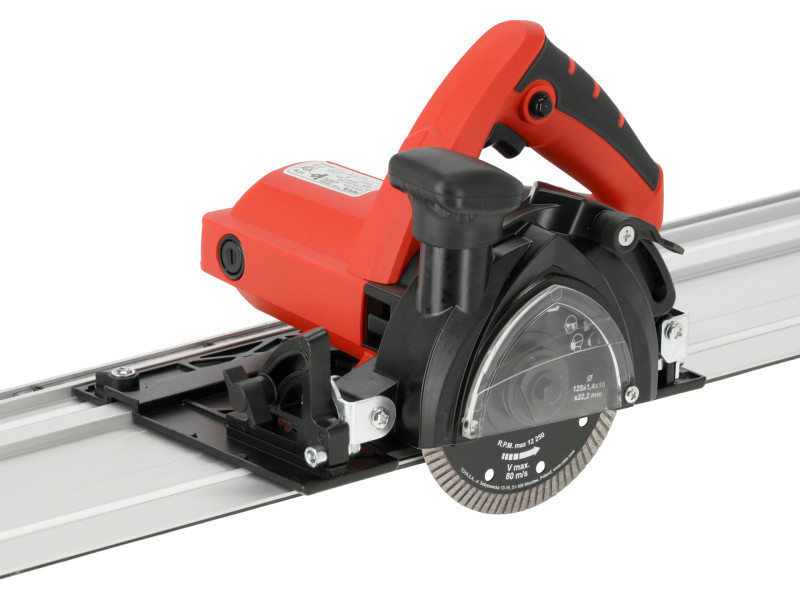

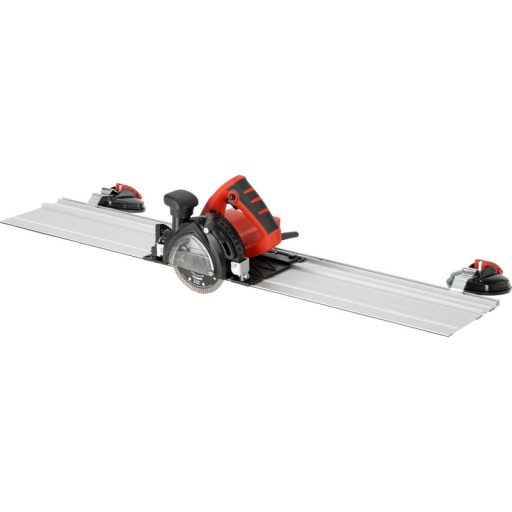

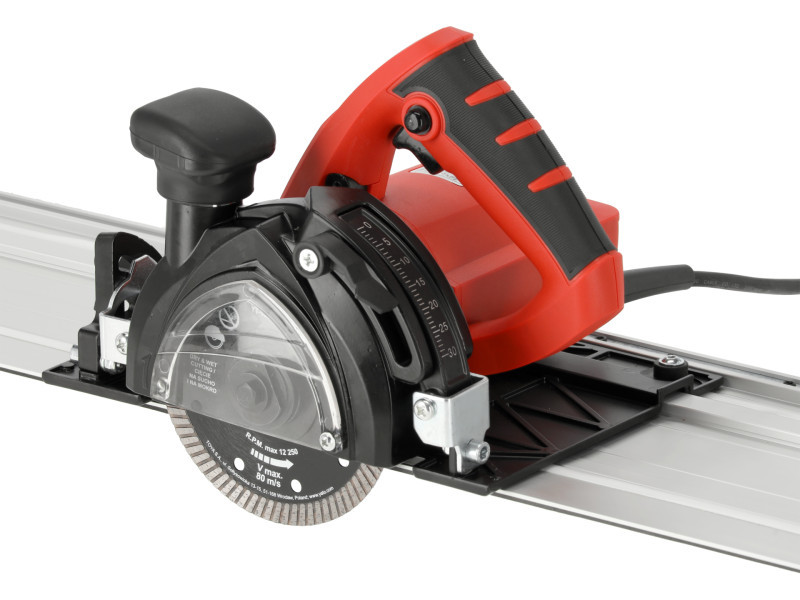

Electric tile chamfering machine with guide bar for cutting glazed tiles, porcelain stoneware, natural stone and also for chamfering tiles. Allows dry and wet work, with adjustable cutting depth. It has a locking device for safe disc replacement. High-quality extra-thin diamond blade included.
- power: 1400 W
- rotation speed: 12250 rpm
- Outside diameter of disc: 125 mm
- Internal disc diameter: 22.2 mm
- Spindle thread: M6
- Guide bar length: 3 × 500 mm

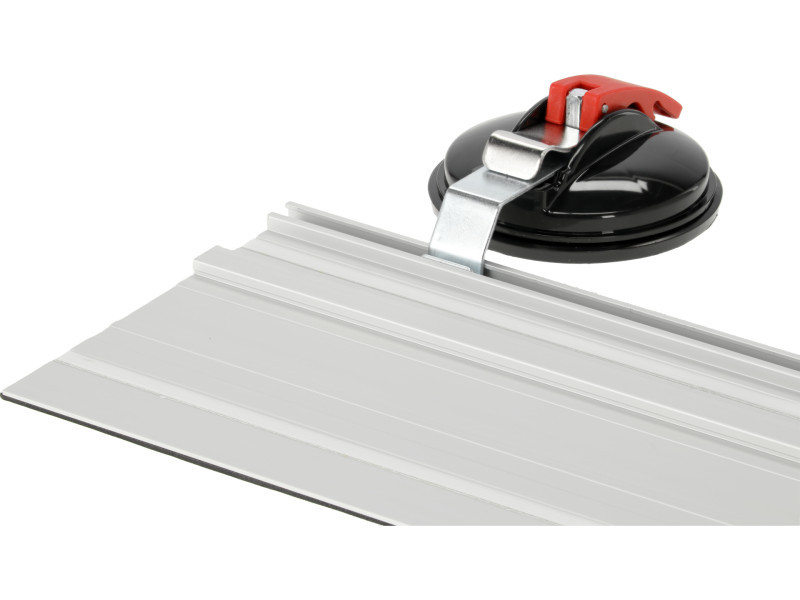

- high-quality aluminium profile
- working angle: 0-45˚
- residual current circuit breaker
- 3 m cable
- protection class IP20
- noise emissions: 91 dB
- weight: 3.6kg

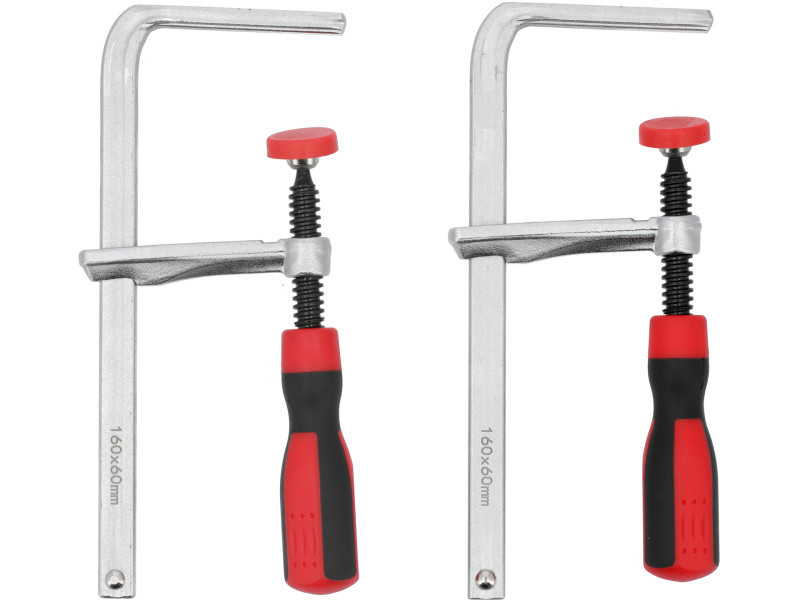

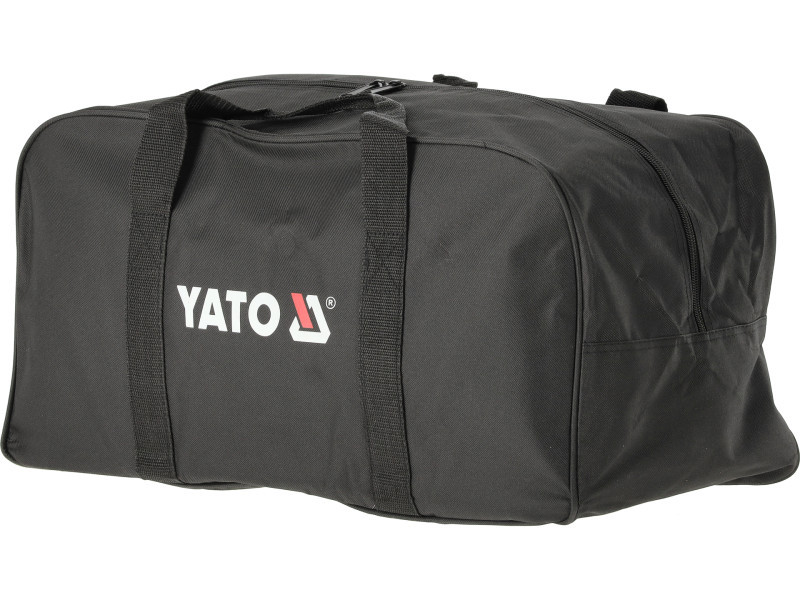

- included: 3 Guide bars 500 mm, cutting disc, water connection, 2 clamps, 2 suction pads, dust extraction adapter, carrying bag
