| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Work type | dry, wet |
| Power | 1400 W |
| Rotations | 12000 min⁻¹ |
| Voltage | 220-230 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 125 mm |
| Cutting disc internal diameter | 22.2 mm |
| Cutting disc max. thickness | 1.6 mm |
| Spindle thread size | M8 |
| Switch | yes, residual current |
| Temperature proof winding | 200 ˚C |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 102.6 ± 3.0 dB(A) |
| Acoustic power | 113.6 ± 3.0 dB(A) |
| Vibrations | 5.753 ± 1.5 m/s² |
| Weight | 3.29 kg |
| Application | stoneware, natural stone, furrowing in concrete |
| Set includes | cutter, cutting disc, connection to the water installation |
| Symbol | YT-82159 |

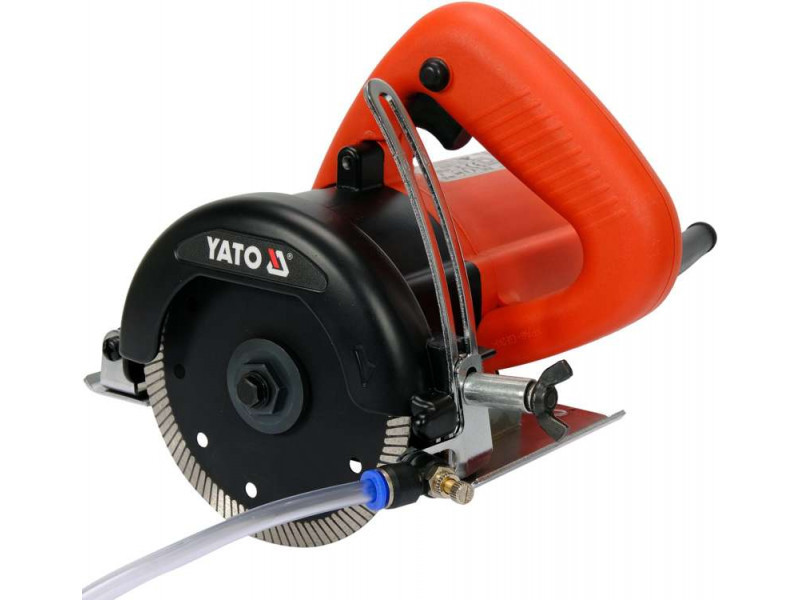

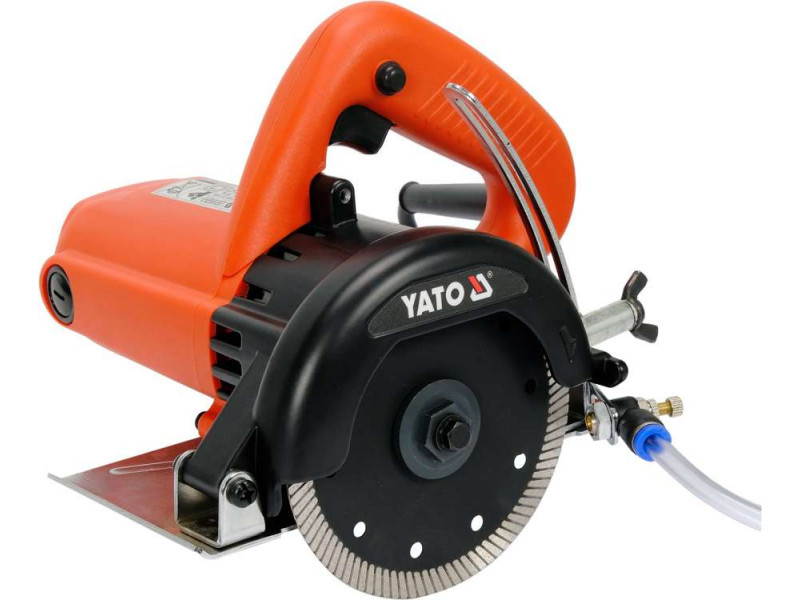

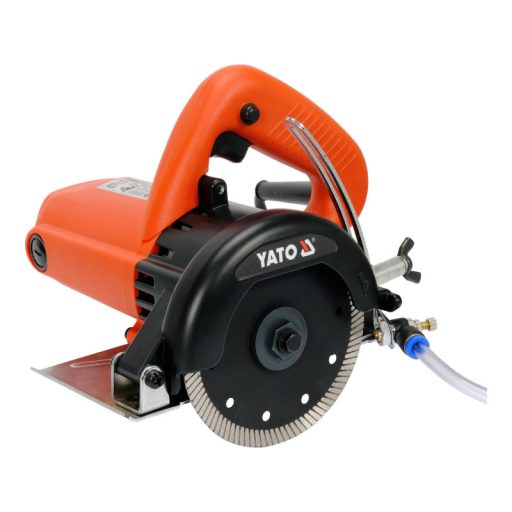

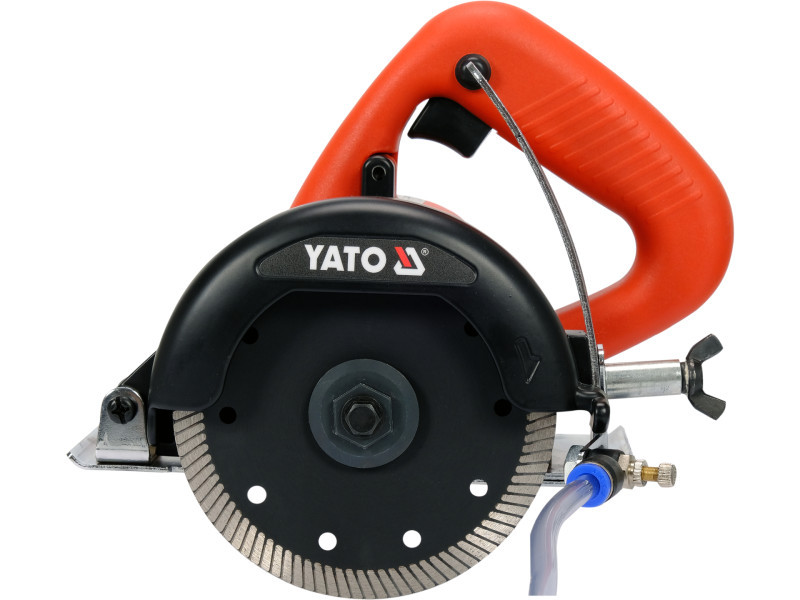

The tile cutter is used for cutting with rotating diamond discs and enables cutting ceramic materials (e.g. concrete, brick, plaster) in a straight line. Thanks to a special switch, the cutter is designed to work with water cooling.
The cutter is equipped with a cutting wheel, and a connection to the water system.
The cutting machine is equipped with a high-powered motor that can withstand heat and dust. Thanks to this you can also use the machine for cutting natural stone or grooving in concrete.
The size of the blade is 125mm x 22.23, so the accessory is widely available and gives you the opportunity to optimally adapt to the material being cut.
The cutter has adjustable water spray, and its diameter fits an 18V YT-86211 hydronet, as well as garden sprayers. With this feature, there is no dust in the air, cutting is faster and less wear on the blade, plus the edge of the material is not frayed.
- The base plate is even and rigid which ensures easy longitudinal cutting, the machine has the ability to work with a parallel cutting guide
- high rotational speed of 12,000 rpm influences the preservation of unchipped cutting edge
- the rotor and stator winding is copper and is characterized by resistance to high temp. up to 200°C
- good visibility of the cutting line and a firm grip guarantee accurate machining
Parameters:
- network voltage [V~]: 220 - 230
- network frequency [Hz]: 50
- rated power [W]: 1400
- insulation class: II
- rated rpm [min-1]: 12000
- spindle thread size: M8
- weight [kg]: 3.29
mass - outside diameter of cutting disc [mm]: 125
- internal diameter of cutting disc [mm]: 22.2
. - max thickness of cutting disc [mm]: 1.6

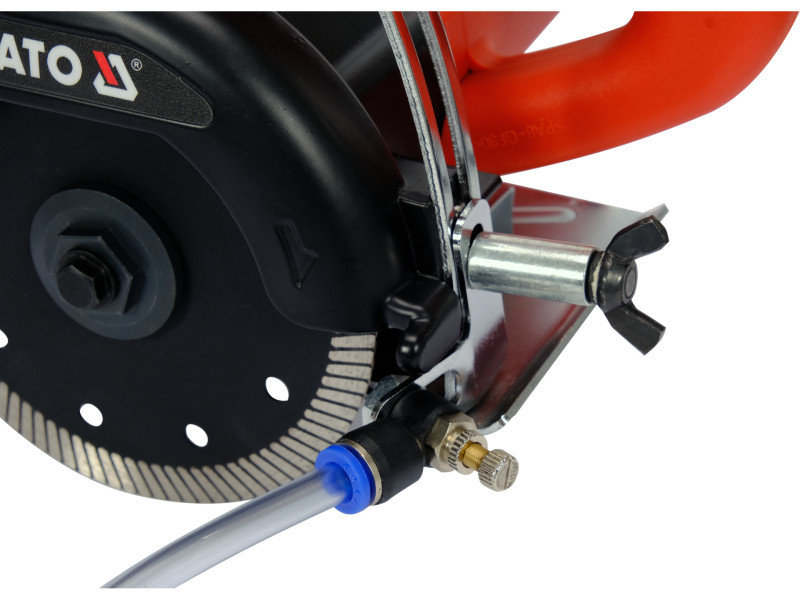

Setting the depth of cut
Cutting depth adjustment is accomplished by loosening the guide screw setting the desired cutting depth, and then tightening the guide screw.
Connect to water supply and wet cutting
Wet cutting should be used whenever possible. This will reduce dust in the workplace and extend the life of the blade.
As a source of water, you can use a tap of the municipal water supply system, a hydronet or a water tank placed above the cutting site, from which water will flow by gravity.

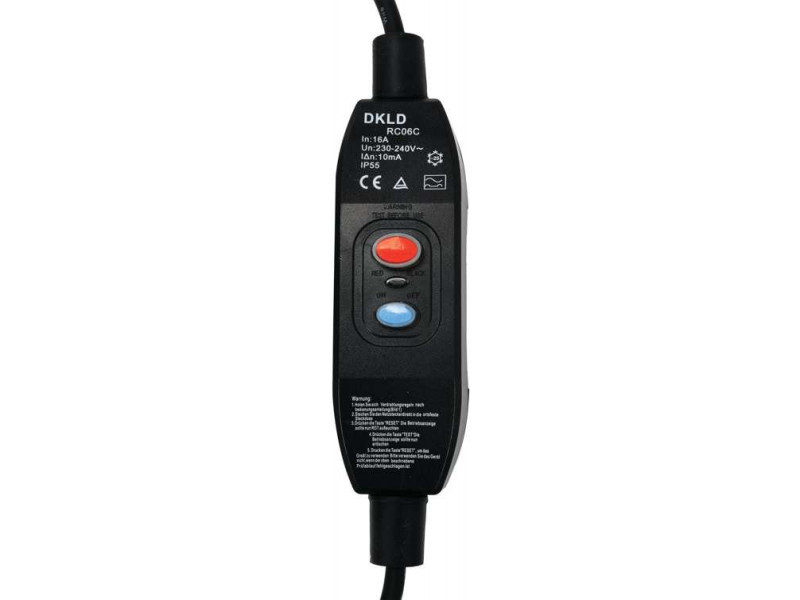

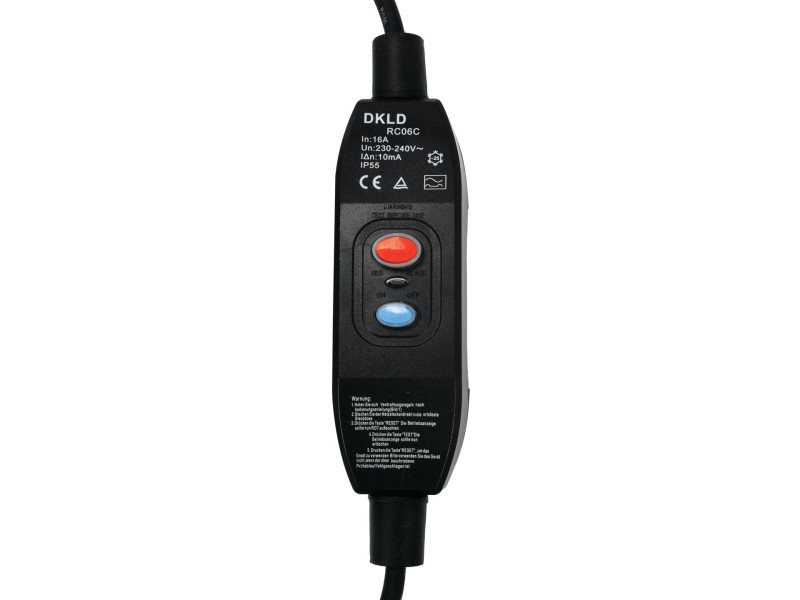

The tool's power cable is equipped with a residual current fuse.
The tool is made of high quality materials for durability when working in harsh conditions - dust, high temperature and load caused by processing composite stoneware and granite.
Additional information:
- power: 1400 W
- rotation: 12,000 rpm
- dry/wet operation
- disc: 125mm x 22.2mm (Diamond Turbo, YT-59982 for dry/wet cutting)
-
- disc: 125mm x 22.2mm (Diamond Turbo, YT-59982 for dry/wet cutting)
-
- disc: 125mm x 22.2mm. /li>
- differential current switch
- adjustable water spray
- .copper rotor and stator
- resistance of the motor to 200 ° C
- rubber cable does not break when it is cold
- level and rigid foot of the cutter
- adjustable depth of cut (max 38mm)
- included wrenches for removing/installing the blade
dust protected switch
