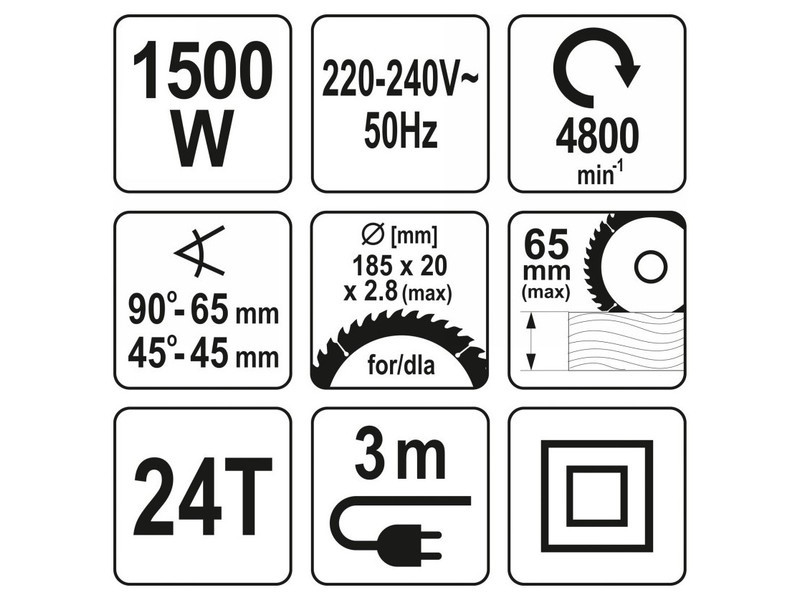

| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1500 W |
| Rotations | 4800 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Max. cutting depth | 65 (90˚), 45 (45˚) mm |
| Cutting disc outer diameter | 185 mm |
| Cutting disc internal diameter | 20 mm |
| Cutting disc max. thickness | 2.8 mm |
| Number of teeth | 24 |
| Cutting angle regulation | 0-45 ˚ |
| Laser | no |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 95.1 ± 3.0 dB(A) |
| Acoustic power | 106.1 ± 3.0 dB(A) |
| Vibrations | 2.86 ± 1.5 m/s² |
| Weight | 4.23 kg |
| Set includes | saw, guide with scale |
| Compatible with | YT-60625, YT-60627, YT-60628, YT-60631 |
| Symbol | YT-82152 |

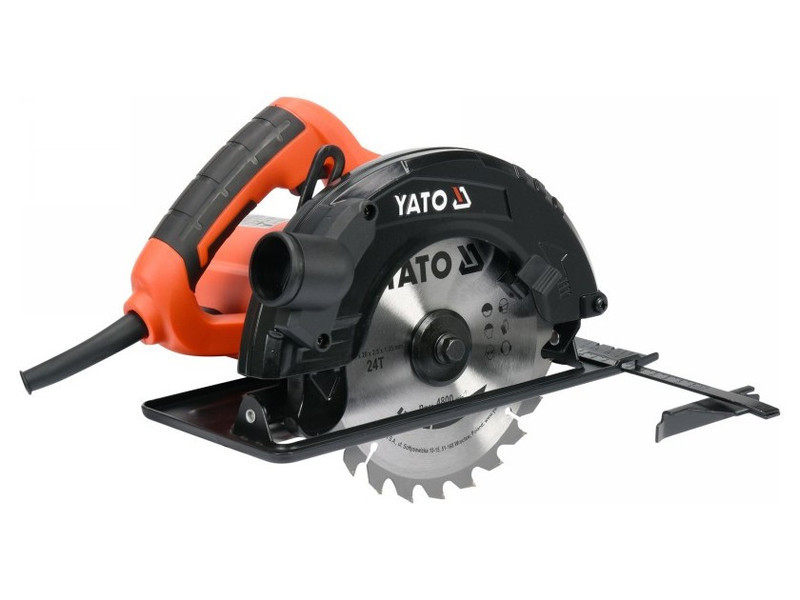

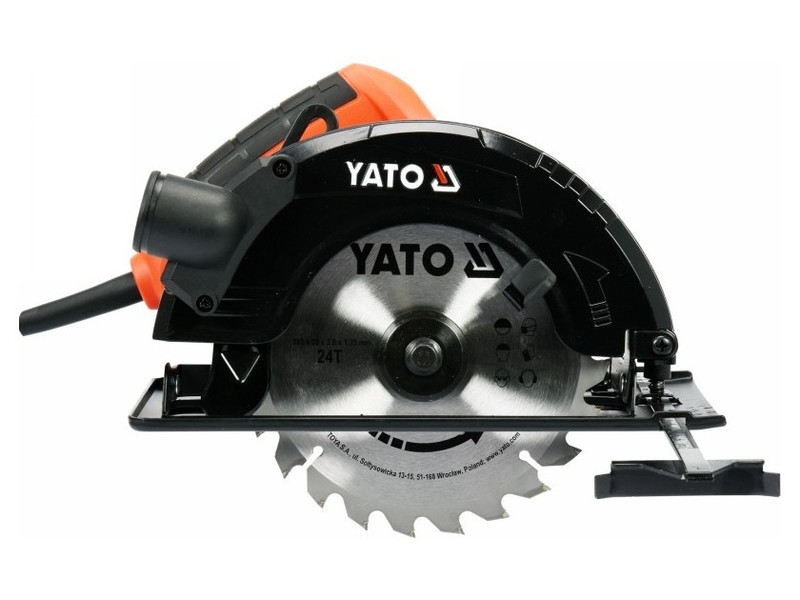

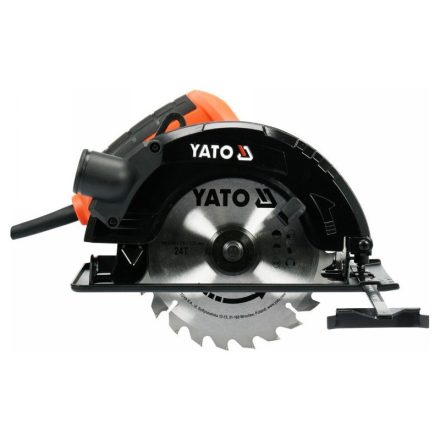

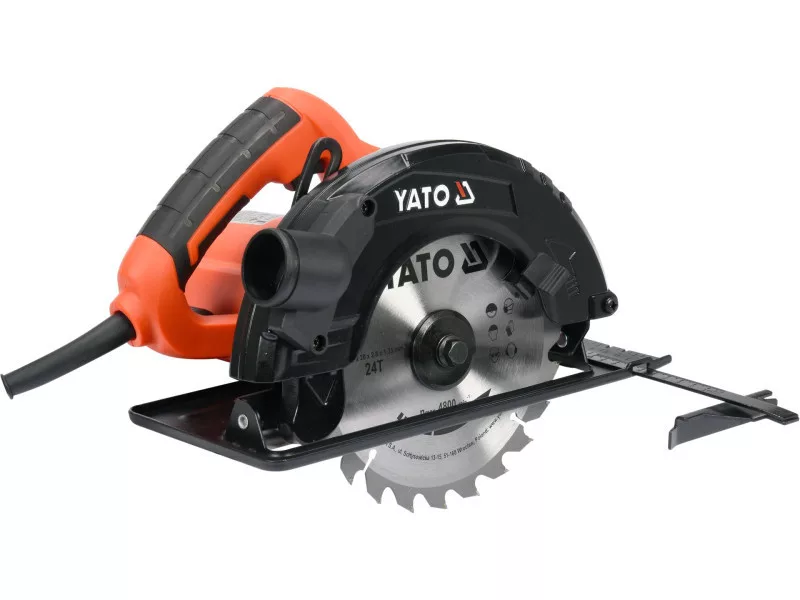

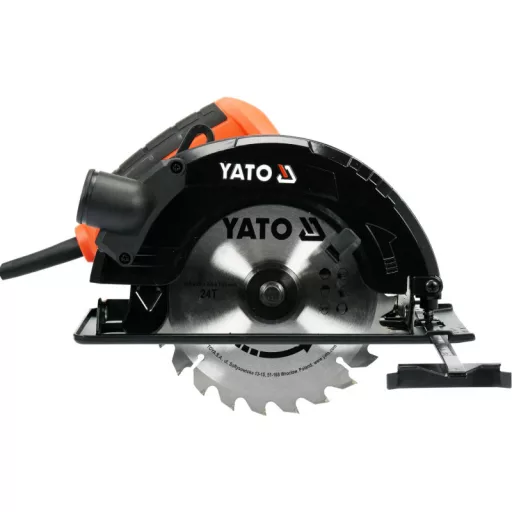

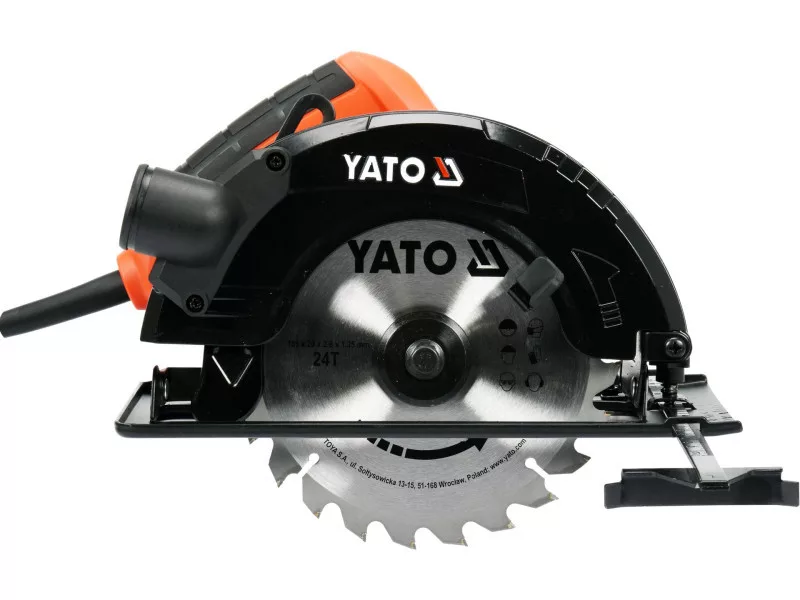

Multifunctional saw designed for straight cuts, angled cuts and making rip cuts in hard and soft woods and wood-like materials. Recommended for carpentry, roofing and formwork work.
- Performance commutator motor with a power output of 1500 W
- Rotational speed of 4800 rpm ensures that the machine can be used for cutting and sawing. /min ensures precision and speed of cutting
- cutting angle 0-45° and cutting depth adjustment up to 65 mm
. - stable and level steel foot
- possibility to connect an industrial vacuum cleaner (inner diameter of connection: 34 mm)
- comfortable rubber grip
- included 185 mm diameter cutting disc with 24 teeth.
, with a standard mounting hole of 20 mm - rubber cable with a length of 3 m
.
Possibility to buy spare discs:
- YT-60631 (140T) for laminates (countertops, stairs, panels)
- YT-60628 (14T) for wood with nails
. - YT-60625 (48T) for steel
- YT-60627 (60T) for PVC (cable trays, skirting, etc.)
- YT-60907 (60T) for aluminum (sill strips, profiles, etc.)
Adjustable cutting depth
If necessary, the tool allows you to adjust the depth of cut, which is facilitated by the graduated guide (located on the back of the tool). To do this, use the screw to loosen the lock located on the graduated guide, set the desired depth of cut and lock with the screw.
Cutting angle adjustment
The tool allows you to cut planes at an angle from 0 to 45°. To do this, set the desired angle on the scale located on the front of the tool.
Connecting the dust extraction system
The saw has been adapted for connection to an external dust extraction system, such as an industrial vacuum cleaner. The connection should be made with a flexible hose and a possible adapter to connect the hose to the opening of the dust extraction system. The listed components are not included with the machine and must be purchased separately.
Graduated guide
Facilitates the cutting of surfaces along a straight line. Attach the guide to the base, set the desired cutting width and lock with the screw. This will allow you to make a cut parallel to the edge of the material of the set width.
Parameters
- depth of cut: 65 mm
- power [W]: 1500
- speed: 4800
Saw blade:
- external diameter [mm]: 185
- internal diameter [mm]: 20
- max. thickness [mm]: 2.8
.
