| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1250 W |
| Rotations | 8500 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Max. planing speed | 6.3 m/min |
| Max. planing depth | 2 mm |
| Max. planing height | 120 mm |
| Max. planing width | 204 mm |
| Electric insulation class | I |
| Protection grade | IPX0 |
| Acoustic pressure | 98.8 ± 3.0 (planer) / 90.0 ± 3.0 (thicknesser) dB(A) |
| Acoustic power | 107.2 ± 3.0 (planer) / 97.5 ± 3.0 (thicknesser) dB(A) |
| Weight | 20.3 kg |
| Set includes | planer-thicknesser, dust extraction connection, blade assembly key |
| Symbol | YT-82147 |

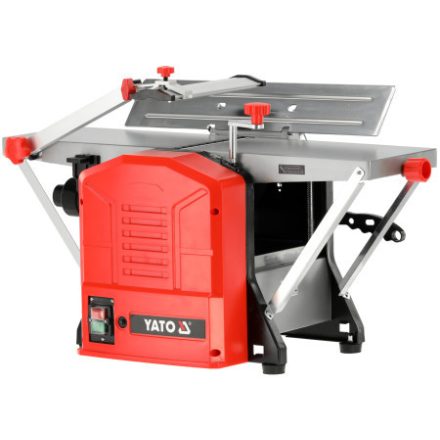

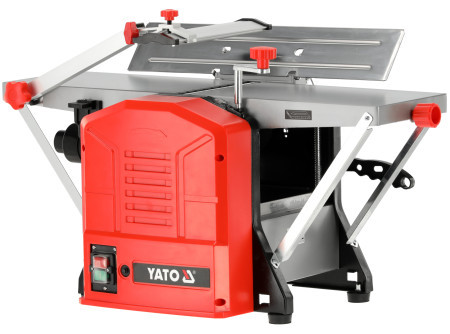

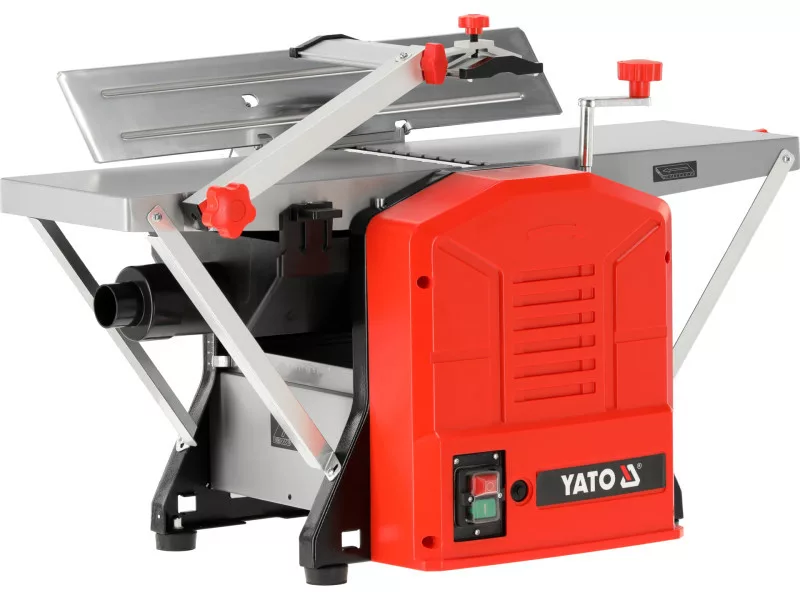

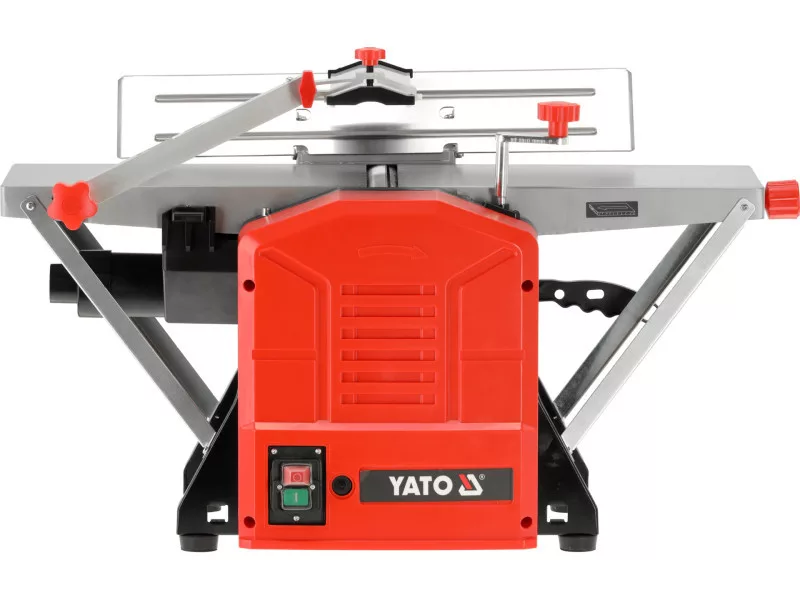

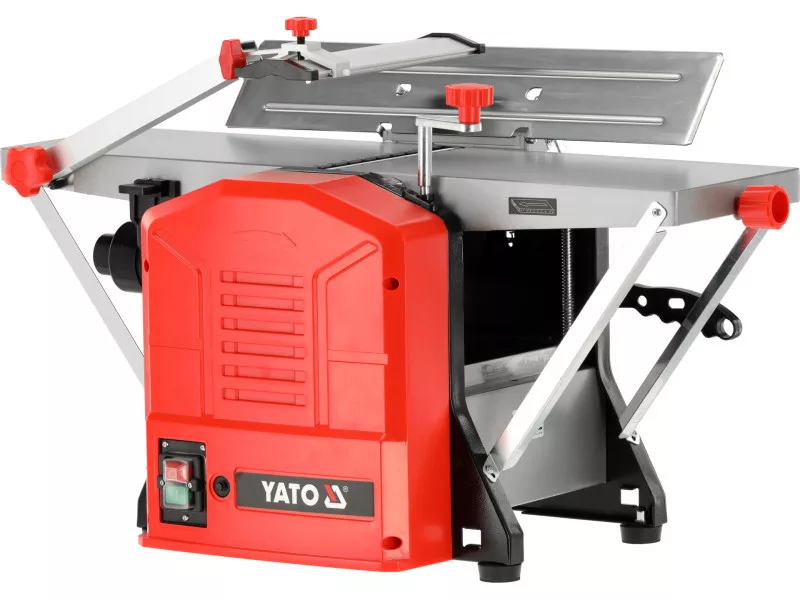

The planer-thicknesser is an indispensable tool both in the carpentry shop and on the construction site. Thanks to the processing thickness adjustment, you can precisely adjust the planing depth to your needs. The stop allows you to repeatedly plan the material to the same thickness, ensuring accuracy and high quality work.
To increase the stability of the machine, it is recommended to fix the thicknesser to the ground. Side handles make it easy to carry, which is especially useful when working in different locations.

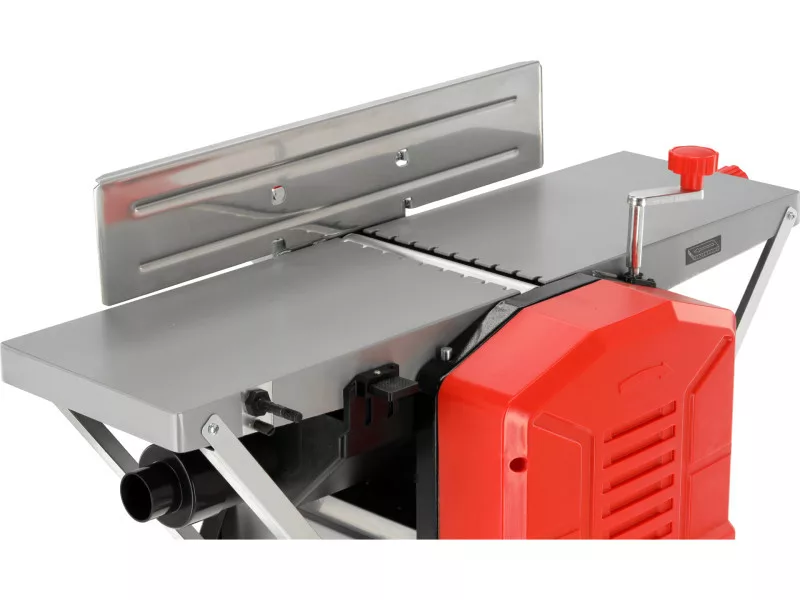

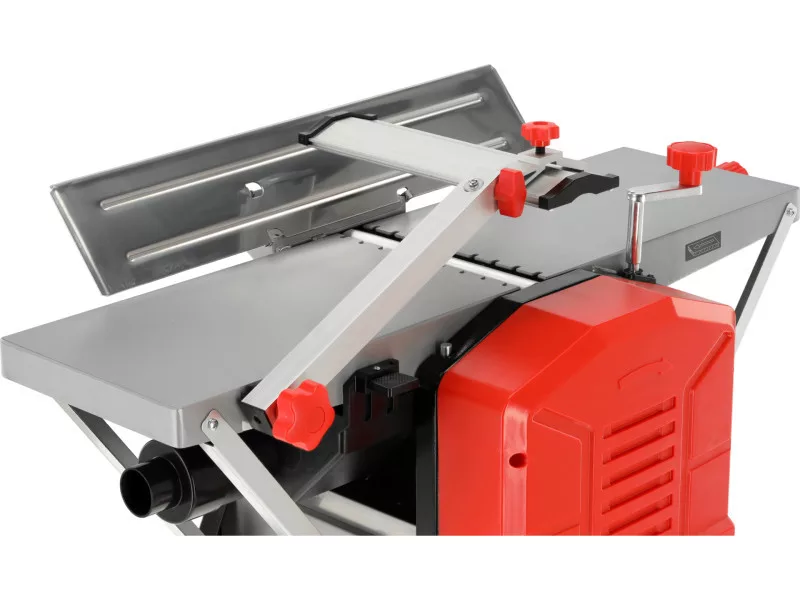

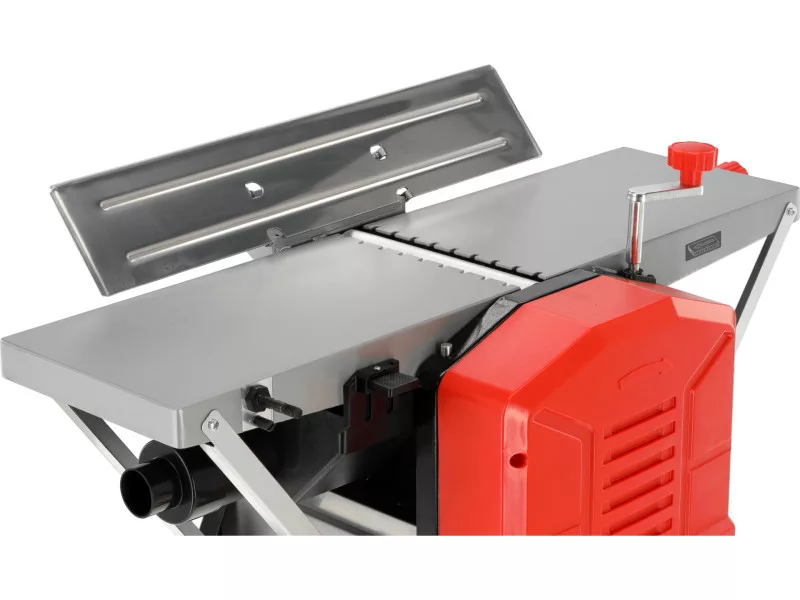

The upper top is used for one-sided processing, allowing a right angle between the surfaces of the workpiece. The lower top, on the other hand, is designed for serial planing to a uniform thickness of boards, scantlings.
Parameters:
- power: 1250 W
- revolutions: 8500 rpm
- max. planing speed: 6.3 m/min
- max. planing width: 204 mm
- max. planing height: 120 mm
- max. planing depth: 2 mm
Features:
- convenient, precise height adjustment by crank handle
- stable gearbox ensures even feed of the processed material
- protection against accidental start-up and change of settings
- lockable IP54 class emergency stop with undervoltage release
- Powerful, quiet and maintenance-free motor
- small, light and compact design for easy transport
- weight: 20.3 kg

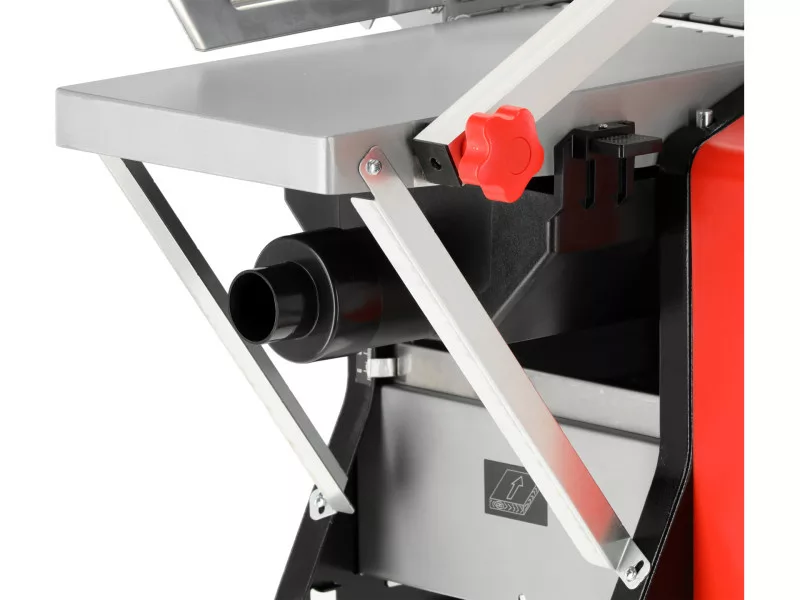

- included: dust extraction connection and blade mounting wrench
