| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling with impact |
| Toolholder type | SDS-Max |

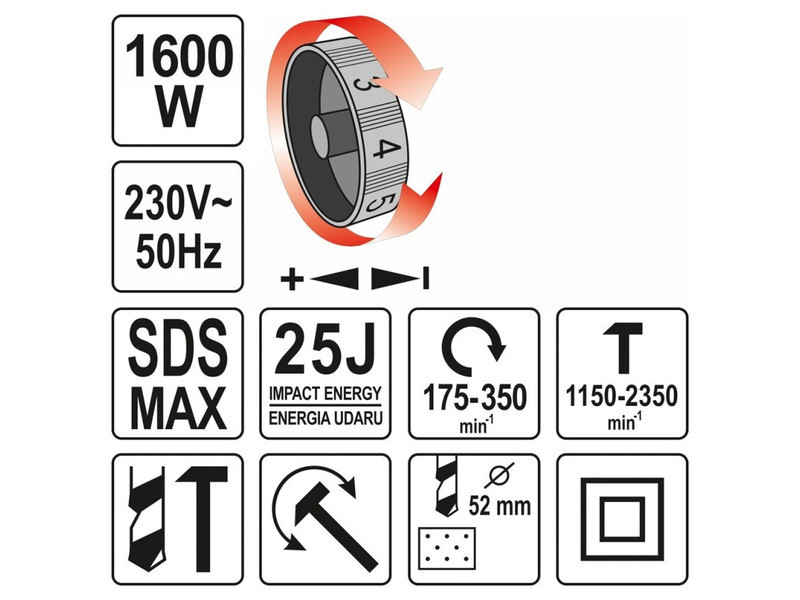

| Power | 1600 W |
| Rotations | 175-350 min⁻¹ |
| Hammering energy | 25 J |
| Impact frequency | 1150-2350 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Max. hole diameter in concrete | 52 mm |
| Stroke | yes, electropneumatic |
| Rotation switch | yes |
| Electronic rotation adjustment | yes |
| Tool positioning in chuck | yes |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 96.1 ± 3.0 dB(A) |
| Acoustic power | 107.1 ± 3.0 dB(A) |
| Vibrations | 22.31 ± 1.5 / 20.91 ± 1.5 m/s² |
| Weight | 12 kg |
| Set includes | hammer drill, additional handle x2 (d-type, threaded), grease container, drill, punch |
| Application | concrete, natural and artificial stone, marble |
| Symbol | YT-82135 |

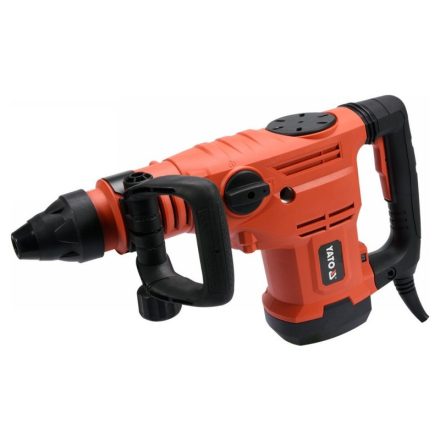

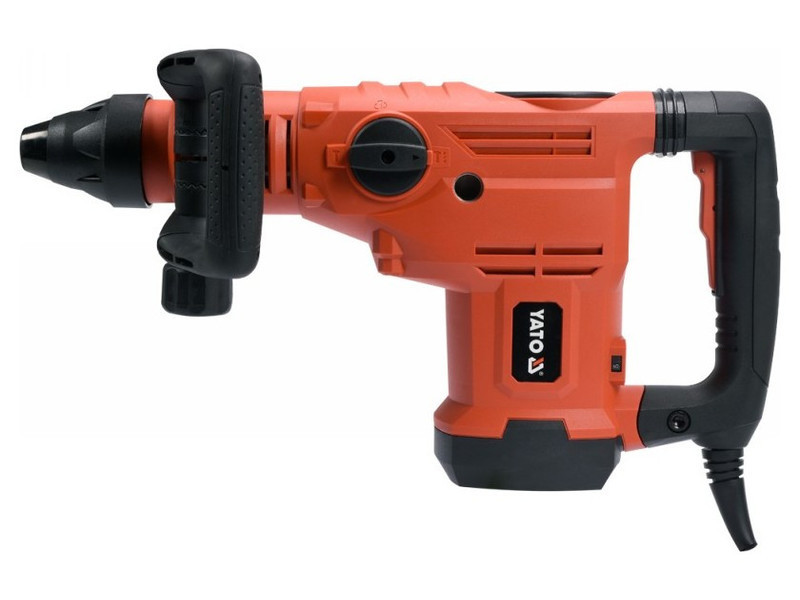

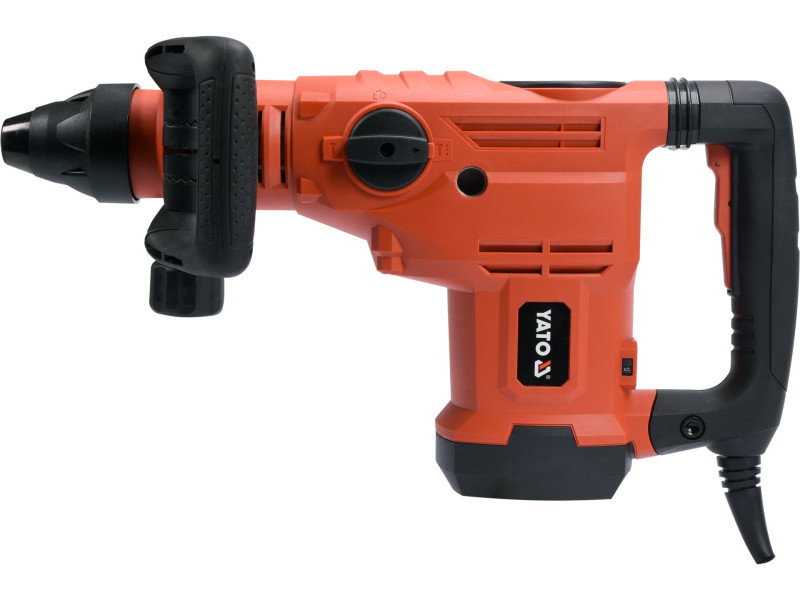

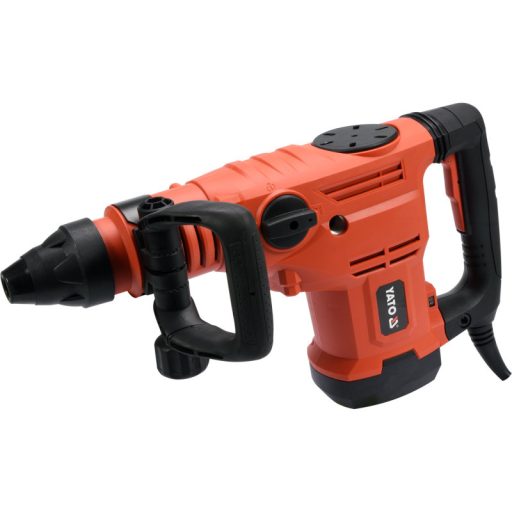

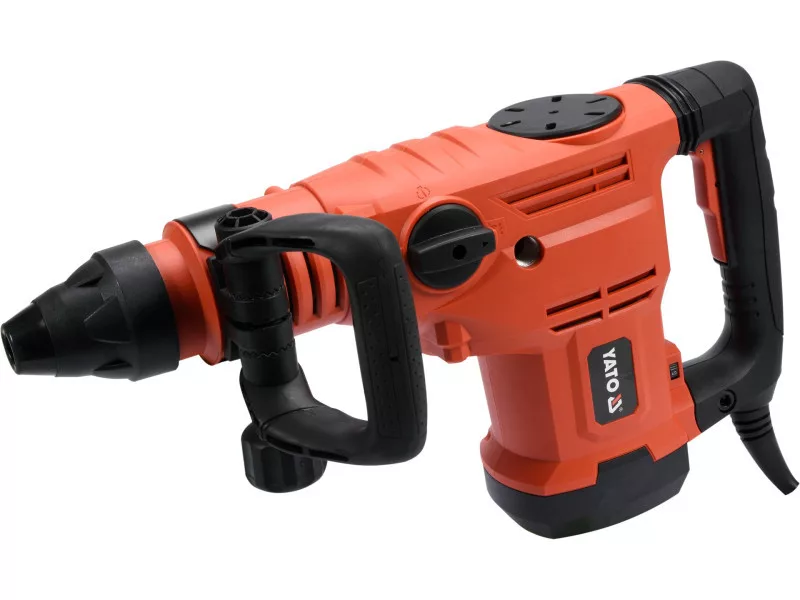

The device is equipped with a powerful 1600W motor and an impact mechanism with a force as high as 25J.
- Metal housing covered with high-quality plastic
- transversely positioned motor and additional side handle guarantee optimal center of gravity
- fast drilling in concrete and an additional side grip for resting on the hip,
- . reduces operator fatigue and increases productivity
- steel clutch guarantees safety when drilling in reinforced concrete
-
- max drilling diameterwith SDS-max crowns 160mm
- max drilling diameter with spiral drill 52mm
Drilling in walls
Drill in foundation walls and ceilings for sewer pipes and cables for building power, as well as fast penetration of installation passages and demolition of walls.
How to use
With crowns, chisels and sds-max drill bits, such as Sthor brand

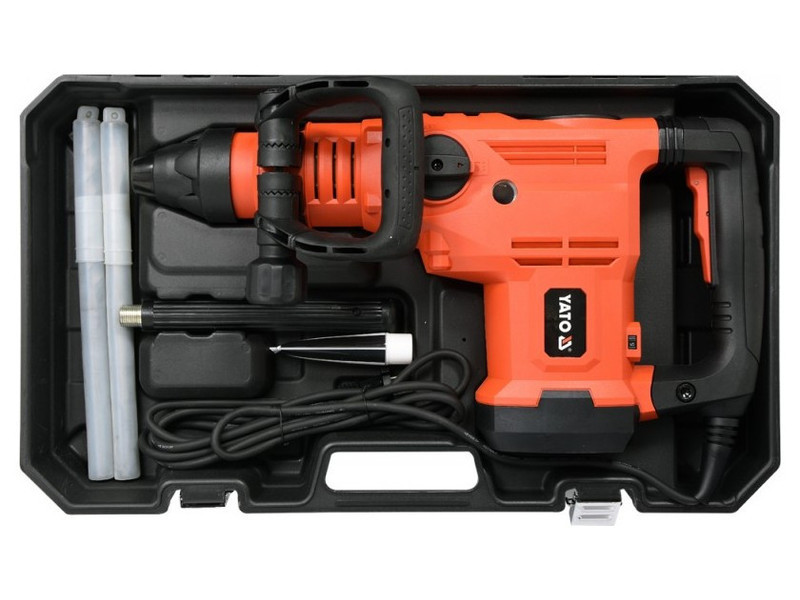

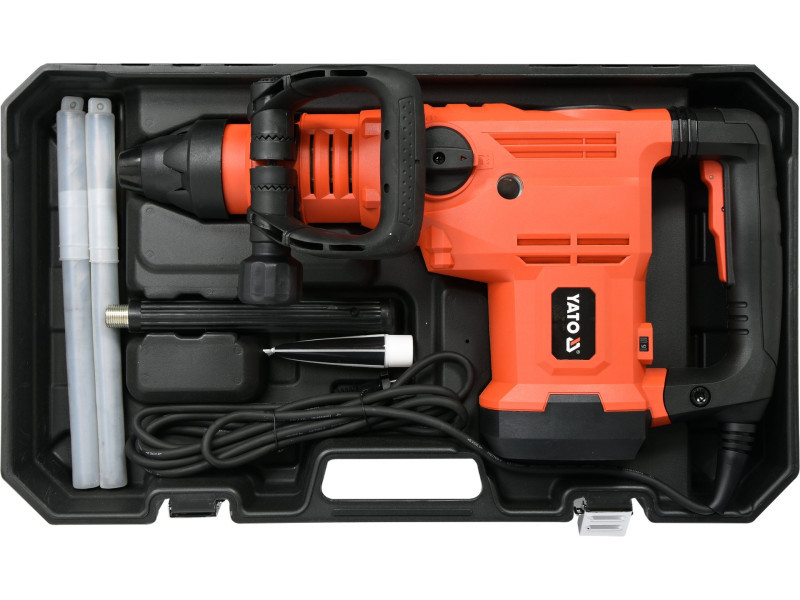

In the set:
- hammer drill
- sds-max drill
- sds-max spade chisel
- .d-type auxiliary chuck
- threaded auxiliary chuck
- lubricant
- spare brushes
