| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling with impact |
| Toolholder type | SDS-Max |
| Power | 1600 W |
| Rotations | 0-650 min⁻¹ |
| Hammering energy | 15 J |
| Impact frequency | 0-3900 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50-60 Hz |
| Max. hole diameter in concrete | 40 mm |
| Stroke | yes |
| Rotation switch | no |
| Work mode switch | yes |
| Electronic rotation adjustment | no |
| Tool positioning in chuck | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 97.0 ± 3.0 dB(A) |
| Acoustic power | 105.0 ± 3.0 dB(A) |
| Vibrations | 20.6 ± 1.5 / 23.8 ± 1.5 m/s² |
| Weight | 6.6 kg |
| Set includes | rotary hammer, additional handle |
| Application | concrete, natural and artificial stone, marble |
| Symbol | YT-82132 |

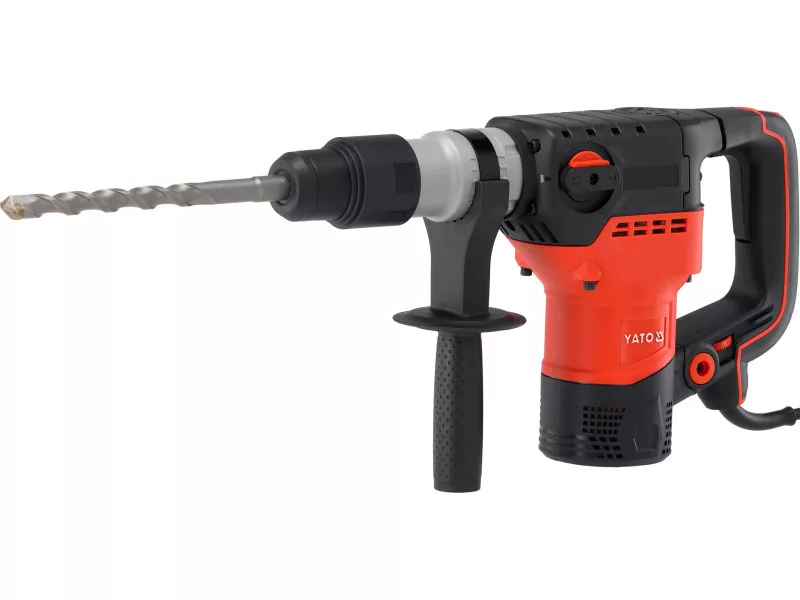

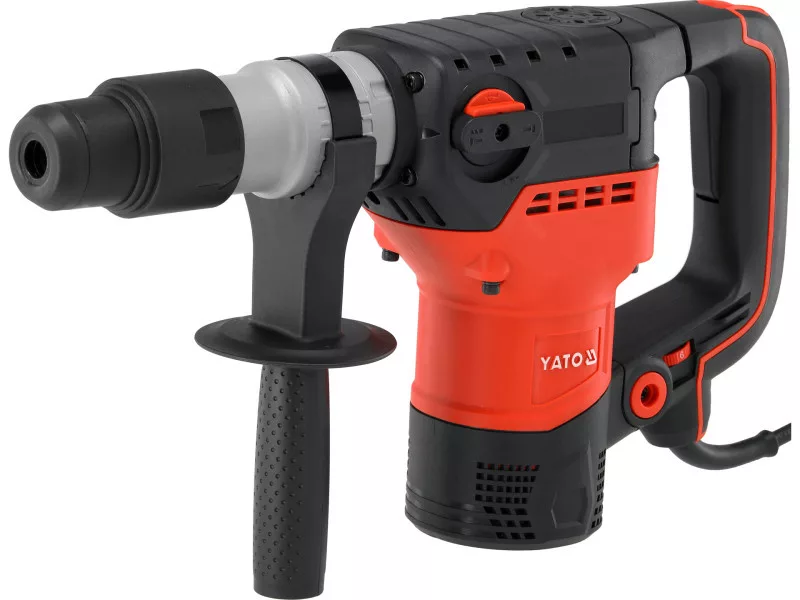

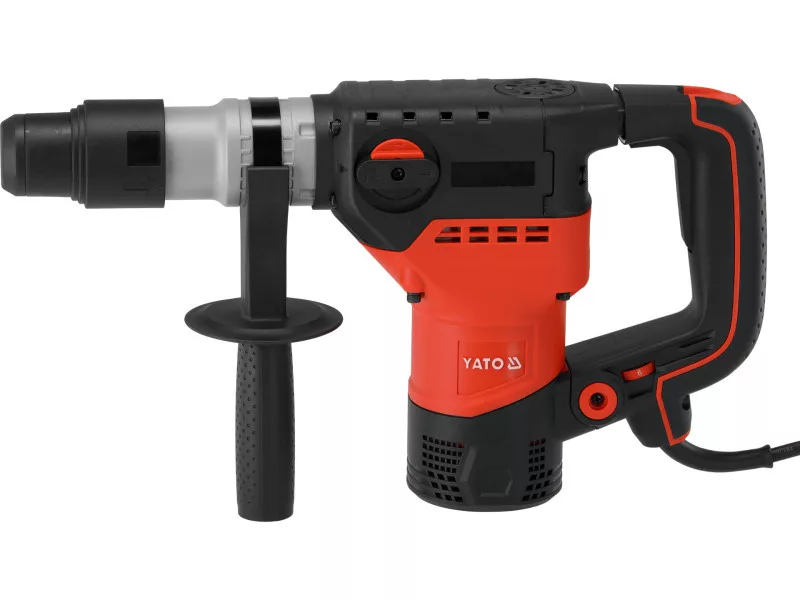

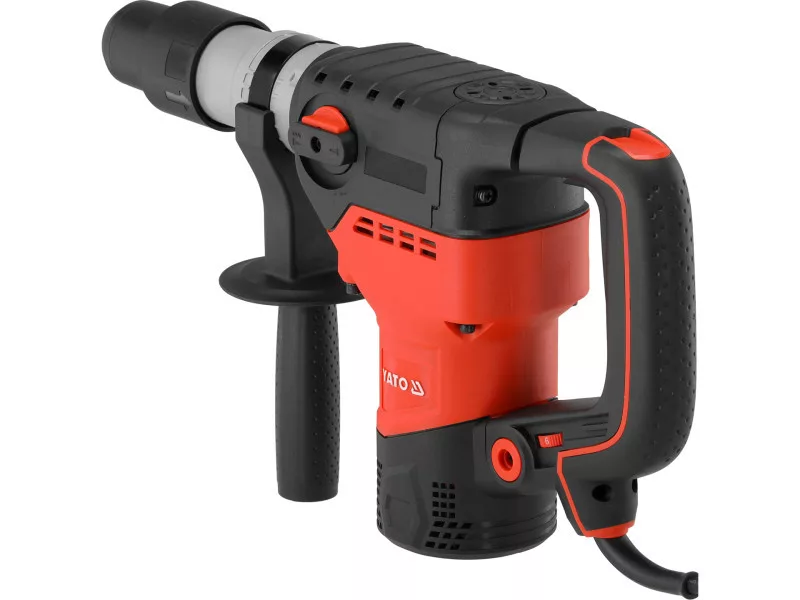

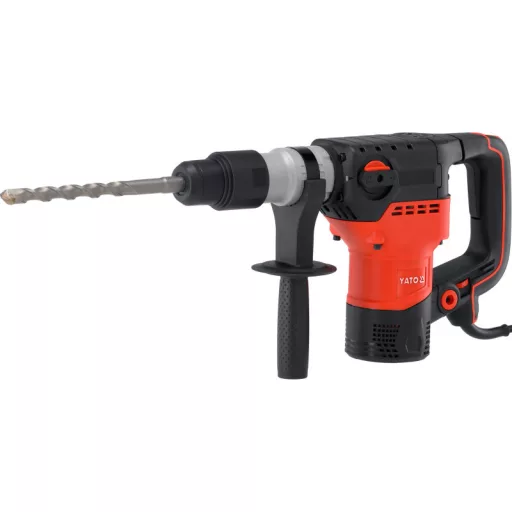

The SDS-max rotary hammer is designed for construction and renovation work. It is used for chiseling and drilling in concrete, including reinforced concrete, e.g. for creating holes and drilling walls and ceilings for pipes.
The low weight, properly balanced center of gravity, and side handle minimize operator discomfort during prolonged work. The hammer has a well-graduated clutch that protects the operator in case the drill gets stuck.
- chiseling and drilling function with impact
- excellent for drilling with long drills
- adjustable impact frequency in the range of 0-3900 min⁻¹ allows for adjusting power to different materials
- impact energy: 15 J
- rotation adjustment 0-650 min⁻¹
- power: 1600 W
- vertically placed motor is more resistant to vibrations generated by the electro-pneumatic mechanism, acting along the tool axis

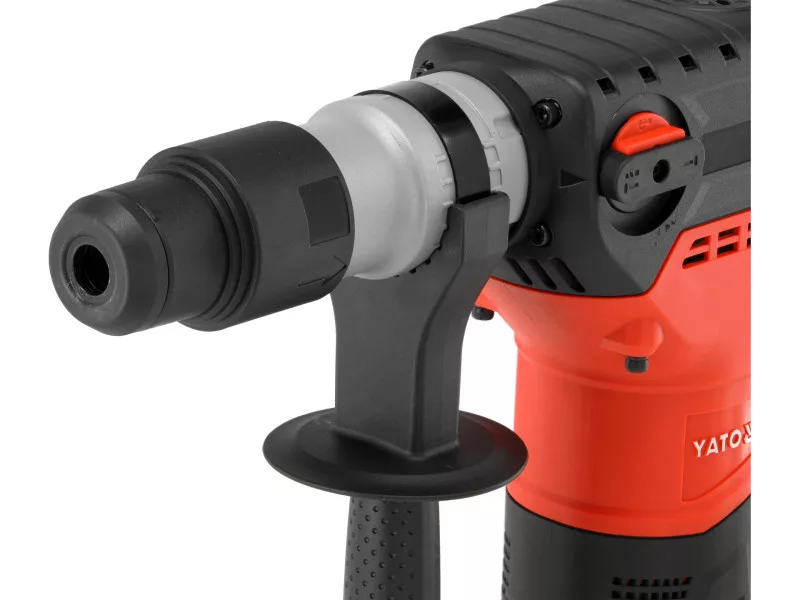

- SDS-max tool holder allows for using a range of YATO drills and tips

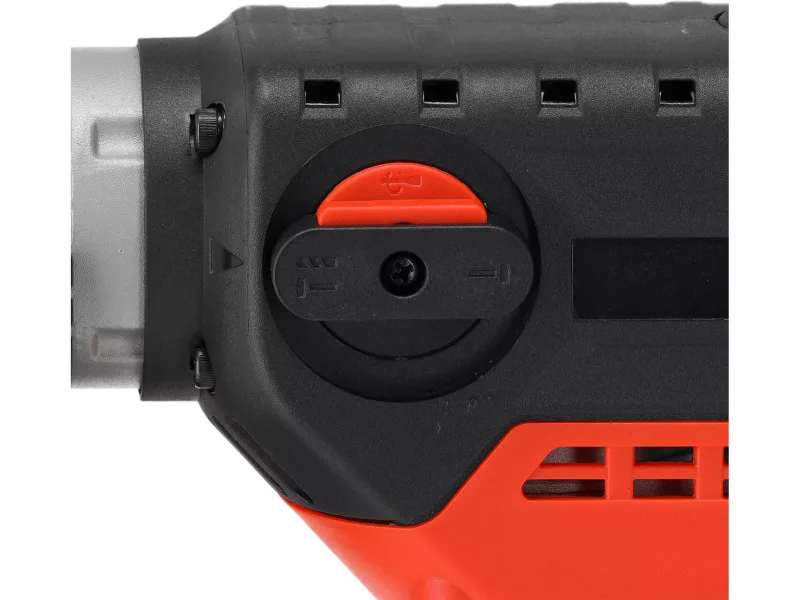

- working mode switch
- dust-protected switch with lock
- adjustable side handle depending on the working position
- max. drilling diameter in concrete: 40 mm (with a spiral drill)
- 3 m power cord

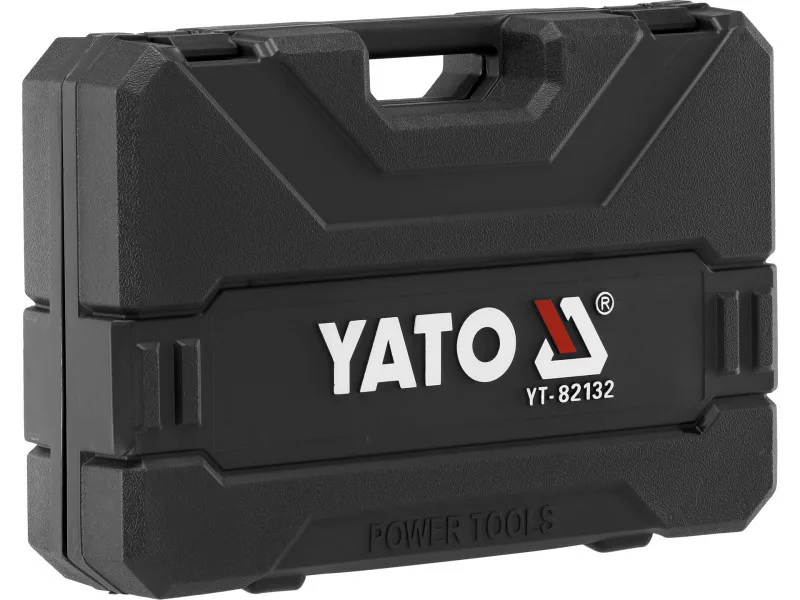

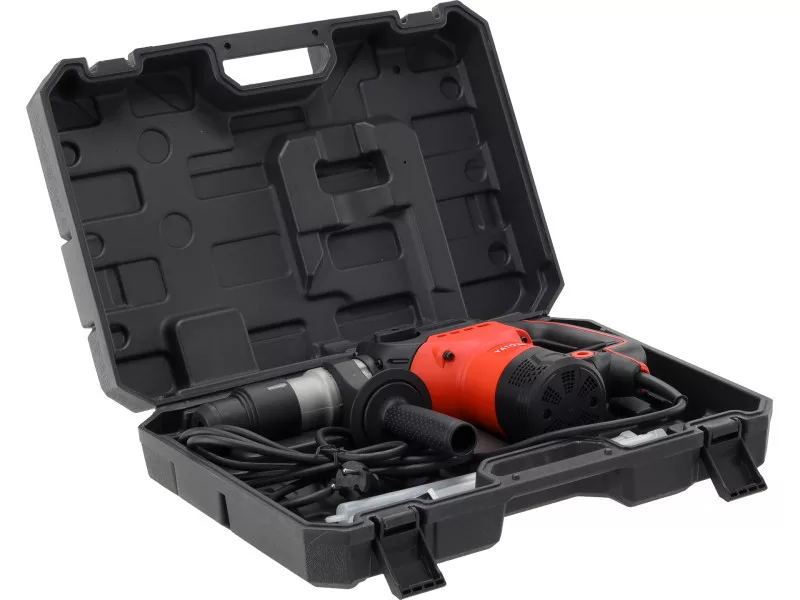

- packed in a case with snaps
- weight: 6.6 kg
