| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Functions | shoeing, drilling, drilling with impact, chisel positioning |
| Toolholder type | SDS-Plus |
| Power | 850 W |
| Rotations | 0-1300 min⁻¹ |
| Hammering energy | 3.3 J |
| Impact frequency | 0-5100 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Max. hole diameter in concrete | 32 mm |
| Max. hole diameter in steel | 13 mm |
| Max. hole diameter in wood | 30 mm |
| Stroke | yes, electropneumatic |
| Rotation switch | yes |
| Tool positioning in chuck | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 92.3 ± 3.0 dB(A) |
| Acoustic power | 103.3 ± 3.0 dB(A) |
| Vibrations | 11.964 ± 1.5 / 10.037 ± 1.5 m/s² |
| Weight | 3 kg |
| Set includes | hammer drill, additional handle, additional drill chuck 2-13 mm, drilling depth limiter, drills x3, chisel, punch |
| Application | metal, concrete, silicates, wood, plastics |
| Symbol | YT-82122 |

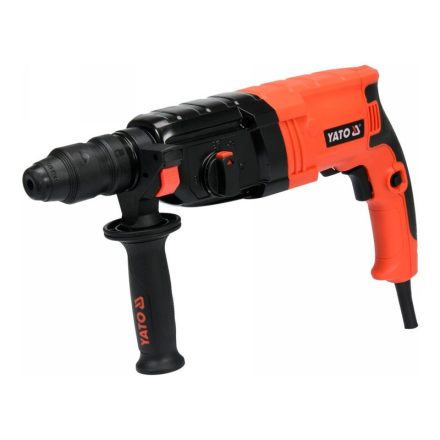

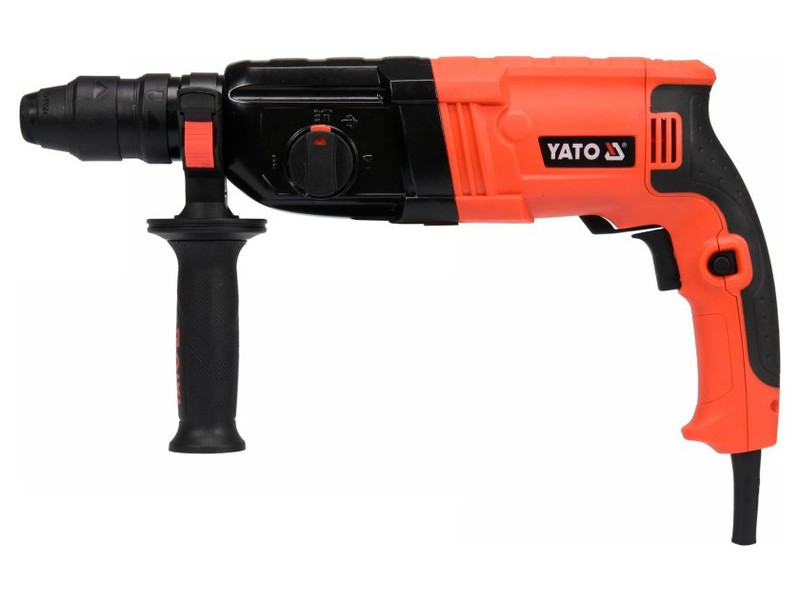

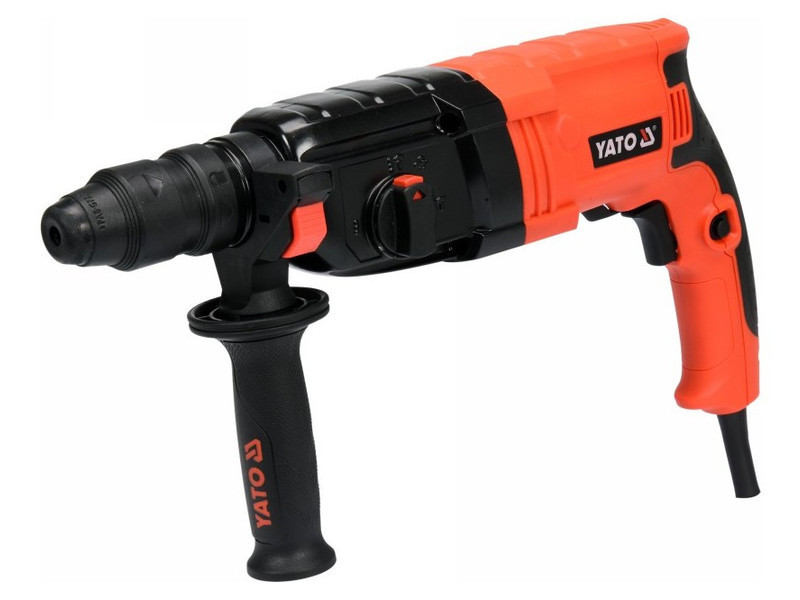

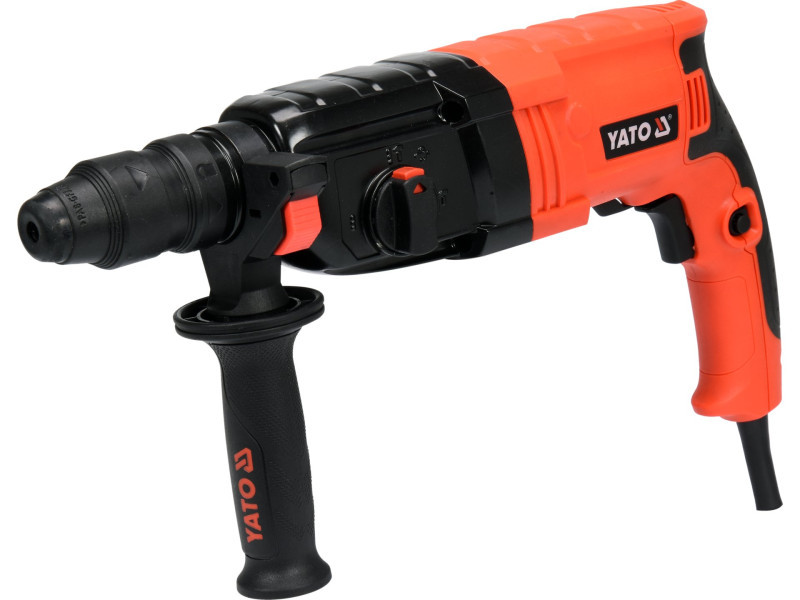

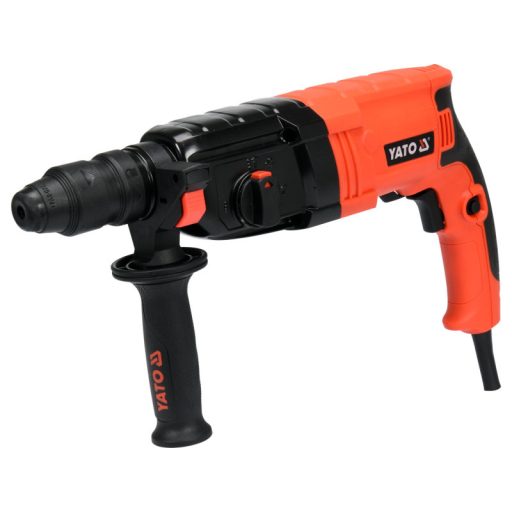

Universal hammer drill that allows drilling in any type of material, thanks to its two heads: sds+ and self-clamping 13mm. It works well for drilling for electrical boxes, shoring grooves for cables, and non-impact drilling with the 13mm head. High force and speed ensure fast work progress.
- metal housing for the entire gearbox
- steel clutch to protect the user from overload and injury
- quick-change head system
- lateral mode setting knob: forging, drilling, impact drilling or chisel positioning
- thick 3 m cable

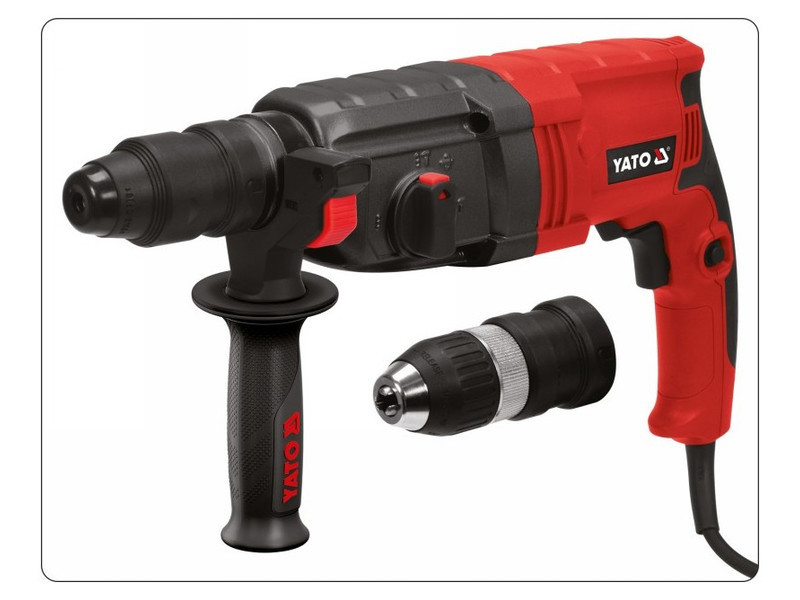

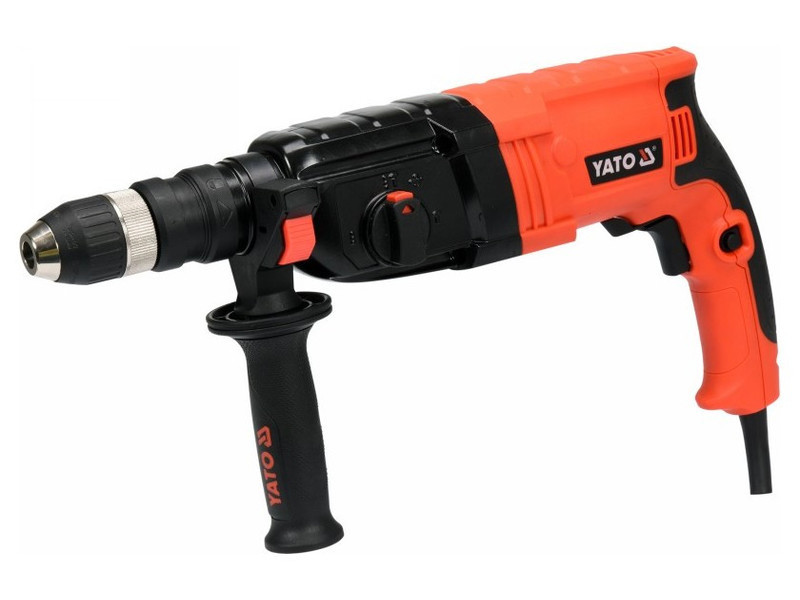

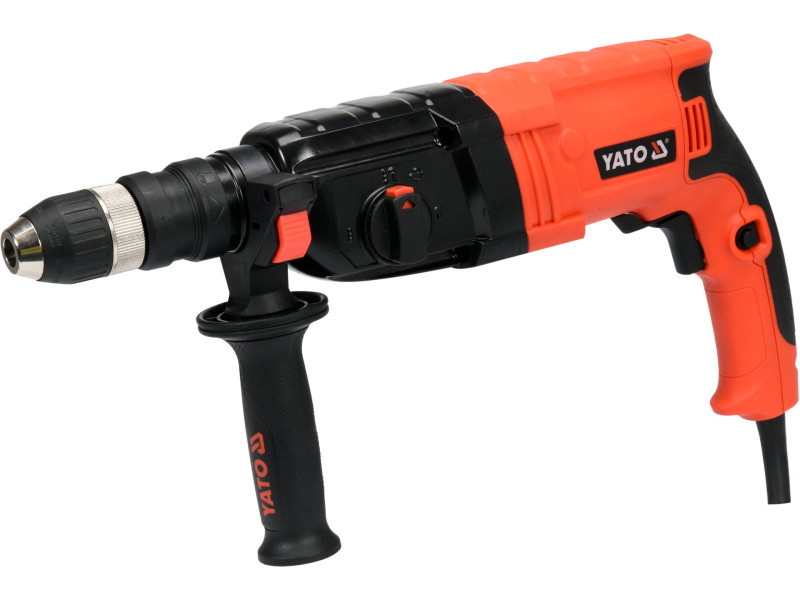

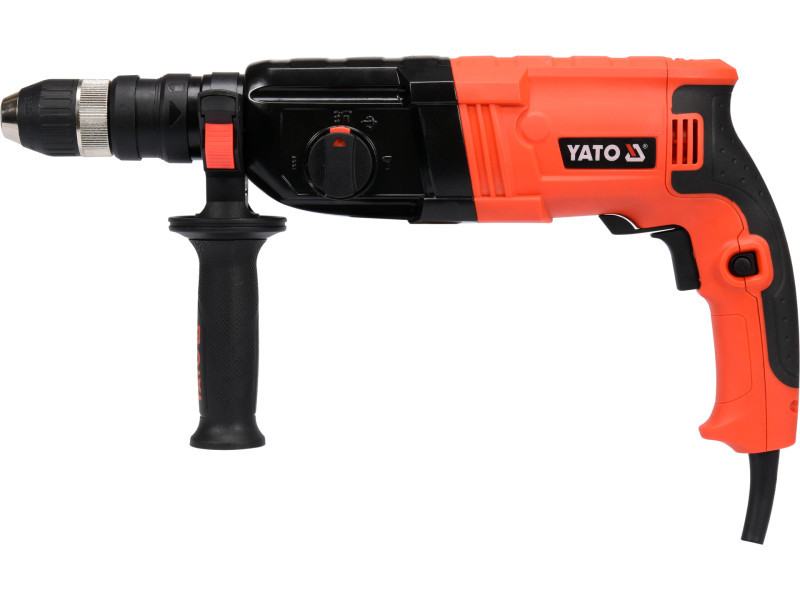

- included:sds+ head and additional 13 mm head for cylindrical drills, 3 drill bits and 2 chisels

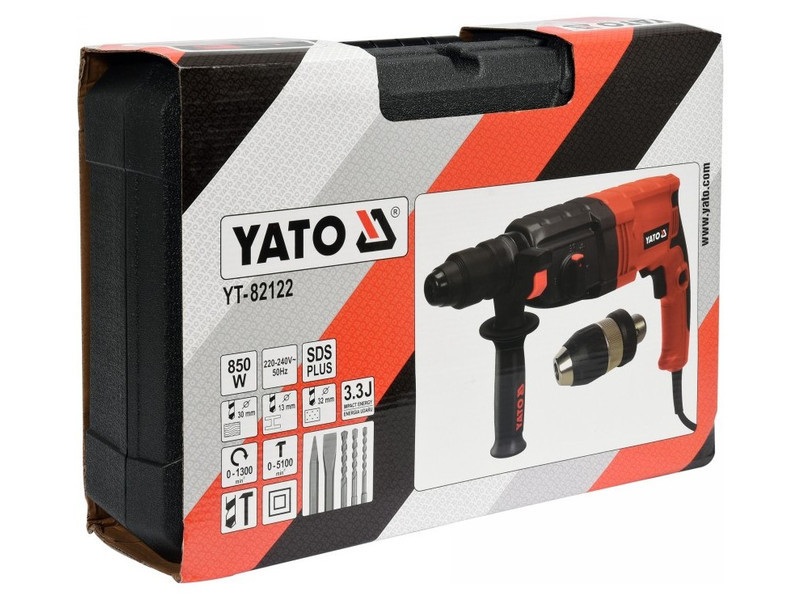

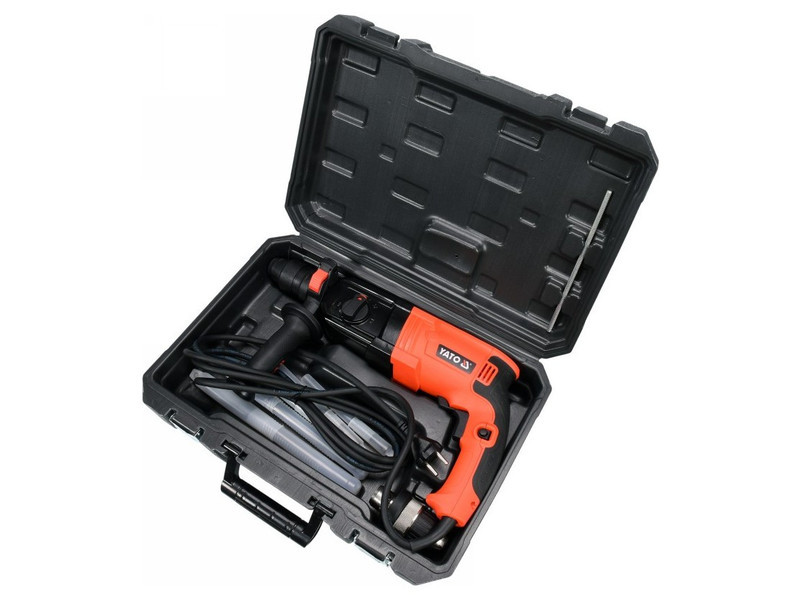

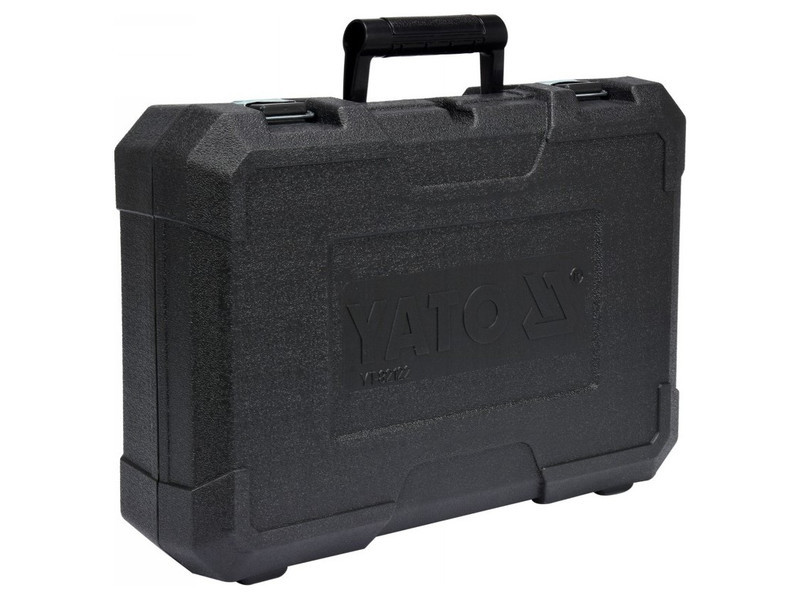

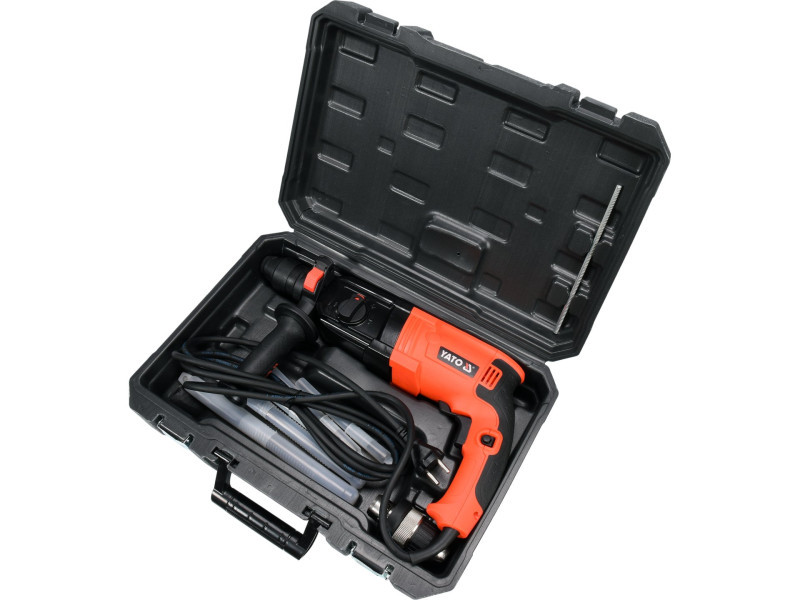

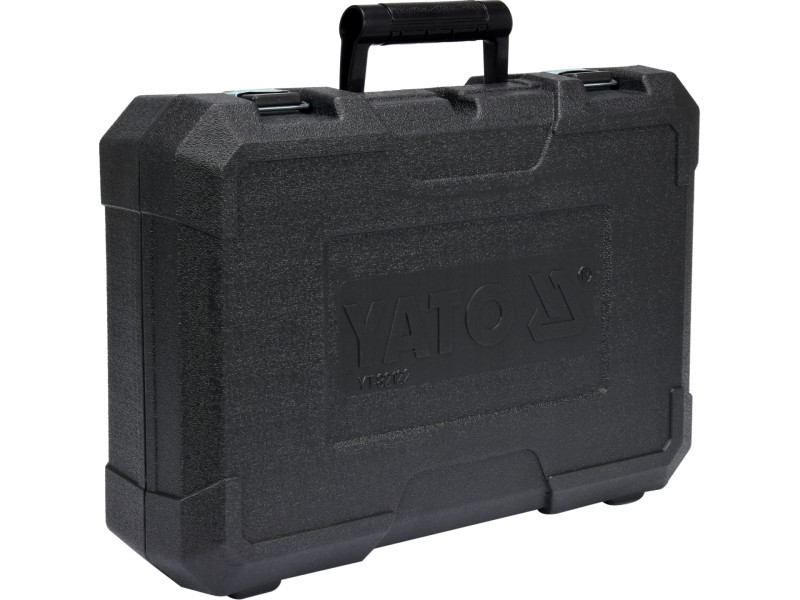

- packaged in a durable carrying case with metal latches
Parameters
- power [W]: 850
- udar: electropneumatic
- application: wood, concrete, metal
- grip: SDS plus
- impact energy [J]: 3.3
- voltage [V]: 230
- weight [kg]: 3
- stroke rate [1/min]: 5100
- number of rotations [1/ min]: 0-1300
- max concrete drilling diameter [mm]: 32
- work functions: forging, impact drilling, non-impact drilling, chisel positioning
