| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1100 W |
| Functions | shoeing, drilling, drilling with impact, chisel positioning |
| Toolholder type | SDS-Plus |
| Rotations | 770 min⁻¹ |
| Hammering energy | 4.5 J |
| Impact frequency | 4200 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50 Hz |
| Max. hole diameter in concrete | 28 mm |
| Max. hole diameter in concrete with core bit | 82 mm |
| Stroke | yes |
| Rotation switch | no |
| Electronic rotation adjustment | yes |
| Tool positioning in chuck | yes |
| LED indicators | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 94.1 ± 3.0 / 81.3 ± 3.0 dB(A) |
| Acoustic power | 105.1 ± 3.0 / 92.3 ± 3.0 dB(A) |
| Vibrations | 3.428 ± 1.5 / 5.218 ± 1.5 m/s² |
| Weight | 5.3 kg |
| Set includes | hammer drill, additional handle, drilling depth limiter, dust cover for drilling in the ceiling, grease container, drills x3, chisel, punch |
| Application | concrete, reinforced concrete, brick |
| Symbol | YT-82116 |

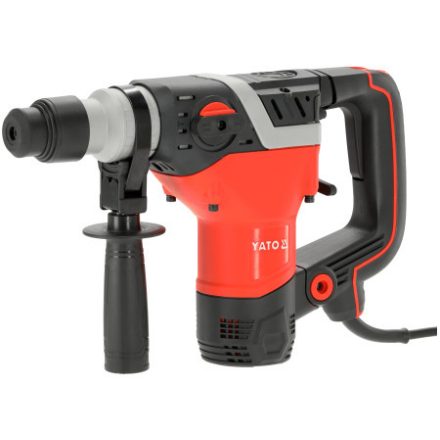

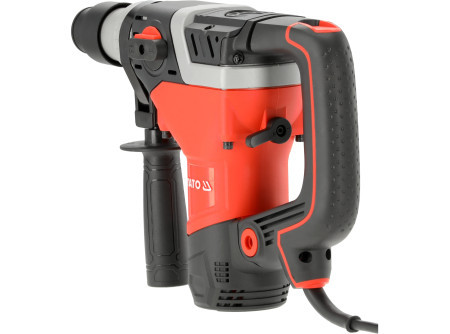

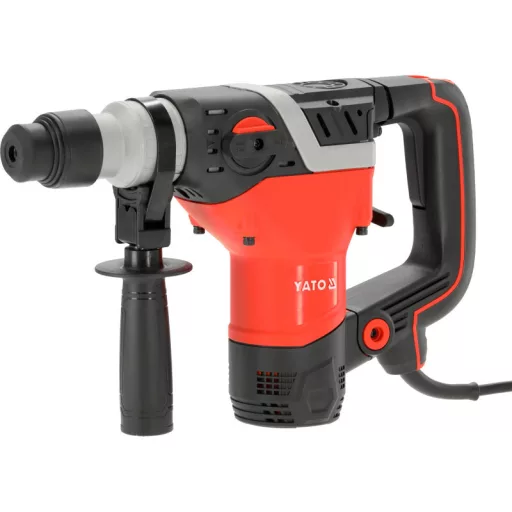

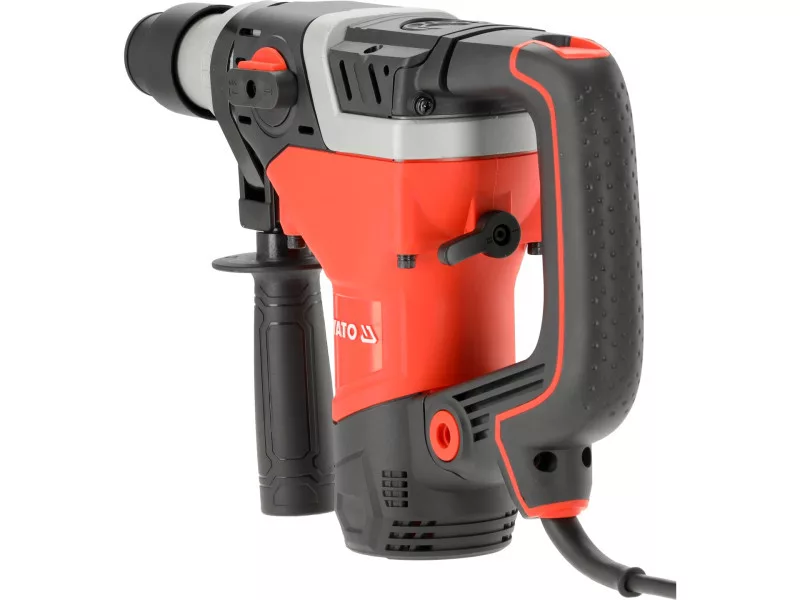

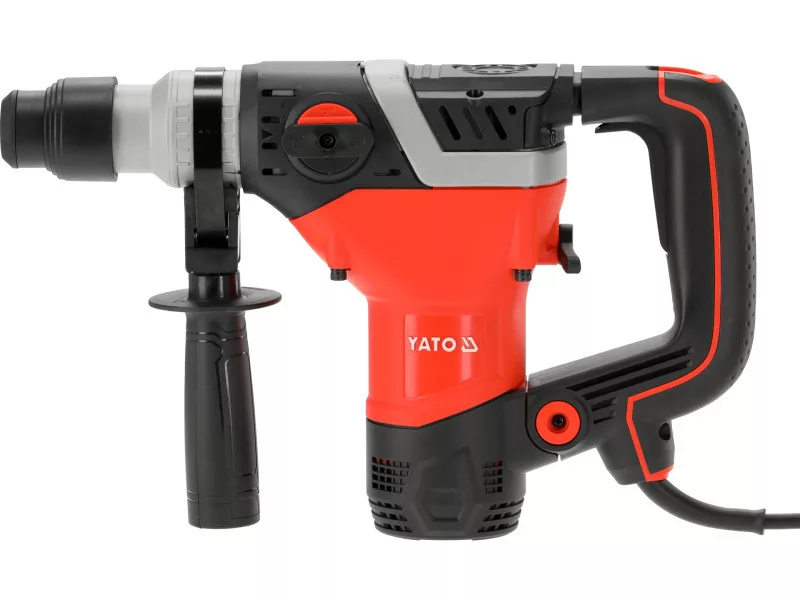

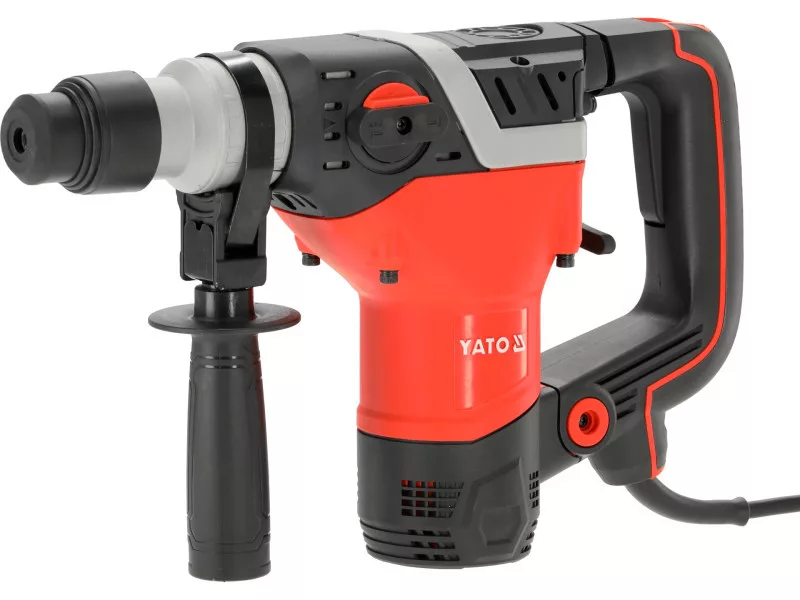

The SDS-plus hammer drill with electropneumatic impact is a versatile tool used in construction and repair work. Designed for shoring and drilling in concrete, gelbeam and brick, it is useful for forging grooves for cables and pipes, installation crossings for cable routes and ventilation ducts, drilling boreholes, drilling for electrical boxes or mixing plaster.

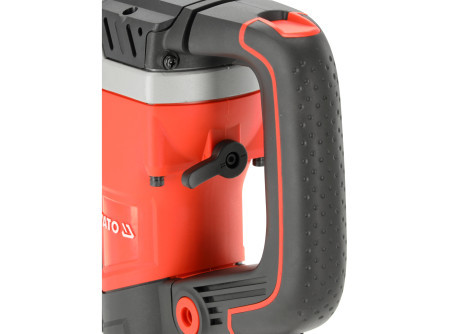

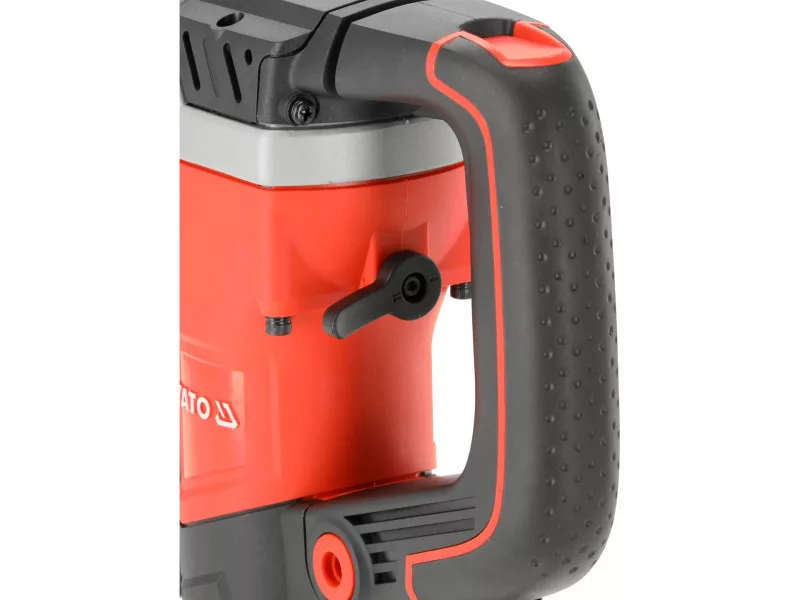

A well-balanced center of gravity, anti-vibration handle and side grip minimize operator discomfort during prolonged work.
- 3 functions:
- shoeing
- drilling with impact
- drilling without impact
- power: 1100 W
- impact frequency: 4200 min-1
- impact energy: 4,5 J
- RPM: 770 min-1
- max. drilling diameter in concrete: 28 mm
- electronically adjustable speed
- LED indicators
- locking switch protected against dust
- the motor positioned vertically/transversely is more resistant to vibrations generated by the electro-pneumatic mechanism acting along the tool axis
- optimal center of gravity and low weight
- additional side handle adjustable according to the working position

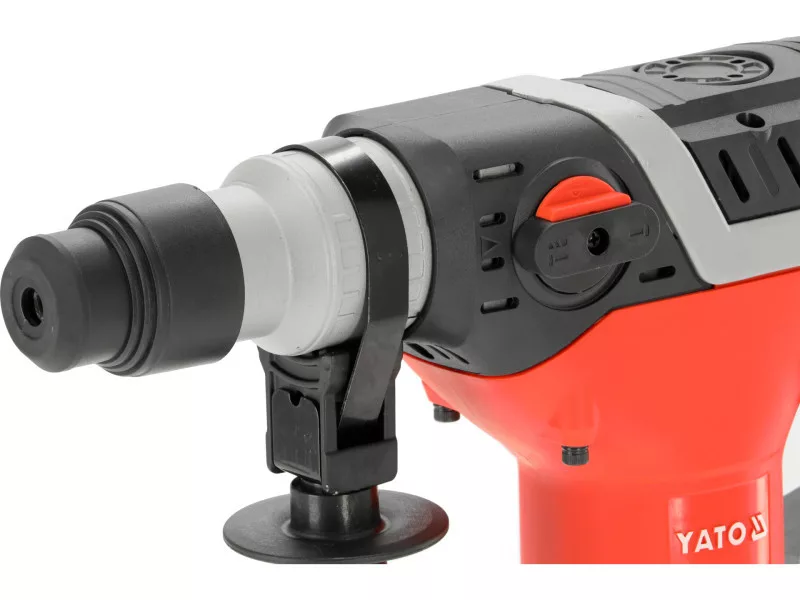

- possibility to set the tool in the holder
- power cord with a length of 3 m
- weight: 5.3 kg

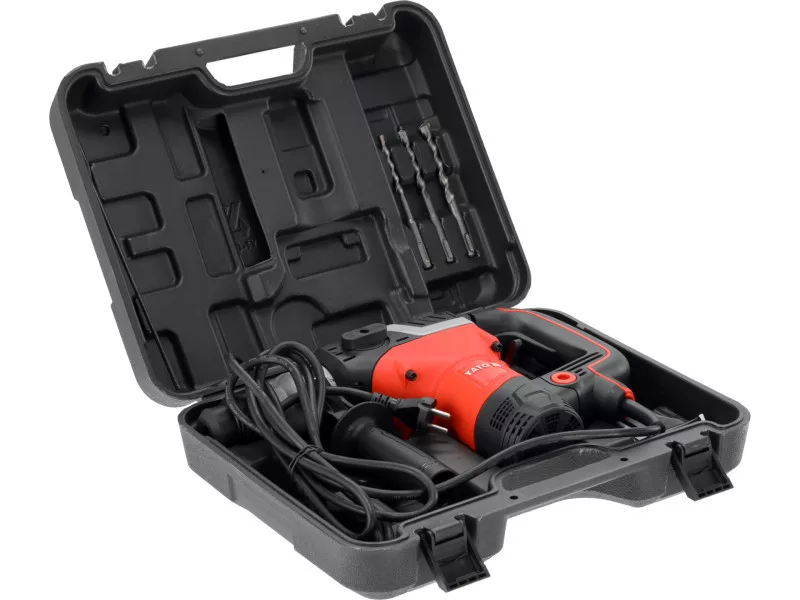

- included: auxiliary handle, drilling depth limiter, dust cover for ceiling drilling, lubricant container, 3 drill bits, chisel and punch
