| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Max. torque | 85 Nm |
| Power | 400 W |
| Rotations | 0-480 / 0-1800 min⁻¹ |
| Voltage | 220-240 V a.c. |
| Frequency | 50/60 Hz |
| Max. toolholder size | 13 mm |
| Toolholder type | self-centering |
| Max. hole diameter in steel | 13 mm |
| Stroke | no |
| Electronic rotation adjustment | yes |
| Rotation switch | yes |
| Work mode switch | yes |
| Spindle brake | yes |
| Work area lighting | no |
| Wire length | 4 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 88.0 ± 5.0 dB(A) |
| Acoustic power | 99.0 ± 5.0 dB(A) |
| Vibrations | 6.57 ± 1.5 m/s² |
| Weight | 2 kg |
| Symbol | YT-82063 |

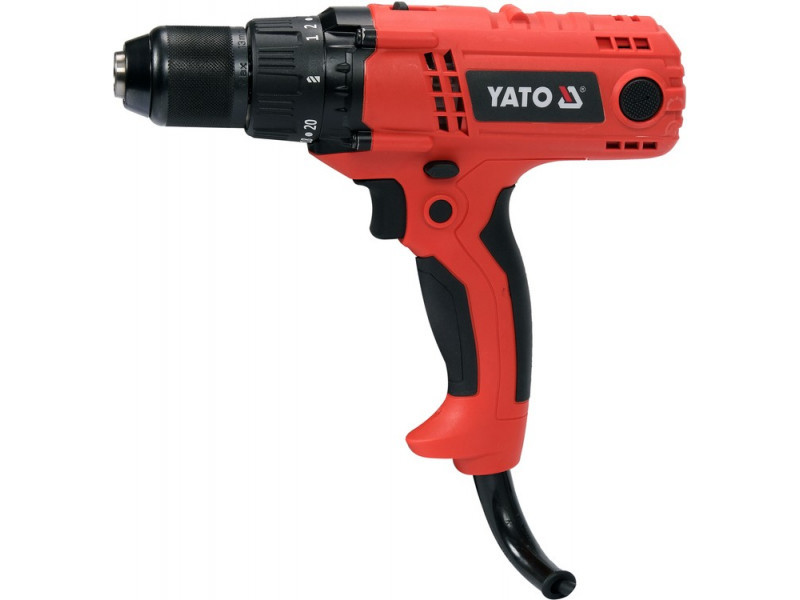

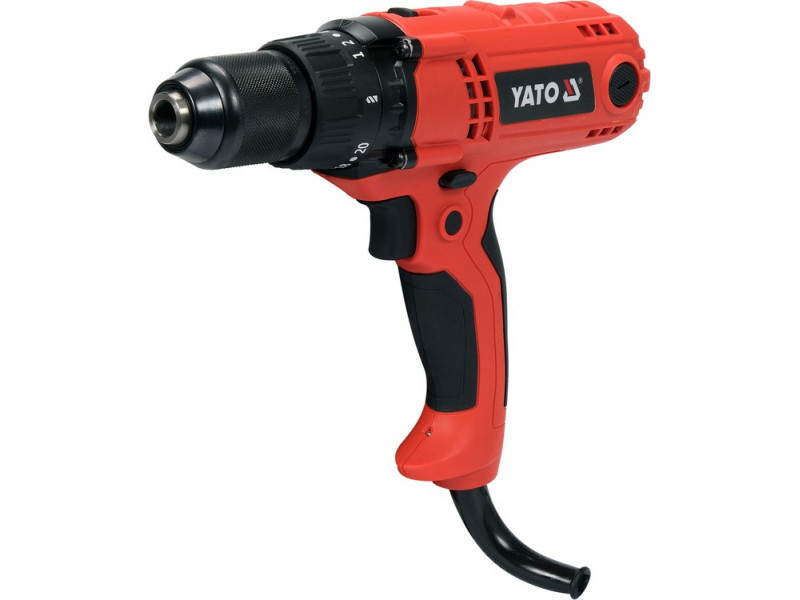

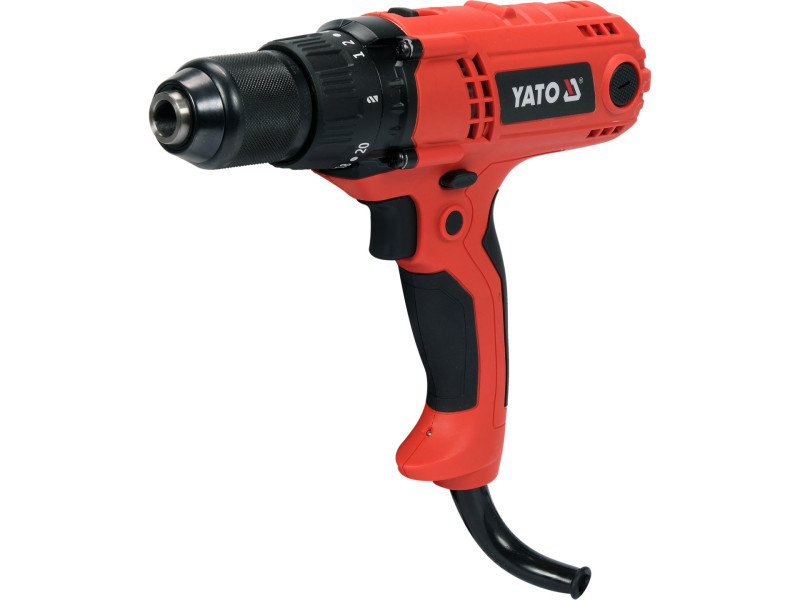

Powered 13mm; 85nm screwdriver for carpentry screws, auger and crown drilling and metal work
Powered drill/screwdriver for work in wood and metal with large diameter drills and screws.
The most powerful drill/driver in the class of devices (85NM) powered by 240V mains.
With mains-powered operation, there is no worry about battery drainage during operation, even with PZ3 or Torx T40 tipped carpentry screws, which are now a very popular way of making joist connections in carports, patio buildings, roofs and garden architectural elements.
The machine has additional metal side handle and adjustable clutch to protect against jerks. Two-speed transmission generates 85Nm of torque in 1st gear and 40Nm in 2nd gear. The power cord is long and soft, which makes it easy to maneuver the tool when working with timber frame structures -drilling into purlins, mullions and braces with wood augers.

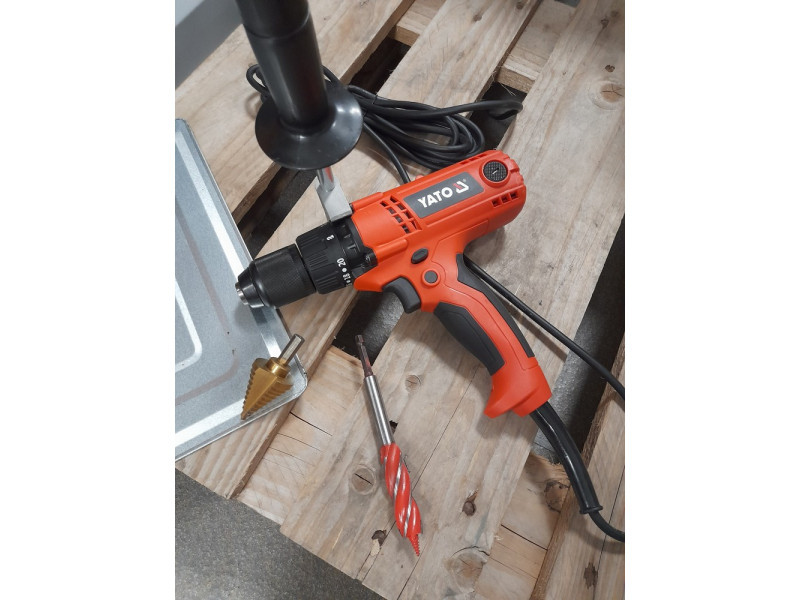

The high torque also allows you to work in metal with Christmas tree drills (up to 40mm in diameter) and HSS twist drills (up to 20mm).
The tool is perfectly fitted and balanced which makes the work comfortable and efficient.

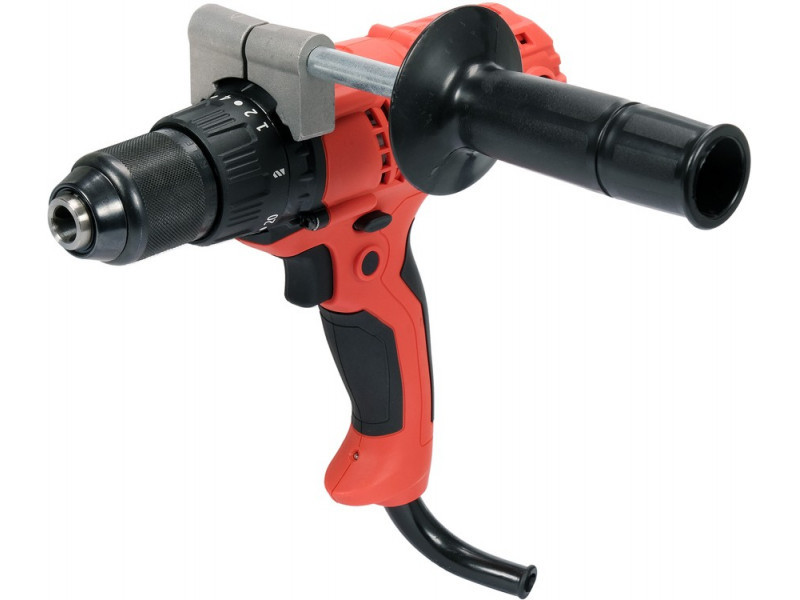

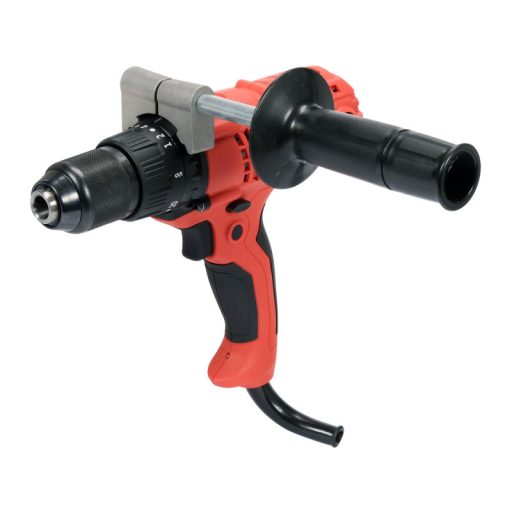

- additional metal side handle
- metal gearbox housing and high-quality 13 mm. self-clamping drill chuck, also metal!
Parameters:
- voltage: 220-240V
- power: 400W
- Rotation: I gear: 0-480 rpm.RPM, 2nd gear 0-1800 rpm
- max torque: in 1st gear: 85 Nm, in 2nd gear: 40 Nm
- metal 1.5-13 mm self-clamping tool holder
- metal gear housing
- additional side handle
- adjustable multi-position clutch
- steel gearbox with 53-56 HRC tooth hardness
- easy brush replacement system
- right/left-hand rotation
- spindle lock for easy bit and drill bit changes
- rubber cable with length 4m
