| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1800 W |
| Rotations | 8000 min⁻¹ |
| Voltage | 230-240 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 150 mm |
| Cutting disc internal diameter | 22 mm |
| Cutting disc max. thickness | 2.6 mm |
| Cutting depth | 0-40 mm |
| Cutting width | 5-30 mm |
| Spindle thread size | M14 |
| Soft start | yes |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IPX0 |
| Acoustic pressure | 93.0 ± 3.0 dB(A) |
| Acoustic power | 104.0 ± 3.0 dB(A) |
| Vibrations | 10.27 ± 1.5 m/s² |
| Weight | 4.5 kg |
| Set includes | wall chaser, additional handle, abrasive disc cover, key for mounting the abrasive disc, shield x2 |
| Symbol | YT-82016 |

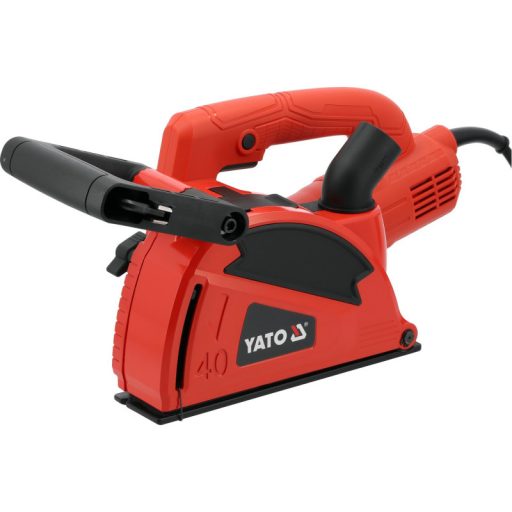

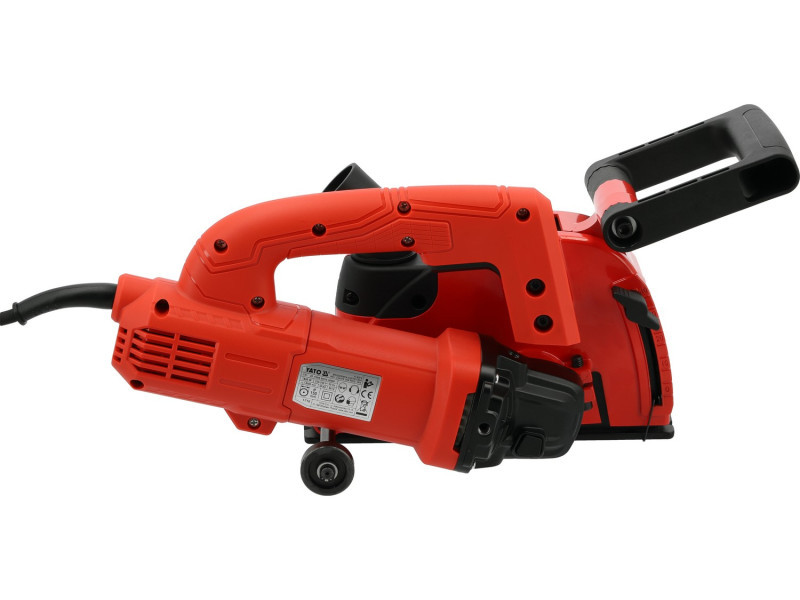

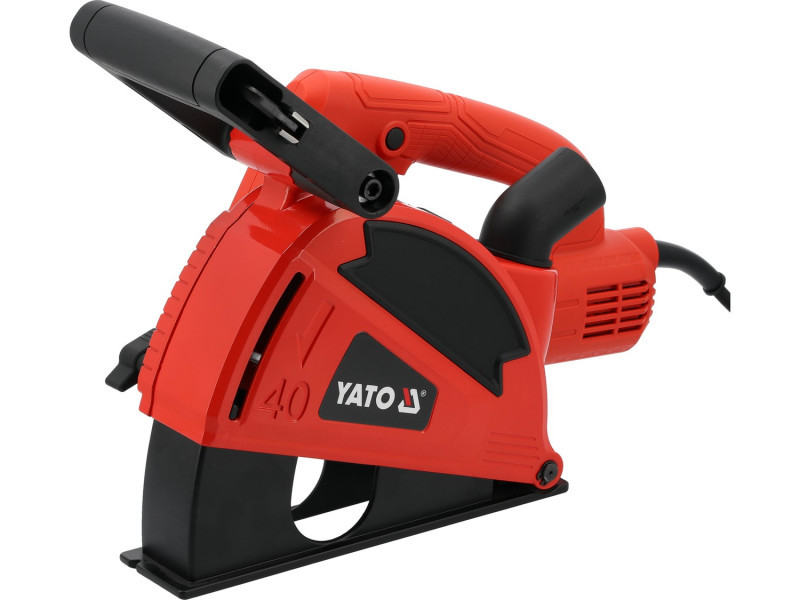

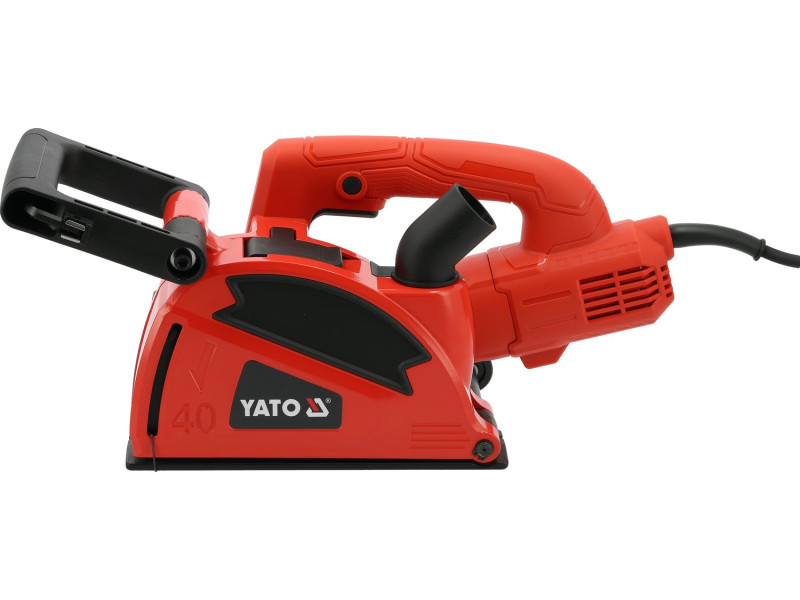

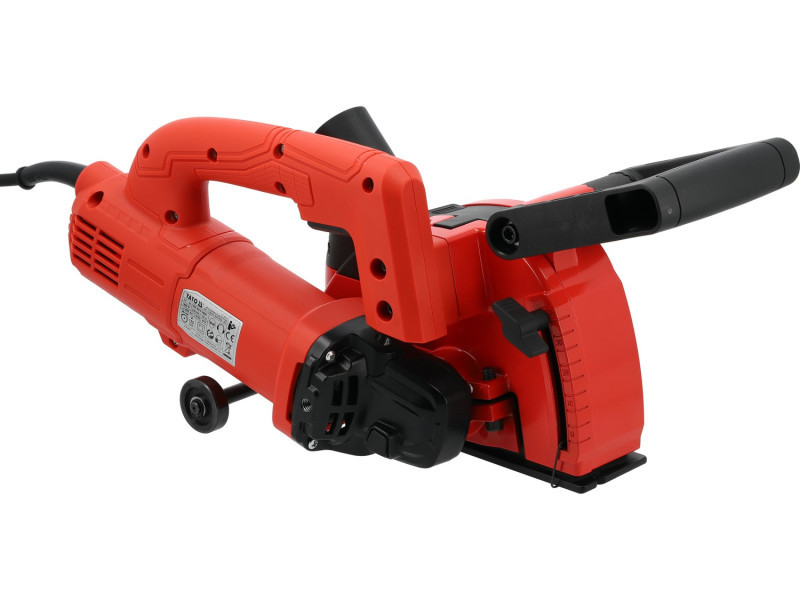

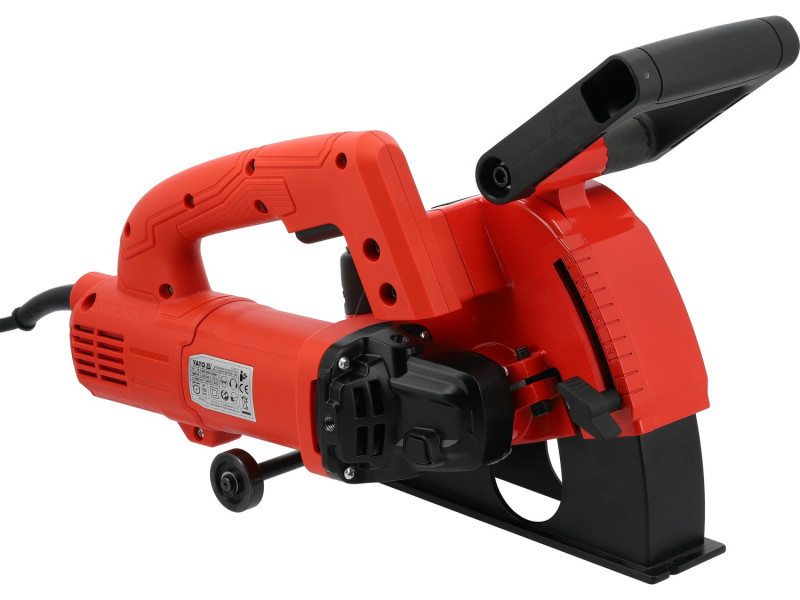

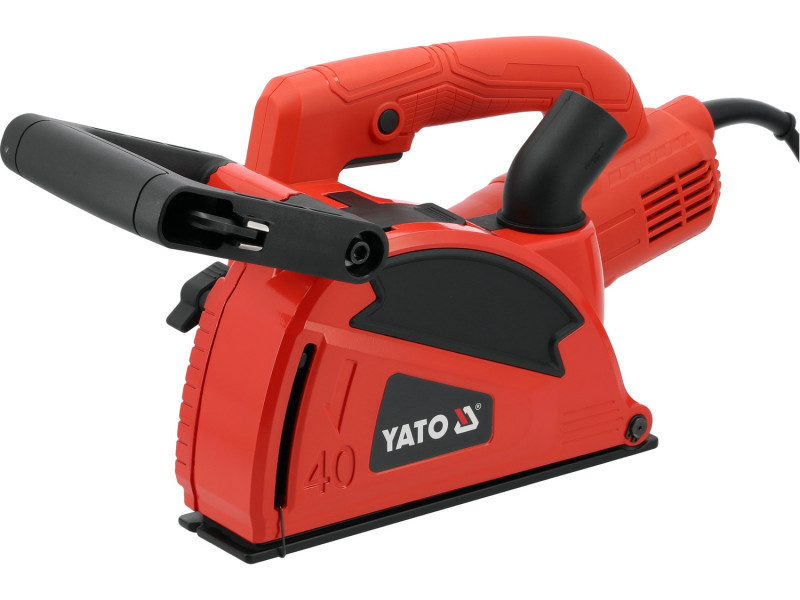

The wall chaser equipped with a 150 mm diameter blade is designed for professional installation work. It allows for precise grooves to be made for PEX and PEHD pipes, electrical conduits, and power cables, making it an essential tool for plumbers and electricians.
The nearly fully enclosed guard with a connection for a vacuum cleaner (e.g., YT-85717 or YT-85716) effectively removes debris during cutting, minimizing dust generation. The motor is equipped with a thermal switch, and the rotor and stator are made of high-quality copper. The bearings are protected against dust ingress, enhancing durability and ensuring reliability during intensive use.
Operating parameters:
- power: 1800 W
- voltage: 230 V
- rotational speed: 8000 rpm
- blade diameter: 150 mm
- spindle thread: M14
- adjustable groove width up to 40 mm & depth
Features and functions:

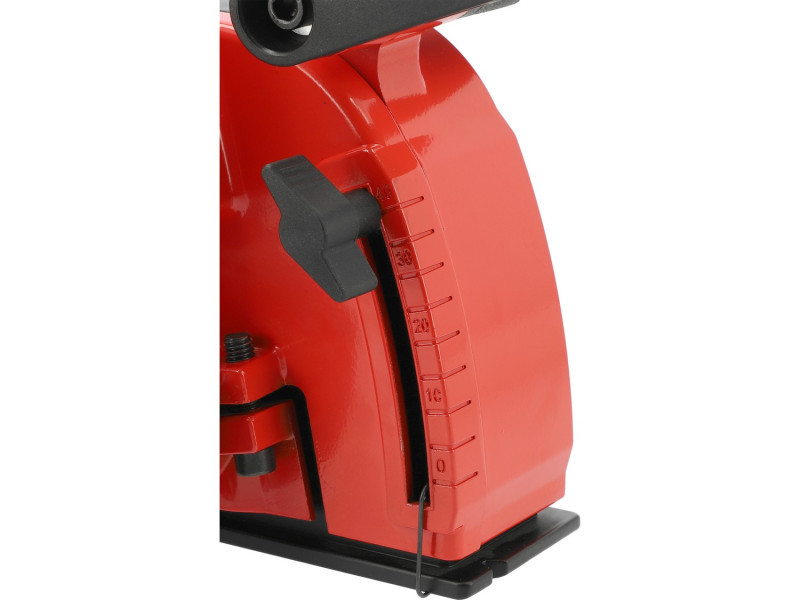

- depth adjustment without the need for auxiliary tools
- spindle lock for easy blade changes
- soft start function and maintenance of constant power, even under maximum load

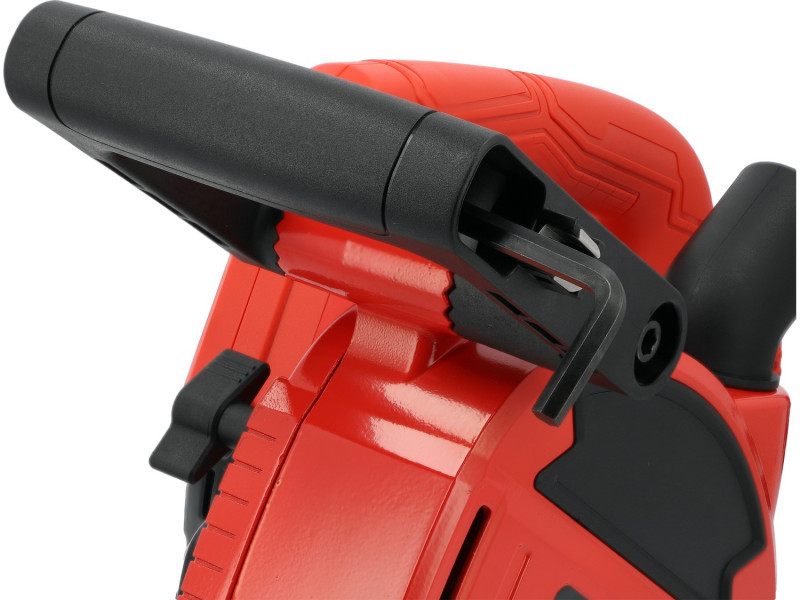

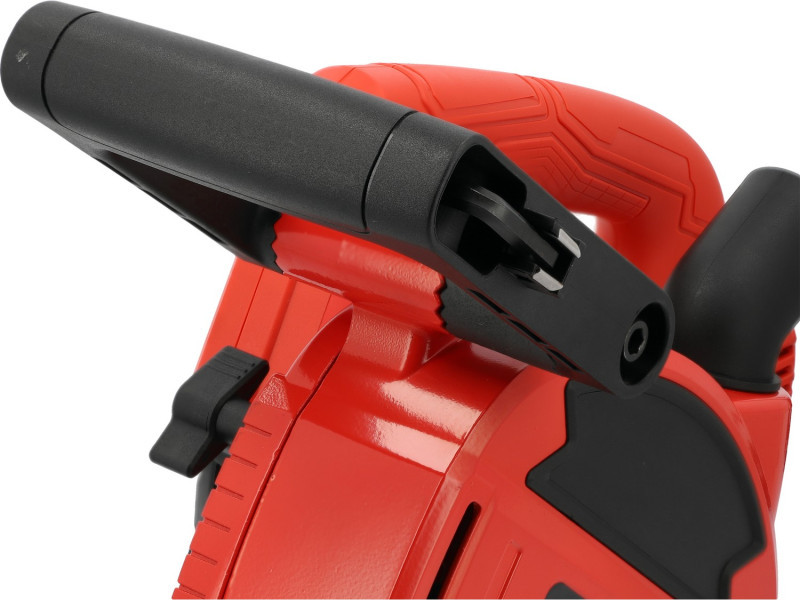

- additional front handle for improved control
- comfortable handles with adjustment ensure stable guiding both vertically and horizontally
- 3 m rubber power cord

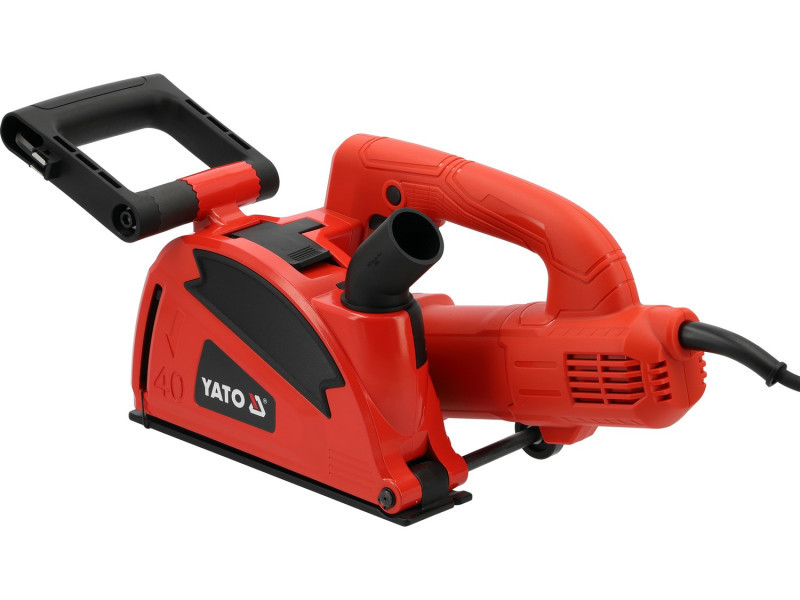

- dust extraction connection – reducing dust in the workspace
- designed for use with industrial vacuum cleaners
- 2 diamond blades included with a diameter of 150 mm
Applications:
- grooves for electrical and alarm installations
- routing of water and heating pipes
- installation of telecommunication systems
- renovation and finishing work in concrete, brick, and plaster
