| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 1700 W |
| Rotations | 10500 min⁻¹ |
| Voltage | 230-240 V a.c. |
| Frequency | 50 Hz |
| Cutting disc outer diameter | 125 mm |
| Cutting disc internal diameter | 22.2 mm |
| Cutting disc max. thickness | 1.9 mm |
| Cutting depth | 0-28 mm |
| Cutting width | 5-30 mm |
| Wire length | 3 m |
| Electric insulation class | II |
| Protection grade | IP20 |
| Acoustic pressure | 93.0 ± 3.0 dB(A) |
| Acoustic power | 105.0 ± 3.0 dB(A) |
| Vibrations | 2.8 ± 1.5 m/s² |
| Weight | 2.4 kg |
| Set includes | wall chaser, additional handle, abrasive disc cover, key for mounting the abrasive disc, shield x2 |
| Compatible with | YT-59962 |
| Symbol | YT-82015 |

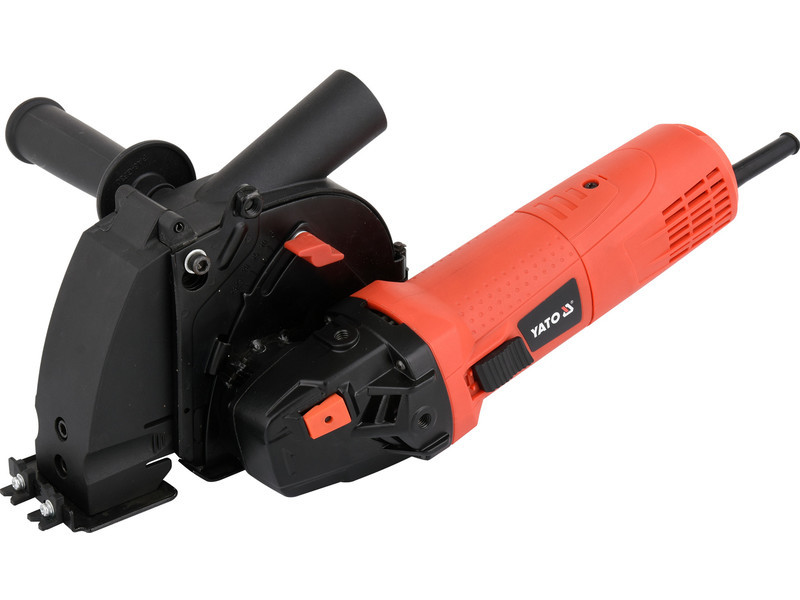

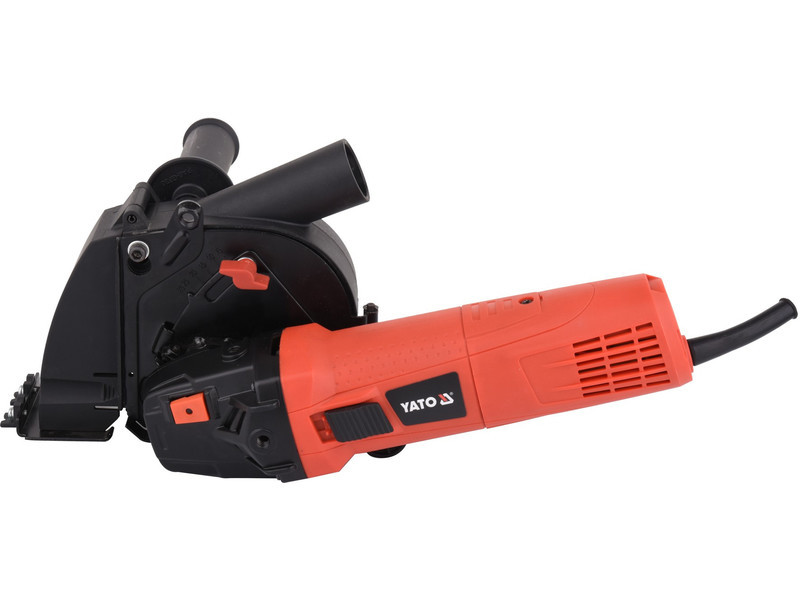

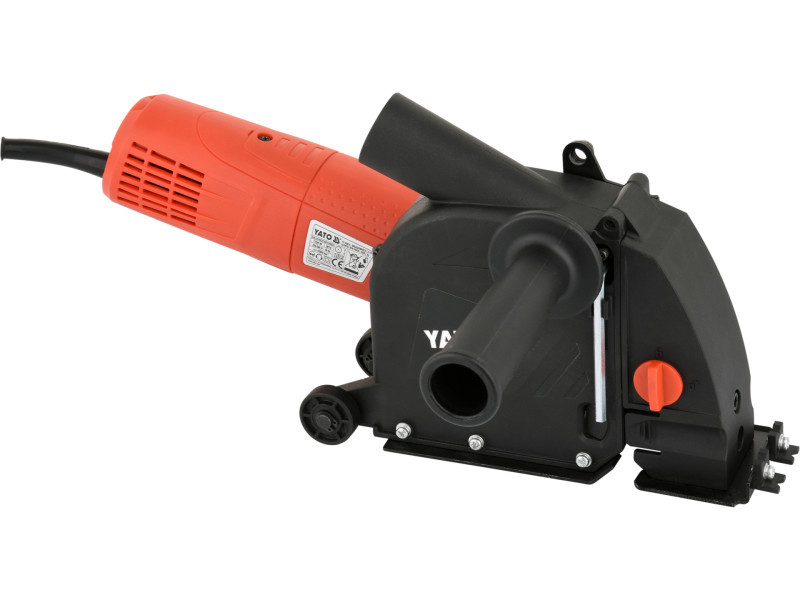

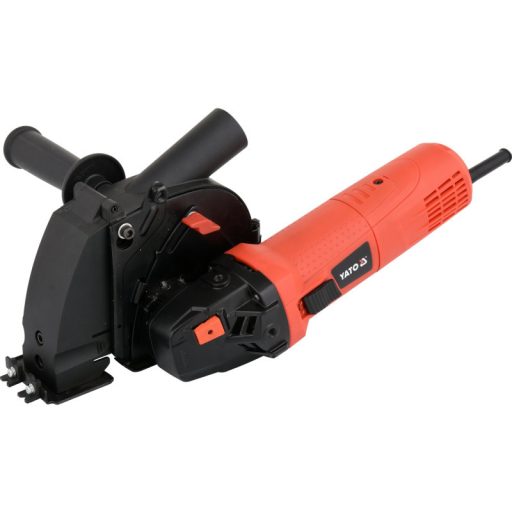

Paving machine 1700w 125mm
Universal paving machine, which can be used for groove cutting and dust-free cutting when connected to a vacuum cleaner, or as a powerful angle grinder after removing the paving guard and putting on a standard angle grinder disc guard.
Adapted to work in walls, ceilings and floors for the installation of cables, central heating pipes, , alarm and telecommunication installations and building automation controls
Durable and easy to use. For professional use.
Chasing machine and powerful angle grinder
With the installation of a standard cover from an angle grinder (not included) and a single disc, the paving machine becomes a powerful universal angle grinder
- The switch has been positioned so that it can also be operated with one hand and at the same time in such a position that it is as little exposed to dust as possible
- the design is similar to that of a contra-angle handpiece; it is therefore lightweight and very handy
- Dust extraction is particularly useful when working in confined spaces
Easy grooving in corners
Swiveling blade guard, useful when grooving in interior corners.
The tilting of the guard allows you to cut grooves to the end of the walls in the corners, so there is no need to correct the groove with a hammer drill or forging with a hammer.
Large width range
Steel reduction rings with different diameters allow you to choose the distance between the discs. This makes it possible to create a groove of a specific width, such as a narrow groove for alarm wiring or a wide groove for 16 mm PEX water pipes.
- max. cutting width [mm]: 30
- set of 5 reduction rings included
Tool-free depth adjustment
Cutting depth adjustment is carried out by sliding or sliding the movable blade guard. An approximate cutting depth scale has been marked on the guard.
Adjustment is carried out without tools by means of an easily accessible butterfly.
Solutions facilitating work
- Connection for dust extraction - useful when working in confined spaces
- line guides allow to guide the paving machine along the marked line
- wheels for smooth sliding - relieves the burden on hands and speeds up work, also helps when making furrows in the ceiling
- additional handle
Additional information:
- strong gearbox and powerful motor suitable for cutting in concrete and reinforced concrete
- high power of 1700W, generated by a commutator motor with copper winding, suitable for simultaneous operation with two blades
- furrowing machine slats protected against dust with an additional wall, so that dust does not get inside the device
- easy replacement of discs
- possibility to furrow in the inner corners (tilting cover at the front of the machine)
- full housing allows for effective dust extraction with a vacuum cleaner
- adjustable width and depth of cut
- comfortable and safe switch
- fast cutting in reinforced concrete and ergonomically located center of gravity reduce operator fatigue
- high quality workmanship and durability of details (rubber cable, reduction rings for adjusting disc spacing)

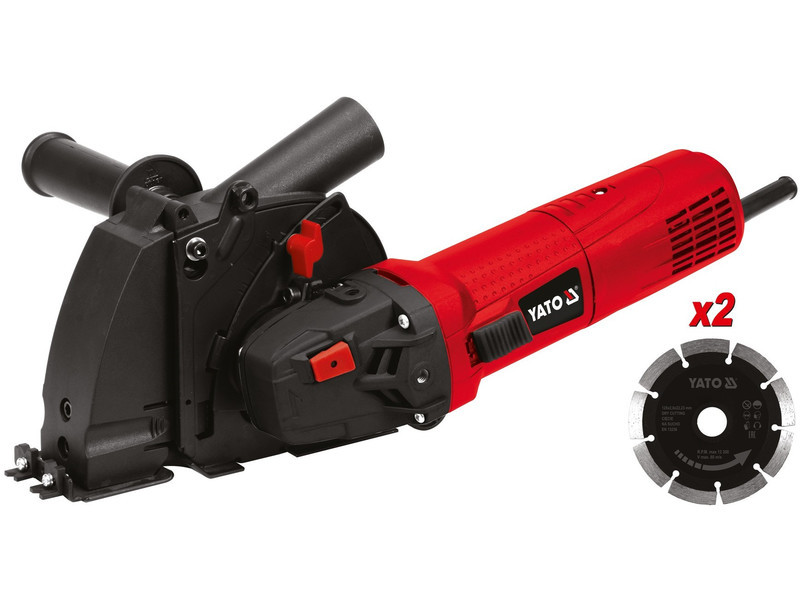

- included: two diamond blades 125 mm, set of 5 reduction rings
