| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Width | 15 mm |
| Length | 20 m |
| Thickness | 0.13 mm |
| Material | PVC |
| Color | white |

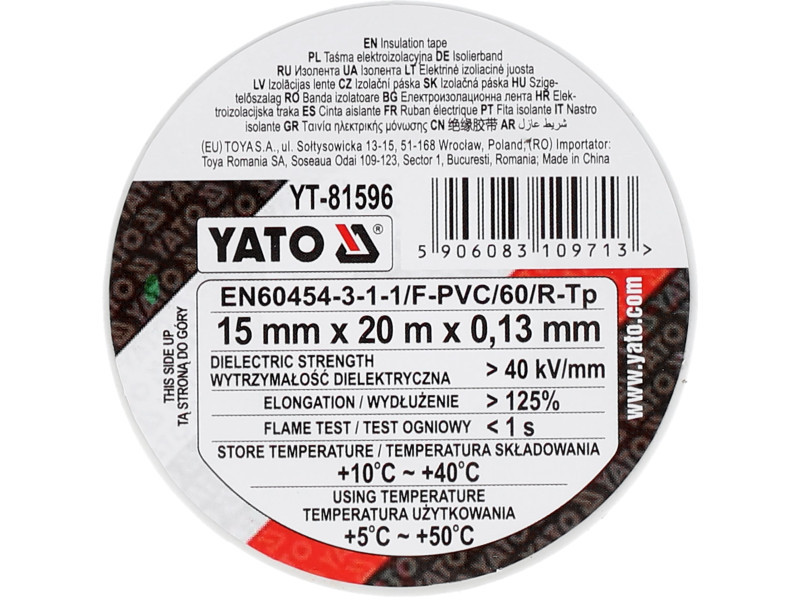

| Standard | EN60454-3-1-1/F-PVC/60/R-Tp |
| Elongation | >125 % |
| Dielectric strength | >40 Kv/mm |
| Flame test | 1 s |
| Working temperature range | 10~40 ˚C |
| Storage temperature | 5~50 ˚C |
| Application | electrical installation works in construction and automotive industry (construction and maintenance of electrical installations, creating cable harnesses, marking wires), |
| Application contd | protection against mechanical damage (abrasion, bending, etc.), protection against UV radiation, protection against aging processes, |
| Application contd 2 | protection against chemical agents (water and various chemicals), corrosion protection |
| Symbol | YT-81596 |

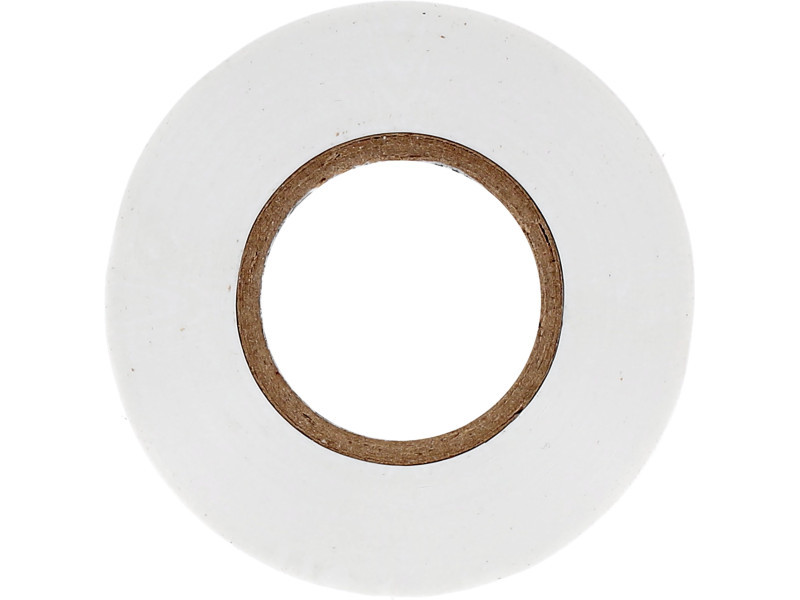

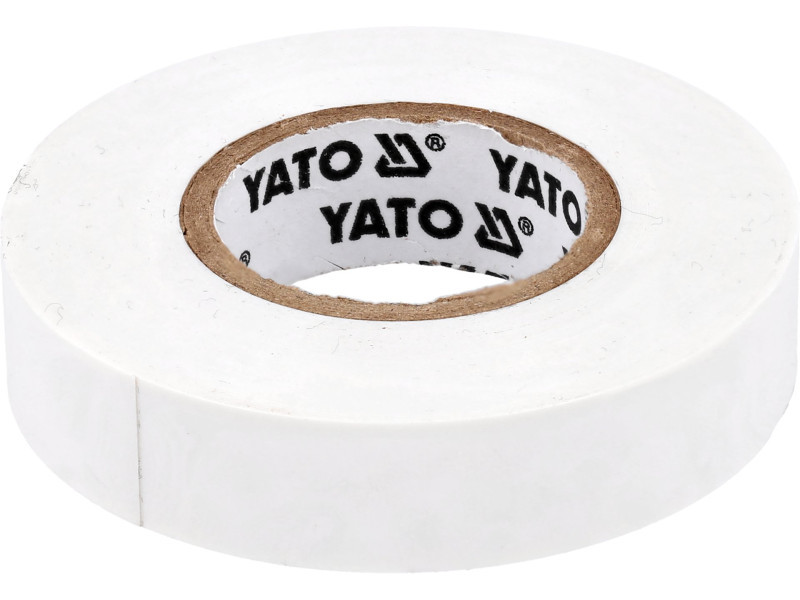

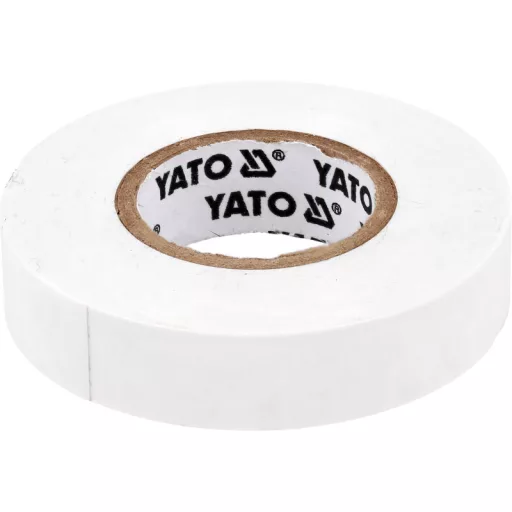

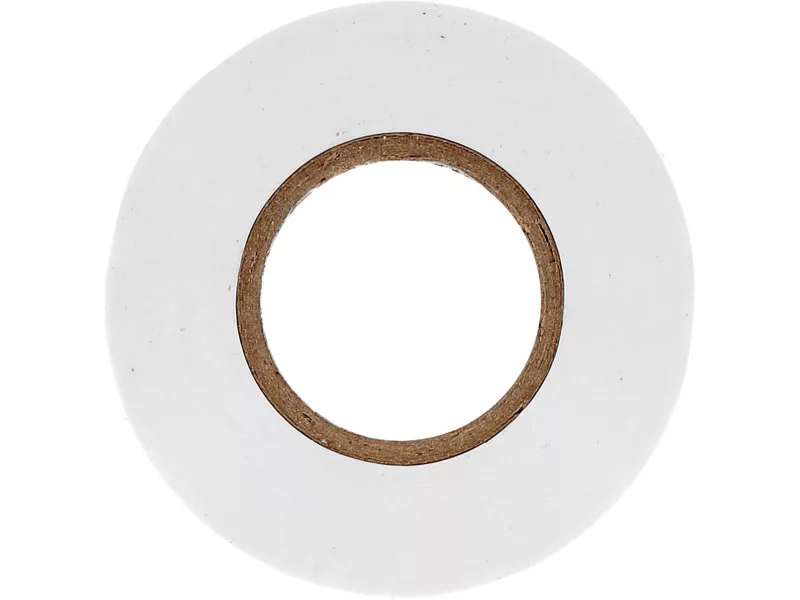

PVC electrical insulating tape for use in electrical installation work in the construction and automotive sectors. Works well when carrying out and maintaining electrical installations. Helpful for cable harnessing and wire marking.
- Colour: white
- fireproof
- dielectric strength > 40 kV/mm
- elongation > 125%
- storage temperature: 10°C~40°C
- temperature of use: 5°C~50°C
- premium quality rubber adhesive
- complies with EN60454-3-1-1/F-PVC/60/R-Tp
- Length: 20 m
- thickness: 0.13 mm
- material: PVC
The tape protects against:
- mechanical damage (abrasion, bending, etc.)
- physical damage (UV radiation, ageing processes)
- chemical damage (water and various chemicals)
- corrosion
