| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Width | 15 mm |
| Length | 20 m |
| Thickness | 0.13 mm |
| Material | PVC |
| Color | red |
| Standard | EN60454-3-1-1/F-PVC/60/R-Tp |
| Elongation | >125 % |
| Dielectric strength | >40 Kv/mm |
| Flame test | 1 s |
| Working temperature range | 10~40 ˚C |
| Storage temperature | 5~50 ˚C |
| Application | electrical installation works in construction and automotive industry (construction and maintenance of electrical installations, creating cable harnesses, marking wires), |
| Application contd | protection against mechanical damage (abrasion, bending, etc.), protection against UV radiation, protection against aging processes, |
| Application contd 2 | protection against chemical agents (water and various chemicals), corrosion protection |
| Symbol | YT-81592 |

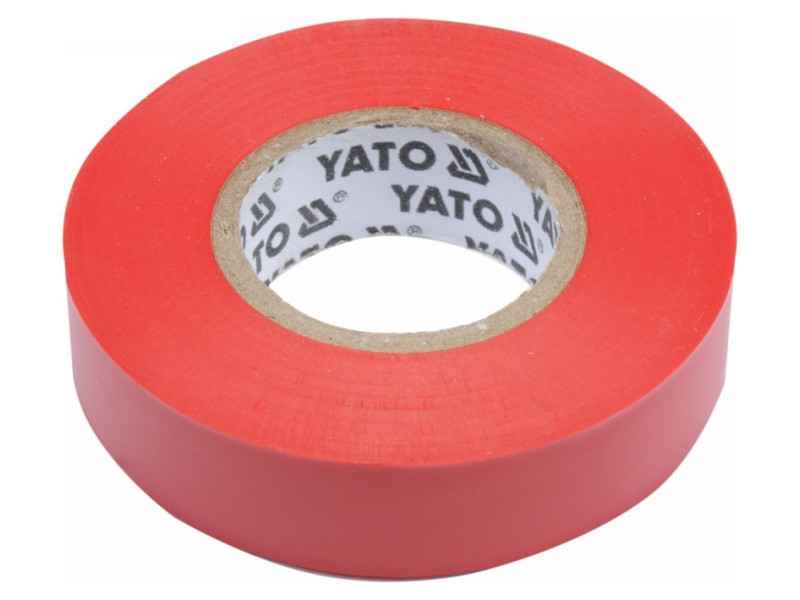

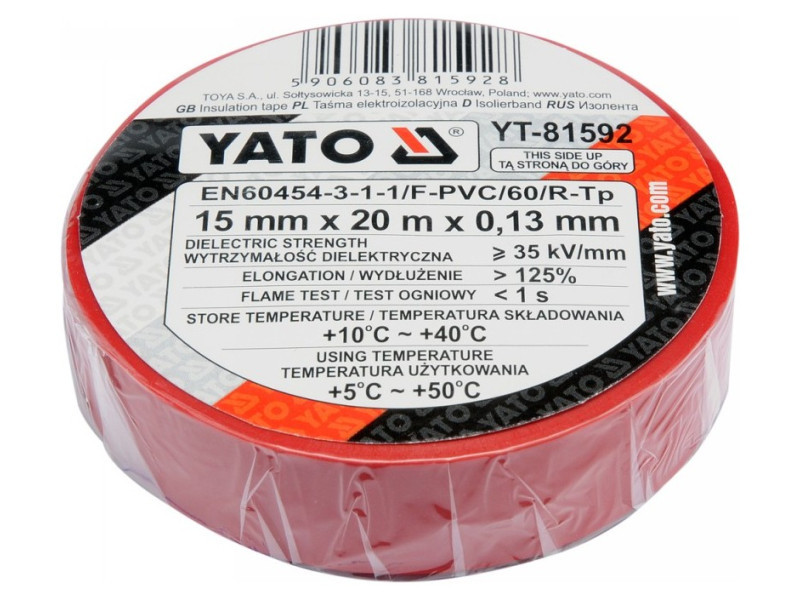

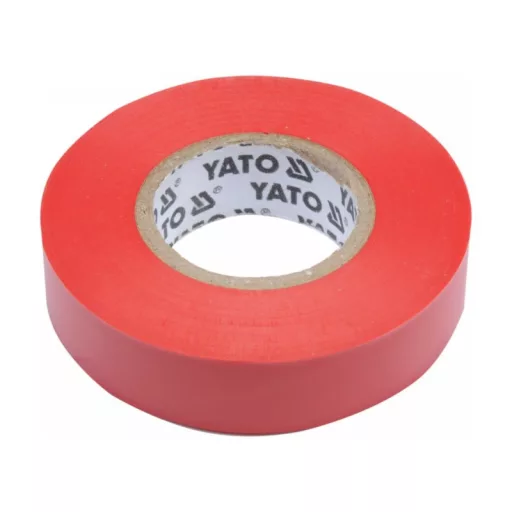

PVC electrical insulating tape with a size of 15 mm x 20 m x 0.13 mm.
- red color
- dielectric strength > 40kv / mm
- elongation > 125%. storage temperature +10 ~ +40 deg C.
- use temperature +5 ~ +50 deg C.
- Complies with EN60454-3-1-1/f-PVC/60/R-TP.
Mainly used in electrical installation work in construction and automotive, such as:
making and maintaining electrical installations
creation of cable harnesses
Marking wires Protective functions:
- against mechanical damage (abrasion, bending, etc.)
- physical (uv radiation, aging processes)
- chemical (water and various chemicals)
- corrosion
- fireproof
