| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 500 W |
| Peak power | 1000 W |
| Input voltage | 12 V d.c. |
| Input operating voltage | 10.5-15 V d.c. |
| Output voltage | 230 V a.c. |
| Output operating voltage | 220-240 V a.c. |
| Output frequency | 50 ± 10% Hz |
| Current intake without load | 0.7 A |
| Inverter switch-off input voltage | 9.5 ± 0.5 V d.c. |
| Input voltage overload | 15-16 V d.c. |
| Power overload | >760 W |
| Temperature overload | >60 ˚C |
| Low battery alarm voltage | 10 ± 0.5 V d.c. |
| Output signal characteristics | modified sine wave |
| volume | 80 % |
| Fuse | 32A x2 |
| Electric insulation class | I |
| Protection grade | IP20 |
| Weight | 0.73 kg |
| Application | for powering electrical devices requiring 230V alternating voltage from batteries and car installations with 12V direct voltage |
| Symbol | YT-81490 |

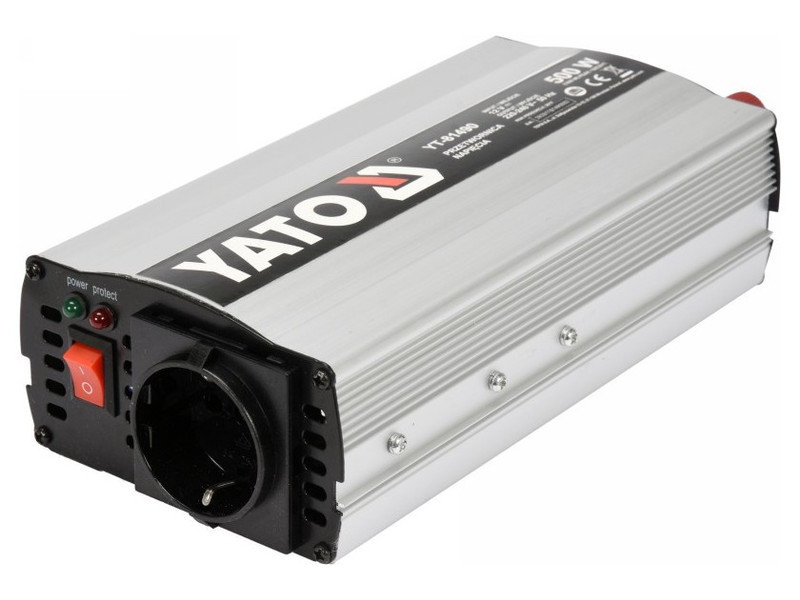

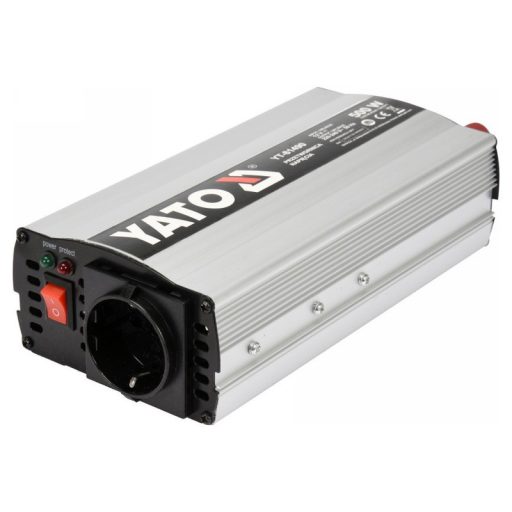

Voltage converter 12/230V 500W
Voltage converter is a device that allows you to power electrical equipment that requires mains power through a 12-volt car battery.
Thanks to its small size, light weight and high power, it is able to power many electrical devices in places without access to the power grid.
Parameters:
- rated input voltage [V d.c.]: 12
- operating input voltage [V d.c.]: 10,5 - 15
- rated output voltage [V a.c.]: 230
- operating output voltage [V a.c.]: 220 - 240
- rated output frequency [Hz]: 50 ± 10%
- rated power (continuous) [W]: 500
- peak power [W]: 1000
- efficiency [%]: ≥80

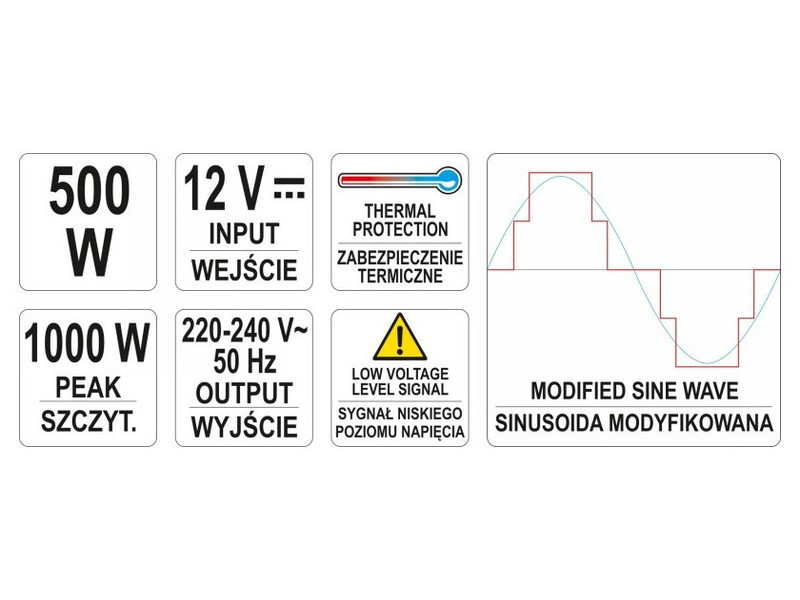

- output signal characteristics: modified sine wave
- no-load current consumption [A]: <0,7
- low battery alarm voltage. [V d.c.]: 10 ± 0,5
- inverter shutdown input voltage [V d.c.]: 9,5 ± 0,5
- power overload [W]: >760
- input voltage overload [V d.c.]: 15 - 16
- temperature overload [deg. C]: >60
- fuse: 35A x 2
- weight [kg]: 0,73
- protection degree: IP20
- electrical insulation class: I
Additional information:
- low battery voltage indication
- the inverter is equipped with a fan that will start automatically during the operation of the inverter and help cool the electrical systems of the inverter
