| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Length | 20 m |
| Extension cord type | building |
| Max. power | 3680 W |
| Max. current | 16 A |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Nest type | E & F |
| Plug type | E |
| Earthing | yes |
| Socket quantity | 3 |
| Wire insulation type | H07RN-F |
| Wire section area | 3Gx1.5 mm² |
| Color | black |
| Protection grade | IP44 |
| Switch | no |
| Children protection | yes |
| Symbol | YT-81162 |

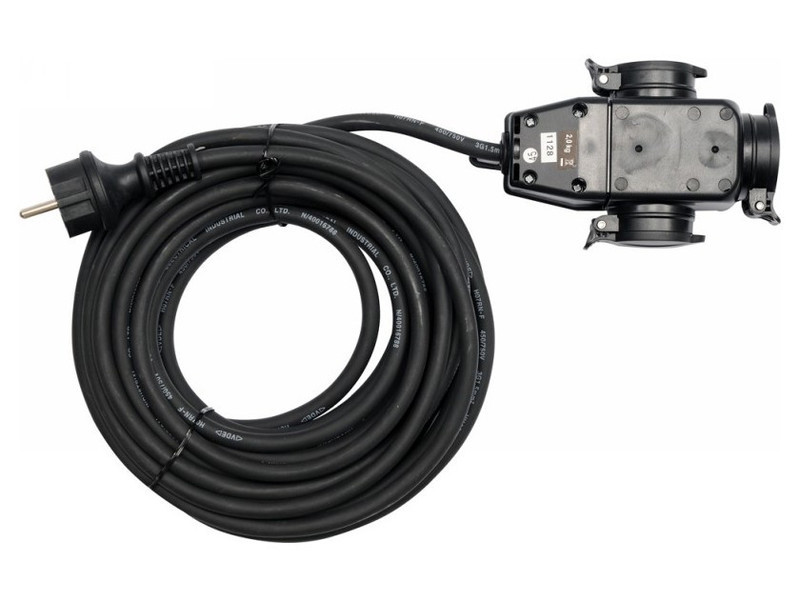

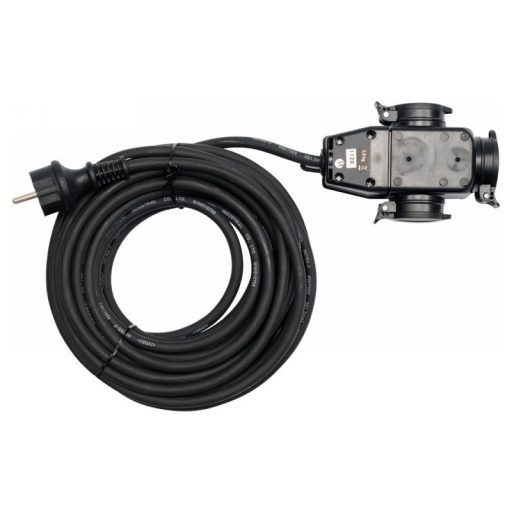

Building and workshop extension cable YT-81162 with a length of 20 meters with a distributor and 3 dust- and splash-proof sockets. The neoprene rubber sheathed cable makes the extension cord suitable for indoor as well as outdoor use, such as construction sites, gardens, yards in front of factories. The construction of the extension cord is designed for use at construction sites or workshops with power tools.
- Voltage and frequency rating: ~230V/50Hz
- Maximum load: 3680 W
- copper three-conductor cable of 1.5 mm², length 20 m
- .External insulation made of neoprene rubber is high resistance to mechanical damage, atmospheric factors (sun, cold) chemical substances (cutting oils, gasoline, or ethyl and methyl alcohols) as well as inertness to flames
-
- natural rubber insulation is used for the individual conductors
- the dust- and splash-proof sockets with IP44 rating guarantee protection against moisture or dust and sand
The designation H07RN-F denotes a tire cable made according to the harmonized standard (H), for a rated voltage of 450/750V. (07), with natural rubber insulation (R), with neoprene sheath (N) and flexible multi-stranded conductors (-F).
Technical data:
- unit: pcs.
- color: black
- number of slots: 3
- extension cord type: construction
- grounding: yes
- length [m]: 20
- conductor cross-section: 1.5
- number of conductors [pcs]: 3
- type of insulation: RN-F
- grade of protection [IP]: 44
