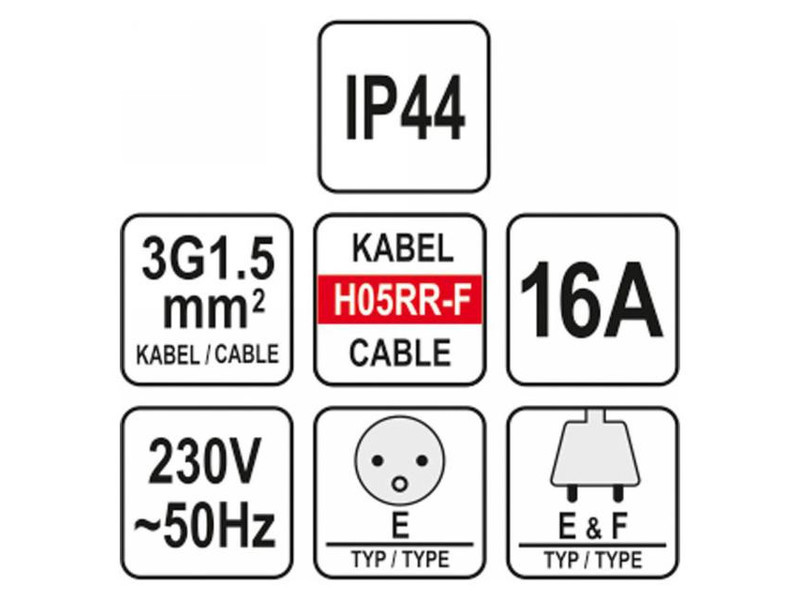

| Brand | Yato |
| Series | GRF |
| Extension cord type | building |
| Max. power | 3680 W |
| Max. current | 16 A |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Nest type | E & F |
| Plug type | E |
| Earthing | yes |
| Socket quantity | 1 |
| Wire insulation type | H05RR-F |
| Wire section area | 3Gx1.5 mm² |
| Color | black |
| Length | 20 m |
| Protection grade | IP44 |
| Switch | no |
| Children protection | yes |
| Symbol | YT-81022 |

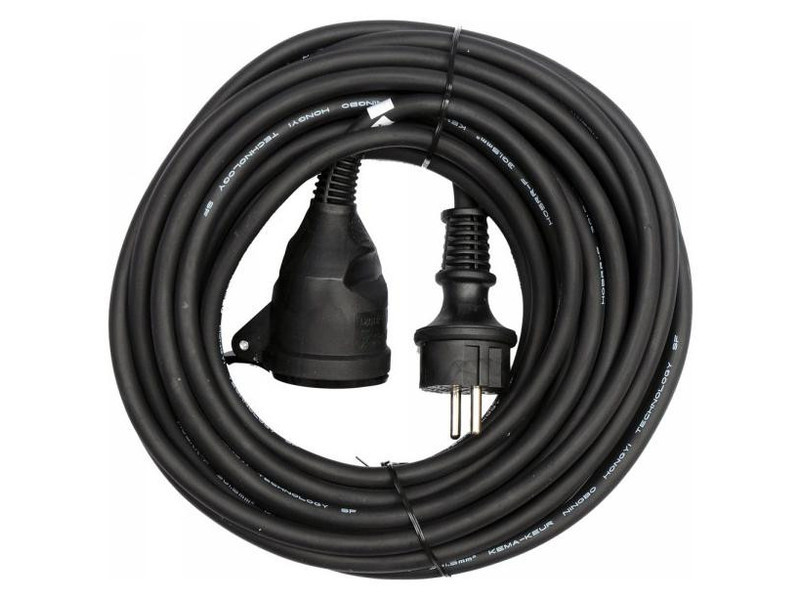

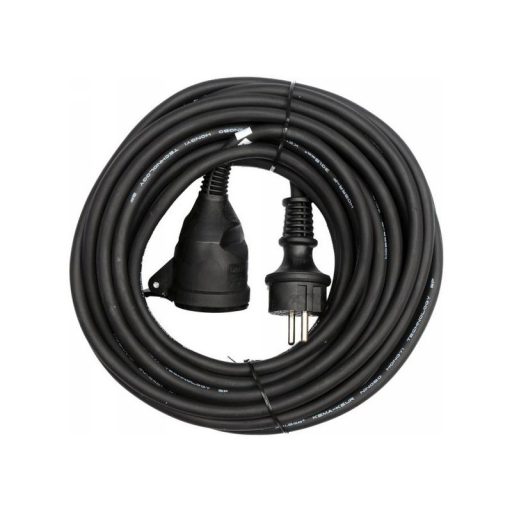

High-quality insulated extension cord with a length of 20 m. The wire is made of 3 copper conductors of 1.5 mm² each. Such a wire cross-section makes it possible to connect to these extension cords equipment often used on the construction site, in the workshop or manufacturing plant.
The cables are covered with insulation made of natural rubber H05RR-F, which characterized by high resistance to mechanical damage, atmospheric factors, chemical substances (cutting oils, gasoline, or ethyl, methyl alcohols). Such insulation provides a voltage rating of 300V / 500V. In addition, the extender is made according to IP 44 standard.
Thanks to the use of dustproof and splashproof plugs, it allows these extension cords to be used both indoors and outdoors, such as on construction sites, in gardens, in yards in front of factories. Thanks to splash-proof and dust-proof, it provides excellent protection against moisture or dust and sand.
Purpose / application
Indoors as well as outdoors, such as construction sites, gardens, yards in front of factories.
Technical data:
- color: black
- number of outlets: 1
- extension type: construction
- grounding: yes
- length [m]: 20
- cable cross-section: 1.5
- number of conductors [pcs]: 3
- type of insulation: RR-F
- industrial protection [IP]: 44
