| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 3000 W |
| Force pressure | 8 t |
| Max. pressure | 21 MPa |
| Max. rotations | 2800 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Log diameter | 80-300 mm |
| Trunk length | 100-550 mm |
| Dimensions | 84.5x93.5x150 cm |
| Oil tank capacity | 4 l |
| Working mode | S6 40% 10 min |
| Nominal current | 13 A |
| Acoustic pressure | 71.7 ± 3.0 / 74.8 ± 3.0 dB(A) |
| Acoustic power | 87.9 ± 3.0 / 90.6 ± 3.0 dB(A) |
| Electric insulation class | I |
| Protection grade | IP54 |
| Weight | 109.9 kg |
| Symbol | YT-79955 |

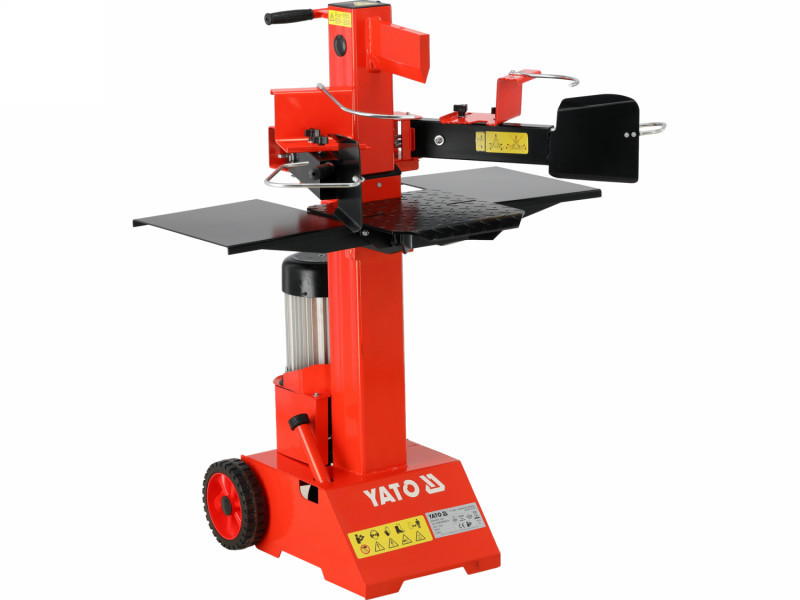

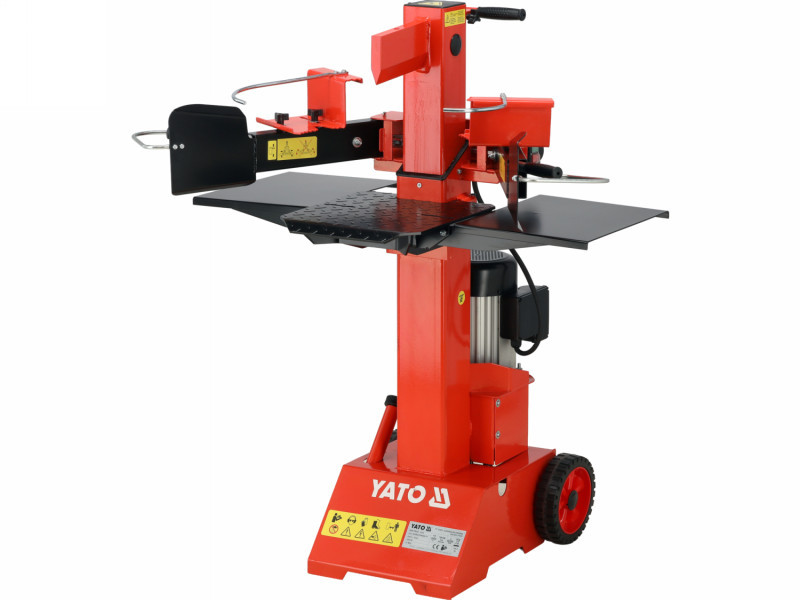

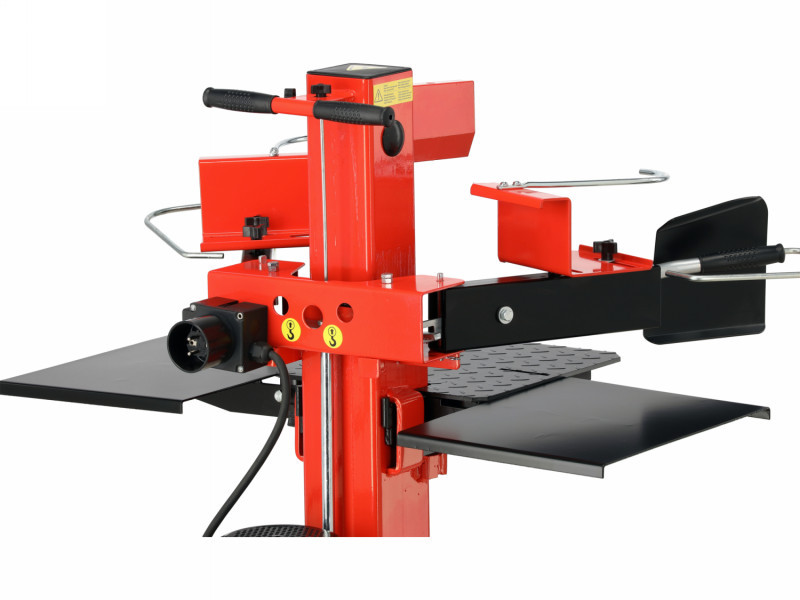

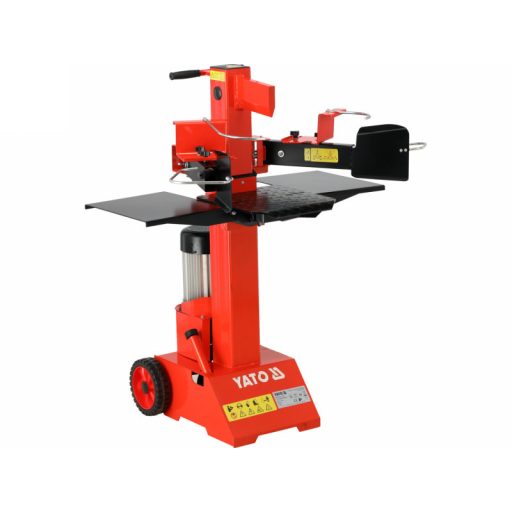

An efficient and powerful hydraulic wood splitter designed for regular fuel preparation in households and for semi-professional work. The vertical construction facilitates handling larger logs without the need to lift them to the working height. The pressure force of 8 tons combined with a 3000 W motor enables quick splitting of firewood and boiler wood, reducing the physical effort of the operator and shortening the time needed to prepare the supply for the season. The device handles wood up to 550 mm in length and 300 mm in diameter.
The hydraulic system with a maximum pressure of 21 MPa operates evenly, without jerking, allowing the wedge to guide steadily even in hard wood. The stable, properly balanced construction reduces vibrations and improves control over the splitting process. A moderate level of noise allows for safe and comfortable use of the device in domestic conditions.
Working parameters:
- pressure force: 8 tons
- electric motor: 3000 W
- power supply: 230 V
- maximum hydraulic pressure: 21 MPa
- max. speed: 2800 rpm
- log length: 100-550 mm
- log diameter: 80-300 mm
- adapted for intensive cyclic work under load: S6 40%
- low vibration level: 2.5 m/s²
- noise level: 74.7 dB(A) unloaded / 77.8 dB(A) at full load
- hydraulic cylinder diameter: 70 mm
- oil tank capacity: 4 l
- protection class IP54
- dimensions: 84.5 x 93.5 x 150 cm
- weight: 109.9 kg
Application:
- preparing wood for fireplaces and stoves
- fuel for central heating boilers
- garden fireplaces and smokehouses
- use in households, allotments, and workshops
- effective splitting of hard and knotty logs
Usage warnings:
Danger! Keep clear of moving parts! Wear eye protection! Wear protective gloves! Wear safety footwear! Wear hearing protection!
